Specifications
Weight
Net Weight
72 g (2.53 oz.)
Electrical
Output Impedance @ 1 Khz
2400 Ω
Maximum SPL 1000 Ω Load, @ 1% THD
153.0 dB
Power Requirements
+5 V DC (nominal), 10 V maximum (DC bias)
Maximum SPL 1000 Ω Load, @ 1% THD
153.0 dB
Audio
Polar Pattern
Cardioid
Frequency Response
40 Hz - 20 kHz
Audio Output Level
-59.0 dBV/Pa
Signal-To-Noise Ratio @ 1 kHz
55 dB
Dynamic Range @ 1 Khz, 1000 Ω load
114.0 dB
Signal-To-Noise Ratio @ 1 Khz
55 dB
Dynamic Range @ 1 Khz, 1000 Ω Load
114.0 dB
Connectivity
Equivalent Output Noise typical, A-Weighted
39 dB
Connector
TA4F
Equivalent Output Noise Typical, A-Weighted
39 dB
Construction
Cable
1.1 m (45 in.)
Included Items

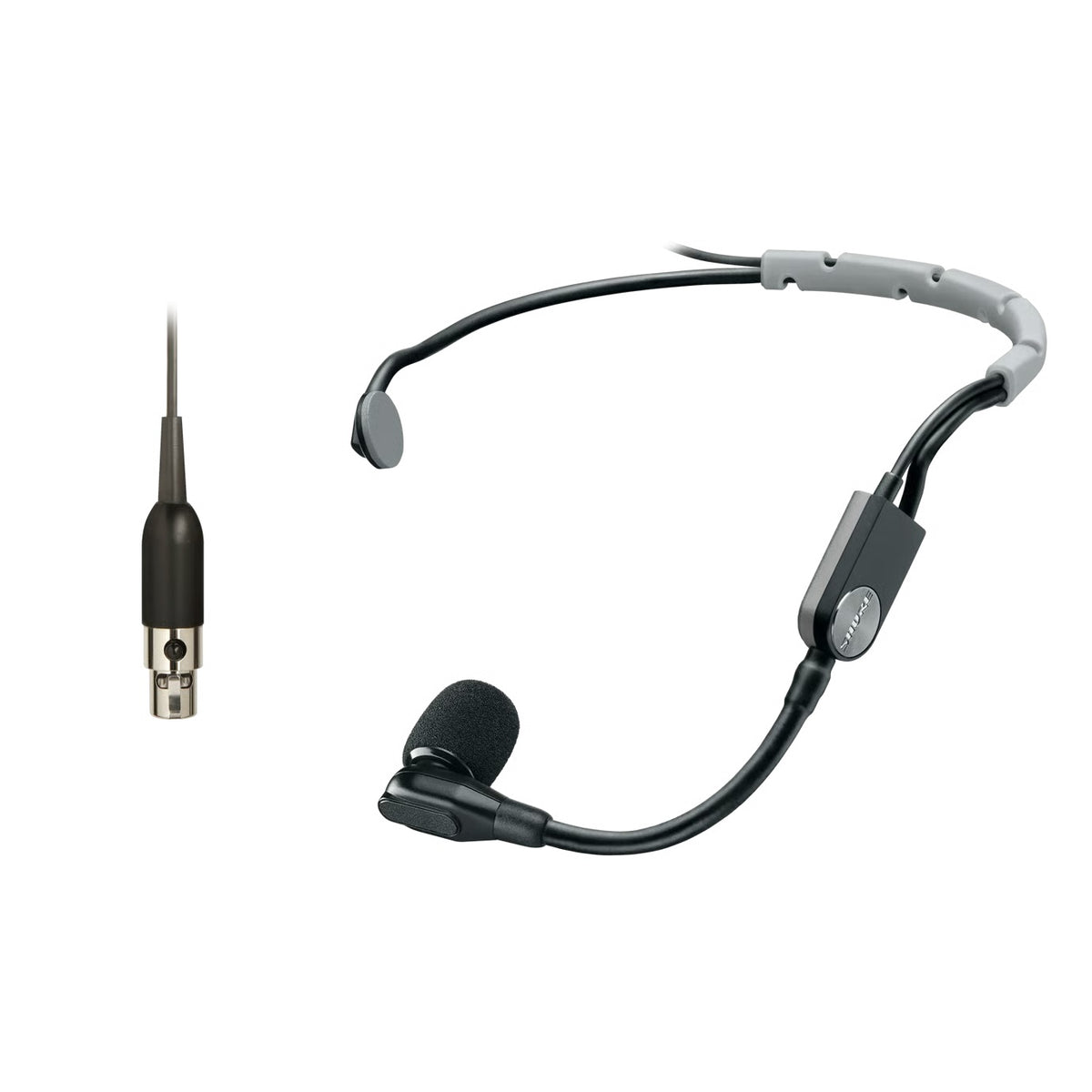

SM35 Headset Microphone
1x
Windscreens
2x
Headset Clip
1x
General
Transducer Type
Condenser
Polarity
Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
