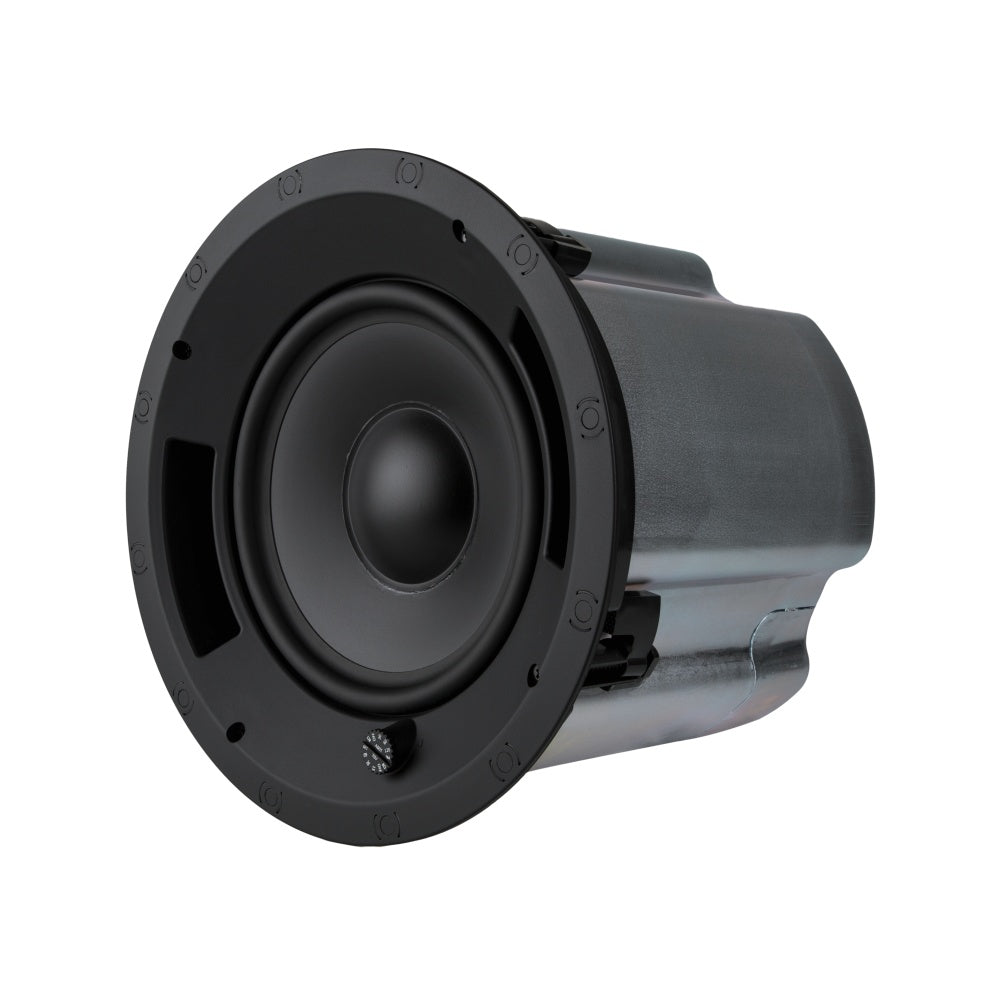

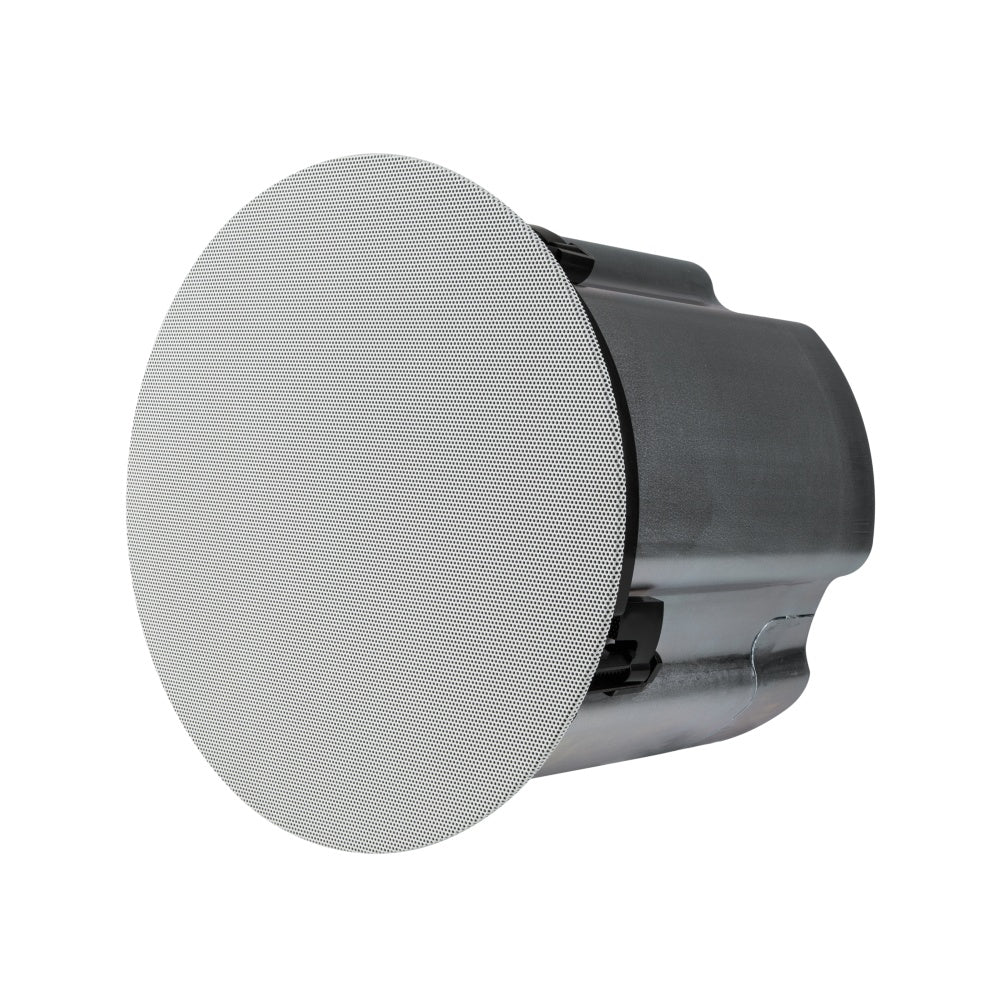

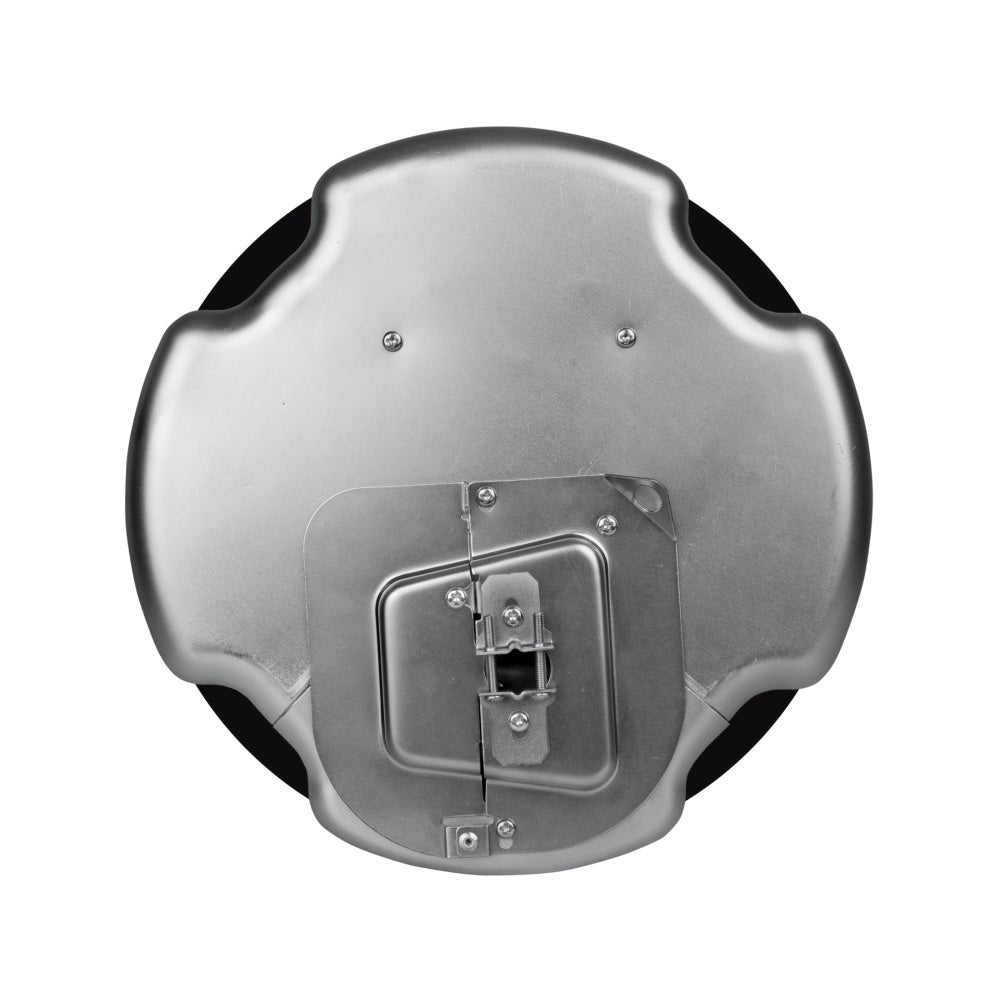

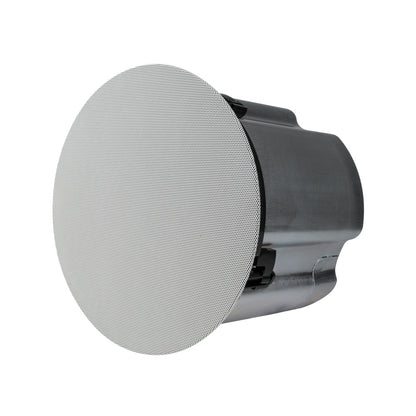

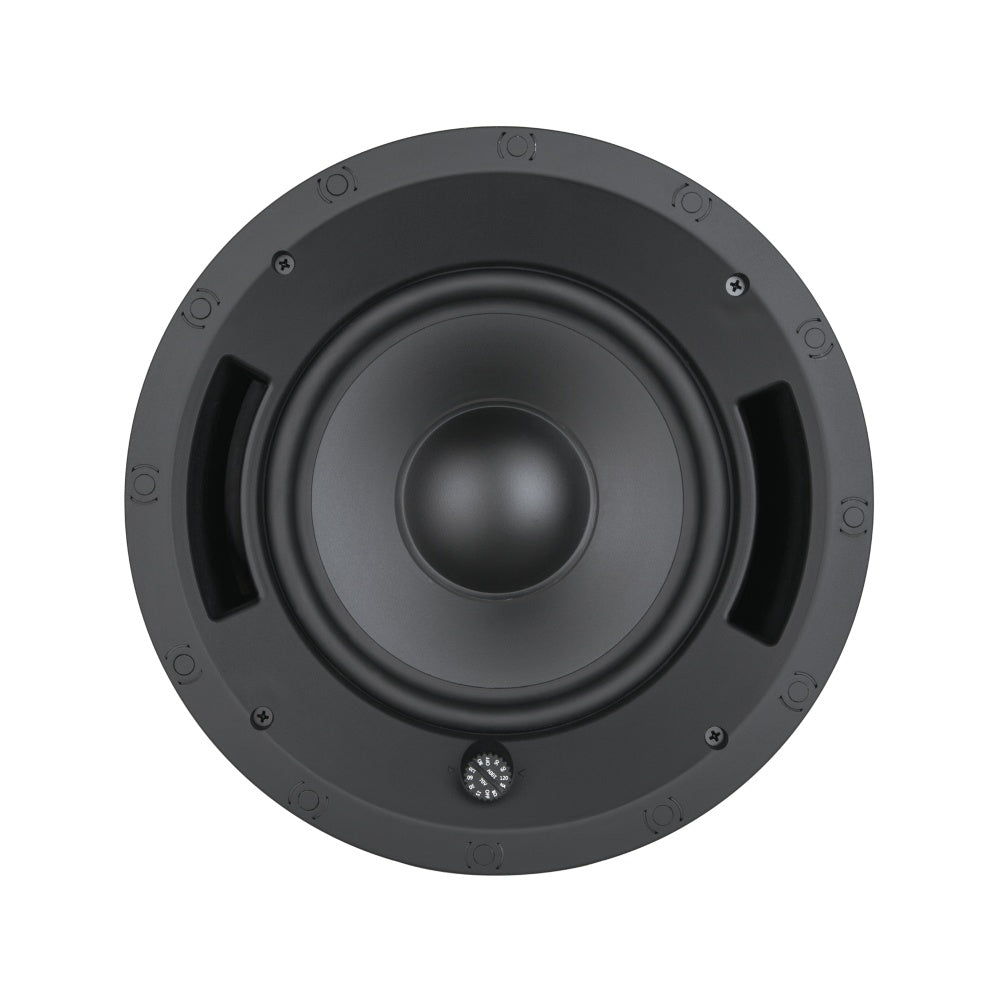

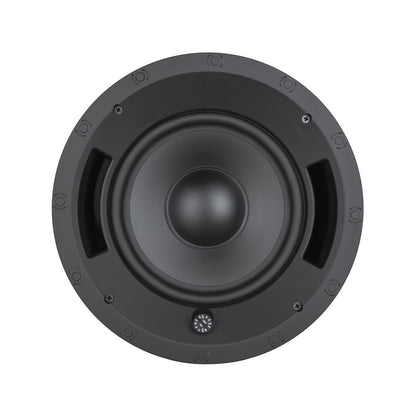

Sonance Pro Series PS-C83RWT In-Ceiling Subwoofer With Included Tile Bridge

Sonance Pro Series PS-C83RWT In-Ceiling Subwoofer With Included Tile Bridge

SoundPro Item: 205695 | Part Number: 40133

$505.00
$505.00 $505.00
Your Price Sold out
MSRP: $505.00 | MAP: $505.00

Usually ships in 5-7 business days

  • Dedicated 8-Inch In-Ceiling Subwoofer Module For Pro Series Bass Augmentation
  • Ultra-High-Excursion 8" Polypropylene Woofer For Impactful Low-Bass Extension
  • One-Piece Magnetic Bezel-Less Grille With One-Step Paintability
  • Optional Square Grille Adapter For Downlight And HVAC Visual Alignment
  • Sealed Metal Enclosure With Loop-Through Wiring And Seismic Attachment
  • UL 1480 And UL 2043 Certified - C-Bracket And Tile Bridge Included
  • Pairs With Pro Series PS-C / PS-P Full-Range Speakers To Extend System Low-End
Log in or register for YOUR best price

The Sonance Professional Series PS-C83RWT is a dedicated 8-inch in-ceiling subwoofer module designed to augment Pro Series full-range speakers with effortless, impactful low-bass extension at any sound pressure level. An ultra-high-excursion 8-inch polypropylene woofer delivers the deep bass that small ceiling speakers cannot reach on their own — useful in restaurants, fitness studios, retail, and hospitality where program material demands more low-end weight than a single full-range driver can provide.

The one-piece magnetically-secured bezel-less grille supports a one-step painting process to blend the woofer into finished ceilings, and the optional Square Grille Adapter matches the aesthetic of square downlights and HVAC grilles. The PS-C83RWT features a sealed metal enclosure, integrated cable and conduit clamping, removable Euroblock connector with loop-through, swing-open connector cover, and seismic attachment. Certified for UL 1480 and UL 2043. The C-Bracket and Tile Bridge is included with this speaker.

Pair with the matching grille, square adapter, or rough-in bracket ordered separately to complete the installation.

Downloads

View full details

Specifications

Warranty
LIMITED FIVE (5) YEAR
Color/Finish
White
Speaker Shape
Round
Frequency Response (-3dB)
50Hz – 150Hz
Frequency Response (-10dB)
32Hz – 300Hz
Nominal Impedance
8 Ohms
Power Handling
300W program, 150W pink noise
Sensitivity
89dB (2.83V/1m)
Country of Origin
CHN
UPC
041093401336
HTS Code
8518.21.0000
Speaker Size
8"
Product Weights and Dims
Depth
9.84" (249.94 mm)
Weight
14.95 lbs. (6.78 kg)
Shipping Weights and Dims
Base UOM
EA
Base Dimensions
14.25" x 16.37" x 27.1" (361.95 mm x 415.8 mm x 688.34 mm)
Base Height
16.37" (41.58 cm)
Base Width
14.25" (36.2 cm)
Base Depth
27.1" (68.83 cm)
Base Weight
21.33 lbs. (9.68 kg)
Master Pack Height
17.5" (44.45 cm)
Master Pack Width
27.25" (69.22 cm)
Master Pack Depth
14.75" (37.47 cm)
Master Pack Weight
31.0 lbs. (14.06 kg)
Master Pack Units
1
Pallet Units
9
