Sonance Professional Series PS-S85T Surface Mount Speaker | White

Sonance Professional Series PS-S85T Surface Mount Speaker | White

SoundPro Item: 205893 | Part Number: 40235

$667.00
$667.00 $667.00
Your Price Sold out
MSRP: $667.00 | MAP: $667.00

In stock and ready to ship

  • IPX4-Rated Enclosure Supports Covered Outdoor And Moisture-Prone Indoor Deployments
  • Interchangeable Collar And Horn Assembly Included For Field-Selectable Coverage Patterns
  • Coaxially Mounted Neodymium Compression Driver Optimized For High-SPL Commercial Environments
  • Integrated 70V/100V Transformer With User-Selectable Power Taps Up To Full System Capacity
  • UL 1480A And NFPA-Compliant Construction Meets Commercial Installation Code Requirements
  • Triple Suspension Points Enable Flexible Surface-Mounting Orientation With Optional C-Bracket
  • Euroblock Input With Loop Output Simplifies Daisy-Chain Wiring In Distributed Audio Runs
Log in or register for YOUR best price

The Sonance PS-S85T is engineered for integrators and AV system designers specifying high-output surface-mount loudspeakers in commercial and light outdoor environments. Its UL94V-0 polypropylene enclosure carries an IPX4 ingress protection rating, making it a credible choice for covered exterior applications, atriums, natatoriums, and large-venue interiors where moisture exposure is a concern. The UL 1480A, CSA-C22.2 No.205, NFPA70, and NFPA 90A certifications satisfy the compliance requirements typical of commercial construction projects and fire-rated distributed audio systems.

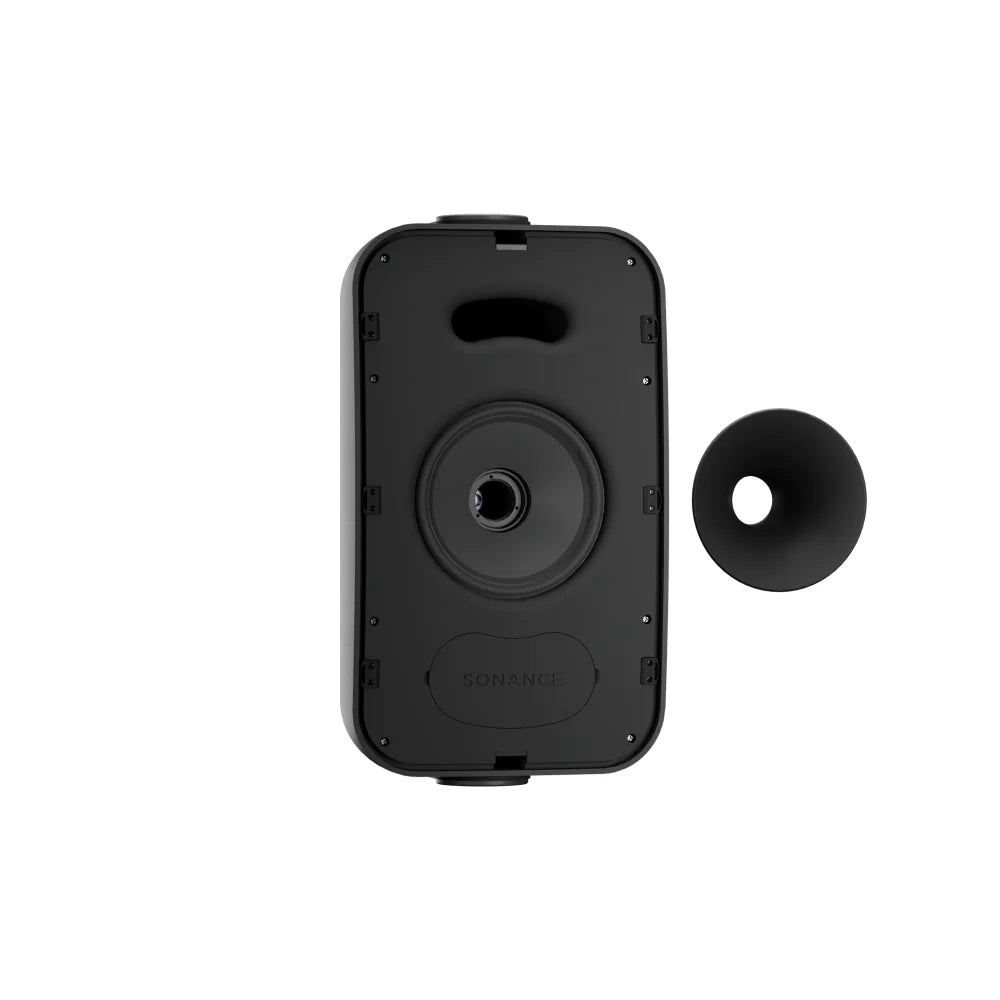

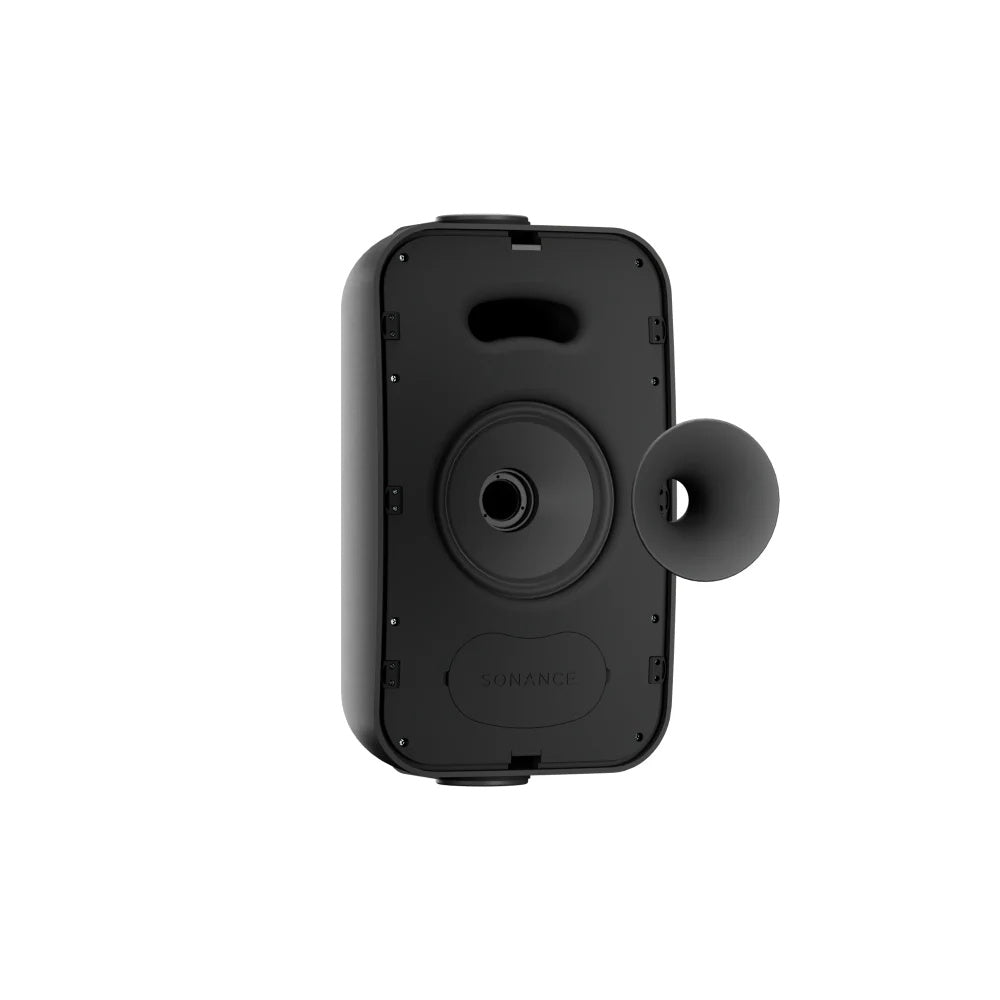

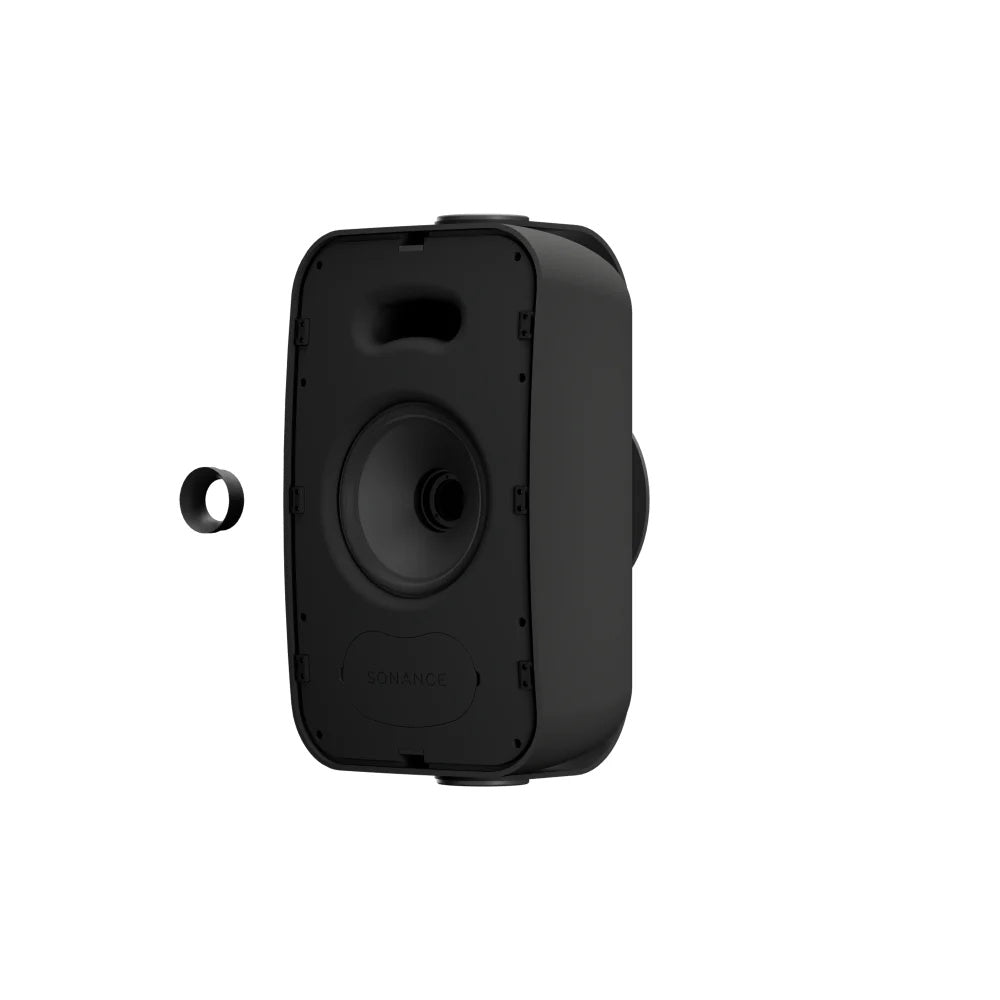

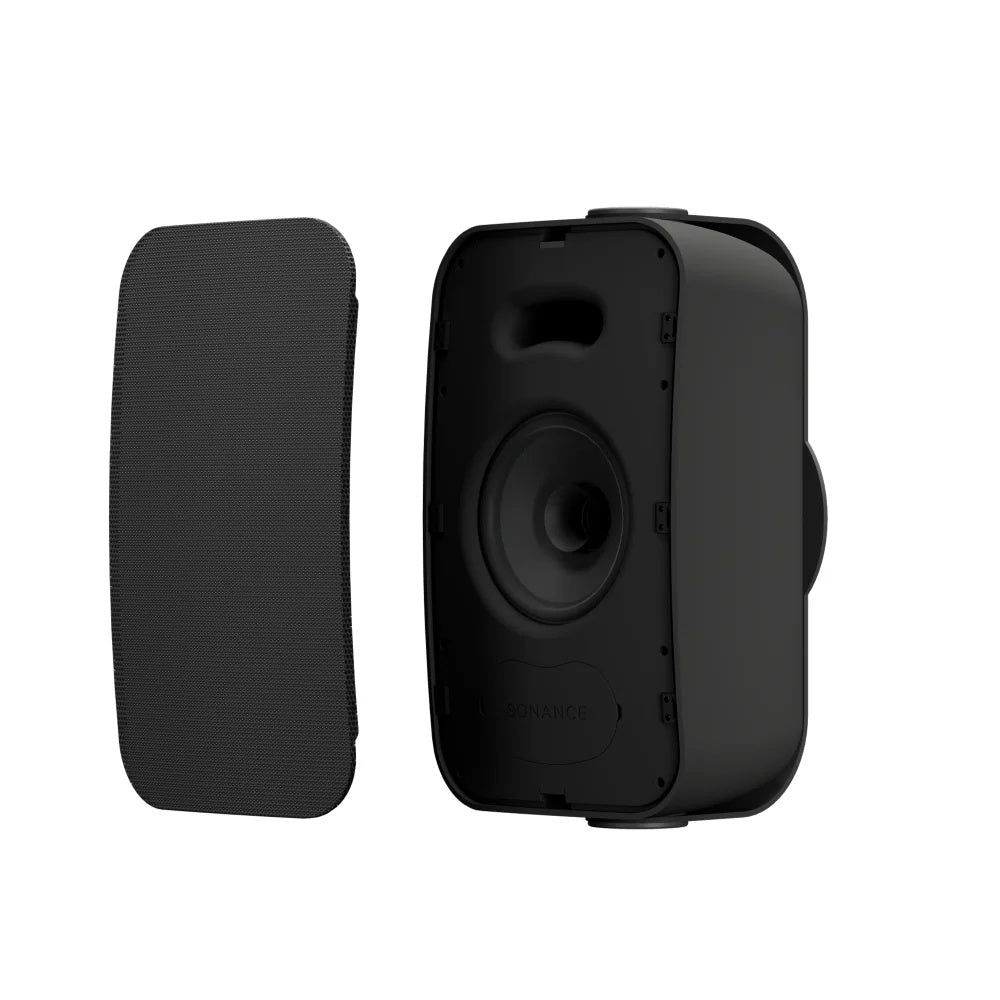

At the heart of the design is an 8" aluminum cone woofer paired with a coaxially mounted 1.4" neodymium compression driver crossing over at 1500Hz. The integrated laminated-core transformer supports 70V and 100V distributed systems with user-selectable taps up to 120W, allowing system designers to optimize coverage without external transformer boxes. The interchangeable collar and horn assembly — included in the box — enables field adjustment between 120° and 80° axis-symmetric coverage patterns without requiring additional parts on order, a meaningful advantage during commissioning or zone reconfiguration.

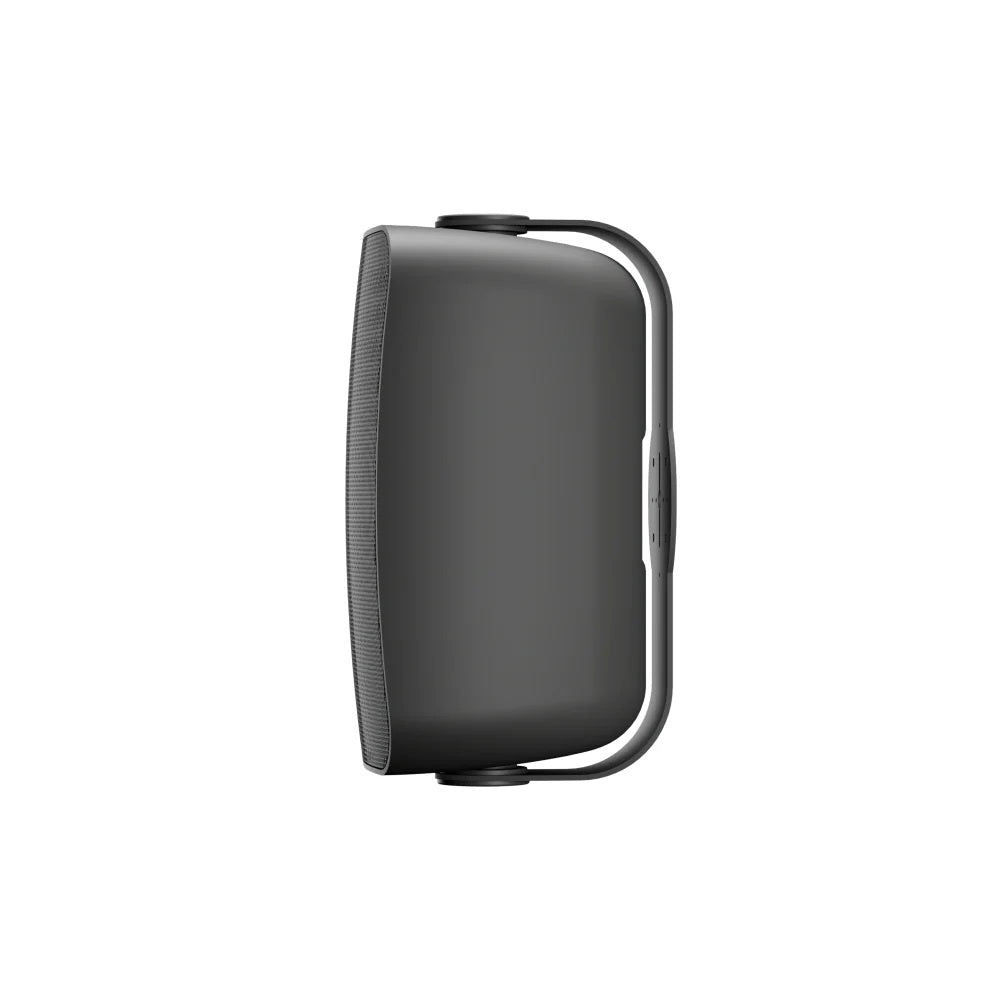

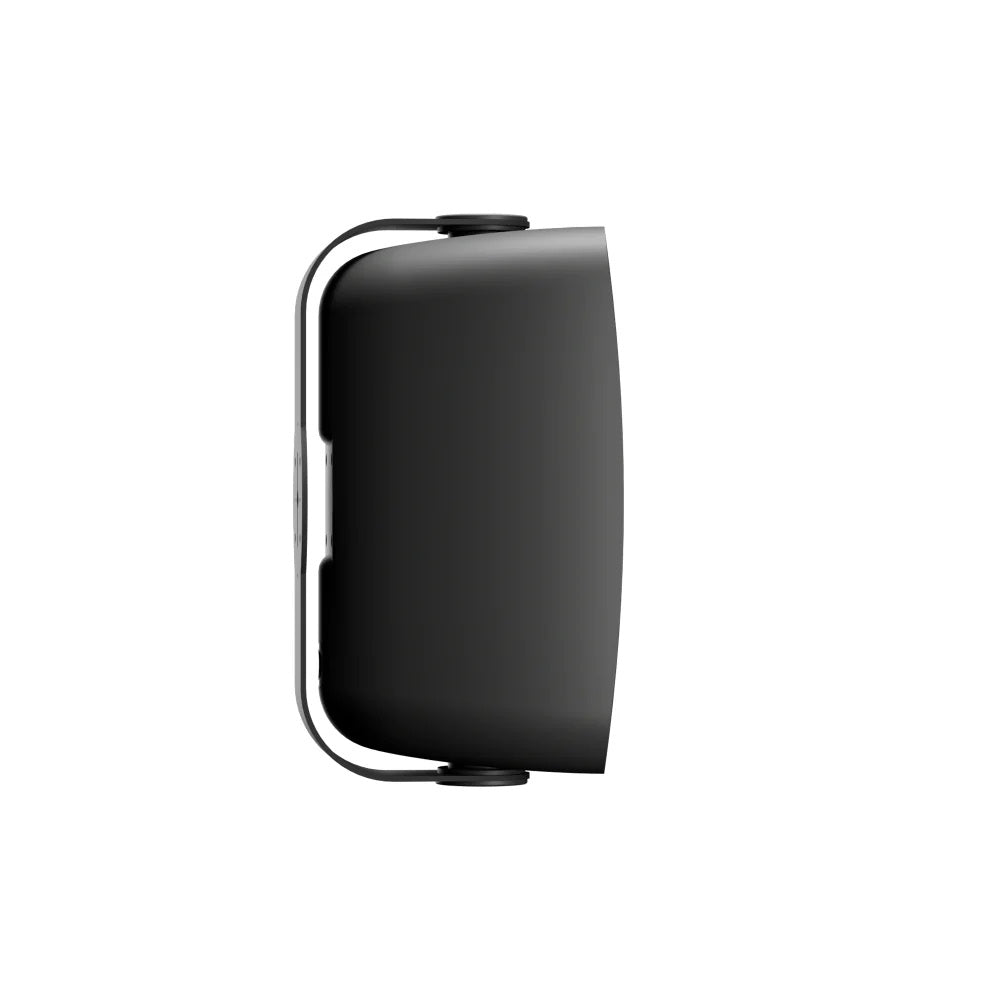

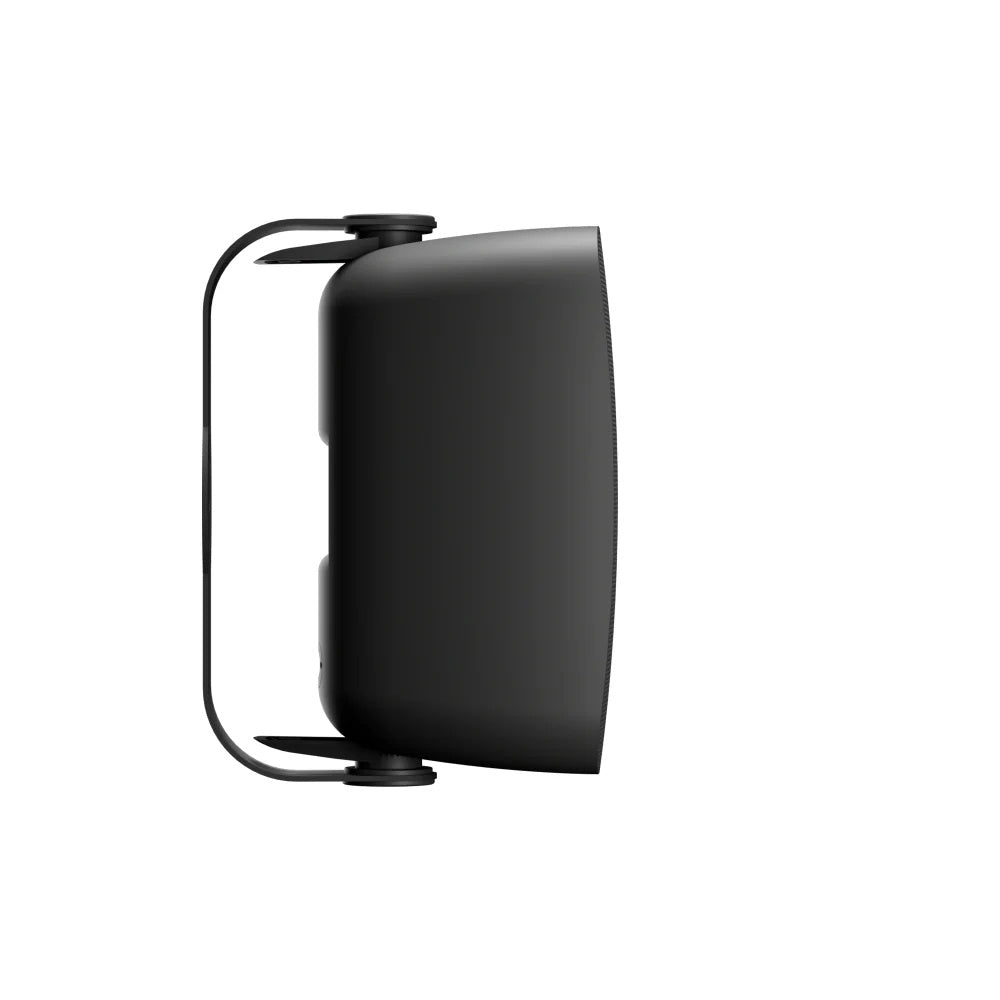

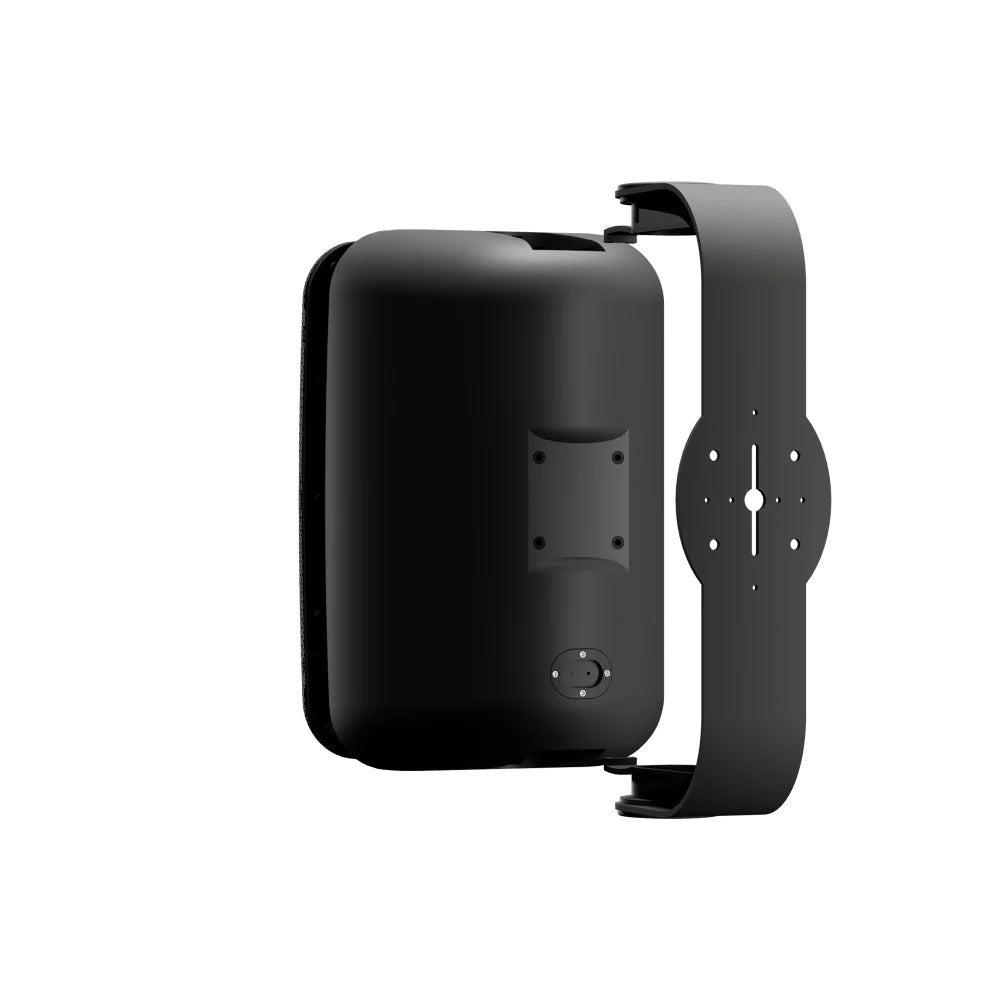

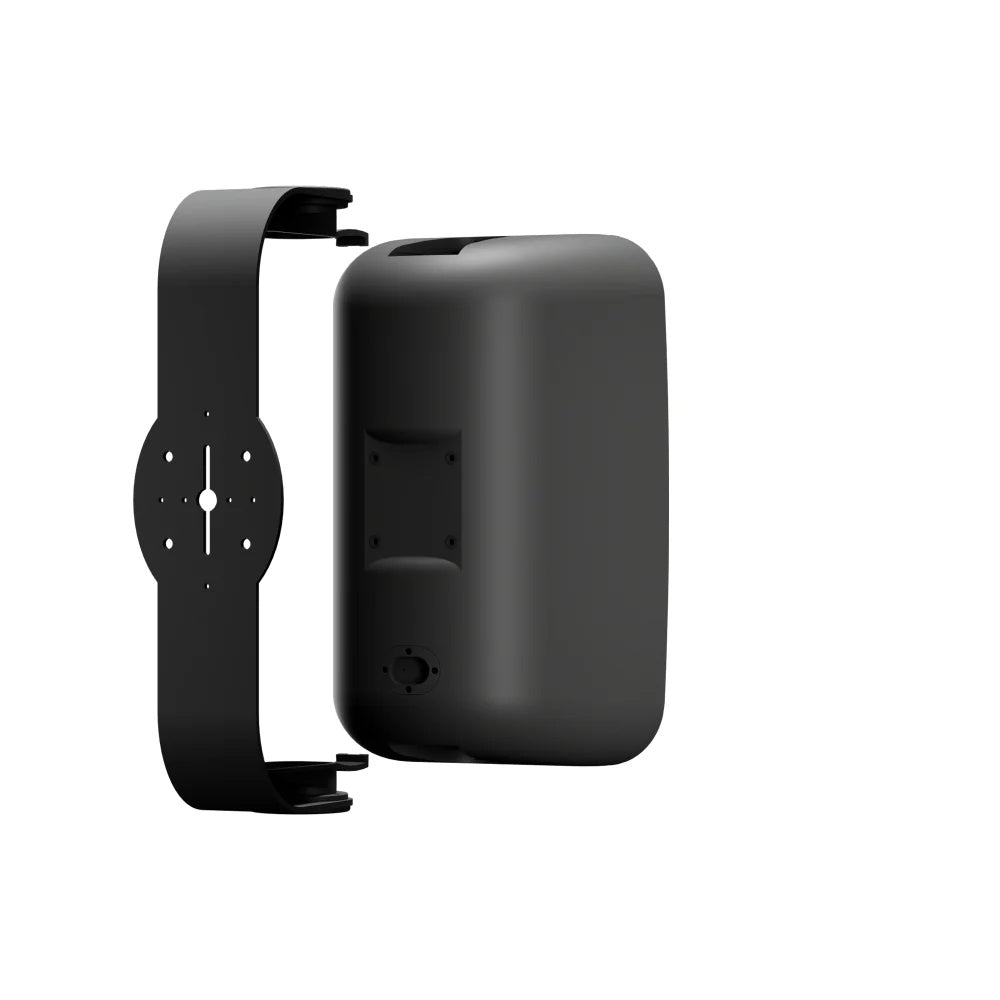

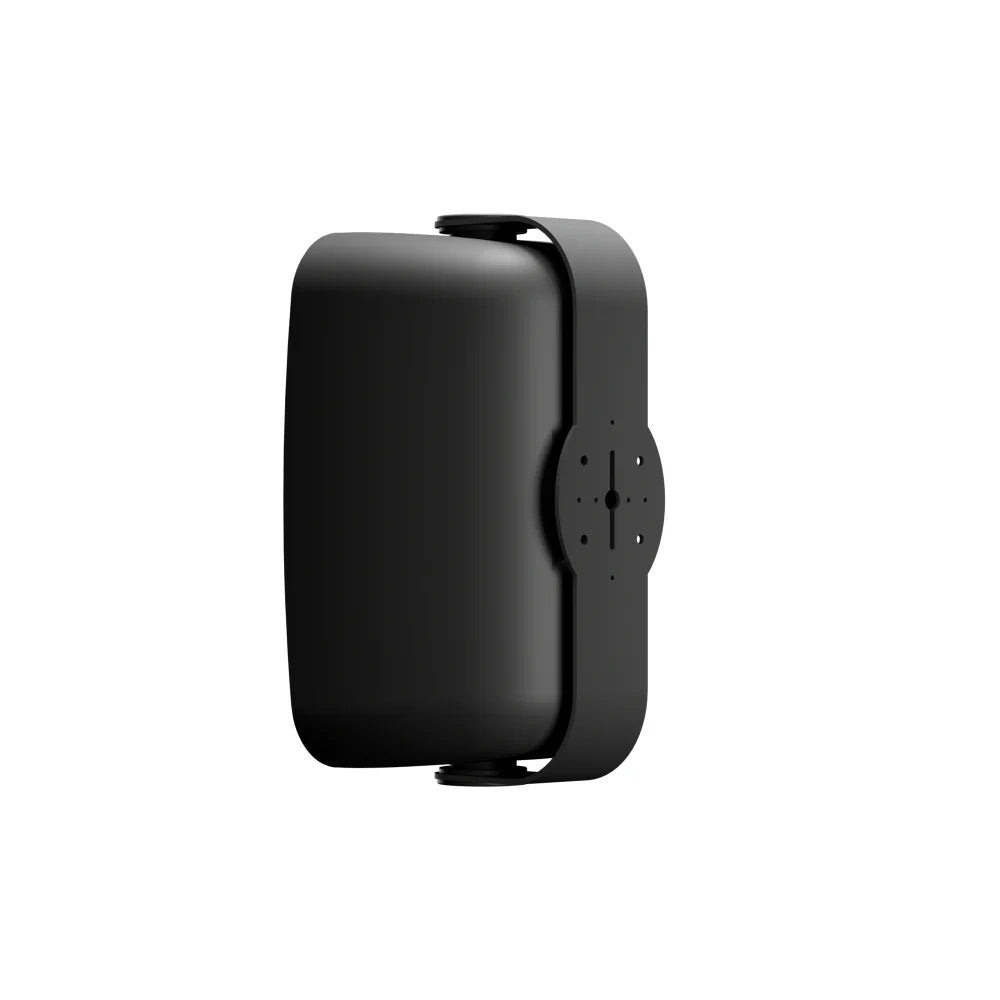

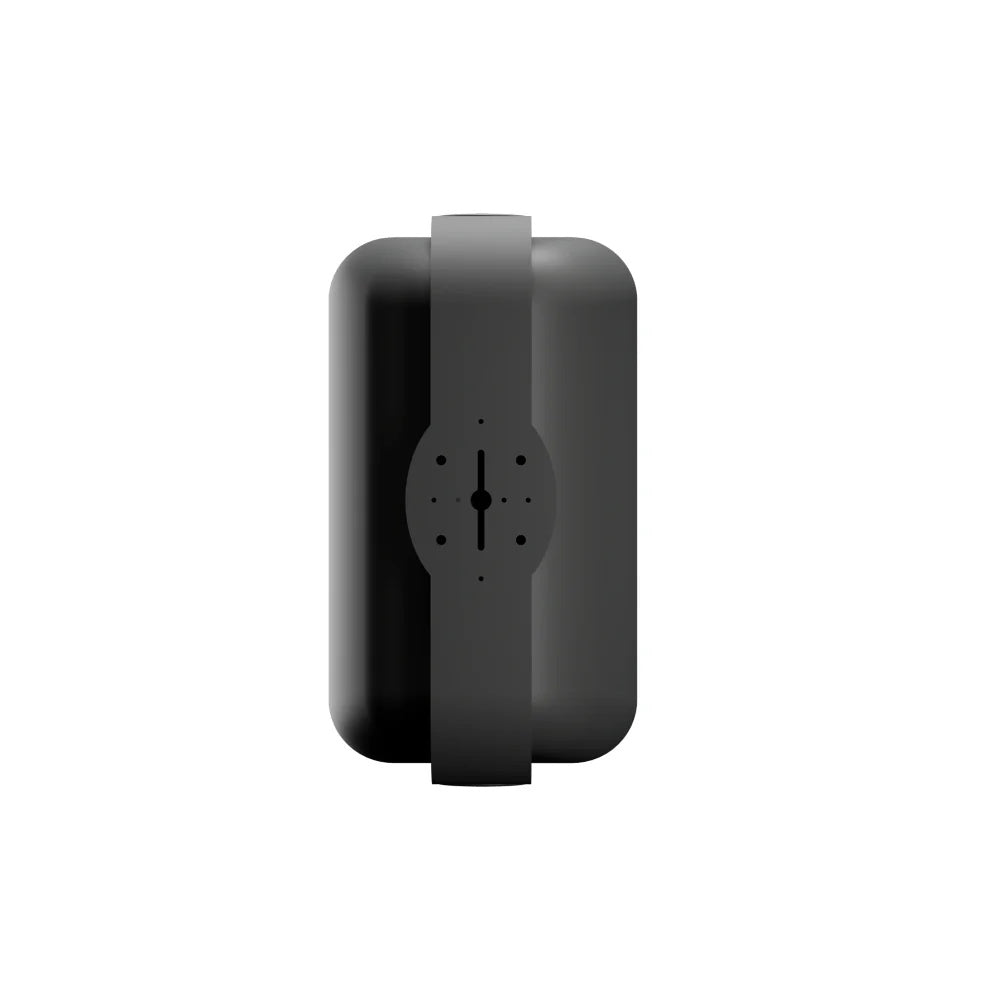

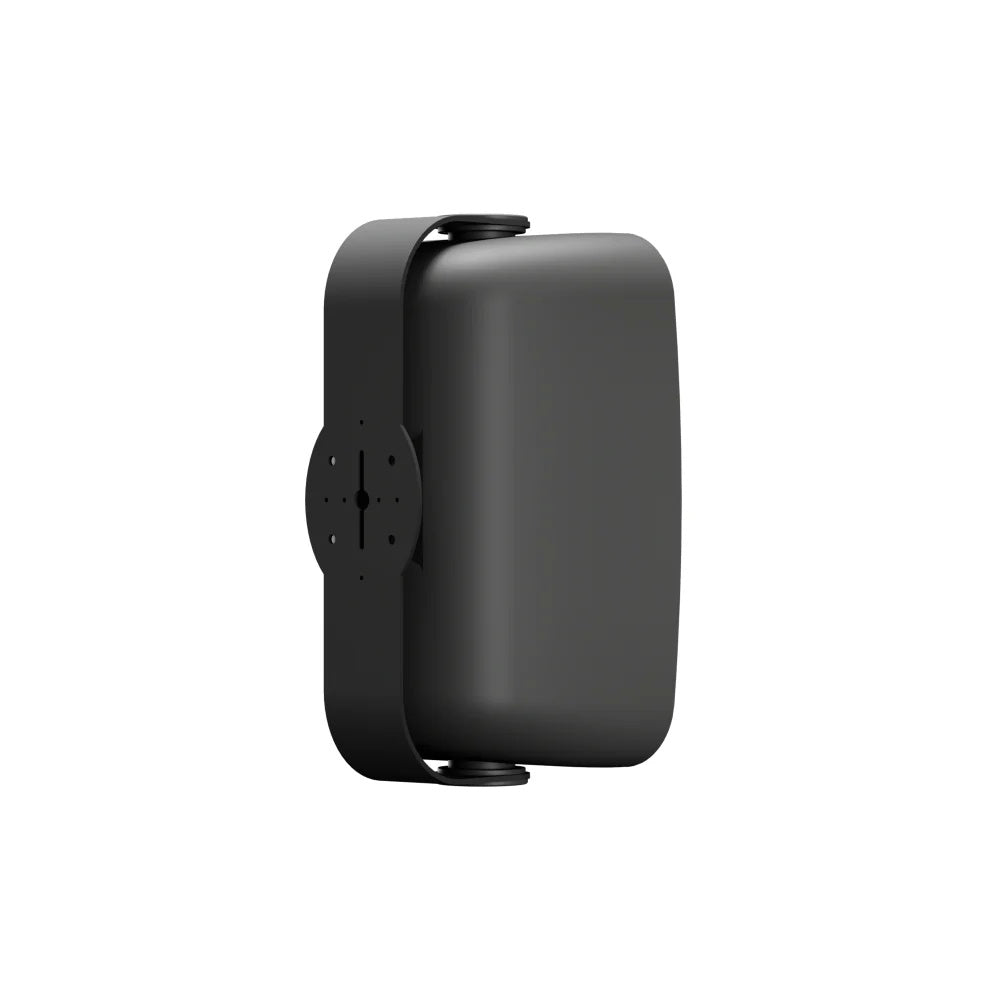

Suspension points on the top, bottom, and rear of the enclosure provide flexible surface-mounting geometry, and optional C-bracket compatibility gives installers additional positioning options. The Euroblock input with loop output facilitates clean daisy-chain wiring in distributed runs. For projects where a matched aesthetic is required, the PS-S85T is available in both White (RAL 9003) and Black (RAL 7021) finishes.

Downloads

View full details

Specifications

Certifications
UL Rating
UL 1480A
CSA Rating
CSA-C22.2 No.205
NFPA Compliance
NFPA70, NFPA 90A
Ingress Protection
IPX4
Enclosure Material Rating
UL94V-0
Dimensions
Width
11.57"
Height
19.47"
Depth
10.25"
Width (mm)
293.88mm
Height (mm)
494.54mm
Depth (mm)
260.35mm
Height With C-Bracket
20.86"
Depth With C-Bracket
11.02"
Back Enclosure Volume
0.83 cubic feet (23.5 liters)
Weight
Unit Weight
29.3 lbs. (13.29kg)
Audio
Frequency Response (+/-3dB)
41.4Hz - 20kHz
Frequency Response (+/-10dB)
36.6Hz - 25kHz
Sensitivity
93dB SPL
Nominal Impedance
8 ohms
Rated Maximum SPL
114dB
Maximum SPL (Peak)
120dB peak
Power Handling (RMS)
150 watts (600 watts peak), 100 hours
Crossover Frequency
1500Hz
Coverage Pattern (1kHz–10kHz)
120 or 80 Degree Axis Symmetric
Directivity Factor Q (Collar)
5.7 averaged 1kHz–16kHz
Directivity Factor Q (Horn)
8.65 averaged 1kHz–16kHz
Directivity Index DI (Collar)
7.5dB averaged 1kHz–16kHz
Directivity Index DI (Horn)
9dB averaged 1kHz–16kHz
Port Tuning
41.1Hz
Connectivity
Input Connector
Four pin Euroblock with loop output connections
Transformer Taps (70V/100V)
120W, 60W, 30W
Transformer Tap (70V Only)
15W
Construction
Enclosure Material
Polypropylene plastic (UL94V-0)
Grille Material
Steel
Suspension Points
Top, Bottom, and Back
Color
White (RAL 9003)
Components
HF Driver
1.4" (36mm) aluminum dome compression driver
HF Voice Coil
36mm
HF Exit Size
1" (25mm)
HF Magnet
Neodymium
LF Driver
8" (203mm) aluminum cone
LF Surround
Santoprene
LF Voice Coil
60.55mm
LF Magnet
Ferrite
Environmental
Operating Temperature Range
-40°F to 140°F (-40°C to 60°C)
Identifiers
SKU (White - RAL 9003)
40235
SKU (Black - RAL 7021)
40236
