Sony BRCX1000/WPW 4K Broadcast Ptz Cam, 12X/24X Zoom, Hdmi/3G-Sdi, Poe+
Sony BRCX1000/WPW 4K Broadcast Ptz Cam, 12X/24X Zoom, Hdmi/3G-Sdi, Poe+
SoundPro Item: 50012 | Part Number: BRCX1000/WPW
Usually ships in 5-7 business days
- HD Recording: Yes
- Recording Formats: HD
- Image Sensor Type: Exmor R CMOS
- Color Supported: Color
- Color Supported: Monochrome
- Effective Camera Resolution: 14.2 Megapixel
- Maximum Video Resolution: 3840 x 2160
- Video Signal Format: PAL
- Video Signal Format: NTSC
- Lens Type: Zoom
- Minimum Focal Length: 9.30 mm
- Maximum Focal Length: 111.60 mm
- Optical Zoom: 12x
- Connectivity Technology: Wired
- Remote Management: Yes
- HDMI: Yes
- Network (RJ-45): Yes
- Product Color: White
- Mount Type: Ceiling Mount
Remotely capture broadcast quality 4K images with smooth, silent PTZ and excellent low-light sensitivity

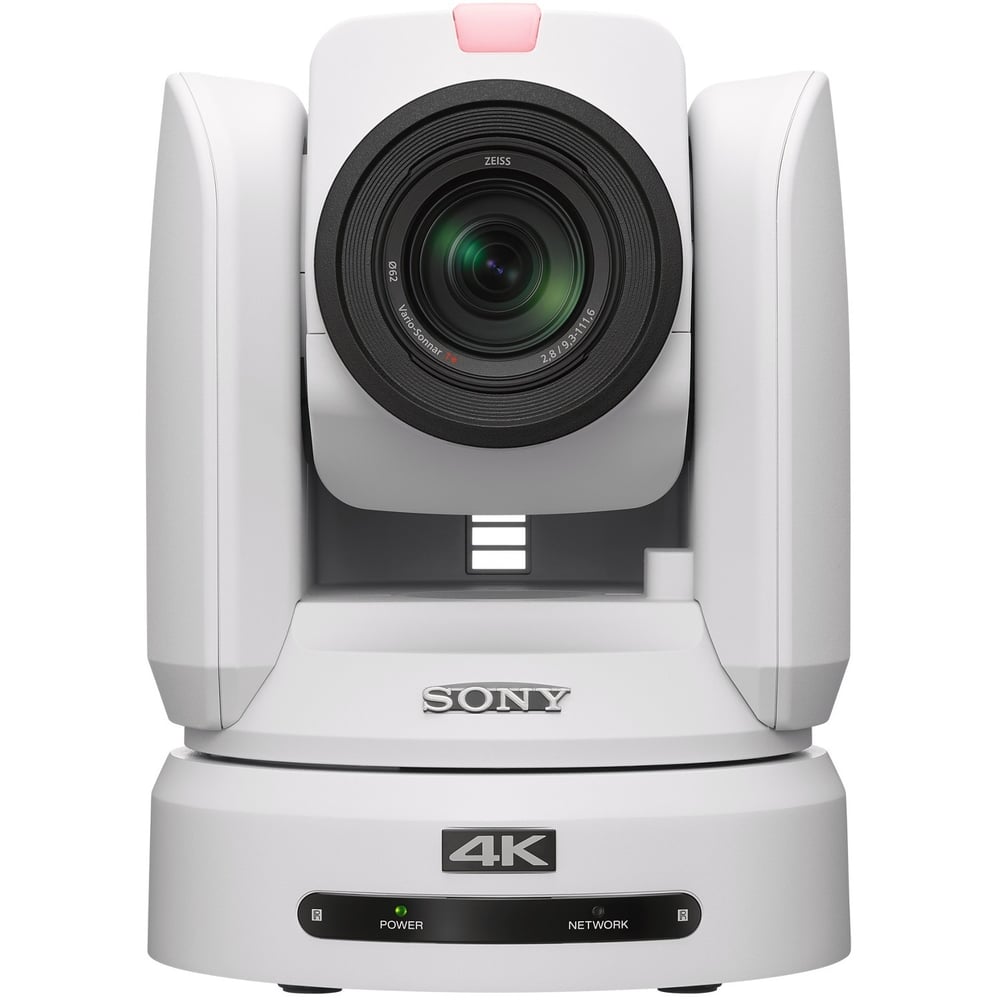

The BRC-X1000 is Sony's first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1.0-type Exmor R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x(HD) extending this range even further without visible loss of resolution. In HD resolution, 24x zoom can be doubled to 48x with Tele Convert Mode. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.
There's also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.
The BRC-X1000/1 and the BRC-X1000/WPW are the US/Canada models which are bundled with the AC-UES1230MT AC power supply and cord. In all other regions the AC power supply and cord are sold separately.
Features
Enhanced Pan/Tilt/Zoom (PTZ) operation
Accurately re-frame shots or track moving subjects with smooth, speedy, near-silent remote control of pan, tilt and zoom functions. There's also low-speed zoom and a slow pan/tilt mode for precise, judder-free camera movements. PTZ Trace Memory allows a sequence of camera movements to be memorised and followed whenever required. PTZ Motion Sync smoothly blends separate pan, tilt and zoom movements for seamless, professional-looking transitions. Up to 100 pre set positions for pan/tilt/zoom operations
High quality 12x optical zoom and 18x(4K) or 24x(HD) with Clear Image Zoom
The high quality Zeiss Vario-Sonnar T lens with 12x optical zoom range covers wide angle shots as well as tight close-ups. Clear Image Zoom expands this range to 18x (4K) or 24x (HD) without sacrificing detail. In addition, the Tele Convert Mode can double this range again, up to 48x zoom while maintaining a 1920x1080 resolution.
Clear Image Zoom is a Sony original intelligent interpolation, which analyzes the input image and increases the resolution of the image.
Remote operation
Pan/tilt/zoom and other camera settings can be controlled using the supplied IR remote commander, or with the optional RM-IP500 Remote Control Unit that can control multiple cameras.
Genlock
Genlock simplifies integration with other systems in multi-camera broadcast environments.
Front and rear tally lamps
Ideal for on-air broadcast use, the BRC-X1000 features dual tally lamps on the front and rear of the camera body. Brightness of the front tally lamp can be adjusted in two steps.
