Specifications
'General Information
Manufacturer
Sony Corporation
Manufacturer Part Number
SRGX40UH
Brand Name
Sony
Product Series
SRG
Product Model
SRG-X40UH
Product Name

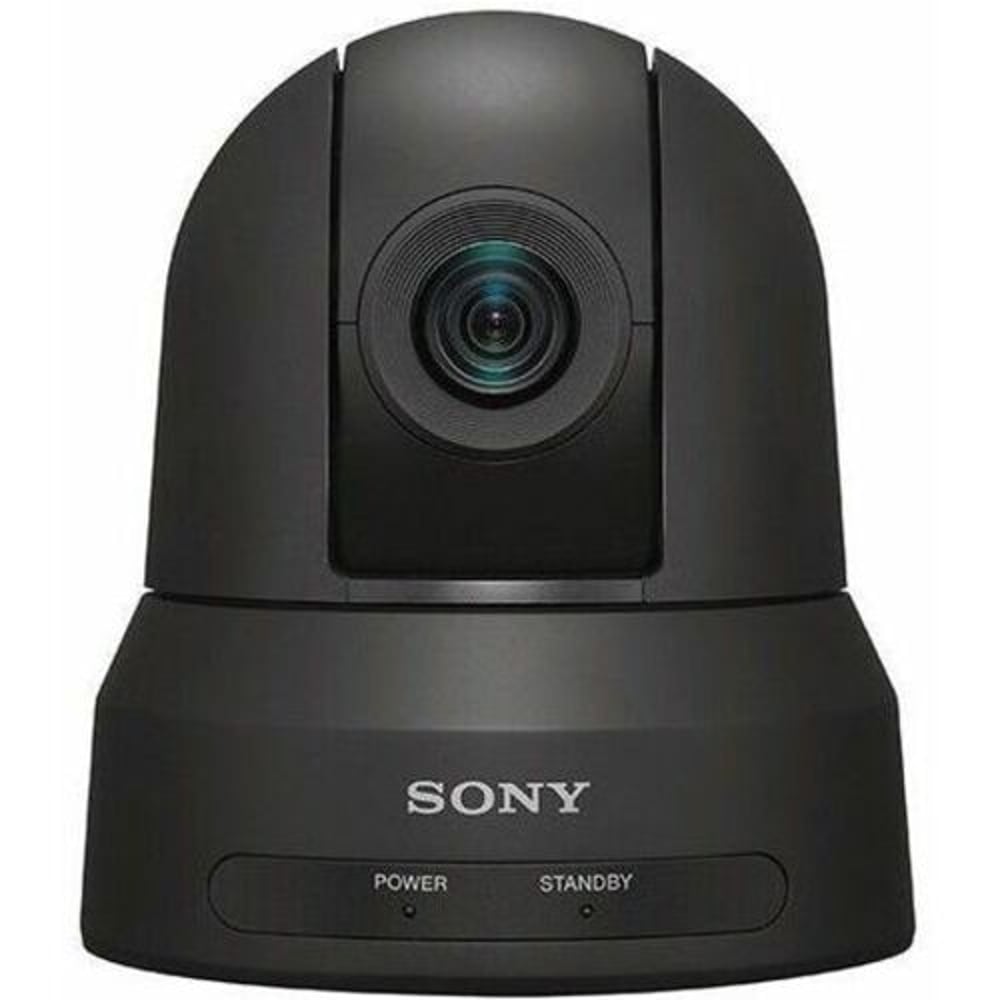

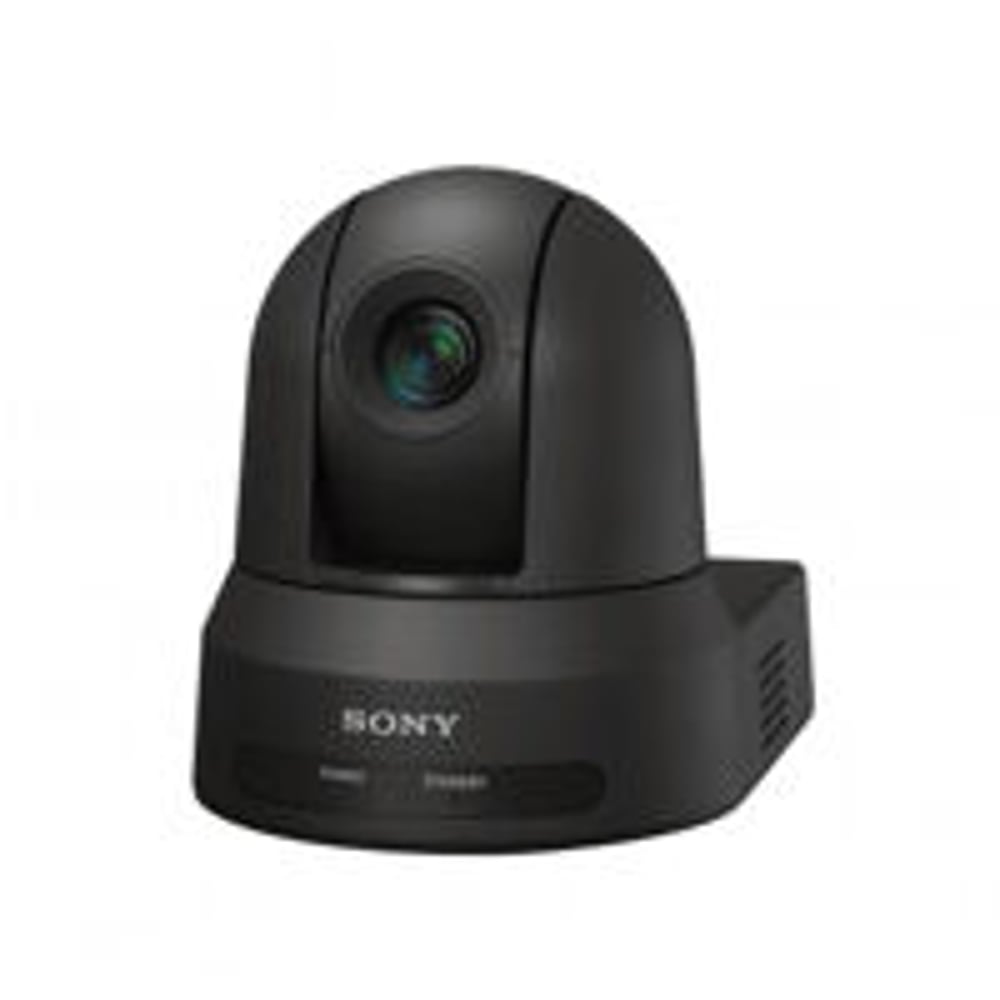

SRG-X40UH Network Camera
Product Type
Network Camera
Technical Information
Recording Formats
4K
HD Recording
Yes
Display & Graphics
Image Sensor Type
Exmor R CMOS
Image Sensor Size
1/2.5"
Color Supported
Color
Field of View
0 degree(Wide)
Effective Camera Resolution
8.5 Megapixel
Video
Video Formats
MJPEG
Maximum Video Resolution
3840 x 2160
Horizontal Resolution
1700 TVL
Lens
Lens Type
Varifocal
Minimum Focal Length
4.40 mm
Maximum Focal Length
88 mm
Lens Included
Yes
Minimum Aperture
f/3.8
Maximum Aperture
f/2
Exposure
Shortest Shutter Speed
1/10000 Second
Longest Shutter Speed
1/1 Second
Network & Communication
Connectivity Technology
Wired
Remote Management
Yes

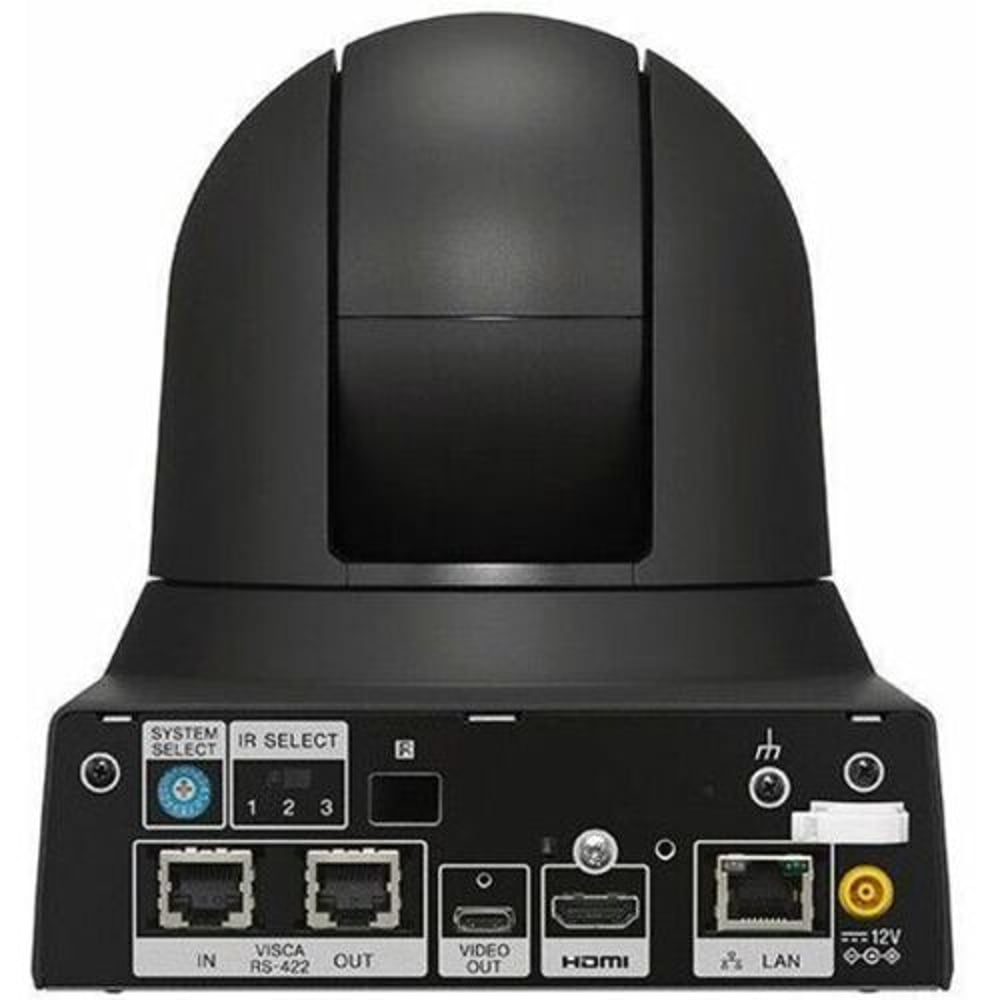

Interfaces/Ports
USB
Yes
HDMI
Yes
Network (RJ-45)
Yes
Power Description
Input Voltage
12 V DC
Power Source Type
DC
PoE+
Physical Characteristics
Mount Type
Ceiling Mount
Desk Mount
Product Color
Black
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Miscellaneous
Features
Anti-flicker
Built-in OSD Function
Day/Night
Built-in Mechanical ICR
PTZ
Automatic White Balance
Auto Gain Control
Package Contents
SRG-X40UH Network Camera 1 x AC power adaptor 1 x IR Remote Commander Unit 2 x Ceiling bracket 1 x Wire rope 9 x Screw M3 x 8 1 x Screw M2.6 x 6 BLACK 1 x HDMI cable fixing plate 1 x Safety regulation 1 x Download site information 1 x Warranty
Country of Origin
United States
