- Display System3LCD system
- Display Device
- Size of Effective Display Area: 0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
- Number of Pixels: 6,912,000 (1920 x 1200 x 3) pixels

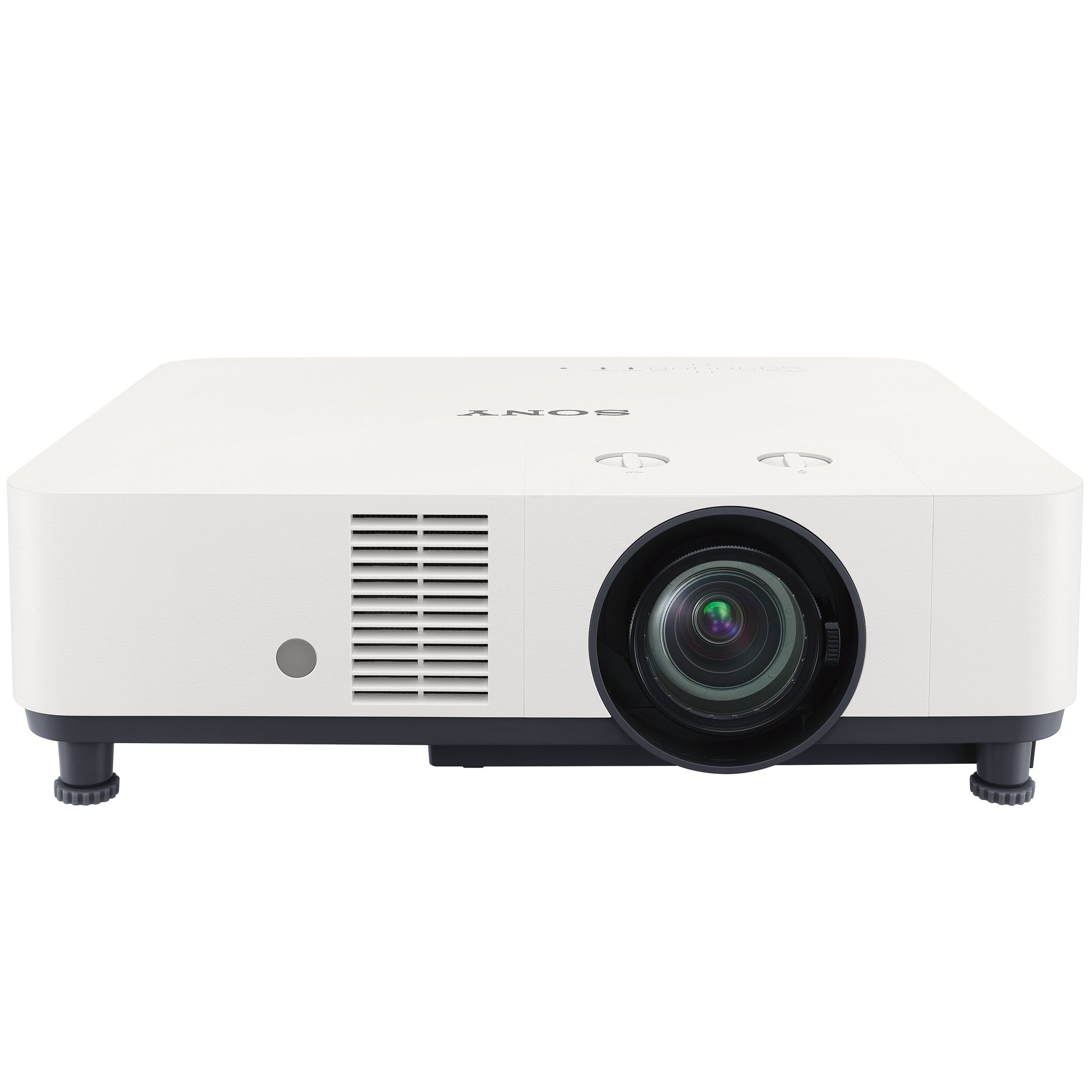

- Projection Lens
- Focus: Manual
- Zoom: Manual (Approx. x 1.6)
- Lens shift: Manual, Vertical –35% to +55%, Horizontal: +/–15%
- Throw Ratio: 1.23: 1 to 1.97: 1
- Light SourceLaser diode
- Screen Size1.02 m to 7.62 m (40 in to 300 in) (measured diagonally)
- Light Output*1 Modes
- Standard: 6,400 lm*2 / 7,000 lm (Center)*3
- Middle: 4,700 lm
- Low: NA
- Color Light Output*1 Modes
- Standard: 6,400lm
- Middle: 4,700 lm
- Low: NA
- Contrast Ratio (full white / full black)*1∞:1
- Displayable Scanning Frequency
- Horizontal: 15 kHz to 92 kHz
- Vertical: 24 Hz to 92 Hz
- Keystone Correction (Max.)
- Keystone Correction (Max.)Horizontal: +/-30 degrees
- Vertical: +/-30 degrees
- Accepted Signal Resolution
- Computer Signal InputMaximum signal resolution: 1920 x 1200*4
- Video Signal InputNTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 3840/60p, 3840/30p, 3840/25p, 3840/24p, 4096/60p, 4096/30p, 4096/25p, 4096/24p

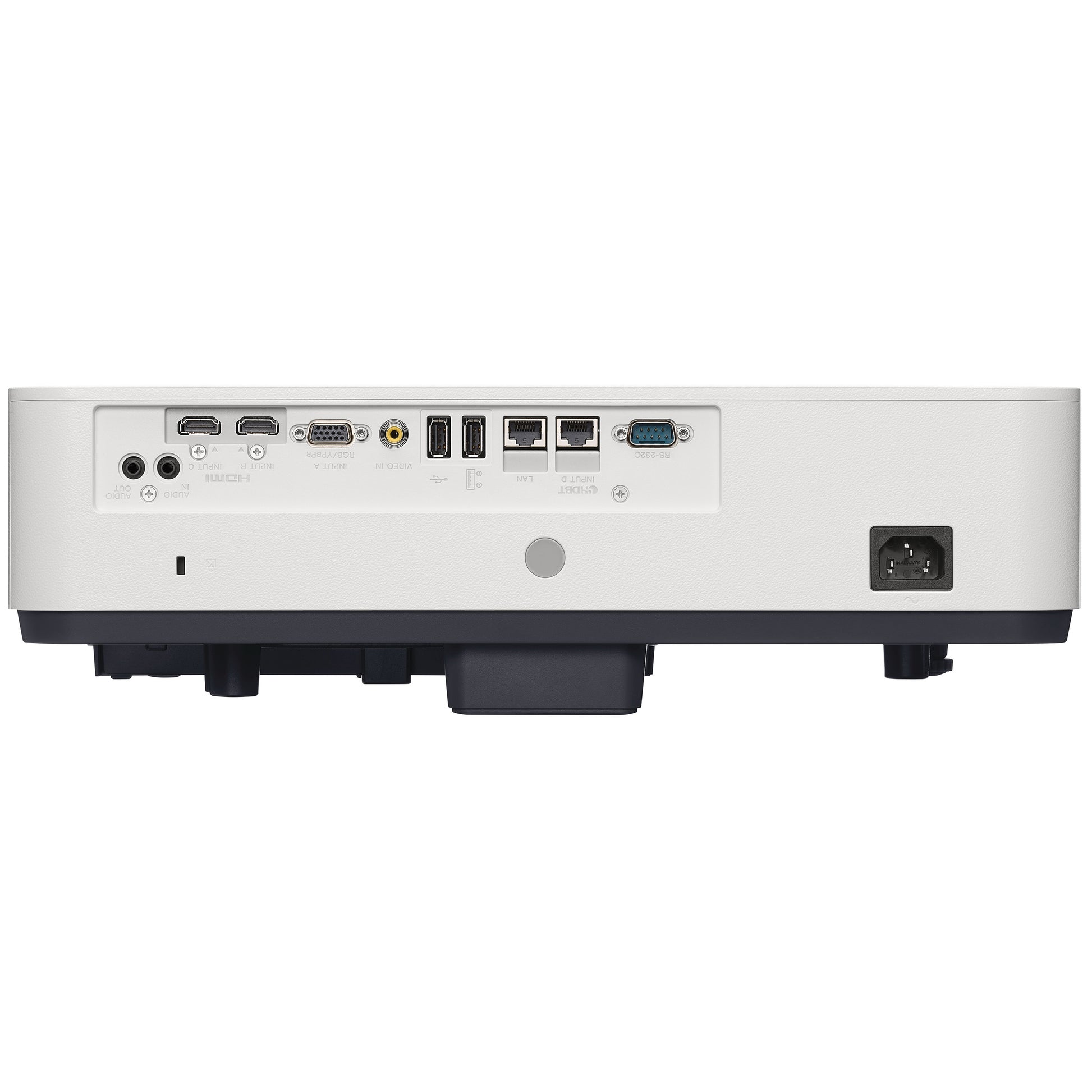

- INPUT / OUTPUT
- INPUT A
- RGB / Y PB PR input connector: Mini D-sub 15 pin (female)
- Audio input connector: Stereo mini jack
- INPUT B
- HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
- Audio input connector: HDMI audio support
- INPUT C
- HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
- Audio input connector: HDMI audio support
- INPUT D
- HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
- VIDEO IN
- Video input connector: Phono jack (Composite)
- Audio input connector: Shared with INPUT A
- OUTPUT
- Audio output connector: Stereo mini jack
- REMOTE: D-sub 9-pin (male) / RS232C
- LAN: RJ45, 10BASE-T / 100BASE-TX
- USB: TYPE-A x 1 (for F/W update), TYPEA for Power supply
- INPUT A
- Speaker16W
- OSD Languages27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian)
- Acoustic noise (Mode: Standard / Middle) *137 dB / 34 dB
- Operating Temperature / Operating Humidity0°C to 40°C (32°F to 104°F) / 20% to 80% (no condensation)
- Storage Temperature / Storage Humidity-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
- Power RequirementsAC 100V to 240V, 4.7 A to 2.0 A, 50 Hz/60 Hz
- Power Consumption
- AC 100V to 120 V463W
- AC 220V to 240 V434W
- Power Consumption (Standby Mode)
- AC 100V to 120 V0.5W (when “Standby mode” is set to “Low”)
- AC 220V to 240 V0.5W (when “Standby mode” is set to “Low”)
- Power Consumption (Networked Standby Mode)
- AC 100V to 120 V1W (LAN), 21W (ALL Terminals and Networks Connected / exclude USB Device and speaker off, when “Standby Mode” is set to “Standard”)
- AC 220V to 240 V1W (LAN), 21W (ALL Terminals and Networks Connected / exclude USB Device and speaker off, when “Standby Mode” is set to “Standard”)
- Standby Mode / Networked Standby Mode ActivatedApprox. 2 Minutes
- Dimensions (WxHxD)
- Approx. 422x129x338mm (16 5/8 x 5 3/32 x 13 5/16 inches)
- Without dust filter, protrusions: Approx. 422x100x333mm (16 5/8 x 3 15/16 x 13 1/8 inches)
- Mass: Approx. 7kg (15 lbs)
- Notes
- *1The figures are approximate. They vary depending on the environment or how the projector is used.
- *2The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
- *3The value is light output measured at center area of screen in Standard mode, and average of all products shipped.
- *4Available for VESA Reduced Blanking signal.
