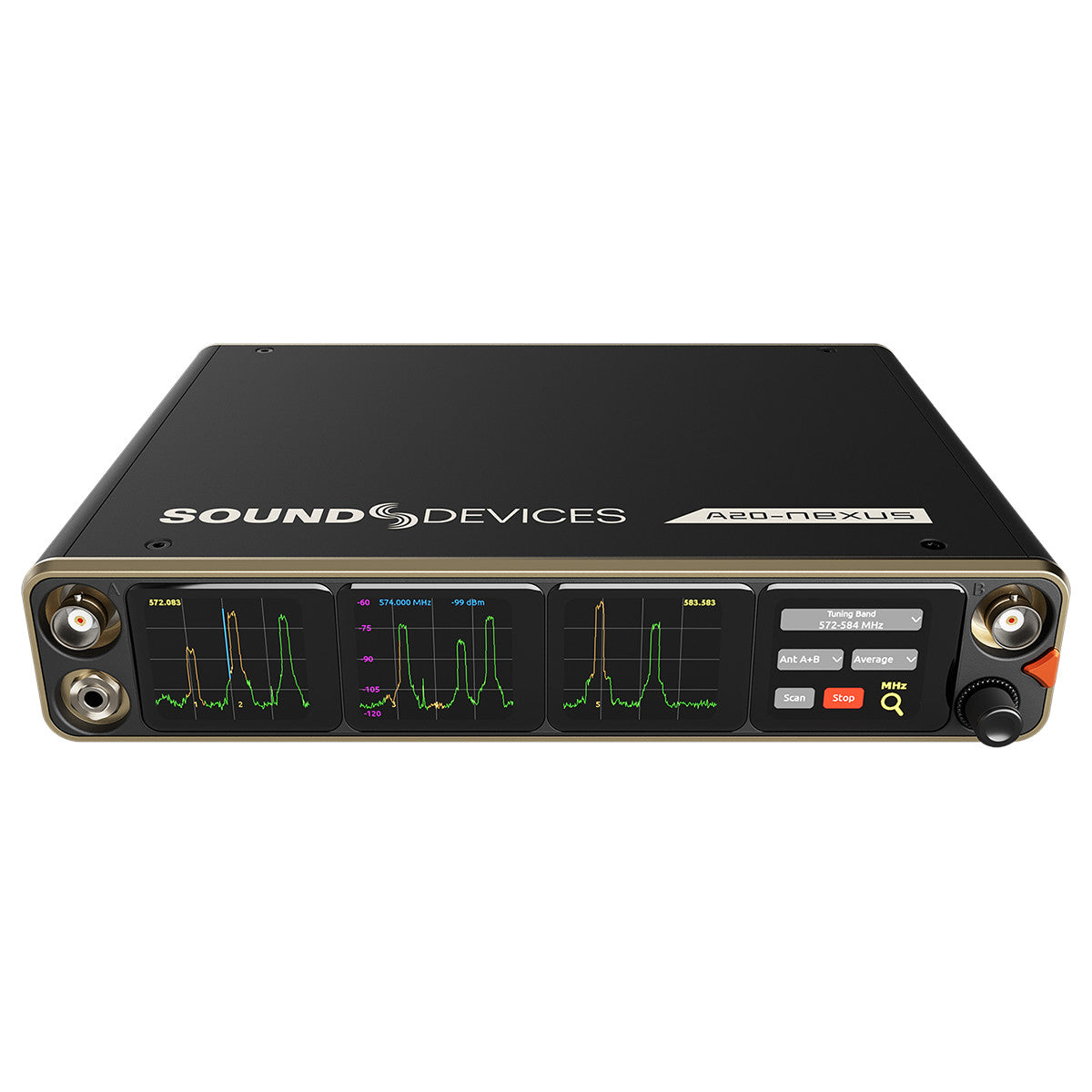

• Sound Devices A20-Nexus 8-Channel Digital Wireless Receiver

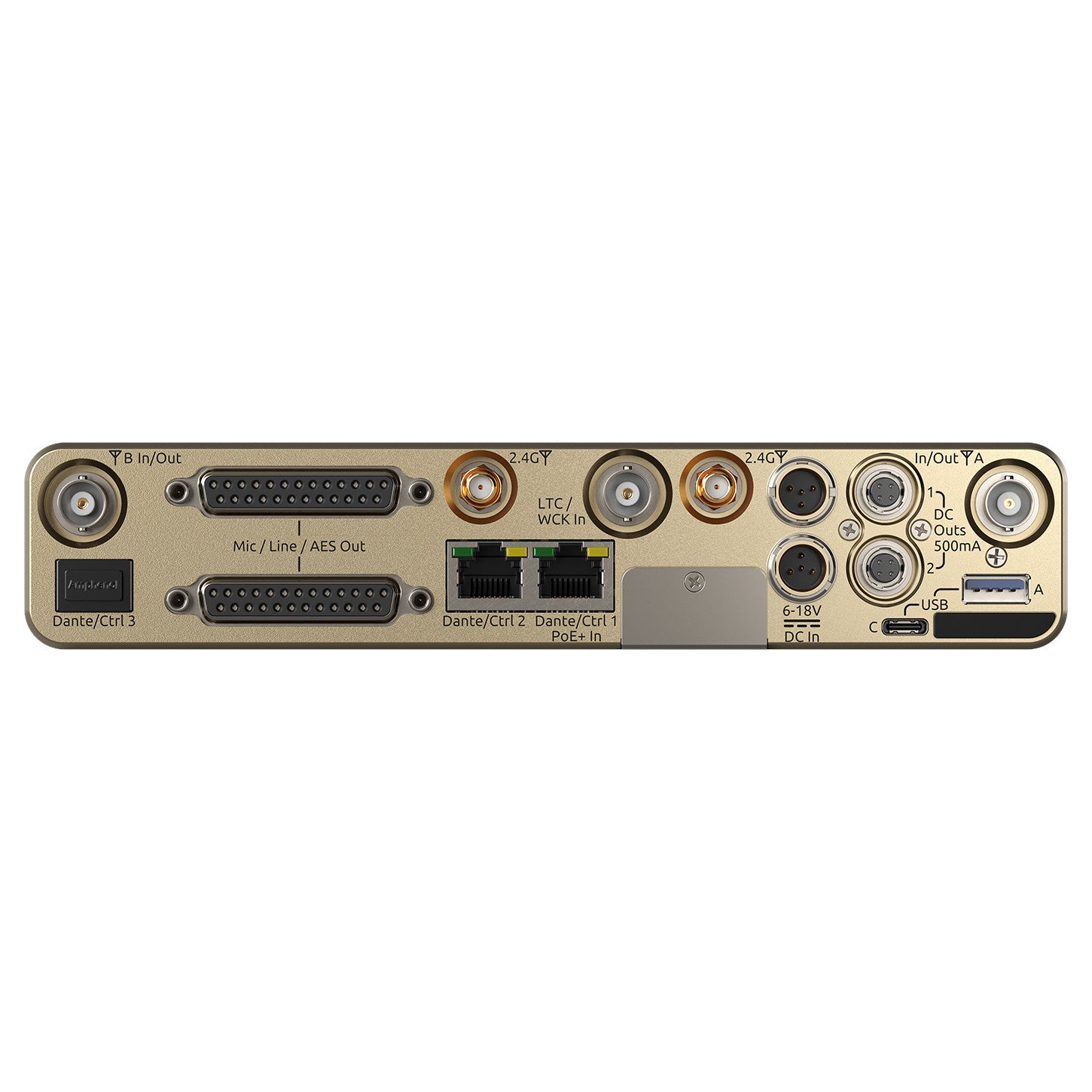

  • Sound Devices A20-Nexus 8-Channel Digital Wireless Receiver back

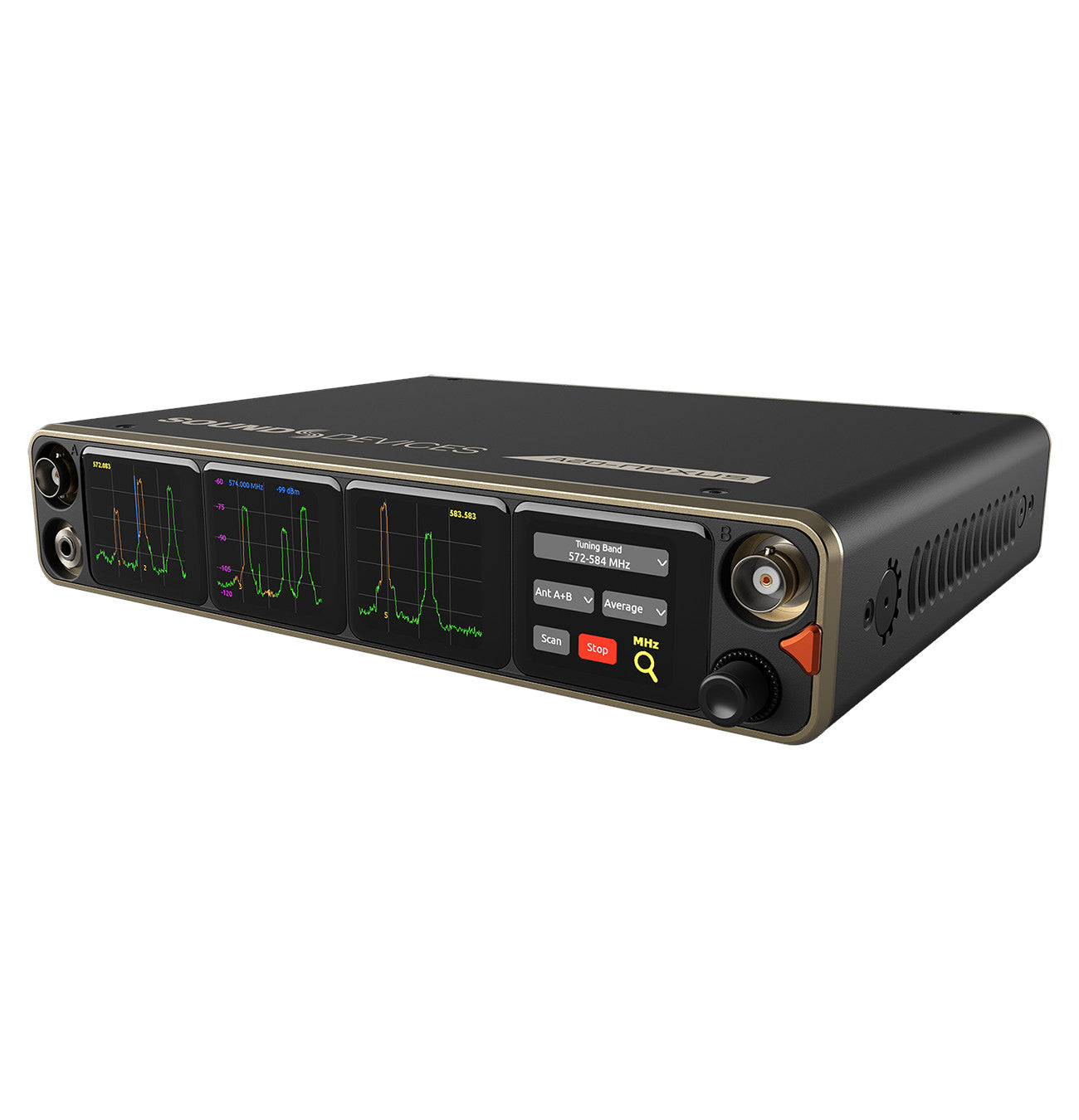

  • Sound Devices A20-Nexus 8-Channel Digital Wireless Receiver left

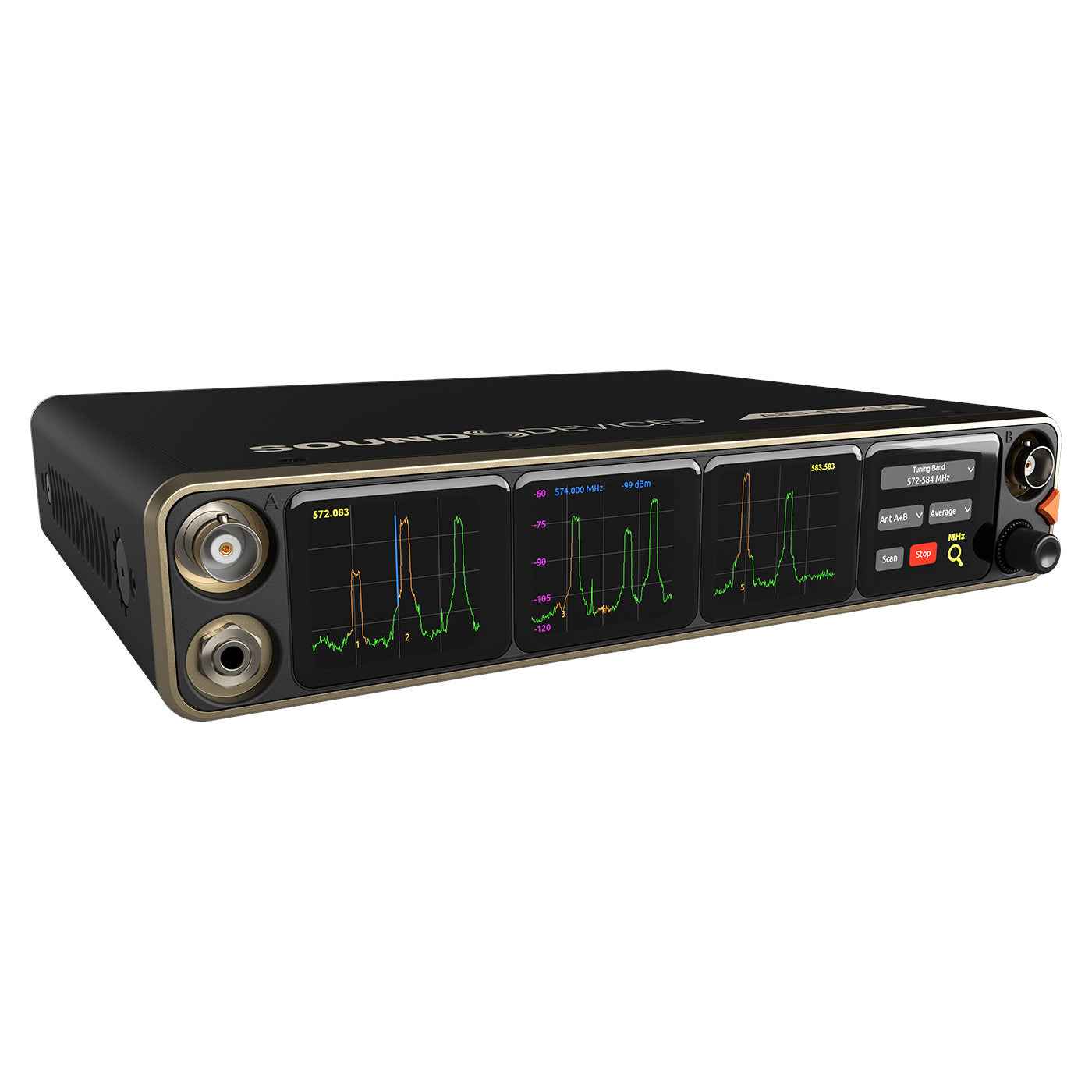

  • Sound Devices A20-Nexus 8-Channel Digital Wireless Receiver right

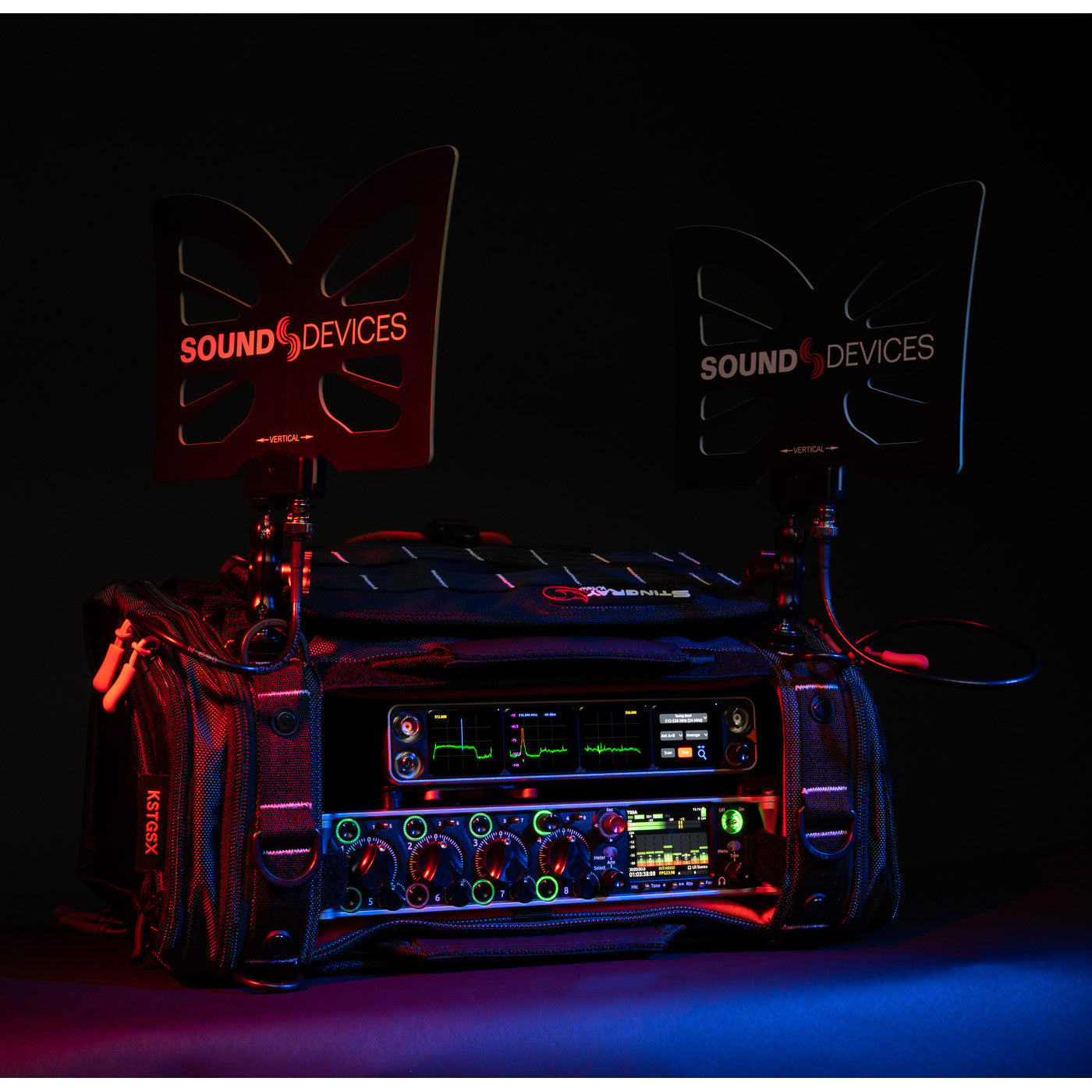

  • Sound Devices A20-Nexus 8-Channel Digital Wireless Receiver lifestyle
1 5

Sound Devices A20-Nexus 8-Channel Digital Wireless Receiver

Sound Devices A20-Nexus 8-Channel Digital Wireless Receiver

SoundPro Item: 136989 | Part Number: A20-Nexus

$15,495.00
$15,495.00 $15,495.00
Your Price Sold out
MSRP: $15,495.00 | MAP: $15,495.00

Usually ships in 5-7 business days

  • 8-channel ultra-high-performance, true-diversity receivers in a ½ rack size (8.0” x 6.6” x 1.6”).
  • Expandable to 12 or 16 channels via A20-Nexus 4-Channel Expansion License. Licenses are $2500 USD, or $250 USD for a 7-day rental, or $850 USD for a 30-day rental. 169 MHz – 1525 MHz tuning range via SpectraBand Technology.
  • NexLink: an advanced long-distance modulation that allows for remote control of wireless transmitters from the receiver.
  • Dante audio-over-IP of RF receiver audio.
  • Flexible powering: via PoE+, DC input, 8-Series, or AC mains (with optional adapter).
  • Web App control from browser on any computer, smartphone or tablet.
  • Full remote operation capability: Power via PoE, audio via Dante, control via Web App.
  • Dual DB-25 connectors for 16 channels of mic, line, or AES outputs
  • Convert 16 channels of Dante to analog and/or AES on DB25 connectors, for sending IFB, voice-of-god, and more from mixer to set.
  • Wide, 6.2” color OLED array with touch for control and monitoring.
  • Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
  • Optical Fiber Network option via SFP slot. SFP accepts a wide variety of modular network transceivers.
  • A20-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools.
  • The AutoAssign function automatically scans the current tuning band for clean frequencies and assigns them to multiple channels. The clean frequencies are automatically pushed to NexLinked transmitters.
  • Modular design: RF section (A20-Nexus) can be disconnected and remoted from 8-Series, as opposed to less-flexible integrated RF/Mixer/Recorder solutions.
  • All NexLink control is handled by A20-Nexus and/or its Web App instead of the 8-Series for maximum flexibility.
  • Full remote power-down: A20-TX and A20-Mini transmitters can be fully powered down via NexLink for excellent battery life. This alleviates the need for remote auto-RF-Power adjustment schemes. User is in full control of RF power settings.
  • Supports GainForward Architecture: No gain setting on the A20-Mini or A20-TX transmitters. Adjust gain at the receiver or mixer.
  • 100% digital long-range modulation delivers the longest transmission distance of any system on the market.
  • Excellent audio quality, full 10 Hz – 20 kHz audio bandwidth.
  • RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
  • BNC timecode input for auto timecode sync of transmitters over NexLink.
Log in or register for YOUR best price

Meet the half-rack receiver with an entire rack’s worth of features with the A20-Nexus 8-Channel Digital Wireless Receiver from Sound Devices. The next-generation A20-Nexus is expandable from 8 channels up to 12 and 16 with additional software and features forward-thinking technologies like SpectraBand, the powerful NexLink remote-control link, real time spectrum analysis, and more. With multiple options for audio outputs, powering, and remote control, the A20-Nexus can seamlessly adapt to your workflow, both now and in the future.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
4x20.3x16.7cm (1.6x8x6.6”)
Weight
Weight (unpackaged)
2.8 lbs (1.27 kg)
Audio
Audio
Latency Standard modulation = 2 ms, analog or digital outputsLong Range modulation = 3.9 ms, analog or digital outputs
Audio Frequency Response
10 Hz–20 kHz, +/- 1 dB relative to 1 kHz
Audio Output Sample Rate
44.1, 48, or 96 kHz
Digital Audio Output
AES3 balanced connection, 110 ohm output impedance
Audio-Over-IP
Dante, 44.1 or 48 kHz sample rate
Dante Audio-Over-IP
16 input/output channels
Connectivity
Output Level Line-level
+20 dBu for 0 dBFSMic-level: -20 dBu for 0 dBFS
RJ45 Ports
For Dante and/or Control. Port 1 supports powering from PoE+1x
Sources DC Input
dual, redundant (highest voltage takes precedence)PoE+: 802.3at, 30W needed (standard 15W PoE 802.3af will not work)8-Series (through unit-to-unit connector when docked)AC mains adapter (sold separately)
Environmental
Operating Temperature Range
-10°C to +55°C
General
Spurious Rejection
>100 dB typical
Dynamic Range
> 130 dB with A20-Mini as transmitter
Control
Web-based control and monitoring of all Nexus settings
SFP
For Dante and/or Control. Compatible with Small Form-factor Pluggable (SFP) network transceivers
Powering
Levels DC input, 10 to 18V in, 3A minimum at 6.5 VDC11W idle, default configurationExtra power passed through for USB power, active antenna power, and DC output powerUSB-A: 5V, 500 mA output; supports keyboards, thumb drives, A20-Mini transmitters, and USB hubs
Compliance
RF
Tuning 470 to 1525 MHz (1055 MHz switching bandwidth)25 kHz stepsSpectraBand Technology for maximum rejection of out-of-band signalsAvailable frequencies depend on country of operation, Modulation Proprietary, 100% digital RF modulationStandard or Long Range, selectable per channel, Cascade output 50 ohm3.5 dB Insertion Loss from front BNC through rear BNC: It is recommended to use an external powered antenna to overcome the 3 dB splitting loss in the Nexus so that the receivers maintain excellent range.Wideband power split, pre-LNA, RF Bias output 12V, 200 mA each BNCSmart antenna support, Wisycom-compatible
