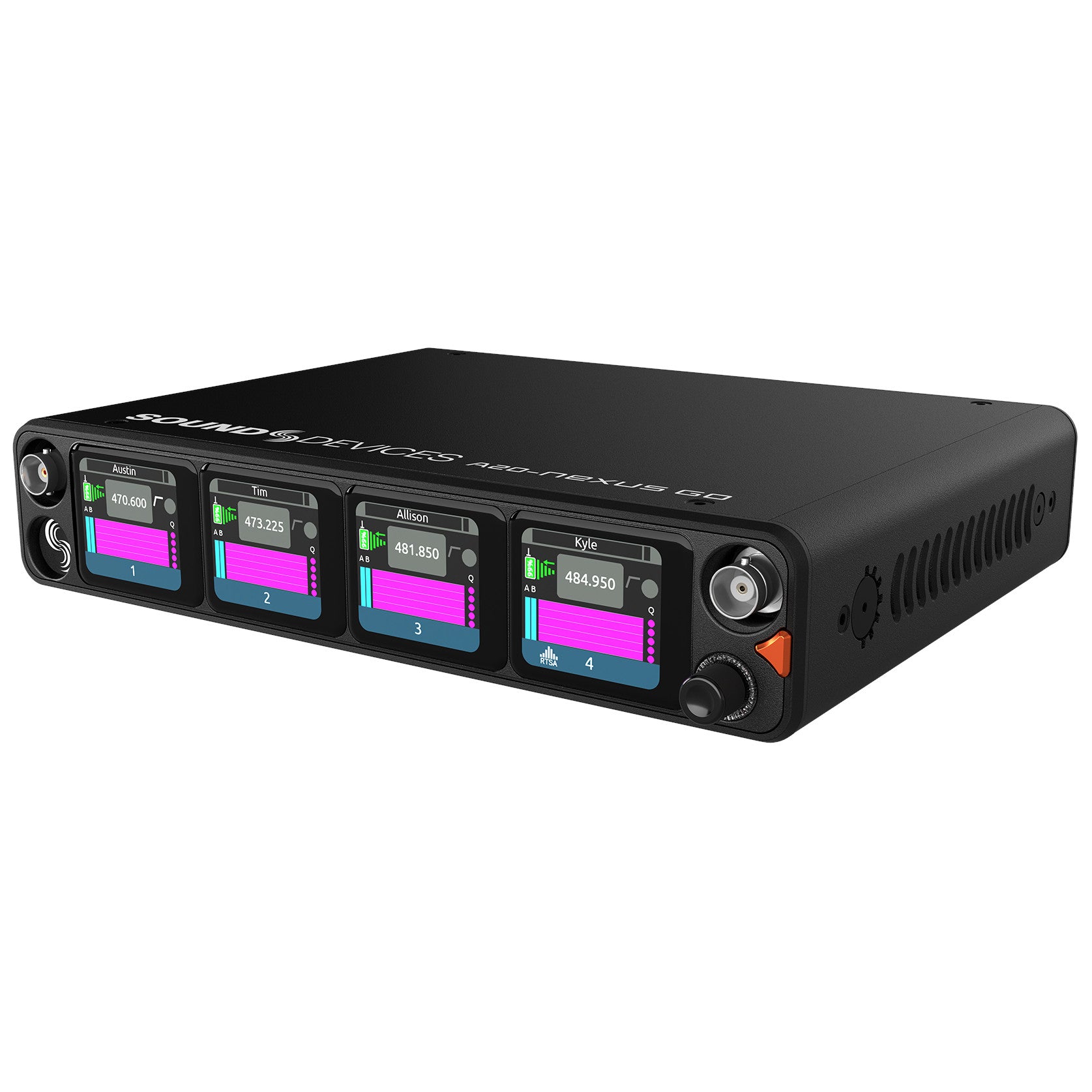

• Sound Devices A20-Nexus Go 4-Channel Digital Wireless Receiver

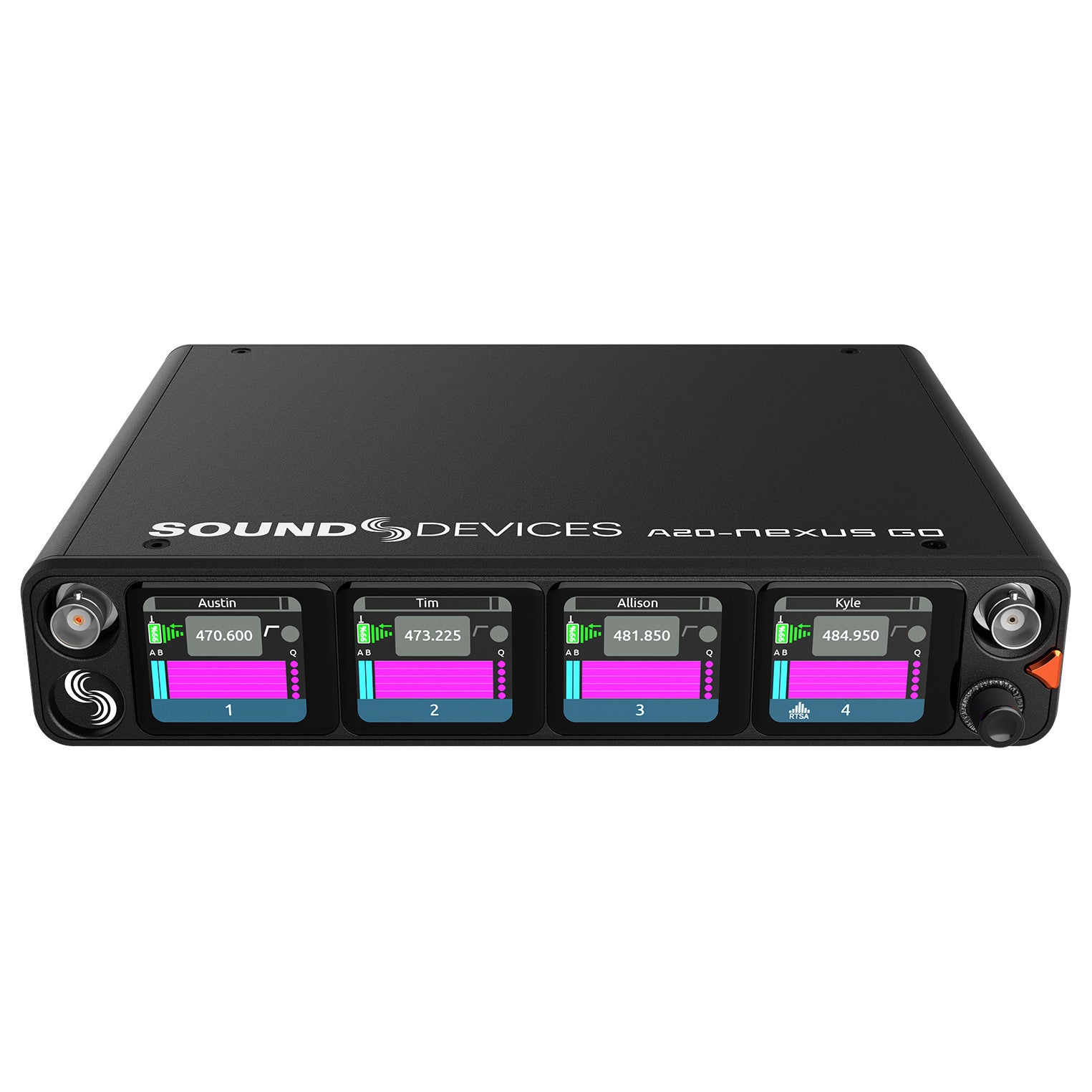

  • Sound Devices A20-Nexus Go 4-Channel Digital Wireless Receiver front

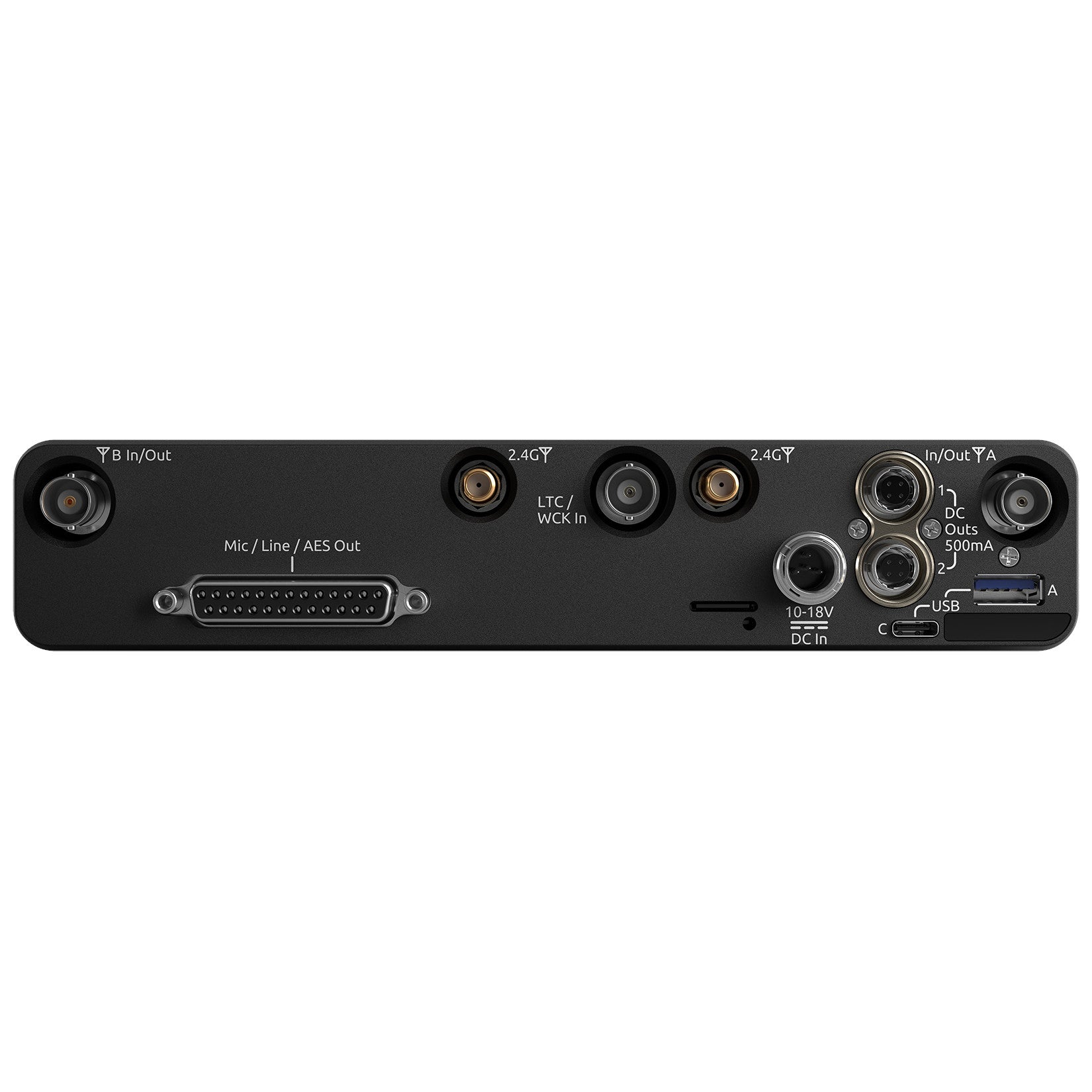

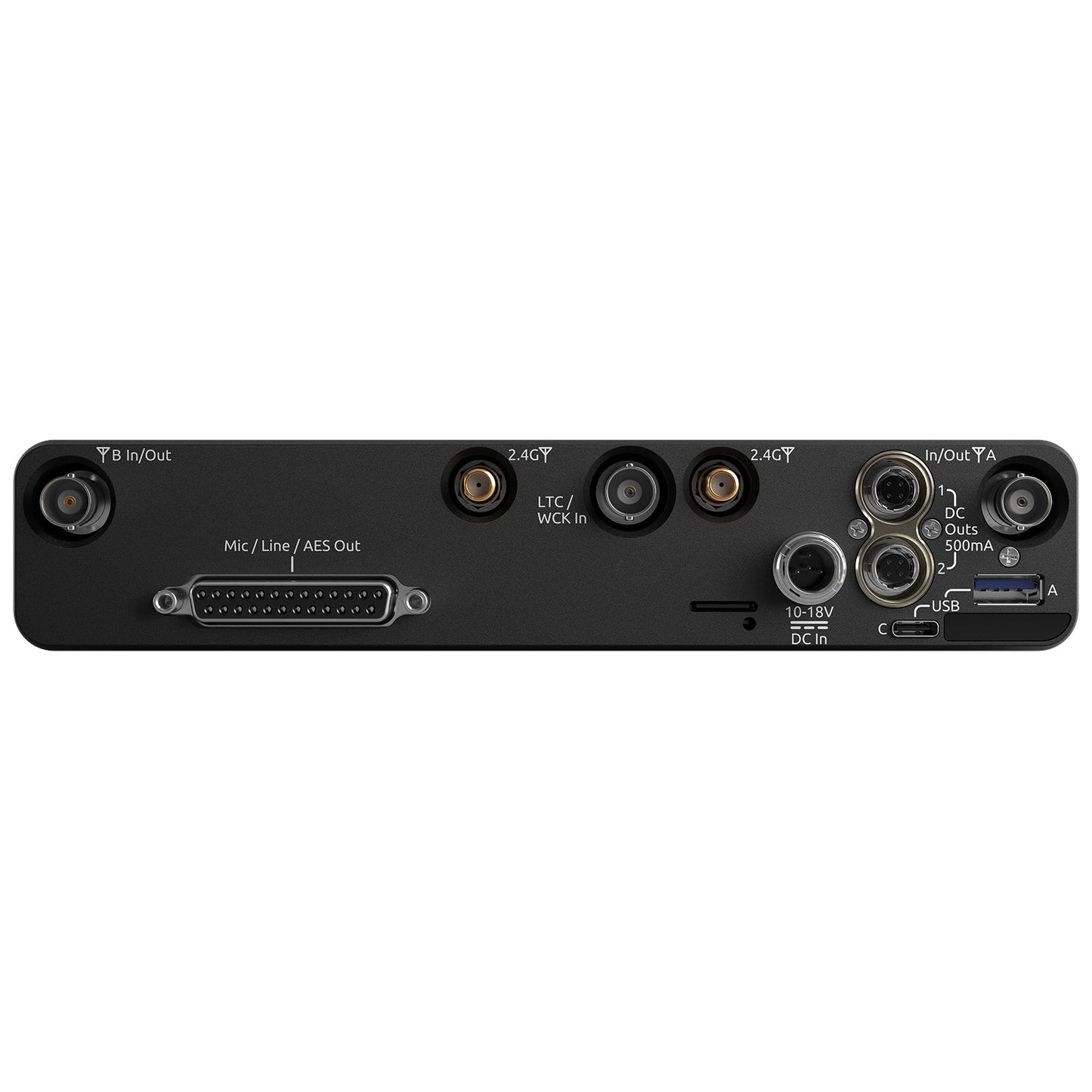

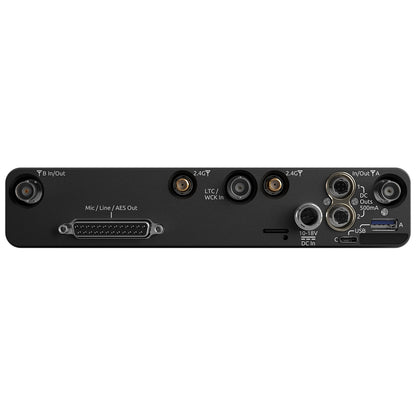

  • Sound Devices A20-Nexus Go 4-Channel Digital Wireless Receiver back
1 3

Sound Devices A20-Nexus Go 4-Channel Digital Wireless Receiver

Sound Devices A20-Nexus Go 4-Channel Digital Wireless Receiver

SoundPro Item: 142224 | Part Number: A20-Nexus Go

$8,945.00
$8,945.00 $8,945.00
Your Price Sold out
MSRP: $8,945.00 | MAP: $8,945.00

Usually ships in 5-7 business days

  • 4-channel ultra-high-performance, true-diversity receivers in a half-rack size (8.0” x 6.6” x 1.6” / 20.3cm x 16.8cm x 4.1cm).
  • Expandable to 6 or 8 channels via A20-Nexus Go 2-Channel Expansion Licenses.
  • 169 MHz – 1525 MHz tuning range via SpectraBand Technology.
  • NexLink: integrated, long-distance remote control of all wireless transmitters, including group power on/off.
  • AutoAssign: automatic deployment of clean frequencies in seconds.
  • Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
  • Flexible powering: via DC input, 8-Series, or AC mains (with optional adapter).
  • DB-25 connector for 8 channels of mic, line, or AES outputs.
  • Wide, 6.2” color OLED array with touch for control and monitoring.
  • A20-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools or additional hardware.
  • Supports GainForward Architecture: No gain setting on the A20 transmitter. Adjust gain at the receiver or mixer.
  • 100% digital long-range modulation delivers the longest transmission distance of any digital system on the market.
  • RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
  • Excellent audio quality, full 10 Hz – 20 kHz audio bandwidth.
  • BNC timecode input for auto timecode sync of transmitters over NexLink.
  • Front panel and rear panel BNC antenna inputs. Compatible with passive and bias-powered antennas
  • Supports control of the Wisycom LFA smart antenna.
  • Cascade out option on rear BNCs for cascading multiple A20-Nexus Go units.
  • USB-A port for thumb drives, keyboards, transmitter pairing, and timecode syncing. Supports USB hubs.
Log in or register for YOUR best price

The A20-Nexus Go true diversity wireless receiver was made with portability in mind. It comes with four receiver channels, and can be expanded to six and eight channels via software license, without additional hardware. Need to transition to a rack or cart? The A20-Nexus Go receiver’s half-unit size will save you space there, too. It’s ready for anything.

The A20-Nexus Go receiver utilizes the unparalleled SpectraBand tuning range of 169 – 1525 MHz, allowing you the ability to find open spectrum, even in the busiest UHF TV band.

No more stopping the action on set. No more adjusting the transmitter gain on the talent. You can set your levels and make adjustments at your A20-Nexus Go receiver and not at the transmitter with GainForward.

By utilizing the NexLink protocol, the A20-Nexus Go receiver has full long-range remote control of transmitters, even in the presence of on-set 2.4 GHz interference.

With NexLink and the A20-Nexus Go receiver’s integrated RTSA (Real Time Spectrum Analyzer), you can visually monitor the changing RF environment without interrupting the audio or a shoot.

Save time on set. The AutoAssign function automatically scans the current tuning band for clean frequencies and assigns them to multiple channels. The clean frequencies are then automatically pushed to transmitters linked to the NexLink protocol. This is all done with one button in mere seconds.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
1.6x8x6.6" (4x20.3x16.7cm)
Weight
Weight (unpackaged)
2.7 lbs (1.22 kg)
Audio
Audio
Latency Standard modulation = 2 ms, analog or digital outputsLong Range modulation = 3.9 ms, analog or digital outputs
Audio Frequency Response
10 Hz–20 kHz, +/- 1 dB relative to 1 kHz
Audio Output Sample Rate
44.1, 48, or 96 kHz
Digital Audio Output
AES3 balanced connection, 110 ohm output impedance
Connectivity
Output Level Line-level
+20 dBu for 0 dBFSMic-level: -20 dBu for 0 dBFS
DC Output powerUSB-A
5V, 500 mA output; supports keyboards, thumb drives, A20 transmitters, and
USB hubsDC Outs
max 500 mA between both outputs.
Environmental
Operating Temperature Range
-10°C to +55°C
General
Spurious Rejection
>100 dB typical
Dynamic Range
> 130 dB with an A20 transmitter
Powering
Sources TA4 DC Input8-Series (through unit-to-unit connector when docked)AC mains adapter (sold separately)
Compliance
RF
Tuning 169 to 1525 MHz (1356 MHz switching bandwidth)25 kHz stepsSpectraBand Technology for maximum rejection of out-of-band signalsAvailable frequencies depend on country of operation, Modulation Proprietary, 100% digital RF modulationStandard or Long Range, selectable per channel, Cascade output 50 ohm3.5 dB Insertion Loss from front BNC through rear BNC: It is recommended to use an external powered antenna to overcome the 3 dB splitting loss in the Nexus so that the receivers maintain excellent range.Wideband power split, pre-LNA, RF Bias output 12V, 200 mA each BNCSmart antenna support, Wisycom-compatible
