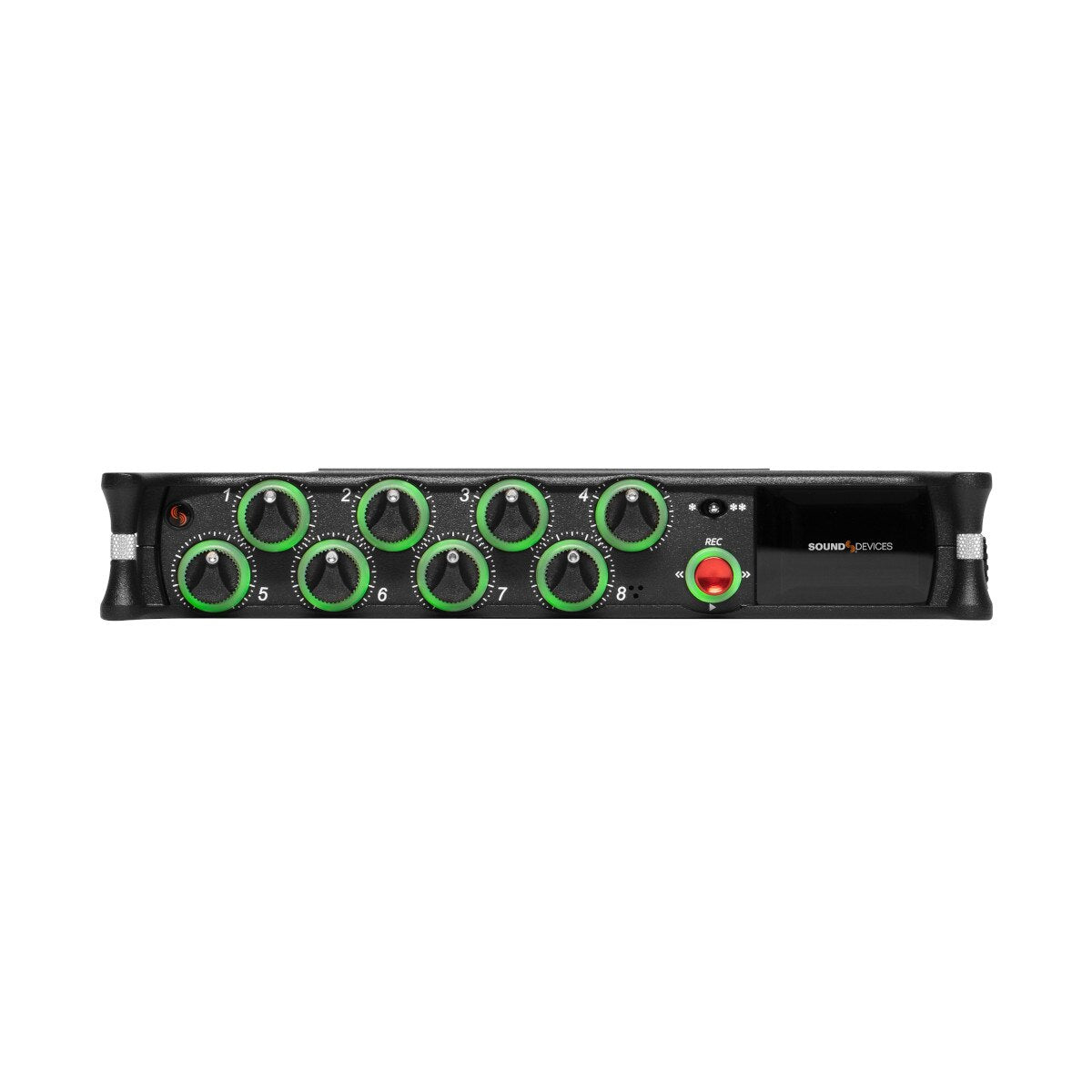

• Sound Devices MixPre-10 II Audio Recorder front
1 1

Sound Devices MixPre-10 II Audio Recorder

Sound Devices MixPre-10 II Audio Recorder

SoundPro Item: 54971 | Part Number: 9833

$1,950.00
$1,950.00 $1,950.00
Your Price Sold out
MSRP: $1,950.00 | MAP: $1,950.00

Usually ships in 5-7 business days

  • Eight ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field, on set, or with a computer
  • Create a mix using the built-in 10 x 4 portable mixer
  • Record up to 12 tracks to an SD card and backup to a USB thumb drive
  • 12-in, 4-out USB audio interface streams to your computer via USB-C at bit depths up to 32-bit float
  • Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz
  • Internal LTC timecode generator. Timecode In/Out via BNC or Aux In/Stereo Out
  • Timecode and record triggering via HDMI
  • USB-A for control surfaces, keyboards, and auto-copy to USB drive
  • In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power
  • Sunlight-readable color touch screen and LED metering
  • Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio
  • Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio
  • Includes a MX-8AA Battery Sled (batteries sold separately), XL-WPH3 AC Power Supply, and USB-C to USB-C cable
Log in or register for YOUR best price

If you record field audio, sound effects, audio for film, live music, or are just starting your audio journey, the MixPre-10 II is for you! With eight crystal-clear, ultra low-noise Kashmir preamps, you can record multiple actors, multiple podcasters, or audio for film with superior quality - all the way up to a 32-bit float bit depth and a 192 kHz sample rate. This newest generation of Sound Devices' award-winning MixPre Series has been redesigned for increased performance and an astounding 142 dB of dynamic range.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
1.375x8.125x6.875"
Electrical
THD+Noise
0.005% max (@1kHz, 22-22 kHz BW, gain=20 dB, -10 dBu in)
Audio
Frequency Response
10Hz to 80,000Hz (+/- 0.5 dB re 1 kHz @ 192 kHz sample rate)
Audio Inputs
Inputs (all inputs fully RF-filtered and overload protected), Gain, Maximum Input Level, Microphone Powering
Audio Interface (USB-C)
12-in/4-out; 44.1 to 96 kHz; 16/24/32-bit integer, 32-bit float; Class-compliant USB 2.0 high speed or ASIO® driver (supplied via download)
Connectivity
Equivalent Input Noise
-130 dBV (-128 dBu) max (A-weighting, gain=76 dB, 150 Ω source impedance)
Mass Storage (USB-C)
USB 2.0 high speed
Keyboard (USB-A)
Text entry and control
Thumbdrive (USB-A)
Manual or auto-copy to drive
USB
Midi Control Surface (USB-A)
HDMI
TC Reader via HDMI
Bluetooth LE
Wireless control using Wingman app
HDMI (micro)
Auto-record start/stop trigger from cameras that output record flag over HDMI
Construction
L-Mount
Optional sled for 2x (hot-swappable) Li-ion batteries
Environmental
Operating Temperature
-4°F to 140°F (-20°C to 60°C), 0-90% relative humidity (non-condensing)
Storage Temperature
-40°F to 185°F (-40°C to 85°C)
Shipping
Weight
32.1 oz
General
ADC
32 bit precision; 142 dB dynamic range min (A-weighted, gain=10 dB, fader=0 dB)
Low Cut Filters
40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital
Limiters
Limiter at all gain stages, range > 40 dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release
DAC Feeding Stereo Out, Headphone Out
32 bit precision; 115 dB dynamic range (A-weighted)
L/R Out
TA3 2-channel balanced, 1.1K max output impedance, +18 dBu max output level
X1/X2 Out
3.5 mm TRS stereo unbalanced, 500 ohm output impedance, +7.8 dBu max output level
Headphones Out
3.5 mm TRS stereo unbalanced, 300 mW + 300 mW, for use with any impedance headphones
Maximum Record Tracks
12
Tracks
Stereo mix + 10 ISOs
Recording
Sampling Frequency, Bit Depth, Recording Storage
File Types
polyphonic WAV
Timecode
Timecode Modes, Timecode Frame Rates (Auto-detects (fps)), BNC In (TC In), BNC Out (TC Out)
Sync Source
internal, Word Clock, Ext LTC
Sample/Timecode Accuracy
0.2 ppm (0.5 frames per 24 hours)
File Delivery to Cloud
compatible with Viviana Cloud
Touchscreen
320×256; 1.6", color, sunlight-viewable IPS LCD
AA Batteries
8x AA sled (included). NiMH recommended
AC Adapter
XL-WPH3 (included): Universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord. 100-240, 50/60 Hz
