• Sound Devices USBPre 2 USB Audio Interface
1 1

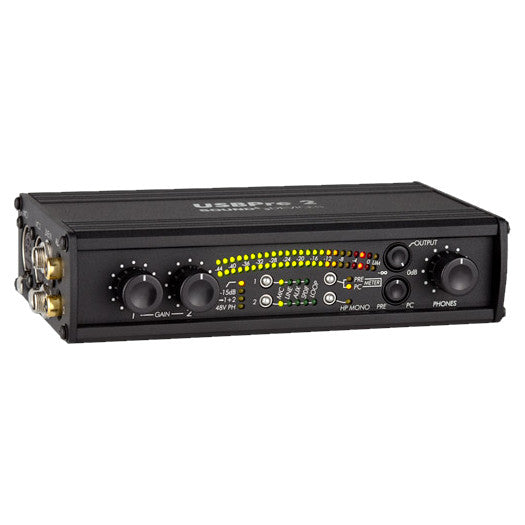

Sound Devices USBPre 2 USB Audio Interface

Sound Devices USBPre 2 USB Audio Interface

SoundPro Item: 54972 | Part Number: 3782

$1,195.00
$1,195.00 $1,195.00
Your Price Sold out
MSRP: $1,195.00 | MAP: $1,195.00

Usually ships in 5-7 business days

  • Extended bandwidth
  • Low-noise microphone preamplifiers with 48 V phantom, limiters, high-pass filters, and 15 dB pad
  • Dynamic range greater than 114 dB (in 24-bit operation)
  • Flat 10 Hz to 40 kHz (@96 kHz SR) audio bandwidth with very low distortion characteristics
  • Each input individually selectable between microphone, line, and aux level signals (both channels selected simultaneously for S/PDIF connections)
  • Precision, 23-segment, multicolor LED peak/VU meter, selectable between input and output sources
  • High-output headphone amplifier can drive a wide range of headphones
  • Balanced outputs on XLR connectors with dedicated level control can be used to drive line- or mic-level inputs
  • Mix control enables zero-delay monitoring of source audio, computer audio, or a mix of both source and computer audio for multitrack recording or computer telephony
  • Phono (RCA) jacks connect Aux Output to external loudspeakers or preamplifiers
  • Bus powering via USB for convenient, single-cable connection to the computer
  • In Stand-Alone mode the USBPre 2 operates as a microphone preamplifier and analog-to-digital converter
  • Hardware loop-through for test and measurement to send computer audio directly back to an input
  • High-strength extruded aluminum chassis
  • Mac® OS X 10.4+, Windows®XP/Vista/7, and Linux, class-compliant audio device
  • Additional features controlled by hardware DIP switches on the back panel; no software-only features and no control panel
Log in or register for YOUR best price

Sound Devices' USBPre® 2 is a high-resolution, portable hardware interface for Mac- and Windows-based digital audio. The USBPre 2 is the industry's highest performance and most flexible portable interface, connecting professional microphones, line-level sources, consumer audio electronics, and S/PDIF digital sources with Mac OS and Windows computers via USB.

USBPre 2 includes two discrete-transistor microphone preamps with 24-bit converters and sampling rates up to 192 kHz. These preamplifiers provide the highest performance in any portable interface. Their topology is shared with Sound Devices' award-winning 744T Digital Audio Recorder. Peak limiters, high-pass filters, and a 15 dB pad provide overload protection. All analog-to-digital and digital-to-analog conversion is performed by the USBPre 2 for superior audio performance.

USBPre 2 allows for simple plug-and-play connection to computers running Mac OS, Windows, and Linux. There are no drivers to install for the USBPre 2 and there are no software-only features. All additional controls and settings are available on back panel DIP switches. The USB port also provides power to the unit, both when connected as an audio interface and when used in Stand-Alone operation.

View full details

Specifications

Dimensions
Sample Rates / Bit Depths Recording
8, 16, or 24-bit at 8, 16, 32, 44.1, 48, 96, or 192 kHzPlayback: 24-bit at 8, 16, 32, 44.1, 48, 96, or 192 kHz
Dimensions (unpackaged) (H X W X D)
1.7 x 7.25 x 4.25 inches (4.3 x 18 x 10 cm)
Electrical
THD) Mic
-10 dBuMic (15 dB pad): +4 dBuLine: +28 dBu (19.45
Input Impedance (actual) Mic
4k ohm, active-balancedMic (15 dB pad): 4k ohm, active-balancedLine: 60k ohm, active-balancedAux: 80k ohm, active-balanced
Output Impedance Headphone (Actual)
22 ohmsBalanced
Audio
Input Sensitivity (typical, for 0 Db FS) Mic
-9 dBu min, -60 dBu maxMic (15 dB pad): +6 dBu min, -58 dBu maxLine: +29 dBu min, +10 dBu maxAux: +12 dBu min, -7 dBu max.
Phantom Power
48 V through 6.8k ohm resistors. Each mic input will supply 10 mA
Connectivity
Analog Inputs
Frequency Response (reference 1 kHz, at 96 kHz Sample Rate) 10 Hz – 40 kHz, ± 0.5 dB (any input to PC recording)10 Hz – 40 kHz, ± 0.5 dB (PC source to AUX output), THD+N (22 Hz – 22 kHz measurement bandwidth) 0.05% max (any input to PC recording, gain control at min, input driven to -6 dB FS)0.009% max (AUX output, 0 dB V output, 100 ohm load)0.05% max (HEADPHONES output, 2 V rms output, 600 ohm load)
E.I.N. (MIC inputs)
-127 dBu min (22 Hz – 22 kHz bandwidth, 150 ohm source, gain control fully clockwise, 15 dB pad out)
Input Limiter Threshold Mic
-4 dBFS
Outputs
Output Clipping Level (1% THD, PC-controlled output levels at max) Balanced XLR: +18 dBu with 100k ohm loadAux: +8 dBu (2.0 V rms) with 100k ohm loadHeadphones: +11 dBu (2.75 V rms) with 600 ohm load
XLR (Line level)
500 ohmsBalanced
XLR (Mic level)
5 ohmsAux: 2k ohms
Construction
Certifications
Meets FCC Part 15 Class B, Complies with the Requirements of European Directive 89/336/EEC
Shipping
Weight
1.13 lbs ( 0.5 kg)
General
V rms)Aux
+9 dBu (2.18 V rms)
Low Cut Mic
80 Hz, -3 dB, 12 dB per octave
S/PDIF Digital
24 or 16 bit input
A/D Converter
24-bit resolution. 114 dB typical dynamic range (22 Hz – 22 kHz bandwidth, A-weighted)
D/A Converter
24-bit resolution. 112 dB typical dynamic range (22 Hz – 22 kHz bandwidth, A-weighted)
Master Clock
Crystal based, low jitter, asynchronous USB mode
Metering
48 segments, 44 dB total range, peak ballistics. 0 dB on meter = 0 dB FS (0 dB referenced to full scale digital)
Powering
USB bus powered, soft-start meets USB hot-plugging power requirements (5 V, 100 mA max current drawn during enumeration), 5 V, 500 mA max current from USB port (USBPre 2 will not function if connected through a passive USB connection or hub)
