SoundTube IPD-CM52s-BGM-II 5.25" Short Can Ceiling Speaker with Dante

SoundTube IPD-CM52s-BGM-II 5.25" Short Can Ceiling Speaker with Dante

SoundPro Item: 204973 | Part Number: IPD-CM52s-BGM-II

$245.00
$245.00 $245.00
Your Price Sold out
MSRP: $245.00 | MAP: $245.00

Usually ships in 5-7 business days

  • Shallow Backcan Fits Tight Plenum Spaces
  • PoE Audio And Control Reduce Cabling Needs
  • Broad Coverage Helps Even Room Coverage
  • Software Zoning Supports Flexible System Setup
  • Included Mounting Hardware Speeds Installation

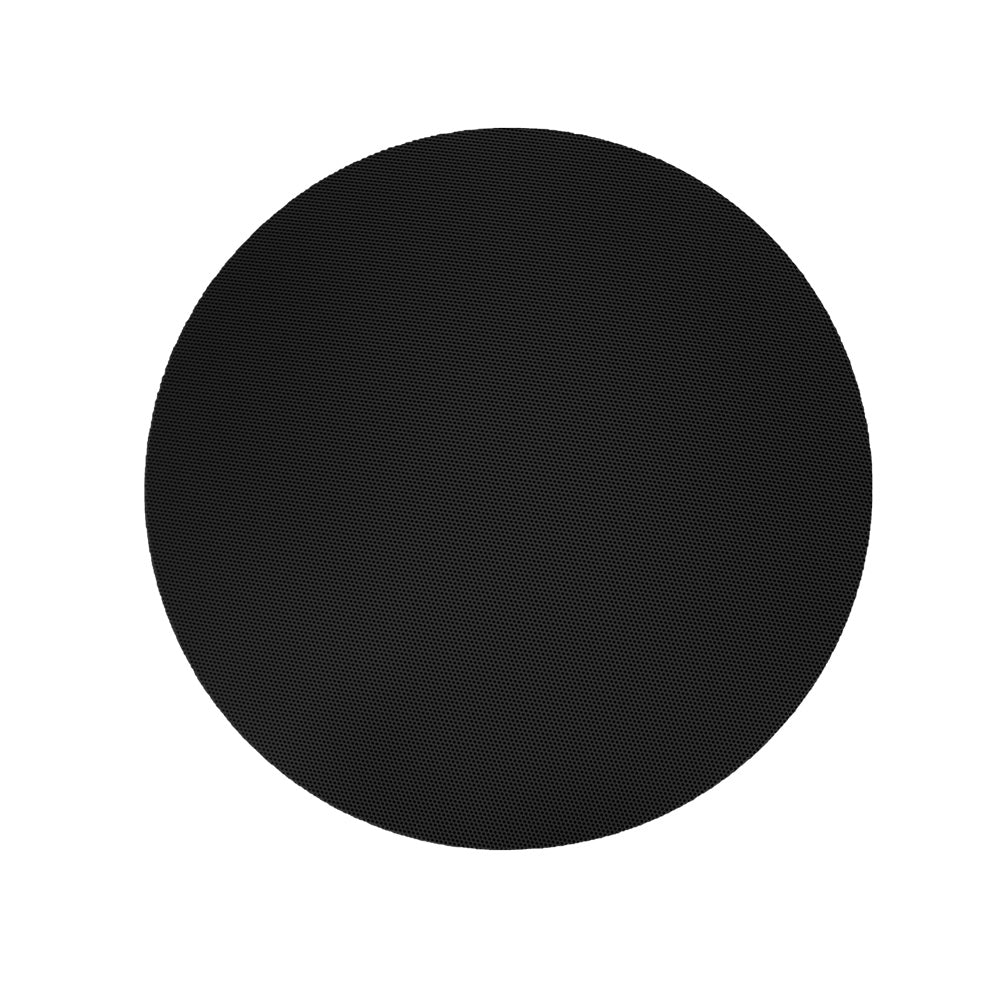

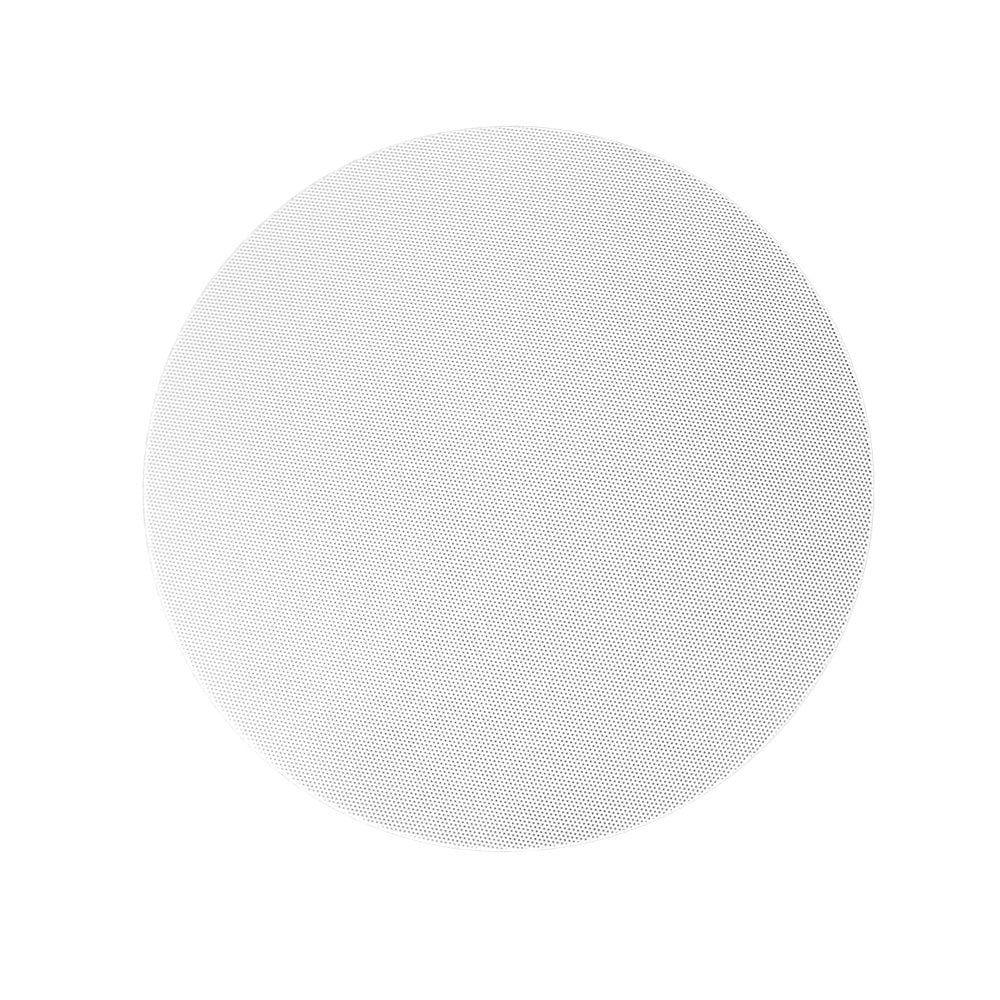

  • Paintable Steel Grille Blends With Ceilings
Log in or register for YOUR best price

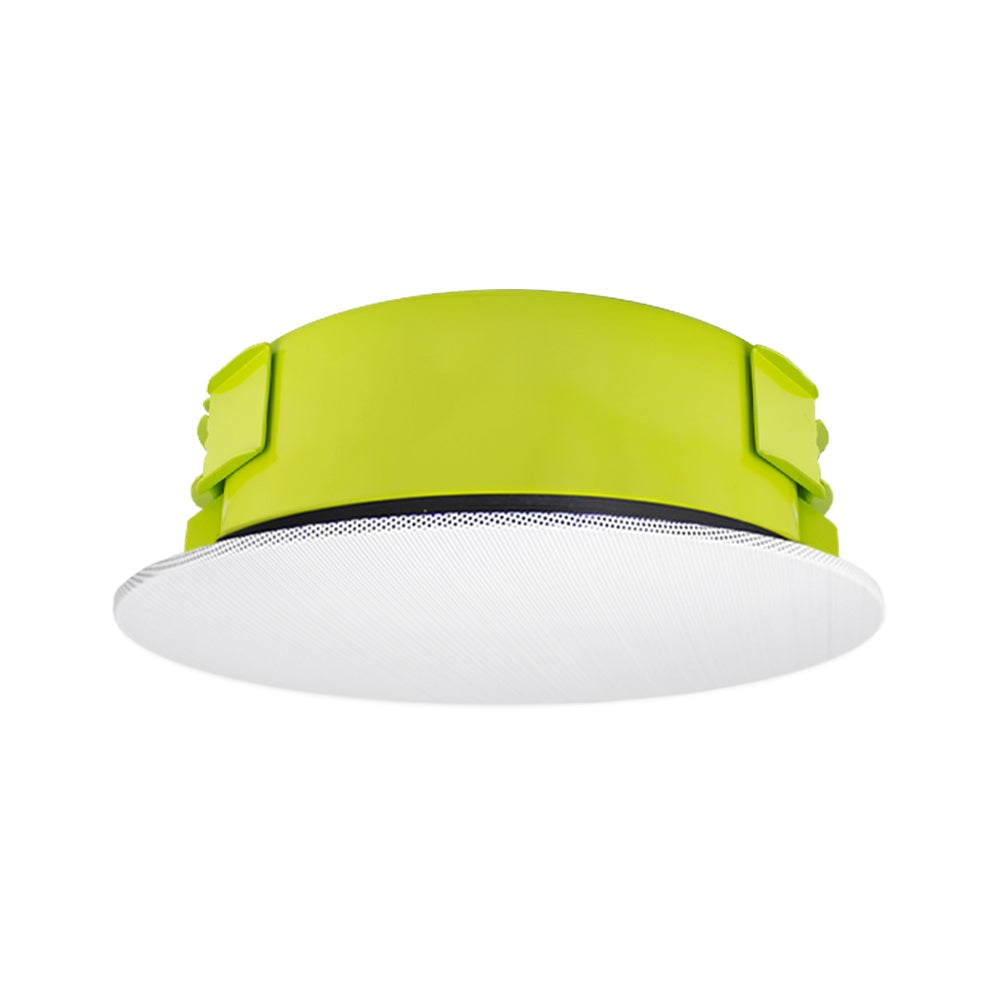

The SoundTube IPD-CM52s-BGM-II is an IP-addressable Dante-enabled coaxial in-ceiling speaker built for installed audio environments where plenum depth is limited. Its 3.5 in-deep backcan helps it fit into tighter ceiling spaces while still delivering full-range performance from a 5.25 inch polypropylene woofer and 0.75 inch silk dome tweeter. Audio, power, and control are carried over standard category cable when used with an STNet-Switch or other PoE / PoE+ switch, simplifying wiring for networked speaker deployments.

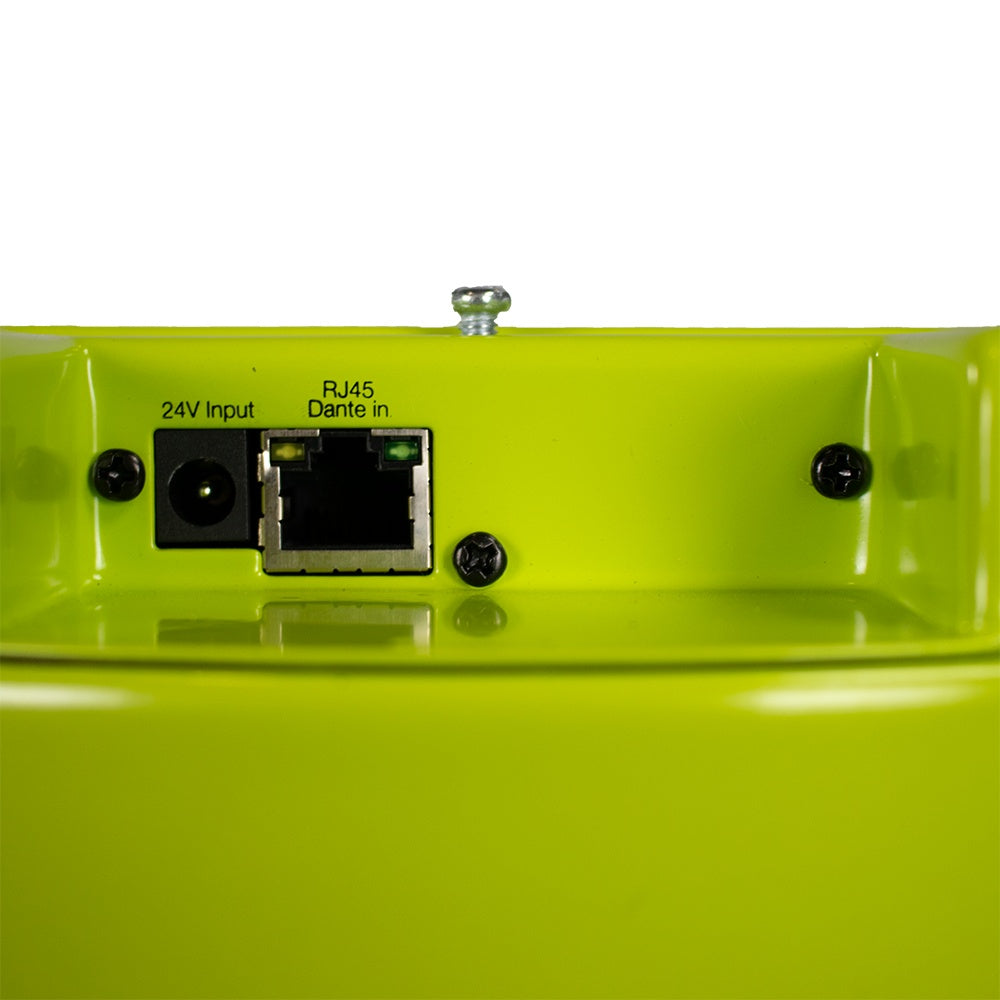

This model is well suited for background music and distributed paging in commercial spaces that need controlled coverage and centralized configuration. BroadBeam Ring technology and a tuned port support smooth off-axis response, midrange intelligibility, and useful low-frequency extension. For projects that are not using PoE infrastructure, the speaker may also be powered from a 24V DC barrel connector. Software-based setup supports configuration and zoning across the system.

Included installation hardware supports efficient ceiling mounting. The SpeedWing constant-tension fixed-wing system accommodates a wide range of ceiling material thicknesses, and the package also includes a color-coded tile bridge, UL listed conduit clamp, and paint shield for cleaner integration into finished spaces.

Downloads

View full details

Specifications

General
Shipping Weight
7.85 lbs / 3.56 kg
Carton Height
6 in / 152.4 mm
Carton Length
13 in / 31.75 mm
Carton Width
13 in / 330.2 mm
Certifications
CE, RoHS, UL2043, UL60065, ETL-C/US
Enclosure Properties
ABS, Steel
Included Accessories
Conduit Clamp, Cover Plate, Grille, Paint Mask
Optional Accessories

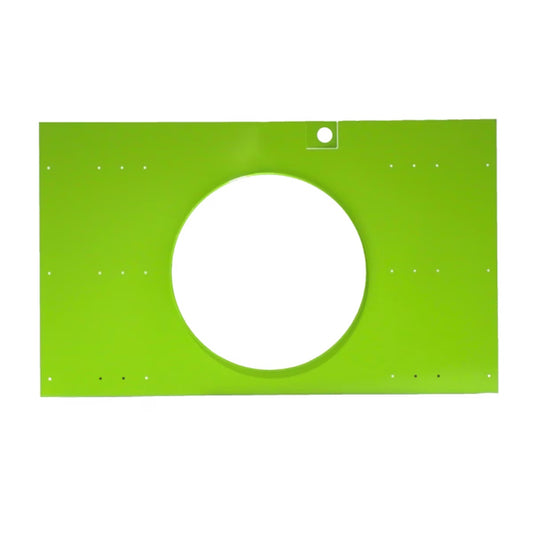

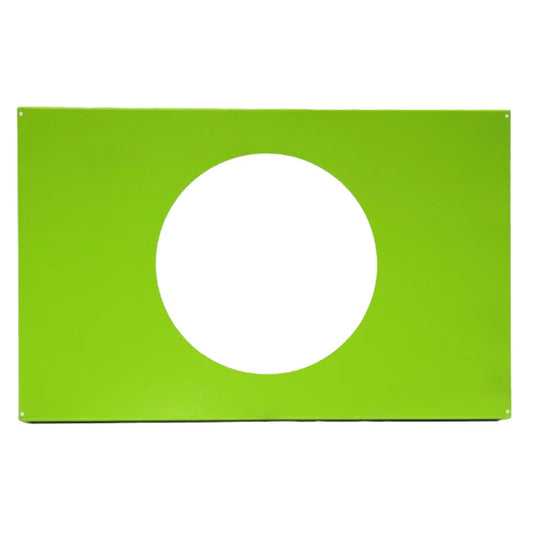

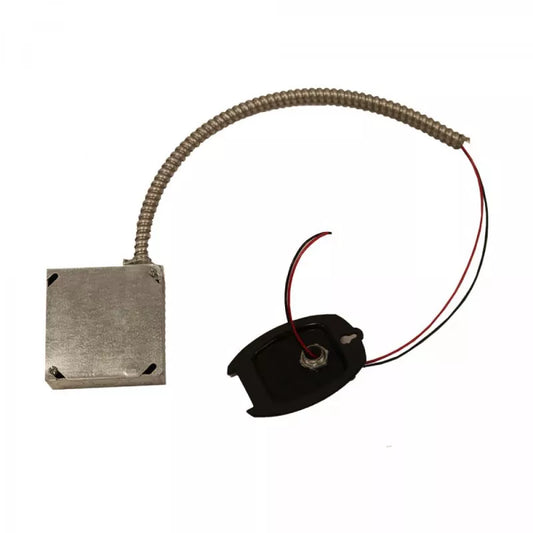

Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)
Source Inputs
RJ45 Ethernet Port
TAA Compliant (Trade America)
No
BAA Compliant (Made in USA)
No
Physical
Backcan Diameter
9.67 in / 245.6 mm
Backcan Height
3.75 in / 95.3 mm
Cutout Width/Diameter
10.5 in / 266.7 mm
Max. Ceiling Thickness
1.6 in / 40.6 mm
Minimum Ceiling Thickness
0.04 in / 0.9 mm
Visible Diameter
298.5 mm
Visible Height
8.6 mm
Grille Properties

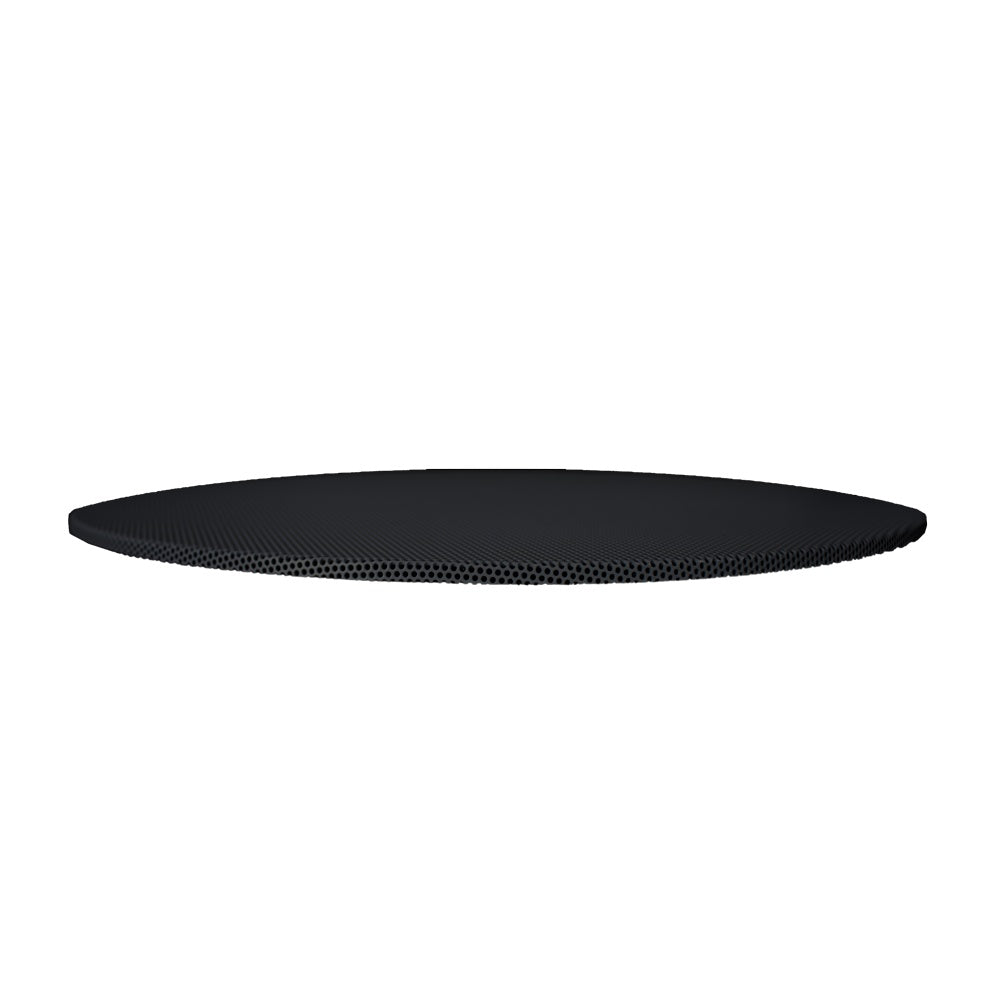

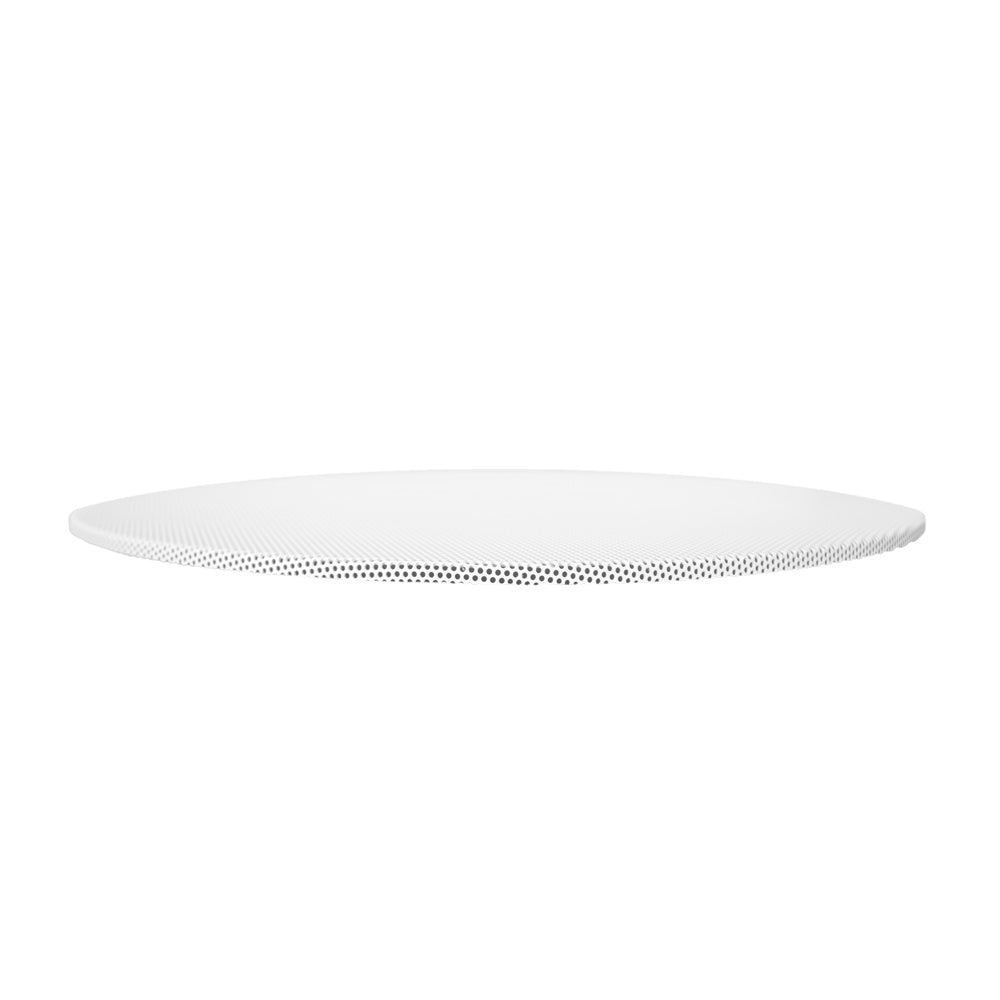

Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel
Performance
Coverage Angle (±6dB @ 2kHz)
100°
Crossover Frequency
5.0 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
4.3 and 4.2
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
5.7dB and 6.2 dB
Frequency Response (± 10 dB)
65 Hz - 22 kHz
Frequency Response (± 3 dB)
90 Hz - 20 kHz
Low Pass Crossover
12 dB per octave 2nd order
Network Type: High Pass
12 dB per octave 2nd order
Max. Continuous Power RMS
20W
Max. Program Power
40 W
Power for Max SPL
40 W
Drivers
Low Frequency Voice Coil
1 in / 25.4 mm
Tweeter Driver
.75"" Silk Dome w/ BroadBeam Ring®
Woofer Driver
5.25"" Polypropylene Cone w/ Butyl Rubber Surround
