SoundTube IPD-SM52-EZ-WX-WH
SoundTube IPD-SM52-EZ-WX-WH
SoundPro Item: 129968 | Part Number: IPD-SM52-EZ-WX-WH
Usually ships in 5-7 business days
Color White UPC 644216231805 Manufacturer SoundTube Manufacturer's Category STNet IP-Addressable and Dante Series Depth 6.63 in / 168.4 mm Height 11.88 in / 301.75 mm Width/Diameter 7.5 in / 190.5 mm Shipping Weight 7.8 lbs / 3.54 kg Carton Height 12 in / 304.8 mm Carton Length 15 in / 381 mm Carton Width 10.5 in / 266.7 mm Certifications CE, IP65, RoHS, UL60065 Enclosure Properties High Impact Polystyrene Included Accessories Mounting Hardware, Port Plug, Safety Cable Source Inputs RJ45 Ethernet Port IP Rating IP65 TAA Compliant (Trade America) No BAA Compliant (Made in USA) No Coverage Angle (±6dB @ 2kHz) 91° Horizontal / 120° Vertical Crossover Frequency 3.5 kHz Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 6.9 and 5.9 Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.2 and 7.7 Frequency Response (± 10 dB) 55 Hz - 20 kHz | Sealed: 62 Hz - 20 kHz Frequency Response (± 3 dB) 65 Hz - 20 kHz | Sealed: 80 Hz - 20 kHz Grille Properties Aluminum, Powder-Coated, White Low Frequency Voice Coil 25.4 mm (1") high temperature Kapton Max SPL @ 1M 97 dB Tweeter Driver 1" Soft Dome Woofer Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround

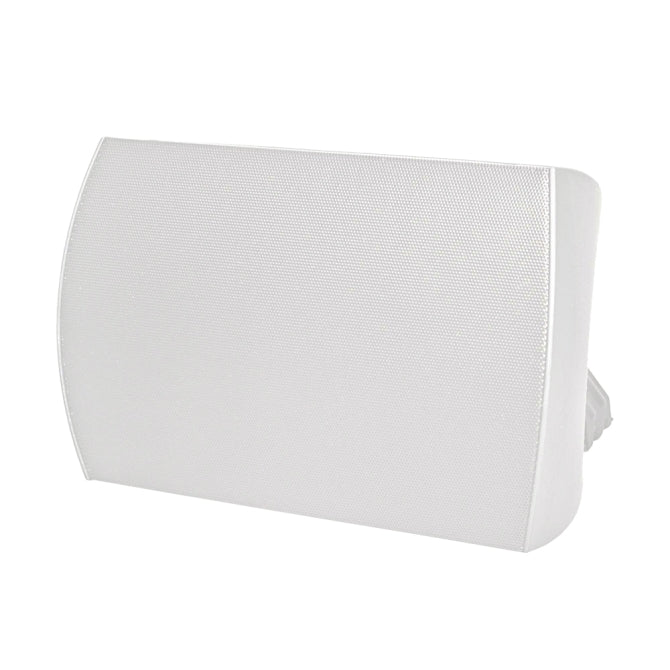

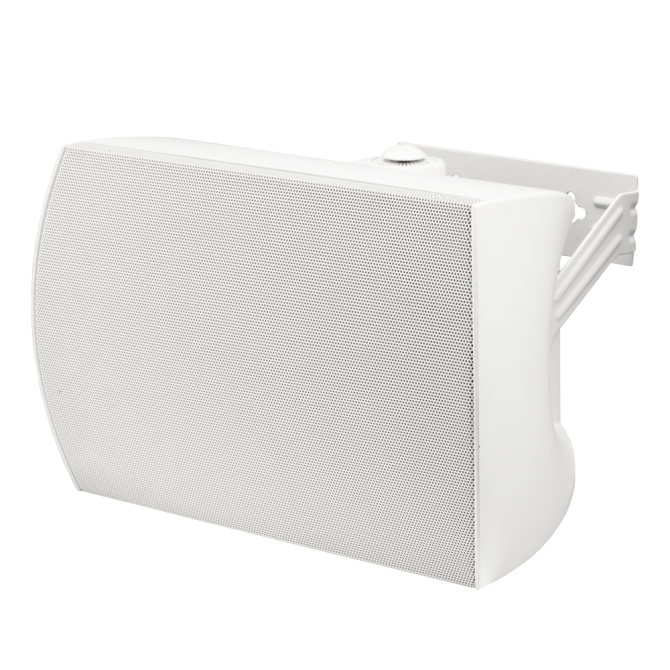

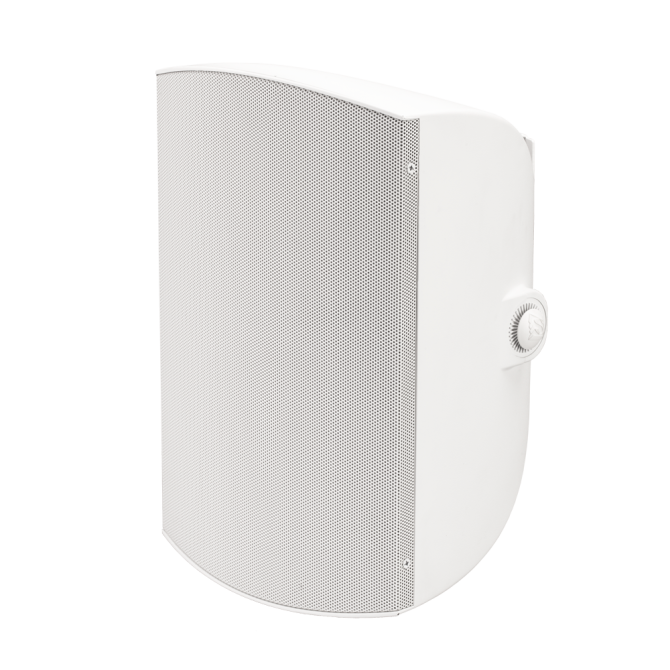

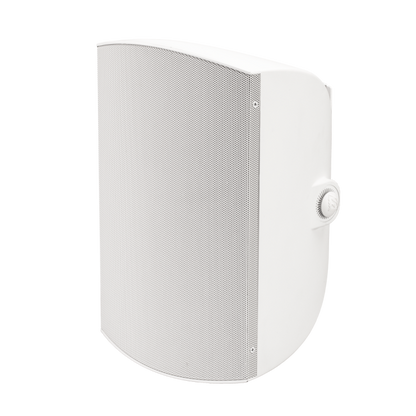

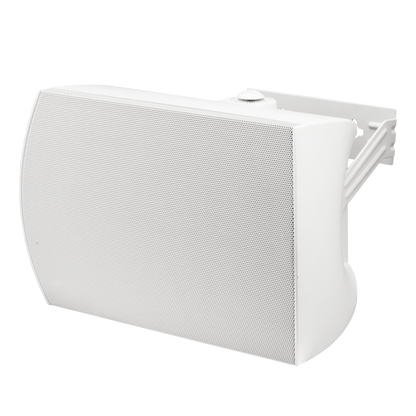

The IPD-SM52-EZ-WX is a Dante-enabled, weather resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating: IP65. Included accessories: Safety cable, wall mount bracket, conduit connector, and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.
*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use. Also: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II).
