SoundTube LA808i-II-BK Low Frequency Directivity Element Line Array Speaker | Black

SoundTube LA808i-II-BK Low Frequency Directivity Element Line Array Speaker | Black

SoundPro Item: 204975 | Part Number: LA808i-II-BK

$1,667.00
$1,667.00 $1,667.00
Your Price Sold out
MSRP: $1,667.00 | MAP: $1,667.00

Usually ships in 5-7 business days

  • Built For LA880i Systems For Correct Integration
  • Improves LF Directivity In Reverberant Rooms
  • Can Extend Directional LF Performance Lower
  • Matches LA880i Form Factor For Array Consistency
  • Includes Linking And Safety Hardware For Install
Log in or register for YOUR best price

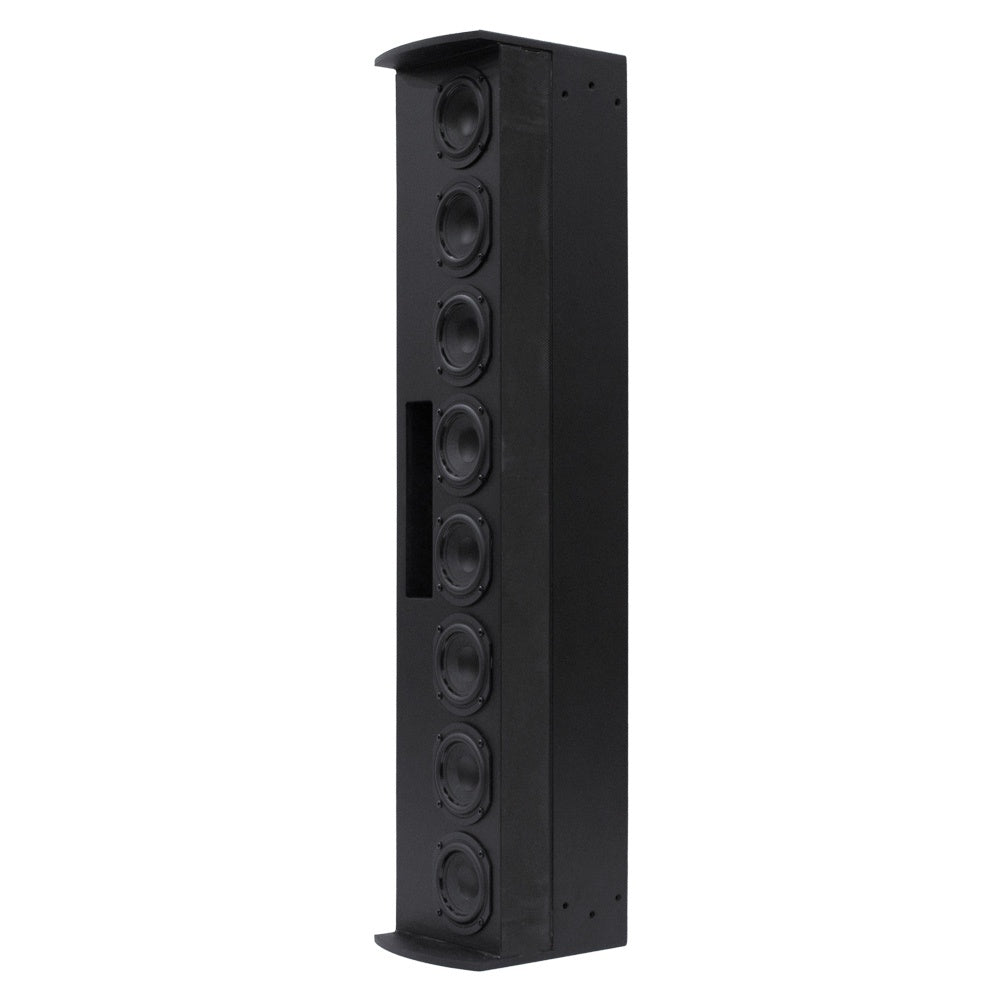

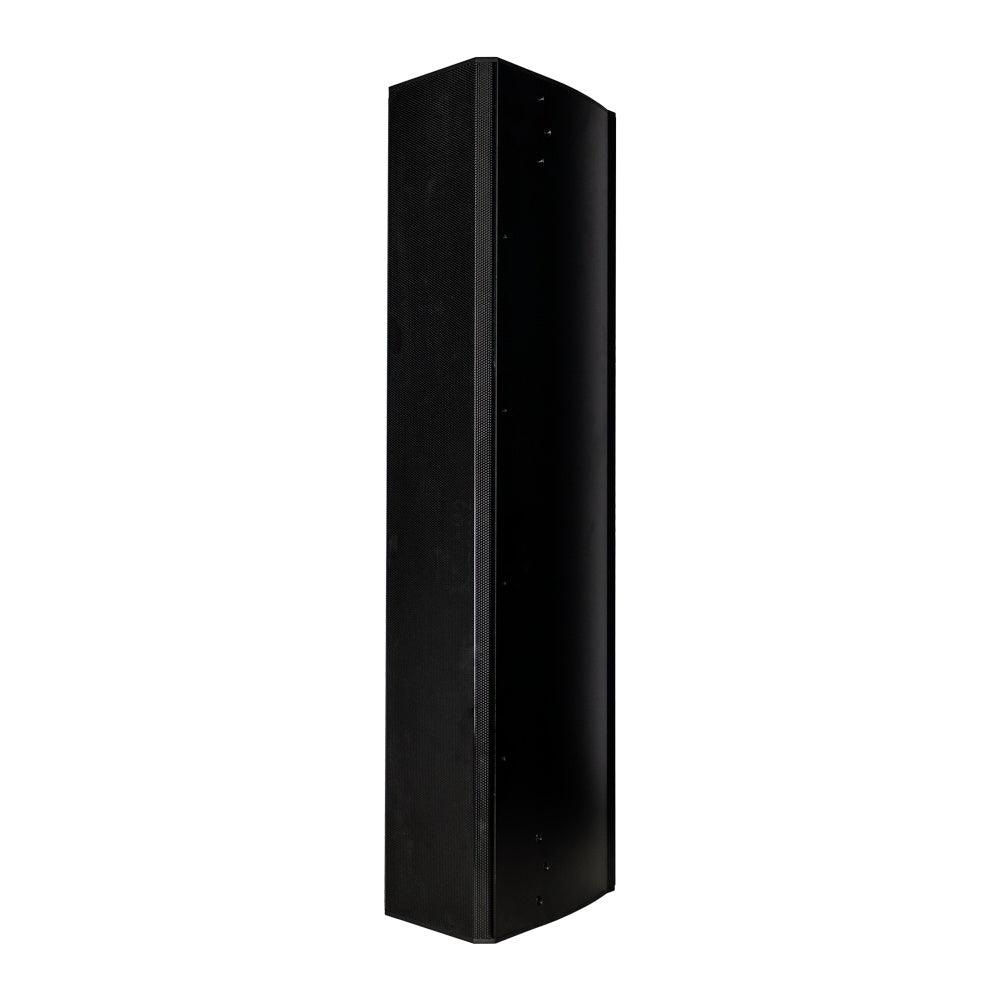

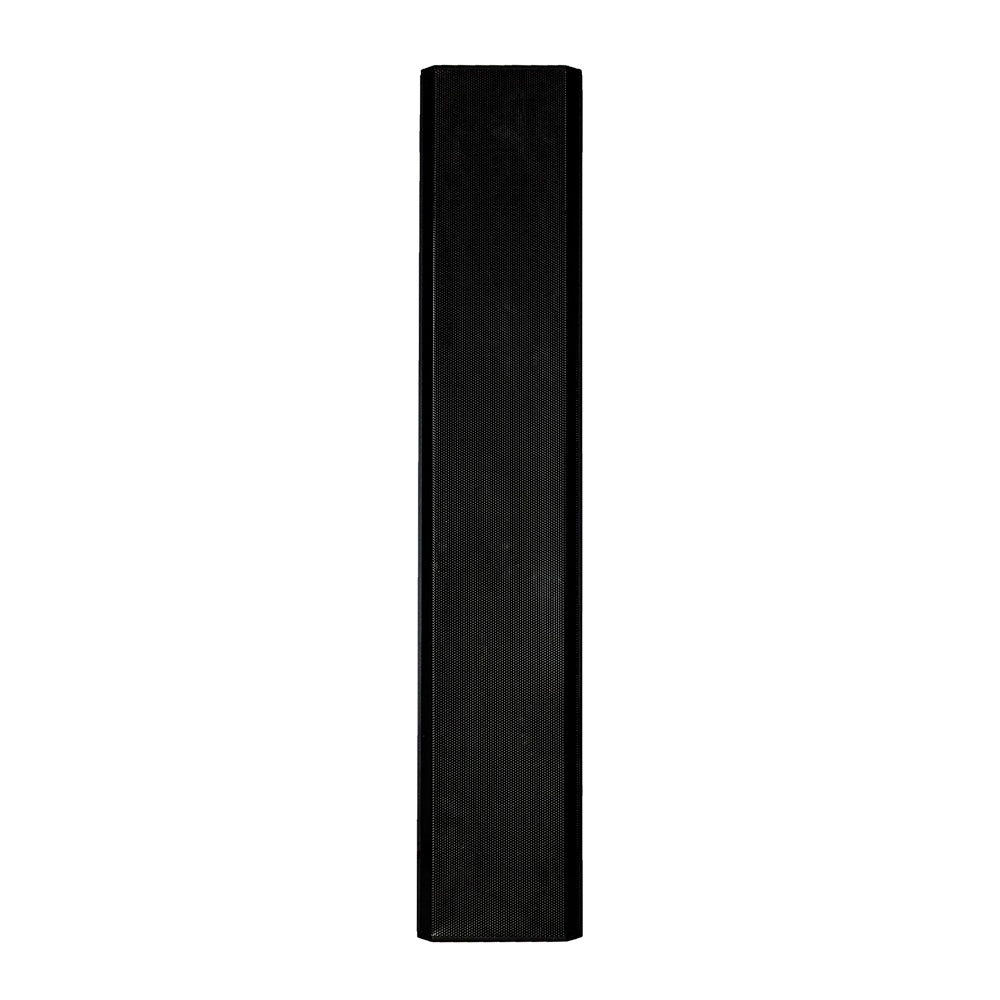

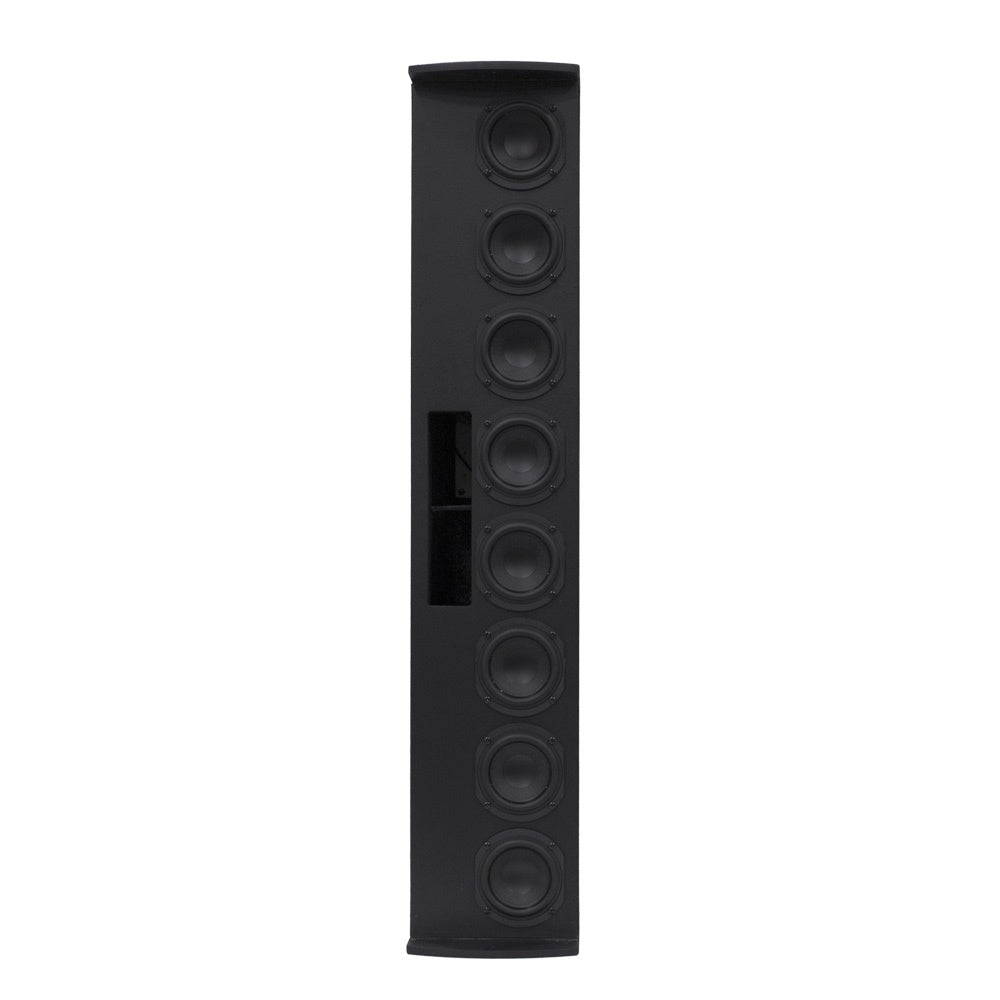

The SoundTube LA808i-II-BK is a black line array speaker element built specifically for use with the LA880i 3-way line array. It is not a subwoofer. Its role within the system is to increase low-frequency directivity, making it a practical choice for installations where speech intelligibility and tonal control are challenged by long reverberation times. When added to an LA880i, it can extend directional low-frequency performance up to an octave lower than the LA880i alone.

Because the enclosure shares the same dimensions as the LA880i, it integrates cleanly into array builds and must be positioned directly above or directly below the LA880i for proper operation. Installers can also deploy two units with one above and one below the LA880i when the design calls for additional system optimization. Connection options include 4-pin 5.08 mm Euroblock and SpeakON, and the cabinet includes accessories for system linking and secure installation.

For professional AV projects, the LA808i-II-BK is suited to large, reflective environments where controlled coverage matters. The enclosure uses painted MDF and plywood construction with a powder-coated steel grille, and it includes hardware such as a 4-pin Euroblock, jumper cable, LINK side plates, safety bracket, and safety cable to support installation workflow.

Downloads

View full details

Specifications

General
Height
81.8 in / 2077.72 mm
Width/Diameter
8.24 in / 209.3 mm
Shipping Weight
56 lbs / 25.40 kg
Carton Height
12 in / 304.8 mm
Carton Length
44 in / 1117.6 mm
Carton Width
16 in / 406.4 mm
Certifications
CE, RoHS
TAA Compliant (Trade America)
No
BAA Compliant (Made in USA)
No
Construction
Enclosure Properties
MDF, Painted, Plywood
Grille Properties
Powder-Coated, Steel
Included Accessories
Included Accessories
4-Pin Euroblock, Jumper Cable, LINK Side Plates, Safety Bracket, Safety Cable
Connections
Source Inputs
4 Pin 5.08mm Euroblock, SpeakON
Performance
Coverage Angle (±6dB @ 2kHz)
103° Horizontal 29° Vertical
Crossover Frequency
500 Hz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
9.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
12.6dB
Frequency Response (± 10 dB)
75 Hz - 22 kHz
Frequency Response (± 3 dB)
83 Hz - 22 kHz
Low Frequency Voice Coil
1 in / 25.4 mm
Low Pass Crossover
12 dB per octave
Max. Continuous Power RMS
300 W
Max. Program Power
500 W
Network Type: High Pass
12 dB per octave
Nominal Impedance (Ω Ohms)
4 Ω
Woofer Driver
(8) 4.5"" Woofers Paper w/ Rubber Surround
Sensitivity dB @ 1W/1M
87 dB
Sensitivity dB @ 2.83V/1M
90 dB
Mounting
Mounting Depth
10.8 in / 274.3 mm
