SoundTube CMi 10" In-Ceiling Subwoofer Deep Can Transformer | Black
SoundTube CMi 10" In-Ceiling Subwoofer Deep Can Transformer | Black
SoundPro Item: 40027 | Part Number: CM1001D-T-BK
Usually ships in 5-7 business days
- Polypropylene Cone With Butyl Rubber Surround Optimized For Commercial Low-Frequency Reinforcement
- SoundTube-Specific Steel Deep Can Delivers Controlled Bass Response In Ceiling-Mounted Applications
- Blind-Mount Fixed-Wing Mechanism Accommodates a Wide Range Of Ceiling Thicknesses Without Above-Ceiling Access

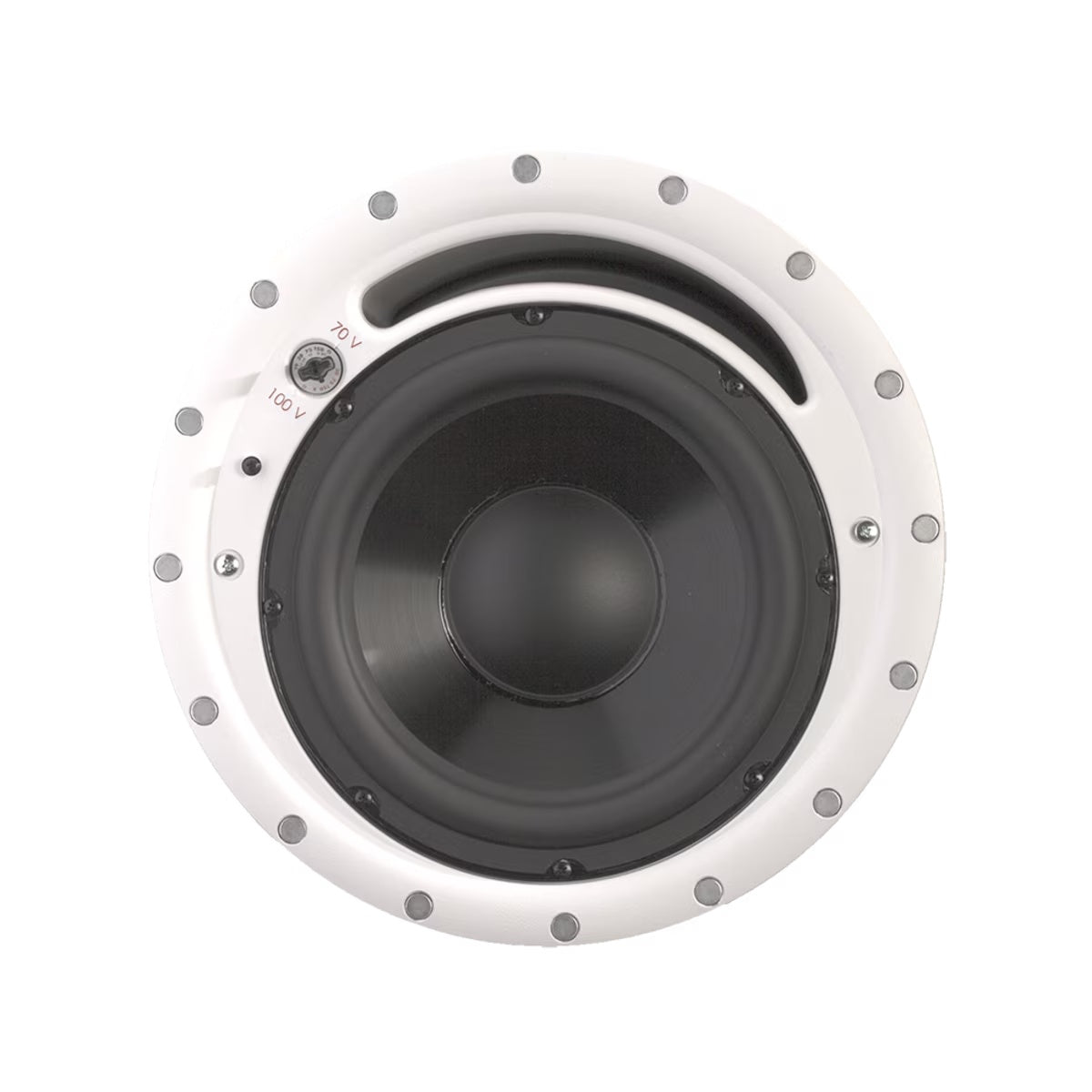

- Five-Position Rotary Tap Switch Supports 25V, 70.7V, 100V, And Transformer Bypass Operation

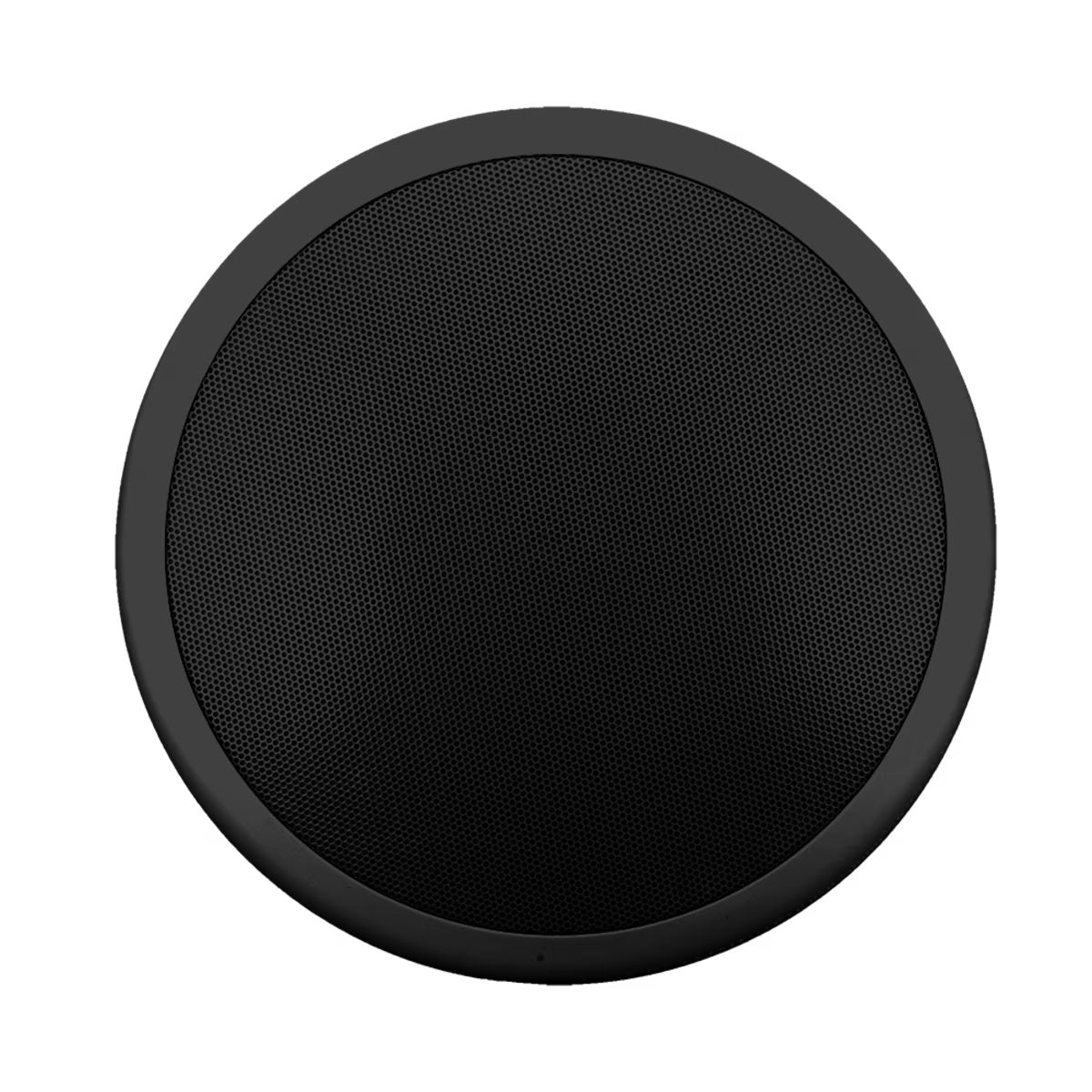

- Magnetic Steel Grille With Powder-Coated Finish And Tool-Free Strap For Clean Final Installation
- UL1480 And UL2043 Listed For Plenum And Non-Plenum Ceiling Compliance In Commercial Projects
- Complete Accessory Kit Included To Reduce Job-Site Sourcing On Day Of Installation
The SoundTube CMi series 10" in-ceiling subwoofer is engineered for commercial integrators who need reliable low-frequency reinforcement in distributed audio environments — including corporate, hospitality, retail, and house-of-worship installations. Its 10" polypropylene cone with butyl rubber surround, mounted on a reinforced ABS baffle, delivers an accentuated 70 Hz peak optimized for listener impact rather than flat measurement, making it a practical choice where ceiling-mounted bass extension is the primary objective.

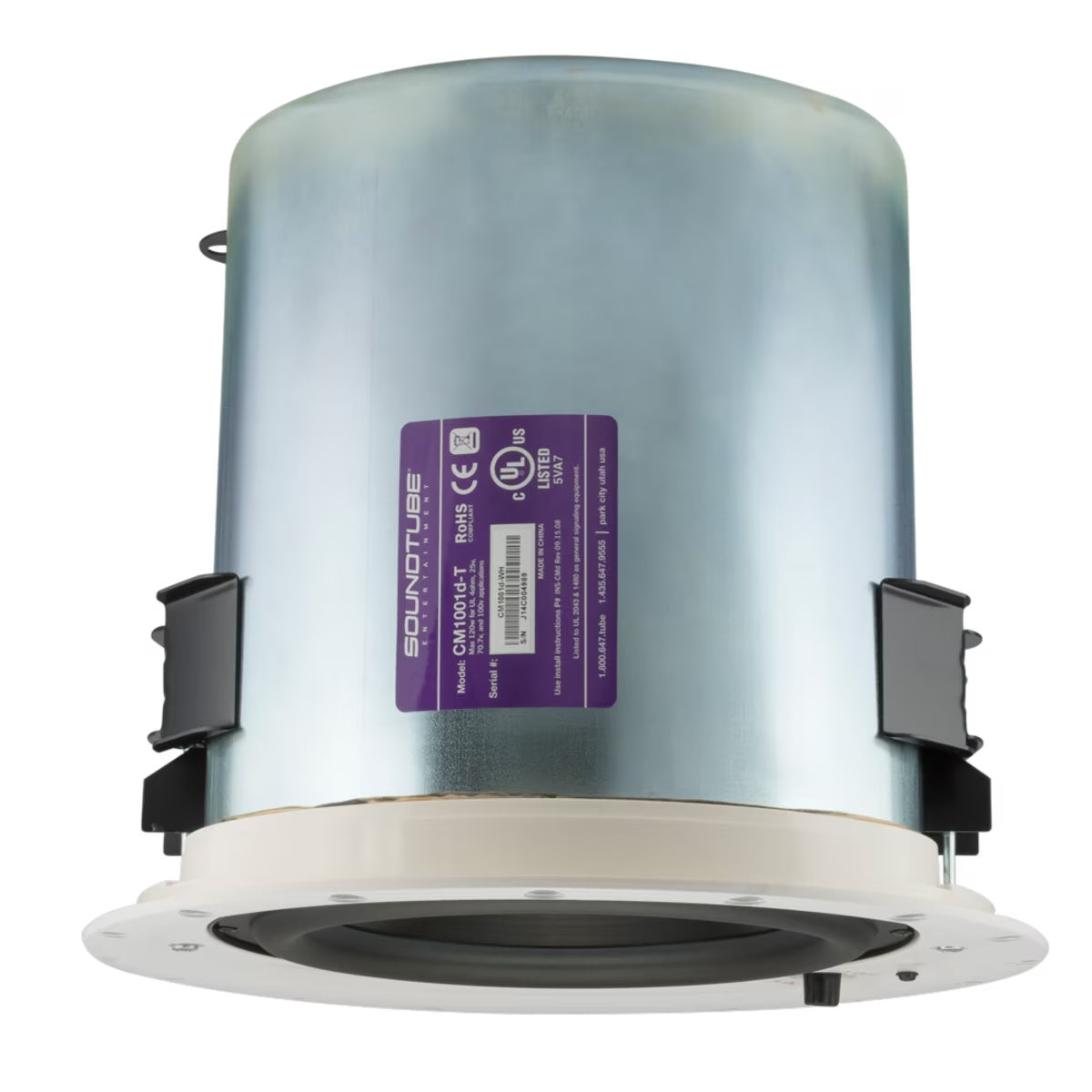

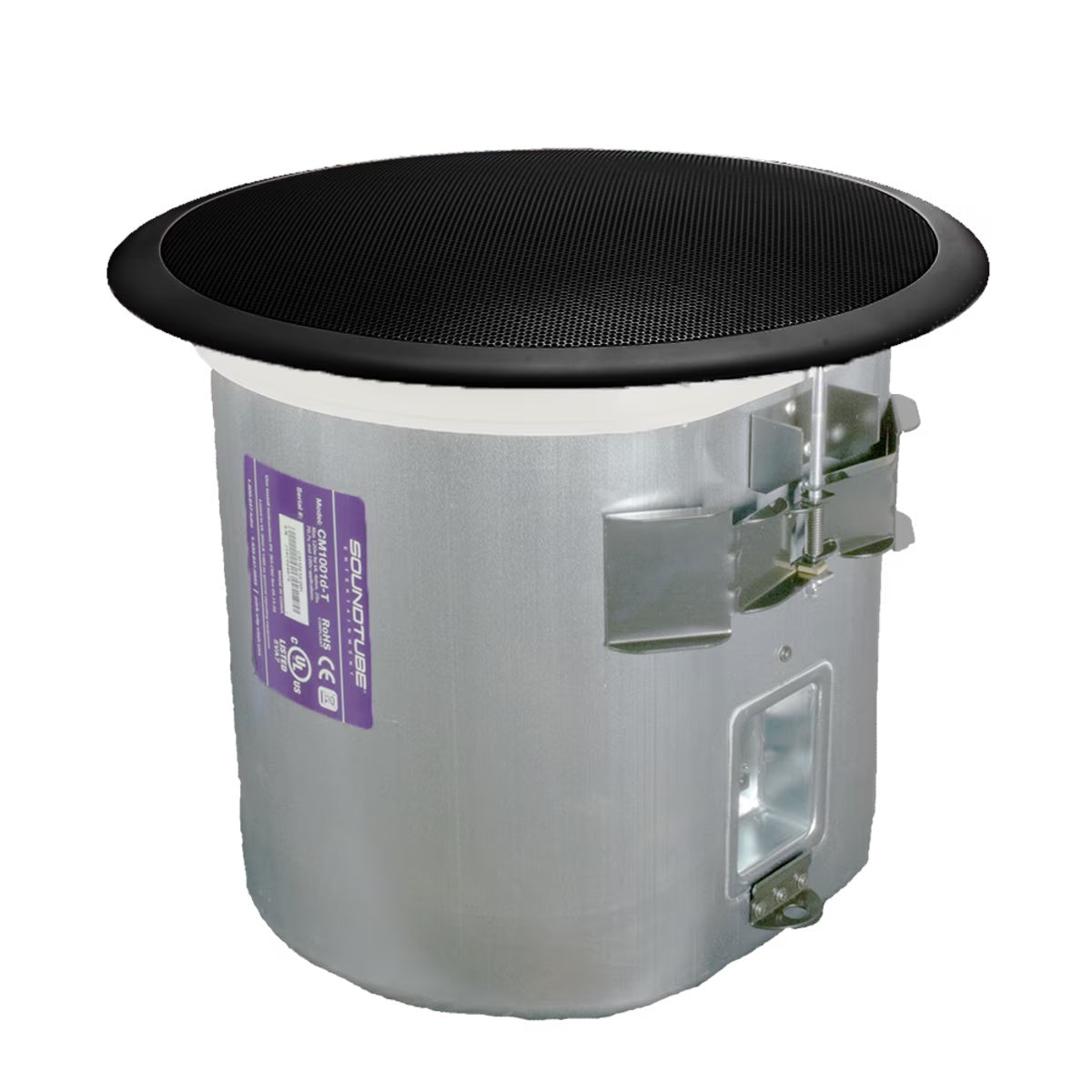

The SoundTube-specific 12.9-liter steel deep can is a key differentiator in the in-ceiling subwoofer category: where competing models rely on shallow enclosures that compromise bass quality, this sealed steel chamber provides the volume necessary for controlled, accurate low-frequency output. Installation is handled through a blind-mount, fixed-wing mechanism with constant-tension design that accommodates ceiling thicknesses from 0.25" to 1.91" without requiring above-ceiling access. The five-position rotary tap switch supports 25V, 70.7V, and 100V transformer operation plus bypass, and the full accessory kit — grille, UL-rated cover plate, Euroblock, paint shield, restraint cable, and tile bridge or pre-construction bracket — ships in the box to reduce job-site sourcing complexity.
UL 1480, UL 2043, CE, and RoHS certifications make this subwoofer suitable for plenum and non-plenum ceiling spaces, supporting compliance-driven specification in commercial construction projects. The magnetic steel grille with powder-coated finish and tool-free strap allows a clean, professional final installation without additional hardware.
Specifications
