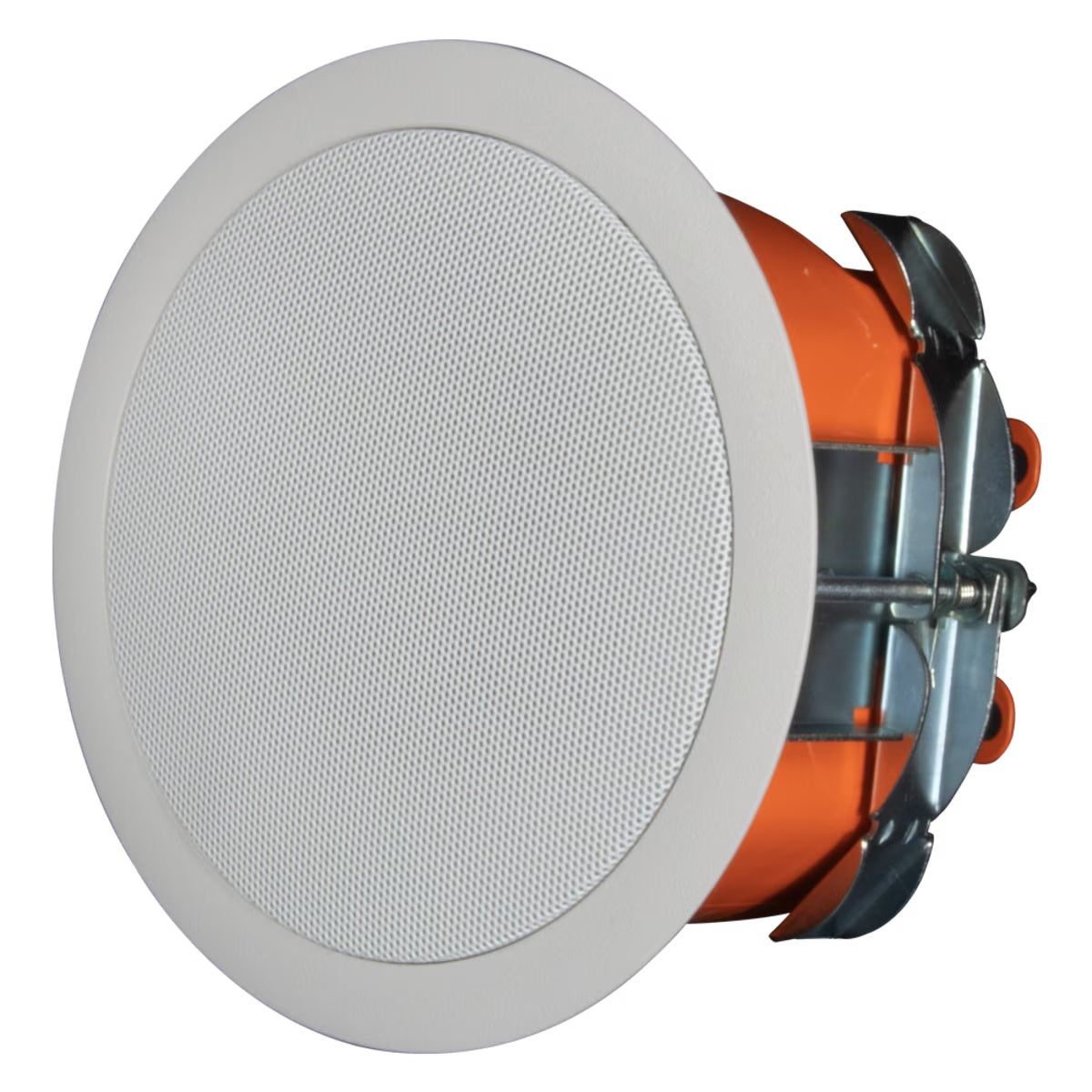

SoundTube CM42-EZS-II-WH 4" 2-Way In-Ceiling Speaker White
SoundTube CM42-EZS-II-WH 4" 2-Way In-Ceiling Speaker White
SoundPro Item: 40049 | Part Number: CM42-EZS-II-WH
Usually ships in 5-7 business days

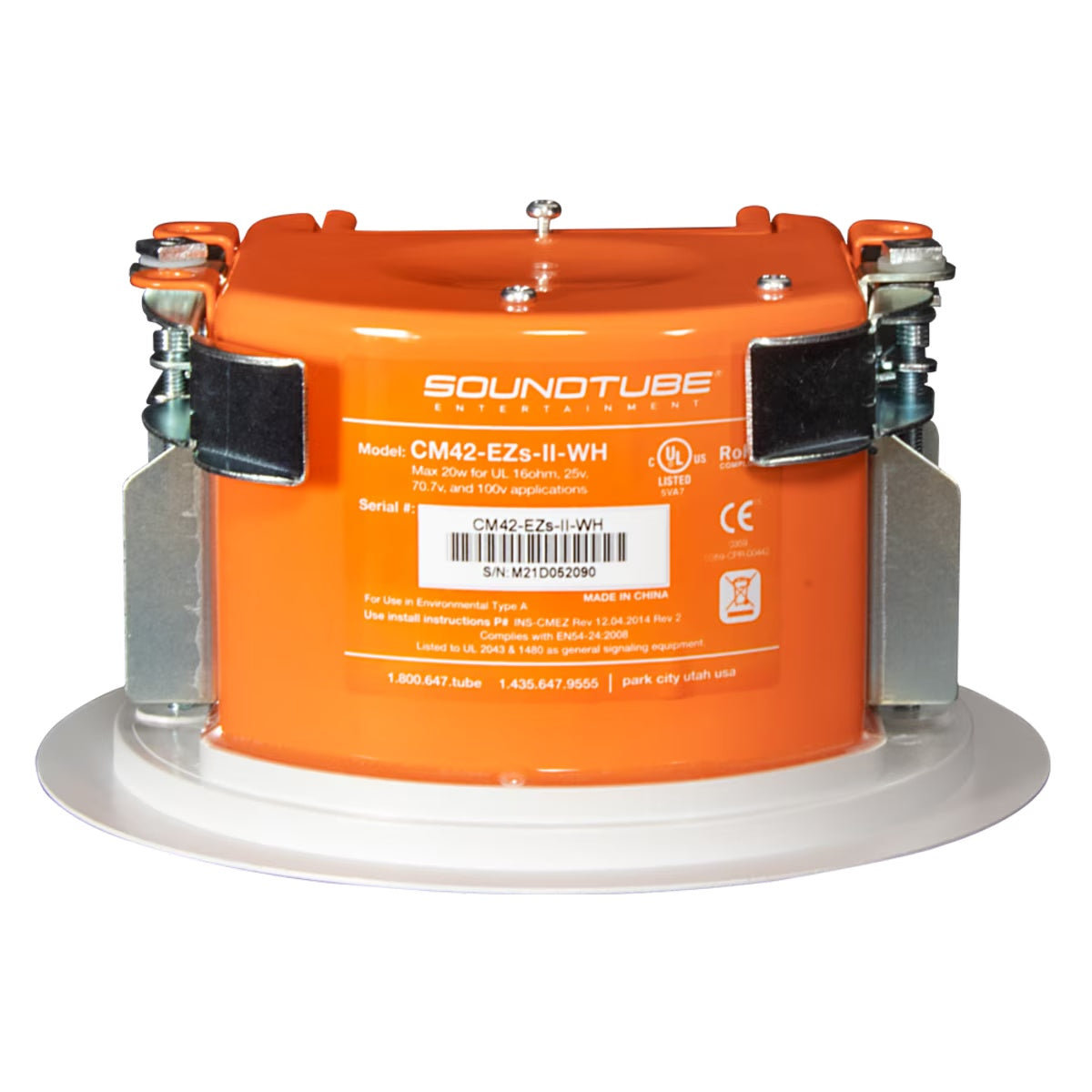

- Shallow Backcan Design Fits Plenum Spaces Where Standard-Depth Enclosures Cannot

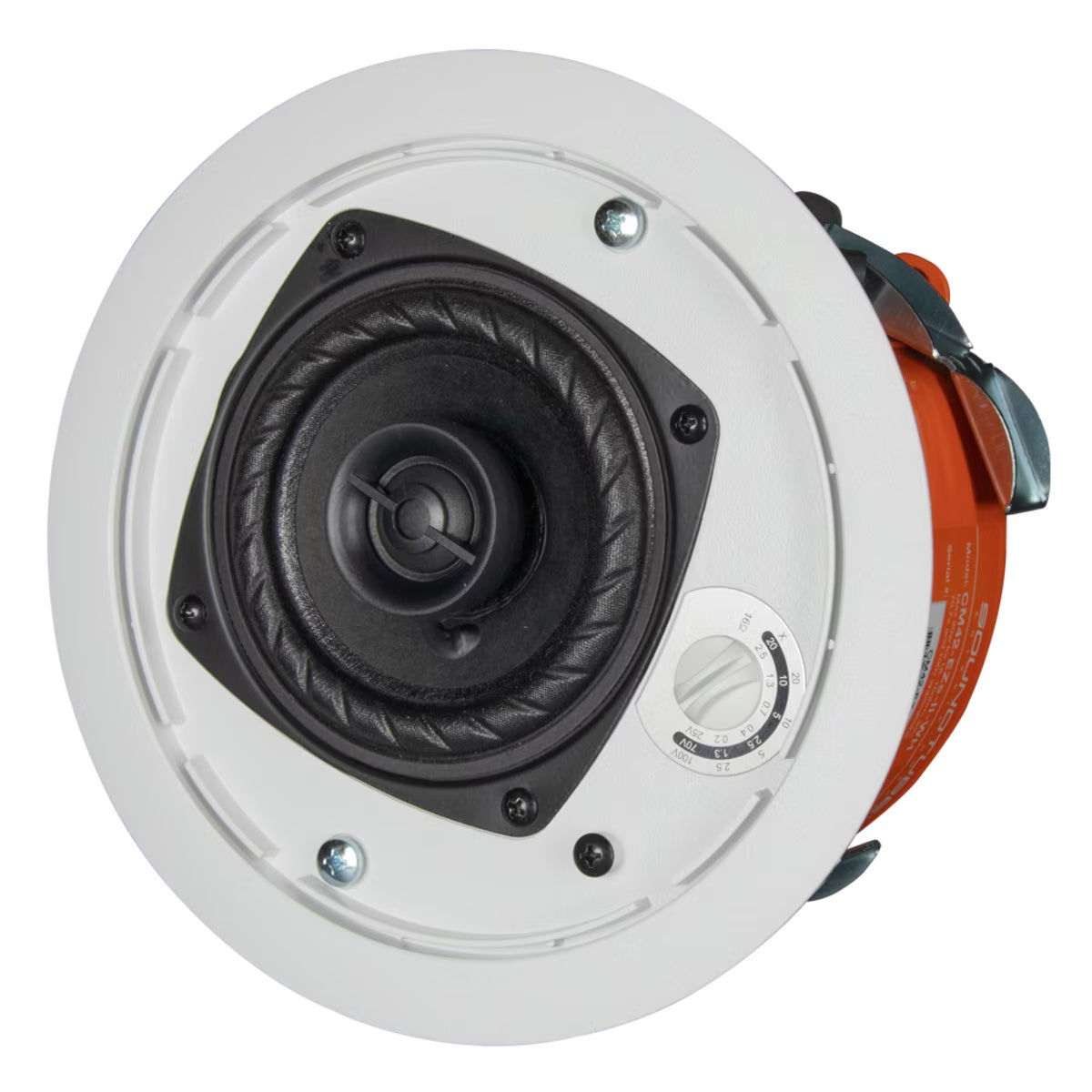

- Six-Position Tap Switch Covers 25V, 70.7V, 100V, And 16-Ohm Bypass In One SKU
- EN54-24 Listed For Voice Alarm Compliance In EU-Regulated Life Safety Systems
- UL 1480 And UL 2043 Plenum Ratings Support Code-Compliant Above-Ceiling Routing
- Ceramic Input Terminal With Thermal Fuse Protects Circuit Integrity Under Fault Conditions

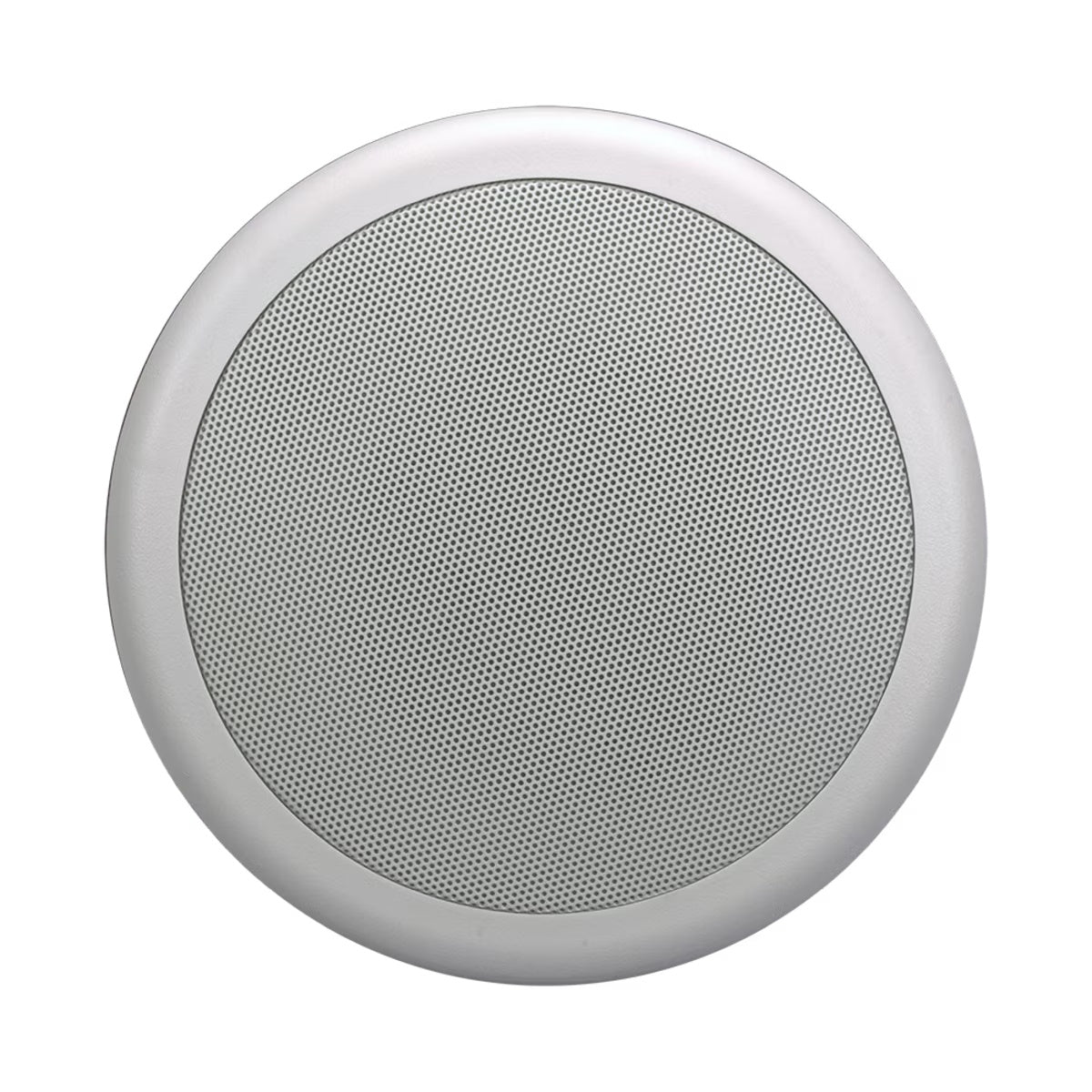

- Magnetic Paintable Steel Grille Allows Field Finishing To Match Any Ceiling Aesthetic
- 16-Ohm Bypass Enables Multi-Speaker Runs Without An External Transformer
The SoundTube CM42-EZS-II-WH is built specifically for commercial installs where plenum depth is at a premium. Its shallow backcan requires only 3.5 inches of clearance, opening up ceiling installations in retrofit environments, corridors, and low-profile construction where standard-depth enclosures simply will not fit. Systems integrators and AV contractors working in hospitality, corporate, education, and healthcare will find this speaker purpose-built for distributed audio and life-safety voice alarm systems operating on 25V, 70.7V, or 100V infrastructure.
The six-position tap switch covers all common transformer-line voltages plus a 16-ohm bypass, allowing a single SKU to serve multiple system configurations — reducing stocking complexity and field substitution errors. The 16-ohm setting supports chaining multiples of two, four, or six units on a standard amplifier without an external transformer, lowering overall system cost. An 87.5 dB sensitivity rating and 100-degree average coverage angle across 2–10 kHz deliver consistent voice intelligibility across the listening plane, independently verified per EN54-24 requirements.

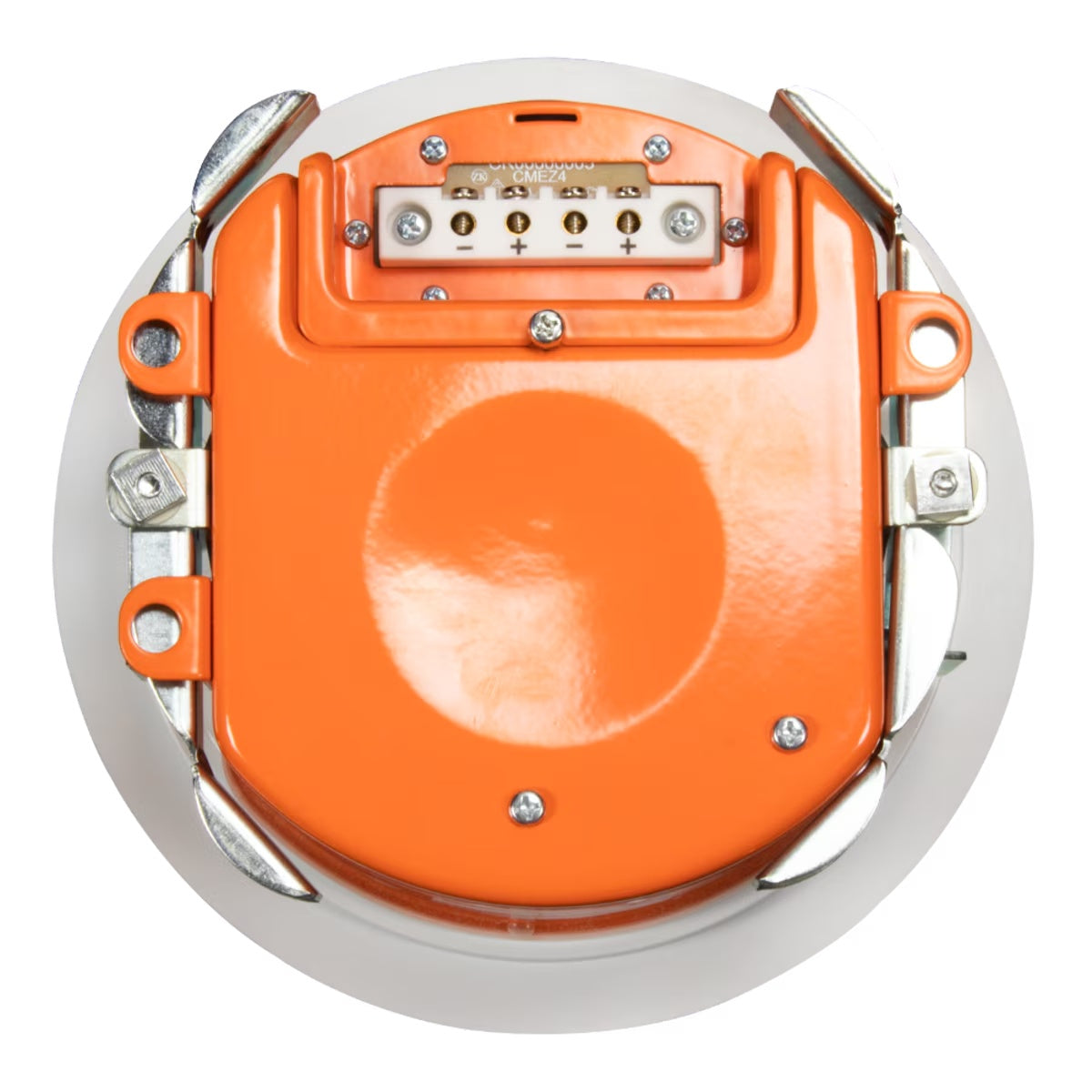

Compliance credentials include UL 1480, UL 2043 plenum rating, EN54-24, CE, and RoHS — meeting EU voice alarm regulations EN60849 and BS5839-8. A ceramic input terminal accepts up to 10-gauge plenum-rated wire and includes a thermal fuse for added circuit protection. The painted steel grille with magnetic attachment and the included installation accessories — tile bridge or pre-construction bracket, flex conduit clamp, paint shield, and wire nuts — support a clean, professional finish in any ceiling type.
