SoundTube CM62-EZS-II-WH 6" 2-Way In-Ceiling Speaker White
SoundTube CM62-EZS-II-WH 6" 2-Way In-Ceiling Speaker White
SoundPro Item: 40064 | Part Number: CM62-EZS-II-WH
Usually ships in 5-7 business days
- Shallow Backcan Design Enables Installation In Plenum Spaces With Limited Depth
- Six-Position Tap Switch Covers Multiple Voltage Formats From A Single Stocking SKU
- EN54-24 Listed For Use In Certified Voice Alarm And Life-Safety Systems
- Independently Verified Average Coverage Angle Ensures Consistent Speech Intelligibility

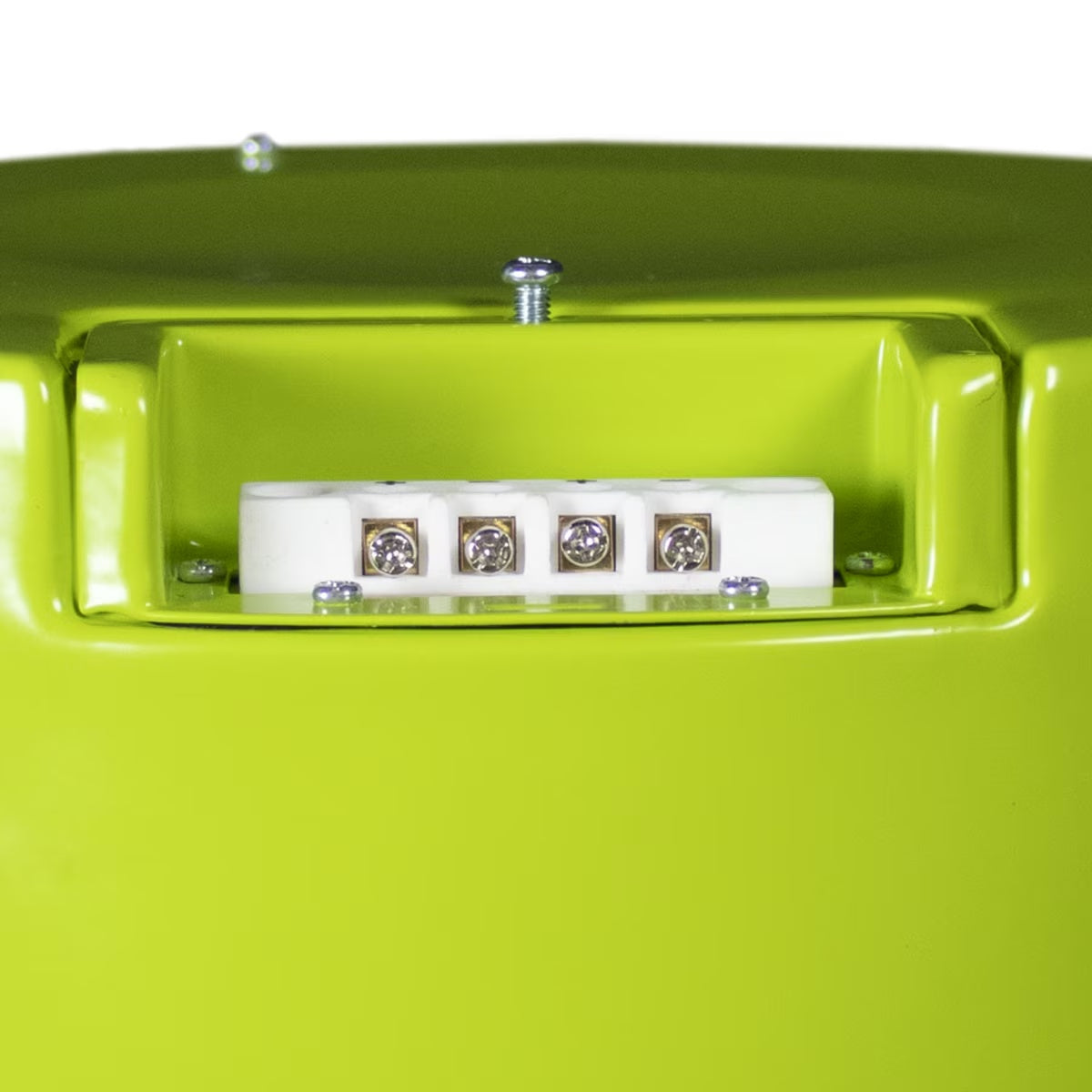

- Ceramic Input Terminal With Thermal Fuse Supports Plenum-Rated Wiring Requirements
- IPX3 Rated Enclosure Provides Moisture Resistance For Demanding Install Environments

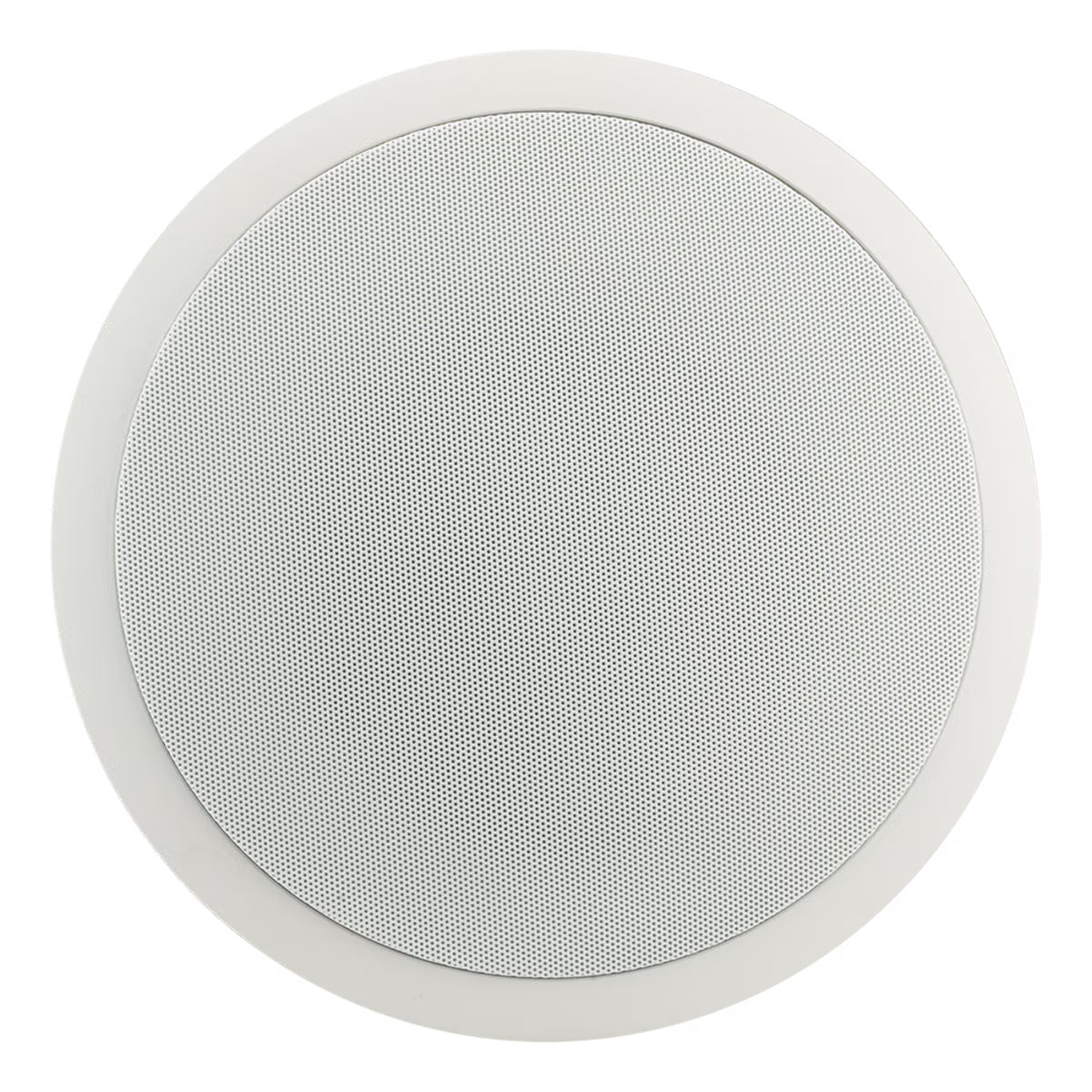

- Paintable Friction-Fit Steel Grille Blends Into Finished Ceiling Aesthetics
The CM62-EZS-II-WH is built for commercial integrators who need a certified, low-profile distributed audio solution in spaces where plenum depth is a hard constraint. The proprietary shallow backcan limits installed depth to just 3.5 inches, making it viable in drop ceilings and retrofit installs where standard-depth enclosures simply will not fit. The six-position tap switch supports 25V, 70.7V, and 100V transformer operation as well as a 16-ohm bypass, so a single SKU covers virtually every distributed audio topology without requiring separate part numbers for each voltage format.
Voice intelligibility is a primary design target, with an independently verified average coverage angle of 80 degrees at 10 kHz — a metric that matters in large open-plan spaces, corridors, and reverberant environments where speech clarity must hold up under EN60849 and BS5839-8 voice alarm requirements. The speaker carries EN54-24 listing, UL1480A, UL2043, and CE approvals, satisfying the certification stack required for most commercial and life-safety installs in both North American and EU markets.
The 16-ohm bypass setting allows multiples of two, four, or six units to run from a standard amplifier without a transformer, reducing system cost in smaller zones. A ceramic input terminal accepts up to 10-gauge plenum-rated wire and includes a thermal fuse, while a friction-fit painted steel grille and injection-molded ABS glass-fiber-reinforced enclosure deliver finish durability appropriate for occupied commercial spaces.
Specifications
