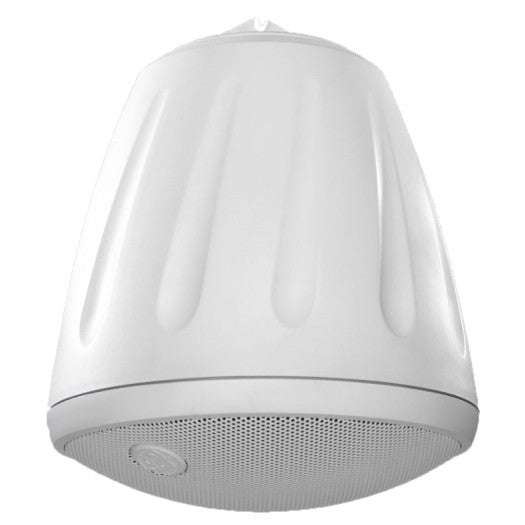

SoundTube RS1001i-II-T 10-Inch Pendant Subwoofer | Color: White

SoundTube RS1001i-II-T 10-Inch Pendant Subwoofer | Color: White

SoundPro Item: 63154 | Part Number: RS1001i-II-T-WH

Regular price $787.00
Regular price $787.00 Sale price $787.00
Your Price Sold out
MSRP: $787.00 | MAP: $787.00

Usually ships in 5-7 business days

  • One 10 inch (254 mm) polypropylene cone with a butyl rubber surround attached to a reinforced baffle.
  • Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response.
  • High-output (105 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize listener’s low-frequency experience.
  • 150-watt, low insertion-loss transformer with an easy-access, five-position tap switch for 25/70.7/100-volt and transformer bypass positions.
  • Weatherized components including powder-coated steel grille, hanging hardware and a durable ABS enclosure for indoor/outdoor applications.
  • Includes UL listed hanging hardware with high-quality cables and integrated SpeedClamp™ self-locking wire clamp for fast,
  • easy and secure installation.
  • UL 1480 (UEAY) and CE-approved. Hanging hardware is UL 2239-approved
  • High-quality black or white painted finish

The RS1001i is a 10-inch open-ceiling or surface mount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 10-inch polypropylene woofer and a butyl rubber surround in a tuned and ported enclosure, this speaker delivers maximum low frequency response (38 Hz 450 Hz, - 10 dB, independently verified) and high SPL (105 dB). Mounting hardware includes high-quality UL listed cables and integrated SpeedClamp™ self-locking wire clamp for fast, easy and secure installation. For easy ordering, stocking and installation, the RS1001i-II-T includes a five-position tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position.

View full details

Specifications

Dimensions
Height
17.23 in / 437.6 mm
Width/Diameter
14.82 in / 376.4 mm
Carton Height
19.5 in / 495.3 mm
Carton Length
18 in / 457.2 mm
Carton Width
18 in / 457.2 mm
Enclosure Volume
1288.3 cu in / 21111.45 cu cm
Weight
Shipping Weight
30.2 lbs / 13.7 kg
Electrical
Minimum Impedance (Ω Ohms)
5.1Ω
Nominal Impedance (Ω Ohms)
Audio
Crossover Frequency
100.0 Hz
Sensitivity Db @ 1W/1M
83 dB
Sensitivity Db @ 2.83V/1M
86 dB
Connectivity
Source Inputs
4 Pin 5.08mm Euroblock
Construction
Color
Black
Certifications
CE, RoHS, UL1480A, UL2239
Identifiers
UPC
752830445086
General
Manufacturer
SoundTube
Manufacturer's Category
RSi Original Pendant
Enclosure Properties
ABS Glass Fiber Reinforced, Injection Molded, Ported
Frequency Response (± 10 dB)
38 Hz - 450 Hz
Frequency Response (± 3 dB)
53 Hz - 175 Hz
Grille Properties
Powder-Coated, Steel
Low Frequency Voice Coil
1.38 in / 35 mm
Low Pass Crossover
6dB per octave 1st order
Max. Continuous Power RMS
150W
Max. Program Power
300W
Subwoofer Driver
10" Polypropylene Cone w/ Butyl Rubber Surround
Tap Selector
Rotary Switch
Transformer Options
25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V)
19W/150W/150W
