• SoundTube RS42-EZ 4 Coaxial Pendant Speaker black
1 3

SoundTube RS42-EZ 4-Inch Pendant Speaker | Color: White

SoundTube RS42-EZ 4-Inch Pendant Speaker | Color: White

SoundPro Item: 63222 | Part Number: RS42-EZ-WH

$233.00
$233.00 $233.00
Your Price Sold out
MSRP: $233.00 | MAP: $233.00

Usually ships in 5-7 business days

  • BroadBeam Ring™ technology for consistently smooth high-frequency directivity
  • Weatherized components safe for indoor and outdoor use
  • Injection molded ABS with glass fiber reinforcement for lasting durability
  • Daisy chain in low voltage systems

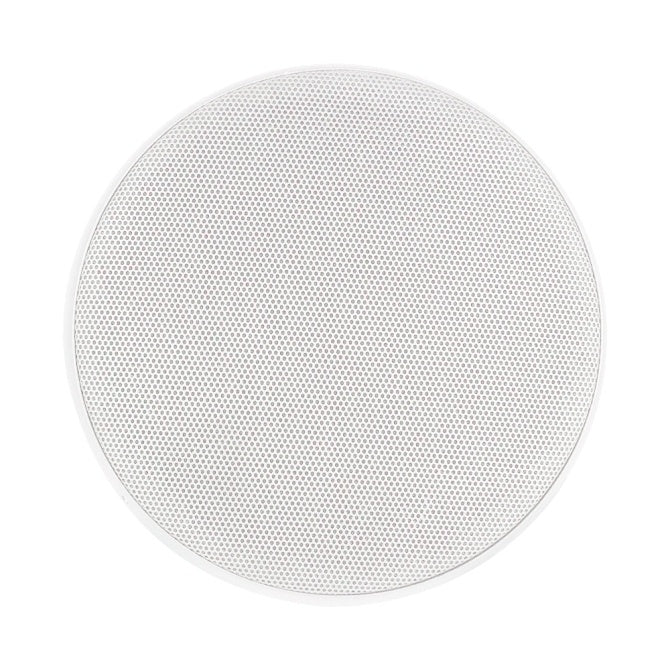

  • Aluminum grille with protective powder-coat finish
  • Built-in thermal fuse
  • Speaker is paintable
Log in or register for YOUR best price

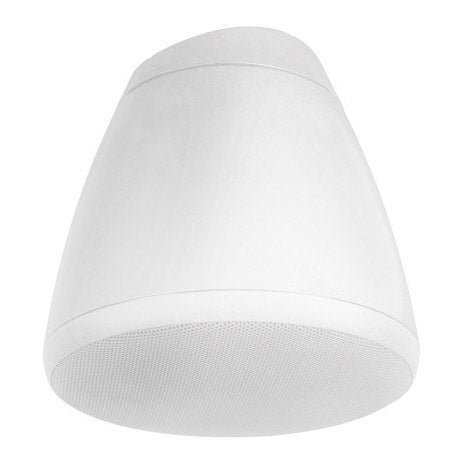

The RS42-EZ is a 4-inch, coaxial speaker with BroadBeam Ring™ technology for consistently smooth high frequency sound, designed for open-ceiling applications. Hanging hardware includes galvanized steel cables and a built in hanging bracket with a screw on cover plate for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. The RS42-EZ speaker utilizes a 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position and has a 16 ohm impedance for easy daisy chaining in low voltage systems. The ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. The RS42-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

View full details

Specifications

Dimensions
Height
7.86"
Width/Diameter
7.46"
Audio
Crossover Frequency
4.5 kHz
Connectivity
Source Inputs
4 Pin ceramic terminal
General
±10 Db
100 Hz - 22,000 Hz
±3 Db
140 Hz - 20,000 Hz
Max Continuous Power RMS
20W
Max Program Power
40W
Nominal Impedance
16 Ω
Tweeter Driver
1" Silk Dome w/ BroadBeam Ring®
Woofer Driver
4" Polypropylene Cone with Butyl Rubber Surround
Low Frequency Voice Coil
1"
Options
25 / 70.7 / 100 V, 4 Ohm direct
Taps
2.5W (25V), 20W (70V), 20W (100V)
Grille Properties
aluminum, powder-coated
Enclosure Properties
ported, reinforced ABS
