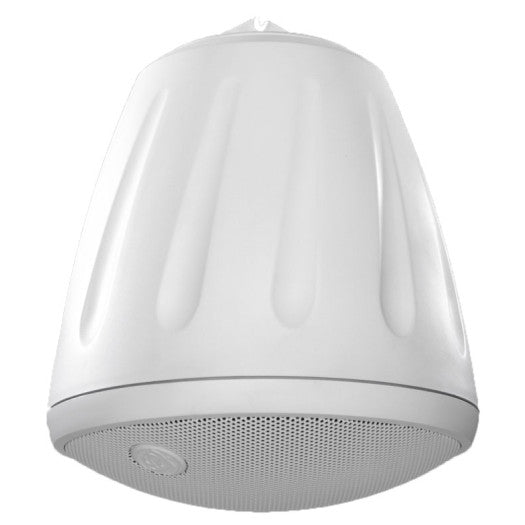

SoundTube RS500i 5.25-Inch Pendant Speaker | Color: White
SoundTube RS500i 5.25-Inch Pendant Speaker | Color: White
SoundPro Item: 63233 | Part Number: RS500I-WH
Usually ships in 5-7 business days
- Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker (EASE™documented).
- One 5.25 inch (133 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary castaluminum baffle and heat sink.
- Weatherized components for indoor and outdoor applications.
- Includes UL listed hanging hardware with cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Also includes Euro-block connector and terminal weather boot.
- Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity.
- Easy-access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position
- simplifies ordering and inventory tracking.
- Plated steel grille with protective powdercoated finish for lasting durability.
- Average senitivity 86.5 dB offers highoutput capabilities and reduced amplification costs.
- UL 1480 (UEAY), CE and Milspec 810 approved.
- High-quality black or white paint finish.
The RS500i has a 5.25-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way, ported speaker with an open-ceiling enclosure design that delivers effective low-end response (61 Hz) and 105° off-axis performance (2 to 10 kHz, independently verified). The speaker uses patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. SoundTube®'s proprietary BroadBeam® waveguide tweeter system delivers consistent high-performance audio coverage across the operating band-width. The RS500i speaker design incorporates a low-profile grille, proprietary motor-board and a six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking with transformer bypass position. Includes UL listed hanging hardware with cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Euro-block connector and terminal weather boot are included.
- Color White
- UPC 644216202201
- Manufacturer SoundTube
- Manufacturer's Category RSi Original Pendant
- Height 11.4 in / 289.6 mm
- Width/Diameter 8.36 in / 212.3 mm
- Shipping Weight 23 lbs / 10.43 kg
- Carton Height 13.5 in / 342.9 mm
- Carton Length 22.25 in / 565.15 mm
- Carton Width 12.25 in / 311.15 mm
- Certifications CE, MIL Spec, RoHS, UL1480A, UL2239
- Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
- Enclosure Volume 349.6 cu in / 5728.92 cu cm
- Source Inputs 4 Pin 5.08mm Euroblock
- Crossover Frequency 3.0 kHz
- Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 4.6 and 9.8
- Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.6dB and 9.9dB
- Frequency Response (± 10 dB) 60 Hz - 22 kHz
- Frequency Response (± 3 dB) 86 Hz - 22 kHz
- Grille Properties Powder-Coated, Steel
- Low Frequency Voice Coil 1 in / 25.4 mm
- Low Pass Crossover 12 dB per octave 2nd order
- Max. Continuous Power RMS 75W
- Max. Program Power 150W
- Minimum Impedance (Ω Ohms) 4Ω
- Mounting Depth 10.48 in / 266.2 mm
- Network Type: High Pass 12 dB per octave 2nd order
- Nominal Impedance (Ω Ohms) 8Ω
- Tweeter Driver 1" Convex Aluminum w/ BroadBeam® Waveguide
- Woofer Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround
- Sensitivity dB @ 1W/1M 83 dB
- Sensitivity dB @ 2.83V/1M 86 dB
- Tap Selector Rotary Switch
- Transformer Options 25 / 70.7 / 100 V, 4 Ohm direct
- Transformer Taps Max. Setting (25V/70.7V/100V) 8W/64W/64W
