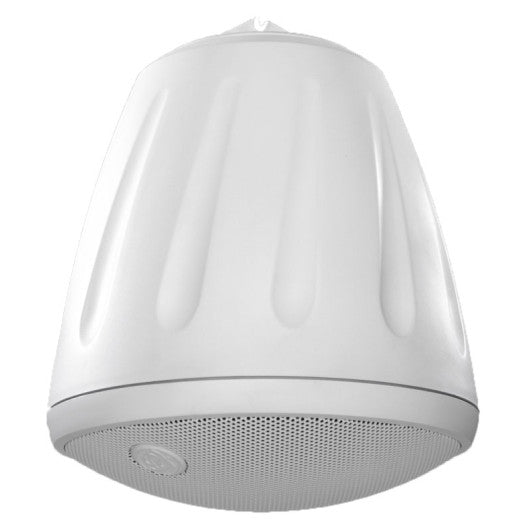

SoundTube RS800i 8-Inch Pendant Speaker | Color: White
SoundTube RS800i 8-Inch Pendant Speaker | Color: White
SoundPro Item: 63253 | Part Number: RS800I-WH
Usually ships in 5-7 business days
- Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (up to 10 kHz, independently verified).
- One 8.0 inch (203 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary castaluminum baffle and heat sink.
- Weatherized components for indoor and outdoor applications.
- Includes UL listed hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot.
- Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity.
- Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking.
- Steel grille with protective powdercoated finish for lasting durability.
- Average sensitivity of 89.5 dB offers high-output capabilities and reduced amplification costs.
- UL 1480 (UEAY), 2239 (hanging cable) and Milspec 810 approved.
- High-quality black or white paint finish.
The RS800i includes an 8" polypropylene woofer and a 1" convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way, ported speaker with an open-ceiling enclosure design delivers extended low-end response (58 Hz) and 105° off-axis performance (2 to 10 kHz, independently verified). SoundTube®'s proprietary BroadBeam® waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The patented ZeroReflection™ enclosure technology provides optimal sound reproduction and cabinet rigidity. The easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. The RS800i speaker design incorporates a low-profile grille, a proprietary motor-board, driver protection circuitry and a six-position tap switch with a transformer bypass position. Hanging hardware with galvanized steel cables are included and features a SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Euroblock connector and terminal weather boot are included.
- Color Black
- UPC 644216202300
- Manufacturer SoundTube
- Manufacturer's Category RSi Original Pendant
- Height 17.23 in / 437.6 mm
- Width/Diameter 14.82 in / 376.4 mm
- Shipping Weight 26.4 lbs / 11.97 kg
- Carton Height 19.5 in / 495.3 mm
- Carton Length 18 in / 457.2 mm
- Carton Width 18 in / 457.2 mm
- Certifications CE, MIL Spec, RoHS, UL1480A, UL2239
- Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
- Enclosure Volume 1288.3 cu in / 21111.45 cu cm
- Source Inputs 4 Pin 5.08mm Euroblock
- Coverage Angle (±6dB @ 2kHz) 115°
- Crossover Frequency 3.0 kHz
- Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 4.7 and 5.5
- Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.8dB and 7.4dB
- Frequency Response (± 10 dB) 58 Hz - 22 kHz
- Frequency Response (± 3 dB) 80 Hz - 22 kHz
- Grille Properties Powder-Coated, Steel
- Low Frequency Voice Coil 1.2 in / 30.4 mm
- Low Pass Crossover 12 dB per octave 2nd order
- Max. Continuous Power RMS 125W
- Max. Program Power 250W
- Minimum Impedance (Ω Ohms) 5.3Ω
- Network Type: High Pass 12 dB per octave 2nd order
- Nominal Impedance (Ω Ohms) 8Ω
- Tweeter Driver 1" Convex Aluminum w/ BroadBeam® Waveguide
- Woofer Driver 8" Polypropylene Cone w/ Butyl Rubber Surround
- Sensitivity dB @ 1W/1M 89.5 dB
- Sensitivity dB @ 2.83V/1M 89.5 dB
- Tap Selector Rotary Switch
- Transformer Options 25 / 70.7 / 100 V, 8 Ohm direct
- Transformer Taps Max. Setting (25V/70.7V/100V) 9W/66W/66W
