• SoundTube RS82-EZ 8 Coaxial Pendant Speaker black
1 1

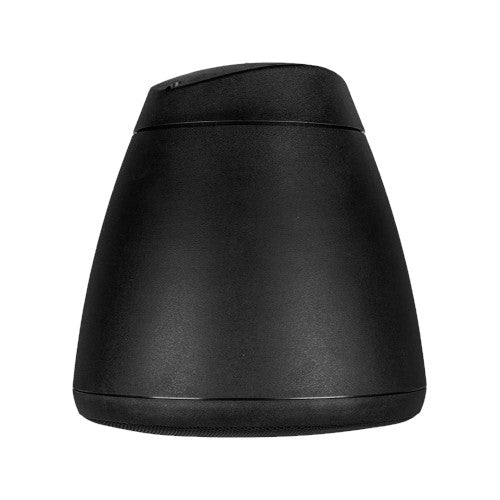

SoundTube RS82-EZ 8-Inch Pendant Speaker | Color: Black

SoundTube RS82-EZ 8-Inch Pendant Speaker | Color: Black

SoundPro Item: 63254 | Part Number: RS82-EZ-BK

$433.00
$433.00 $433.00
Your Price Sold out
MSRP: $433.00 | MAP: $433.00

Usually ships in 5-7 business days

  • 8-inch, coaxial speaker
  • BroadBeam Ring™ technology for consistently smooth high frequency sound
  • Open ceiling applications
  • Suitable for use in voice alarm applications
Log in or register for YOUR best price

The RS82-EZ is an 8-inch, coaxial speaker with BroadBeam Ring™ technology for consistently smooth high frequency sound, designed for open ceiling applications. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and has an aluminum grille with a protective powder coated finish. Hanging hardware with galvanized steel cables is included and features a built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be hung or mounted direct-to-conduit via the locking cover plate. The RS82-EZ speaker includes a ceramic terminal input accepting up to 10 gauge plenum rated signal wire and a 6 position tap switch with transformer bypass position, as well as a 16 ohm impedance for easy daisy chaining in low voltage systems. The RS82-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, terminal weather boot, and cover plate are included.

View full details

Specifications

Dimensions
Height
12.9 in / 327.7 mm
Width/Diameter
12.83 in / 325.9 mm
Carton Height
15.75 in / 400.05 mm
Carton Length
15 in / 381 mm
Carton Width
14.5 in / 368.3 mm
Weight
Shipping Weight
15.15 lbs / 6.87 kg
Electrical
Minimum Impedance (Ω Ohms)
16 Ω
Nominal Impedance (Ω Ohms)
16 Ω
Audio
Crossover Frequency
2.5 kHz
Sensitivity Db @ 1W/1M
92 dB
Sensitivity Db @ 2.83V/1M
89 dB
Connectivity
Source Inputs
4 Pin Ceramic Terminal
Network Type: High Pass
6 dB per octave 1st order
Construction
Certifications
CE, RoHS, UL1480A
General
Manufacturer
SoundTube
Manufacturer's Category
RS-EZ Economical Pendant
Enclosure Properties
Ported, Reinforced ABS
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
6.7 and 6.0
Directivity Index (DI) Db (Averaged 100Hz - 10kHz, @ 2kHz)
6.7db and 7.8dB
Frequency Response (± 10 dB)
80 Hz - 22 kHz
Frequency Response (± 3 dB)
100 Hz - 22 kHz
Grille Properties
Aluminum, Powder-Coated
Low Frequency Voice Coil
1 in / 25.4 mm
Low Pass Crossover
6 dB per octave 1st order
Max. Continuous Power
RMS 64W
Max. Program Power
128 W
Tweeter Driver
1" Silk Dome w/ BroadBeam Ring®
Woofer Driver
8" Polypropylene Cone w/ Butyl Rubber Surround
Tap Selector
Rotary Switch
Transformer Options
25 / 70.7 / 100 V, 16 Ohm direct
Transformer Taps (25V/70.0V/100V)
8W/64W/64W
