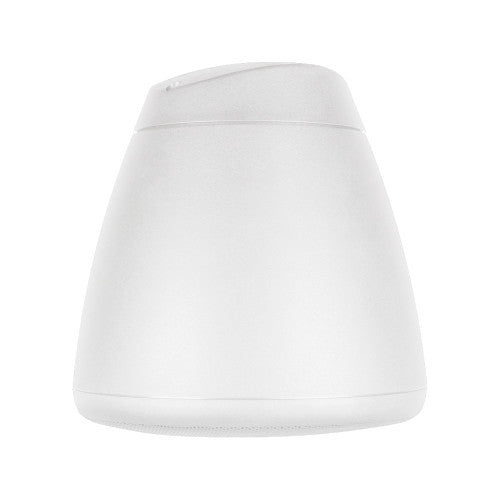

SoundTube RS82-EZ 8-Inch Pendant Speaker | Color: White
SoundTube RS82-EZ 8-Inch Pendant Speaker | Color: White
SoundPro Item: 63255 | Part Number: RS82-EZ-WH
Usually ships in 5-7 business days
- 8-inch, coaxial speaker
- BroadBeam Ring™ technology for consistently smooth high frequency sound
- Open ceiling applications
- Suitable for use in voice alarm applications
The RS82-EZ is an 8-inch, coaxial speaker with BroadBeam Ring™ technology for consistently smooth high frequency sound, designed for open ceiling applications. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and has an aluminum grille with a protective powder coated finish. Hanging hardware with galvanized steel cables is included and features a built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be hung or mounted direct-to-conduit via the locking cover plate. The RS82-EZ speaker includes a ceramic terminal input accepting up to 10 gauge plenum rated signal wire and a 6 position tap switch with transformer bypass position, as well as a 16 ohm impedance for easy daisy chaining in low voltage systems. The RS82-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, terminal weather boot, and cover plate are included.
- Manufacturer SoundTube
- Manufacturer's Category RS-EZ Economical Pendant
- Height 12.9 in / 327.7 mm
- Width/Diameter 12.83 in / 325.9 mm
- Shipping Weight 15.15 lbs / 6.87 kg
- Carton Height 15.75 in / 400.05 mm
- Carton Length 15 in / 381 mm
- Carton Width 14.5 in / 368.3 mm
- Certifications CE, RoHS, UL1480A
- Enclosure Properties Ported, Reinforced ABS
- Source Inputs 4 Pin Ceramic Terminal
- Crossover Frequency 2.5 kHz
- Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 6.7 and 6.0
- Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 6.7db and 7.8dB
- Frequency Response (± 10 dB) 80 Hz - 22 kHz
- Frequency Response (± 3 dB) 100 Hz - 22 kHz
- Grille Properties Aluminum, Powder-Coated
- Low Frequency Voice Coil 1 in / 25.4 mm
- Low Pass Crossover 6 dB per octave 1st order
- Max. Continuous Power RMS 64W
- Max. Program Power 128 W
- Minimum Impedance (Ω Ohms) 16 Ω
- Network Type: High Pass 6 dB per octave 1st order
- Nominal Impedance (Ω Ohms) 16 Ω
- Tweeter Driver 1" Silk Dome w/ BroadBeam Ring®
- Woofer Driver 8" Polypropylene Cone w/ Butyl Rubber Surround
- Sensitivity dB @ 1W/1M 92 dB
- Sensitivity dB @ 2.83V/1M 89 dB
- Tap Selector Rotary Switch
- Transformer Options 25 / 70.7 / 100 V, 16 Ohm direct
- Transformer Taps (25V/70.0V/100V) 8W/64W/64W
