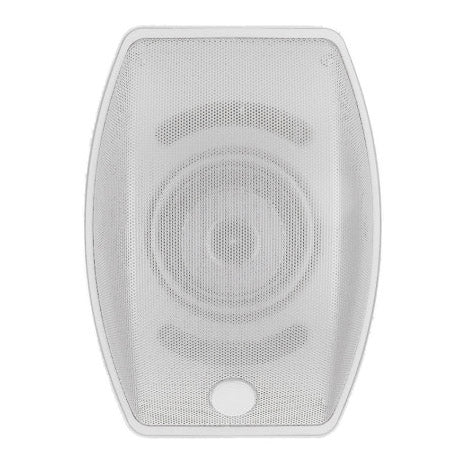

SoundTube SM590i-II 5.25-Inch Surface Mount Speaker | Model: SM590i-II-WX-WH
SoundTube SM590i-II 5.25-Inch Surface Mount Speaker | Model: SM590i-II-WX-WH
SoundPro Item: 64465 | Part Number: SM590i-II-WX-WH
Usually ships in 5-7 business days
- High-power output (106 dB) for long throw and high SPL requirements
- One 5.25” (133 mm) polypropylene woofer and one 1” (25.4 mm) Tractrix profile horn convex titanium dome tweeter
- 87 dB average sensitivity offers high output capabilities and reduced amplification costs
- Easy access, six-position selectable tap switch
- Aluminum grille with powder-coat finish
- Tool-free Speed Lever™ captured ball-mounting system for a fast and secure installation
- Vertical and horizontal pivoting
- Pan and tilt capabilities
Models with WX are weatherized for outdoor use
The SM590I-II speaker includes a higher power output for long throw and high SPL requirements as well as one 5.25" polypropylene woofer and a 1", tractrix horn-loaded, convex aluminum dome tweeter in a ported enclosure. SM590I-II-WX has a 87.0 dB average sensitivity which offers high output capabilities and reduced amplification costs. The speaker has an easy access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position and utilizes patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Utilizing the new SM590I-II Stealth™ bracket mounting systems as well as vertical and horizontal pivoting allow the SM590I-II-WX to be aimed anywhere within the installation space and the low profile enclosure design keeps the speaker close to the wall. Safety cable with speaker mounting bolt, Euroblock connector, and wall mount bracket are included.
- Source Inputs4 Pin 5.08mm Euroblock
- Crossover Frequency3 kHz
- Frequency Response
- ±10 dB: 69 Hz - 22,000 Hz
- ±3 dB: 100 Hz - 17,000 Hz
- Max Continuous Power RMS80W
- Max Program Power160W
- Nominal Impedance8 Ω
- Tweeter Driver1" Convex Titanium Horn-Loaded
- Woofer Driver5.25" Polypropylene
- Low Frequency Voice Coil1"
- Transformer
- Options: 25 / 70.7 / 100 V, 8 Ohm direct
- Taps: 8W (25V), 64W (70V), 64W (100V)
- Grille Propertiesaluminum, powder-coated
- Enclosure PropertiesABS glass fiber reinforced, injection molded, ported
- Enclosure Volume349.6 cu in
- Height11.4"
- Width/Diameter8.36"
