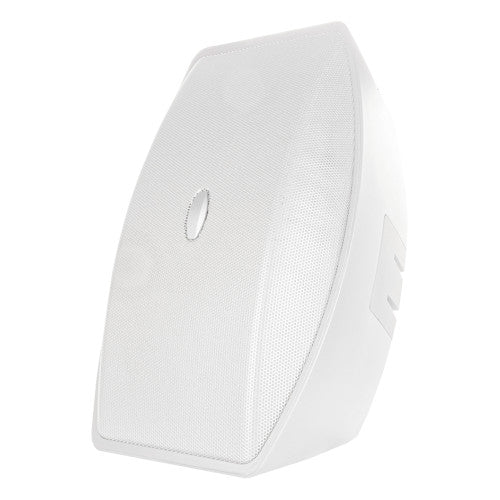

SoundTube SM890i 8-Inch Outdoor Surface Mount Speaker | Model: SM890i-WX-WH
SoundTube SM890i 8-Inch Outdoor Surface Mount Speaker | Model: SM890i-WX-WH
SoundPro Item: 64498 | Part Number: SM890i-WX-WH
Usually ships in 5-7 business days
- WX Weather Guard technology
- Powder-coated steel grille with tool-free locking system
- Patented BroadBeamHP® waveguide technology
- Proprietary tool-free rotatable 110 x 85 bayonet-mounted horn for tailored dispersion and throw
The SM890I-WX outdoor surface-mount speaker from SoundTube has one 8.0 inch treated fiber driver with an offset 1.42 inch compression horn configuration.
SoundTube®'s WX Weather Guard technology utilizes a dual layer hydrophobic material inside the speaker grille to keep water from the drivers and internal electronics in even the most extreme weather conditions. The speaker also has as a powder-coated steel grille with tool-free locking system. Patented BroadBeamHP® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. The SM890I-WX has one 8.0 inch treated fiber driver with an offset 1.42 inch compression horn configuration. The speaker features a proprietary tool-free rotatable 110 x 85 bayonet-mounted horn for tailored dispersion and throw. As well as 150-watt low-insertion loss transformer and maximum output for short to medium throw, PA and sound reinforcement and an easy-access six-position tap switch for 25-, 70.7-, 100-volt applications with transformer bypass position. Surface-Mount Bracket, Safety Cable, Euroblock Connector, Terminal Weather Boot, and Paint Mask are included. IP-Rating: IP44.
- Manufacturer's Category SMi Surface Mount
- Height 18.78 in / 477 mm
- Width/Diameter 11.65 in / 295.9 mm
- Shipping Weight 24.5 lbs / 11.11 kg
- Carton Height 16 in / 406.4 mm
- Carton Length 21.5 in / 546.1 mm
- Carton Width 14.5 in / 368.3 mm
- Certifications CCC, CE, IP44, RoHS, UL1480
- Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
- Enclosure Volume 1008 cu in / 16518.16 cu cm
- Source Inputs 4 Pin 5.08mm Euroblock
- Crossover Frequency 2.5 kHz
- Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 5.4 and 7.2
- Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 6.7 dB and 9.4 dB
- Frequency Response (± 10 dB) 80 Hz - 22 kHz
- Frequency Response (± 3 dB) 105 Hz - 22 kHz
- Grille Properties Powder-Coated, Weatherproof, Stainless Steel
- Low Frequency Voice Coil 1.34 in / 34 mm
- Low Pass Crossover 12 dB per octave 2nd order
- Max. Continuous Power RMS 150 W
- Max. Program Power 300 W
- Minimum Impedance (Ω Ohms) 8 Ω
- Mounting Depth 15.37 in / 390.4 mm
- Network Type: High Pass 12 dB per octave 2nd order
- Nominal Impedance (Ω Ohms) 8 Ω
- Tweeter Driver 1.38" Titanium Compression Driver w/ Waveguide
- Woofer Driver 8" High-Efficiency Woofer
- Sensitivity dB @ 1W/1M 92 dB
- Sensitivity dB @ 2.83V/1M 92 dB
- Tap Selector Rotary Switch
- Transformer Options 25 / 70.7 / 100 V, 8 Ohm direct
- Transformer Taps (25V/70.0V/100V) 19W/150W/150W
