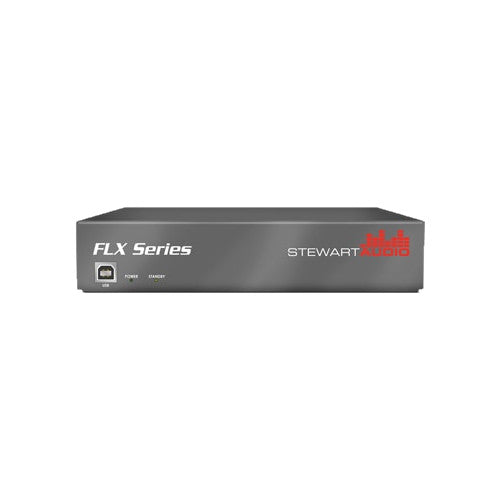

Stewart Audio FLX-E-160-2-CV-D 2 Channel DSP-Enabled Amplifier with Dante
Stewart Audio FLX-E-160-2-CV-D 2 Channel DSP-Enabled Amplifier with Dante
SoundPro Item: 92548 | Part Number: FLX-E-160-2-CV-D
Usually ships in 5-7 business days
- Onboard DSP for signal routing and filtering
- Ethernet configuration, control & reporting
- Pre-mix level control
- 4 analog inputs (4 line/mic; 2 w/ phantom power)
- Not Dante™ Networked (See FLX-E-160-2-CV-D)
The FLX-E-160-2-CV provides 160 watts from each of the two 70/100V output channels. At the heart of the amplifier is a robust, internal, full-function DSP designed to solve a multitude of your audio problems in just one enclosure. The DSP includes a full cross-point mixer, Pre-mix level control, EQ, filters, limiters and much more. An Ethernet port makes programming simple, fast and repeatable for large installations. The Ethernet, RVC and RS-232 allow volume control from a wide range of devices. You won't find a more flexible combination of power output and processing in a comparable package on the market today.
- Max. Output Power (all channels driven)160WRMS x 2 @ 70.7V/100V (selectable)
- Frequency Response (+0, -3dB)
- 20Hz – 20kHz 4/8 Ω,
- 100Hz – 20kHz 70.7V/100V
- THD + N <0.05% @ 6dB below clipping
- Signal to Noise Ratio >95dB
- Input Sensitivity (local inputs) 1V (0dBV)
- Input Impedance (Balanced/Single-ended/Phantom) 7.2kΩ/3.6kΩ/2.4kΩ
- Channel-to-Channel Isolation (Crosstalk)
- >60dB FLX-E-80-4
- >85dB FLX-E-160-2
- Dante™Audio Sampling Rates 44.1, 48, 88.2, 96, 176.4, 192 ksps
- Remote Volume Control 0-10VDC
- Input Connectors 3.5mm Euroblock; 24V Phantom Power on 2 channels
- Dante™/AES67 Network Audio (optional) and Control PortRJ-45
- Output Connectors 5mm Euroblock
- Amplifier ClassD
- Control and StatusRVC, RS-232 and Ethernet
- Power Draw/Dissipation
- Idle: 12W/12W
- 1/8 Rated Audio Power: 60W/20W
- LED Indicators Power
- Power Supply Input 100-240VAC 50/60Hz (PFC Universal Input)
- ConstructionAluminum Chassis
- MountingSingle and Dual Rack Mount (optional)
- CoolingConvection (no fan)
- Dimensions (HxWxD), excluding rack mounts1.7x8.3x10.7 inches (44x213x272mm)
- Weight5.3 lbs. (2.4 kg)
