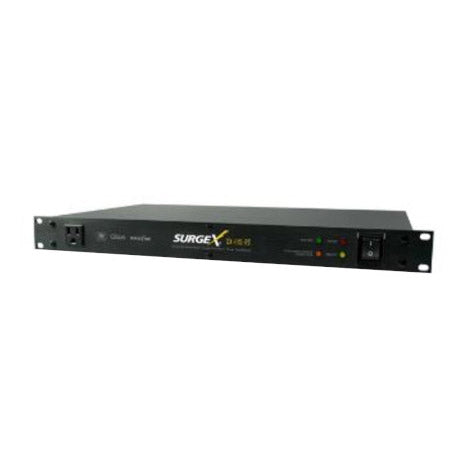

SurgeX SX-1115-RT Rack Mount Surge Eliminator
SurgeX SX-1115-RT Rack Mount Surge Eliminator
SoundPro Item: 19694 | Part Number: SX-1115RT
Usually ships in 5-7 business days
- Remote turn-on
- Thermal circuit breaker overload protection
- Self-test circuit with visual indicator
- Advanced Series Mode® surge elimination technology
- Impedance Tolerant EMI/RFI Filter
- COUVS® catastrophic over/under voltage shutdown
- SurgeX ICE® inrush current elimination
- Magnetic shielding steel enclosure
- Non-sacrificial components
- 9’ grounded 3-wire cord
The SurgeX SX-1115-RT rack mount offers comprehensive power protection and conditioning to safeguard AV equipment from harmful electrical transients. They allow technicians to turn equipment on or off remotely for quick reboots that can reduce service calls.
Featuring Advanced Series Mode technology, they eliminate all surge energy to make sure the connected equipment is protected from surges, spikes, electrical transients and noise. They do not produce ground contamination or common-mode disturbances that cause hissing sounds and pixilation on AV equipment.
SurgeX’s 360 degrees of advanced power protection also encompasses catastrophic over/under voltage shutdown, inrush current elimination, and impedance tolerant noise filtering to ensure equipment stays up and running without disruption and the power quality remains consistent.
- Load Rating15A
- Voltage Rating120V
- Power Requirement (no load)15W
- Surge Let-through Voltage (6000 volt surge)0 Volts
- Max. Applied Surge Voltage6000 volts *
- Max. Applied Surge Currentunlimited (due to current limiting)*
- Max. Applied Surge Energyunlimited (due to current limiting)*
- Endurance (C62.41-1991 category B3 pulses)1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000
- EMI/RFI Filter (normal mode, 50Ω load)
- > 30dB 80kHz - 50MHz
- 37 dB @ 100 kHz; 56 dB @ 300 kHz; 75 dB @ 3 MHz; 46 dB @ 30 MHz
- EMI/RFI Filter (common mode, 50Ω load)
- > 20dB 230kHz - 50MHz
- > 30dB 700kHz - 20MHz
- 23 dB @ 300 kHz; 32 dB @ 1 MHz; 50 dB @ 5 MHz; 32 dB @ 20 MHz
- Under-Voltage Auto Shutdown90V
- Over-Voltage Auto Shutdown145V
- Over-Current Auto Shutdowncircuit breaker
- Auxiliary Relay Outputs2 x screw terminal
- Contact Closure Input2 x screw terminal
- Temperature Range5°C to 35°C (41°F to 95°F)
- Humidity Range5% to 95% RH non-condensing
- Dimensions (HxWxD)1.75" x 19" x 10.5"
