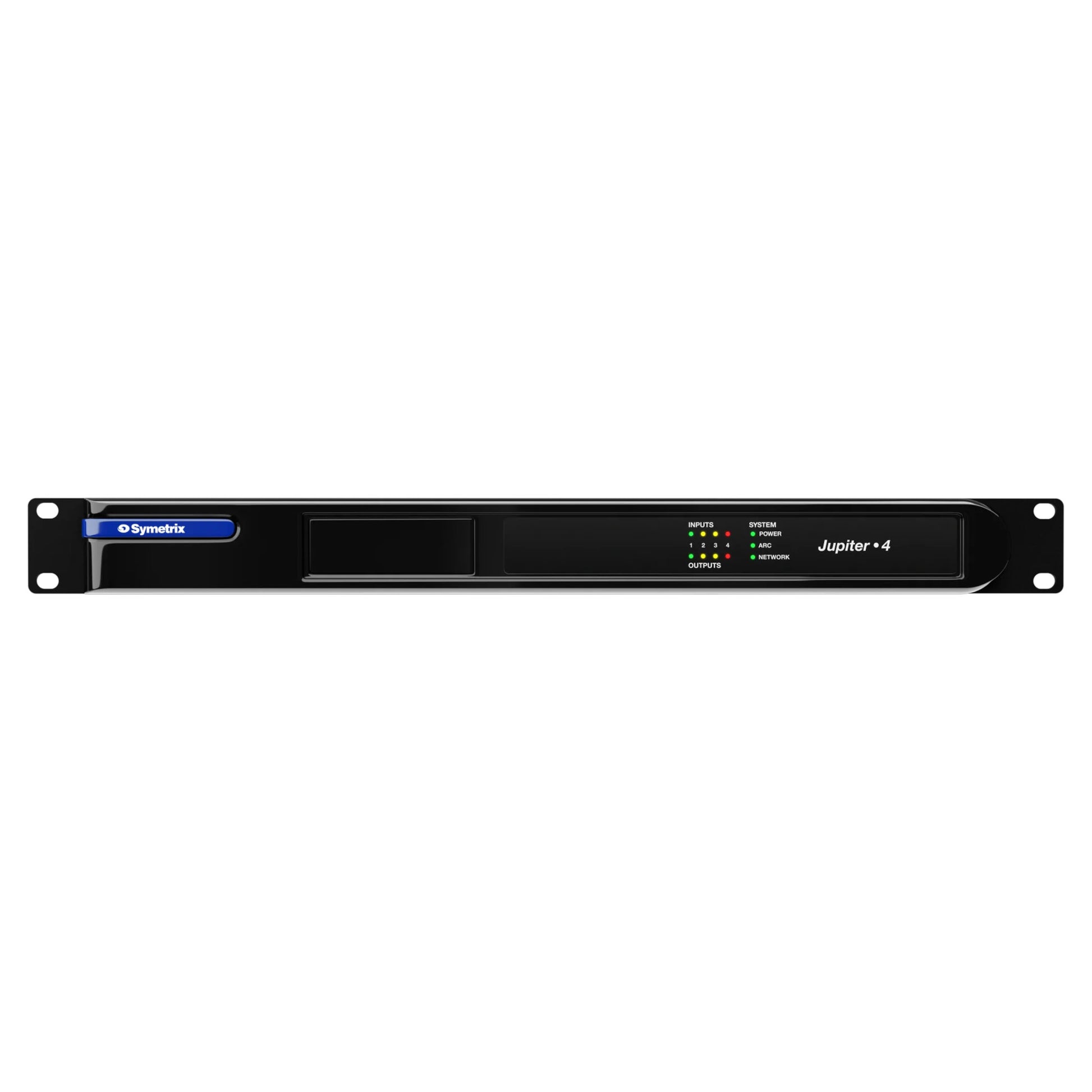

Symetrix Jupiter 4 Fixed Architecture Standalone DSP

Symetrix Jupiter 4 Fixed Architecture Standalone DSP

SoundPro Item: 45958 | Part Number: Jupiter

$1,662.00
$1,662.00 $1,662.00
Your Price Sold out
MSRP: $1,662.00 | MAP: $1,662.00

Usually ships in 5-7 business days

  • An Innovative and Unique Approach to DSP
  • Turnkey Designs Cover a Wide Range of Applications
  • 85 Downloadable Apps
  • Near Zero Programming Time for Rapid Deployment
Log in or register for YOUR best price

The Symetrix Jupiter 4 Fixed Architecture Standalone DSP packages powerful DSP into a zero learning curve, turnkey family of audio processors. Standing on the shoulders of Symetrix’ world-class open architecture DSP platforms, Jupiter upholds their commitment to pristine sound.

View full details

Specifications

Certifications
Certifications Or Compliance
UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS
Weight
Shipping Weight
7.5 lbs. (3.4 kg)
Electrical
THD+Noise
< -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain.
Electrical
100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.
Audio
Mic Pre-amp Gain
+40 dB.
Maximum Input Level
+23 dBu.
Input Impedance
18 kΩ balanced, > 9 kΩ unbalanced, > 2 kΩ with phantom power engaged.
Phantom Power
+20 VDC, 20 mA maximum per input.
Maximum Output Level
+24 dBu.
Output Impedance
200 Ω balanced, 100 Ω unbalanced.
Sample Rate
48 kHz.
Frequency Response
20 Hz - 20 kHz, +/- 0.5 dB.
Connectivity
Number of Inputs
Twelve (12), eight (8), or four (4) switchable balanced mic or line level on Jupiter 12, 8 or 4 respectively.
Connectors
3.81 mm terminal blocks.
Nominal Input Level
+4 dBu line or -36 dBu mic level (software selectable) with 20 dB of headroom.
Input Trim
+/- 24 dB.
Number of Outputs
Four (4), eight (8), or four (4) line level on Jupiter 12, 8 or 4 respectively.
Nominal Output Level
+4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level.
General
Mic Pre-amp EIN
< -125 dBu, 22 Hz - 22 kHz, 100 Ω source impedance.
Dynamic Range
> 110 dB (A-Weighted), input to output.
Interchannel Crosstalk
< -90 dB @ 1 kHz, typical.
Space Required
1U (WDH: 48.02 cm x 19.05 cm x 4.37 cm / 18.91 in x 7.5 in x 1.72 in), depth is specified from front panel to back of connectors. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Ventilation
Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
Audio Performance
CMRR
> 50 dB @ 1 kHz, unity gain.
Latency
< 1.6 ms, input to output with all DSP inactive.
