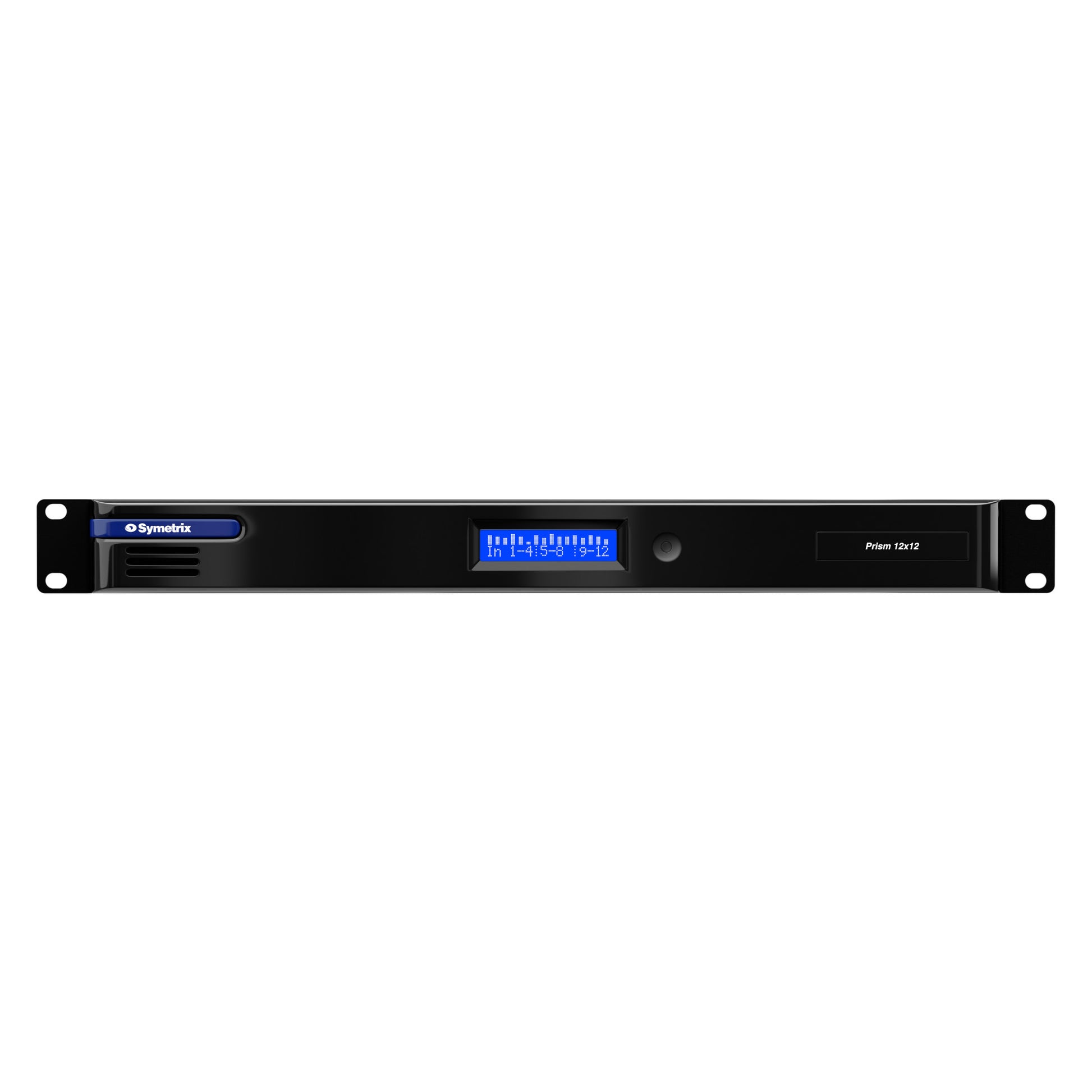

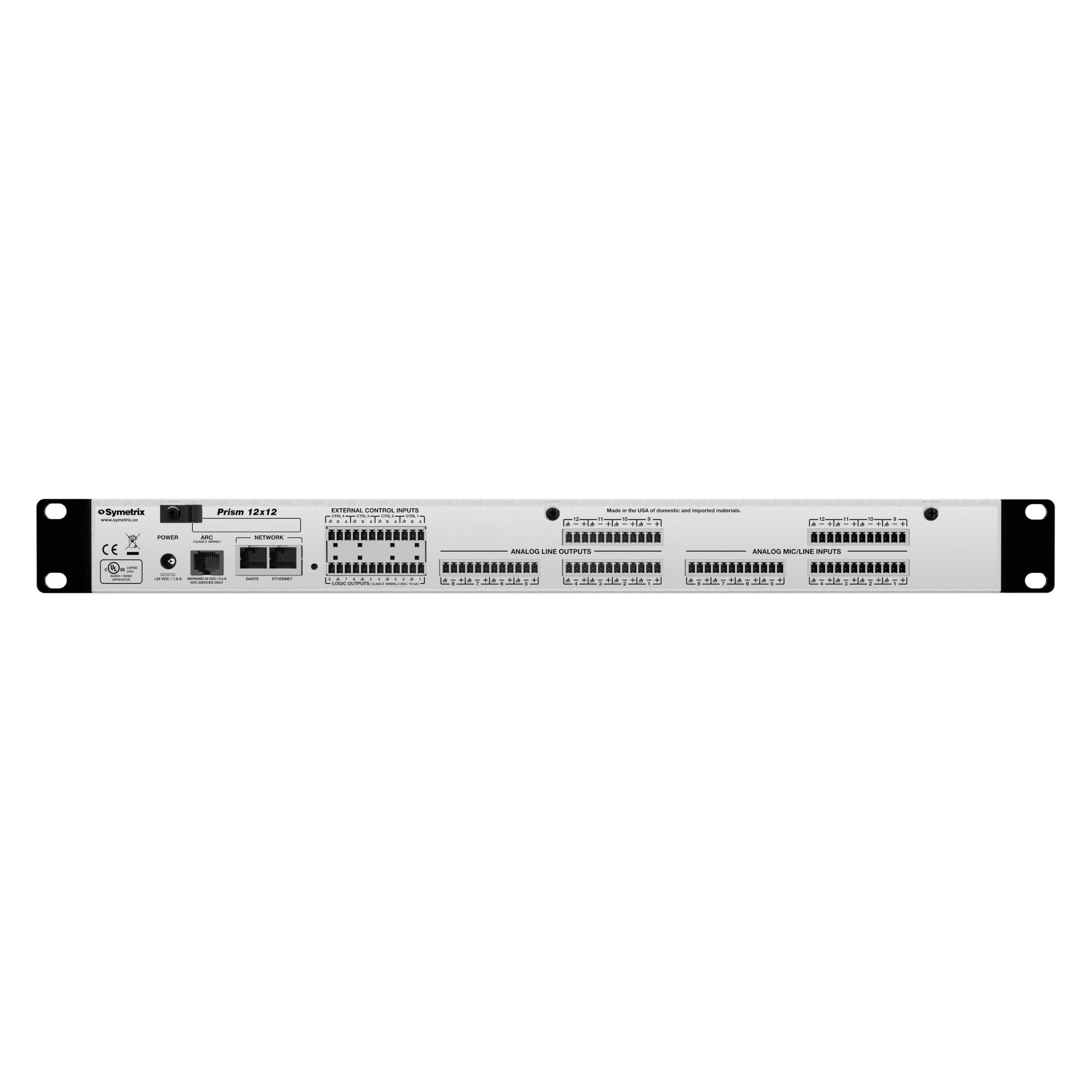

Symetrix Prism 12x12 Programmable Digital Signal Processor

Symetrix Prism 12x12 Programmable Digital Signal Processor

SoundPro Item: 130610 | Part Number: Prism 12x12 (non-Dante)

$3,706.00
$3,706.00 $3,706.00
Your Price Sold out
MSRP: $3,706.00 | MAP: $3,706.00

Usually ships in 5-7 business days

  • DSP Price / Performance Breakthrough
  • 4×4, 8×8, 12×12, and 16×16 models
  • Optional 128 Channel (64×64) Dante™
  • DSP Processing Identical to Radius / Edge / Solus NX
  • Delay Memory Identical to Radius / Edge / Solus NX
Log in or register for YOUR best price

The Prism 12x12 from Symetrix is a programmable digital signal processor.

Flexible IO Combinations. The prism family scales from the smallest 4×4 to the largest 16×16, providing the perfect amount of class leading Symetrix quality IO for any installation.

Scaling Up. A Prism system’s analog input and output count may be increased using Symetrix Dante-enabled xIn 4, xIO 4×4, xOut 4, xIn 12, and xOut 12 analog I/O expanders.

Unlimited Programming Flexibility. Prism is programmed using Composer – Symetrix’ award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware – thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.

Control Made Easy. Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.

An Embedded Web Server for Status and Even More Control. Prism’s embedded web server displays I/O levels, diagnostics data, and hosts ARC-WEB – a browser-based interface for smart phones, tablets, and computers.

Form, Fit and Function. Prism 8×8, 12×12 and 16×16 have been designed using standard 19” x 1U enclosures. (Surface and rack mount kits sold separately.)

View full details

Specifications

Certifications
Certifications Or Compliance
Safety: UL 60065, cUL 60065, IEC 60065. EMC: “Class A” device (applies to all of the following) EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15, ICES-003. Environmental: RoHS.
Weight
Shipping Weight
9 lbs. (4.1 kg)
Electrical
Phantom Power (per input)
+48 VDC, 10 mA maximum.
THD+Noise
< -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4dBu.
Electrical
24V 1.9A, 45W Maximum. Symetrix Part Number 12-0034. CUI part number SDI65-24-U-P5.
Logic Output Maximum External Power Supply Voltage
24 VDC.
Logic Output Maximum External Power Supply Current Sinking
50 mA.
Logic Output Maximum Output Current
10 mA.
Audio
Maximum Input Level
+23 dBu.
Mic Pre-amp Gain
0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim.
Input Impedance
8k Ohms balanced, 4k Ohms unbalanced.
Maximum Output Level
+24 dBu (+22.8 dBu into a 2k Ohm minimum load).
Output Impedance
300 Ohms balanced, 150 Ohms unbalanced.
Frequency Response (A/D/A)
20 Hz – 20 kHz, ± 0.5 dB.
Dynamic Range (A/D/A)
> 113 dB, A-weighted.
Connectivity
Number of Inputs
Twelve (12) switchable balanced mic or line level.
Connectors
3.81 mm terminal blocks.
Nominal Input Level
+4 dBu.
Number of Outputs
Twelve (12) balanced line level.
Nominal Output Level
+4 dBu with 20 dB of headroom.
Analog Control Inputs
0-3.3 VDC.
Logic Outputs
Low (0V) when active, pulled high (5V) when inactive.
Ethernet Cable
Standard CAT5e or CAT6, maximum device-to-device length = 100 meters.
Dante Cable
Standard CAT6, maximum device-to-device length = 100 meters.
ARC Cable
Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available.
General
Mic Pre-amp EIN
< -125dB with 150 ohm source impedance. 22.4 kHz BW.
Dynamic Range
> 113 dB, A-weighted.
A to D Latency
0.28 mS.
Space Required
1U (WDH: 18.91 in. x 9.5 in. x 1.72 in. / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Ventilation
Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
D to a Latency
0.60 mS.
Sampling Rate
48 kHz.
Channel Separation (A/D/A)
> 110 dB @ 1 kHz, +24 dBu.
Latency (A/D/A)
1.04 mS, inputs routed to outputs.
Processors
1 x Analog Devices SHARC 21489 @ 400 MHz SIMD.
Raw Processing Capacity
400 MIPS, 1.6 GFLOPS.
Delay Memory
174 mono seconds.
Recommended External Control Potentiometer
10k Ohm, linear.
RS-485 Serial I/O
38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port.
Maximum Devices per System
80 units per Site File.
Maximum Stored Presets
1000
Audio Performance
CMRR
> 79 dB @ 1 kHz, unity gain.
