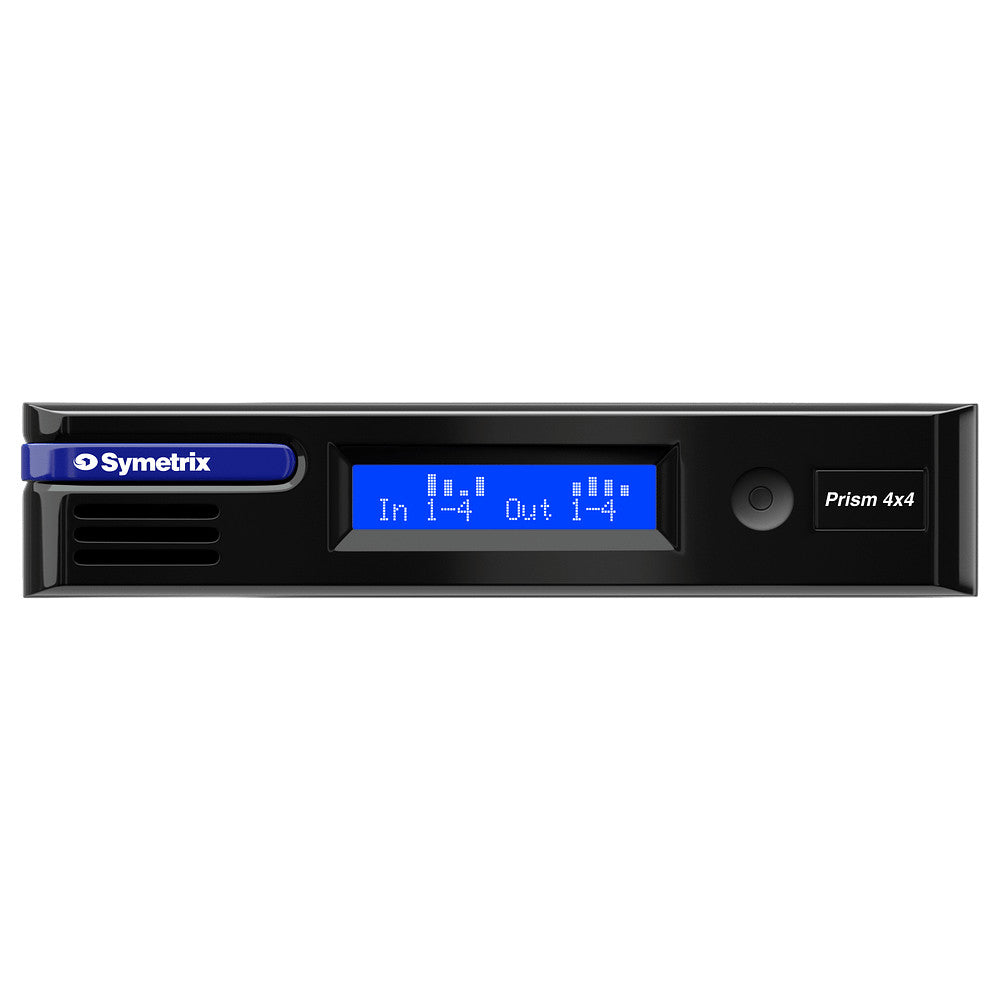

• Symetrix Prism 4x4 Dante Programmable Digital Signal Processor

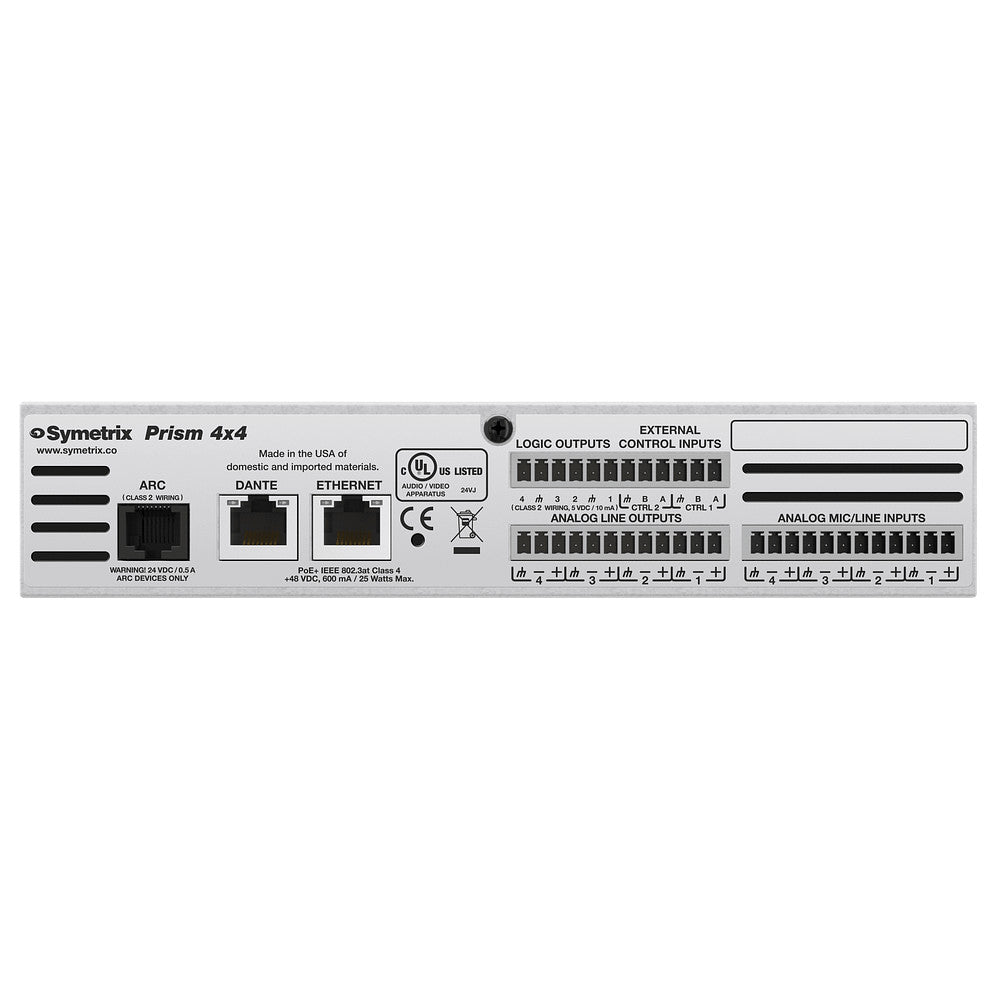

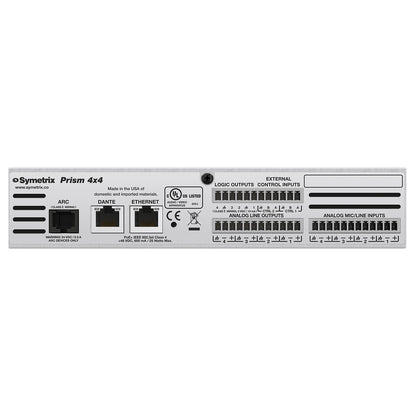

  • Symetrix Prism 4x4 Dante Programmable Digital Signal Processor back
1 2

Symetrix Prism 4x4 Dante Programmable Digital Signal Processor

Symetrix Prism 4x4 Dante Programmable Digital Signal Processor

SoundPro Item: 78431 | Part Number: Prism 4x4 Dante

$2,916.00
$2,916.00 $2,916.00
Your Price Sold out
MSRP: $2,916.00 | MAP: $2,916.00

Usually ships in 5-7 business days

  • DSP Price / Performance Breakthrough
  • DSP Processing Identical to Radius / Edge / Solus NX
  • Delay Memory Identical to Radius / Edge / Solus NX
Log in or register for YOUR best price

The Symetrix Prism 4x4 Dante is a programmable digital signal processor.

Flexible IO Combinations. The prism family scales from the smallest 4×4 to the largest 16×16, providing the perfect amount of class leading Symetrix quality IO for any installation.

Dante™ in Our DNA. Prism DSPs are equipped with optional factory installed 128 (64×64) Dante channels. The Dante protocol enables ultra-reliable multi-channel audio networking over IP. Together, Symetrix and Dante provide the fastest possible way to implement, control, and maintain a system of networked DSPs and accessories – including third party Dante-enabled microphones, loudspeakers, power amps, and mixing consoles. Models without Dante provide even more accessible DSP pricing for smaller systems.

Scaling Up. A Prism system’s analog input and output count may be increased using Symetrix Dante-enabled xIn 4, xIO 4×4, xOut 4, xIn 12, and xOut 12 analog I/O expanders.

Unlimited Programming Flexibility. Prism is programmed using Composer – Symetrix’ award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware – thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.

Control Made Easy. Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.

An Embedded Web Server for Status and Even More Control. Prism’s embedded web server displays I/O levels, diagnostics data, and hosts ARC-WEB – a browser-based interface for smart phones, tablets, and computers.

Form, Fit and Function. Prism 8×8, 12×12 and 16×16 have been designed using standard 19” x 1U enclosures. For convenient point-of-use or rack mounting, Prism 4×4 features 1/2 rack 1U form factor. (Surface and rack mount kits sold separately.)

View full details

Specifications

Certifications
Certifications Or Compliance
Safety: UL 60065, cUL 60065, IEC 60065. EMC: “Class A” device (applies to all of the following) EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15, ICES-003. Environmental: RoHS.
Weight
Shipping Weight
5 lbs. (2.27 kg)
Electrical
Phantom Power (per input)
+48 VDC, 10 mA maximum.
THD+Noise
< -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4dBu.
Electrical
PoE+ IEEE 802.3at Class 4, 25.5 Watts maximum. No line voltage switching required.
Logic Output Maximum External Power Supply Voltage
24 VDC.
Logic Output Maximum External Power Supply Current Sinking
50 mA.
Logic Output Maximum Output Current
10 mA.
Audio
Maximum Input Level
+23 dBu.
Mic Pre-amp Gain
0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim.
Input Impedance
8k Ohms balanced, 4k Ohms unbalanced.
Maximum Output Level
+24 dBu (+22.8 dBu into a 2k Ohm minimum load).
Output Impedance
300 Ohms balanced, 150 Ohms unbalanced.
Frequency Response (A/D/A)
20 Hz – 20 kHz, ± 0.5 dB.
Dynamic Range (A/D/A)
> 113 dB, A-weighted.
Connectivity
Number of Inputs
Four (4) switchable balanced mic or line level.
Connectors
3.81 mm terminal blocks.
Nominal Input Level
+4 dBu.
Number of Outputs
Four (4) balanced line level.
Nominal Output Level
+4 dBu with 20 dB of headroom.
Analog Control Inputs
0-3.3 VDC.
Logic Outputs
Low (0V) when active, pulled high (5V) when inactive.
Ethernet Cable
Standard CAT5e or CAT6, maximum device-to-device length = 100 meters.
Dante Cable
Standard CAT6, maximum device-to-device length = 100 meters.
ARC Cable
Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available.
General
Mic Pre-amp EIN
< -125dB with 150 ohm source impedance. 22.4 kHz BW.
Dynamic Range
> 113 dB, A-weighted.
A to D Latency
0.28 mS.
Space Required
Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Ventilation
Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
D to a Latency
0.60 mS.
Sampling Rate
48 kHz.
Channel Separation (A/D/A)
> 110 dB @ 1 kHz, +24 dBu.
Latency (A/D/A)
1.04 mS, inputs routed to outputs.
Processors
1 x Analog Devices SHARC 21489 @ 400 MHz SIMD.
Raw Processing Capacity
400 MIPS, 1.6 GFLOPS.
Delay Memory
174 mono seconds.
Recommended External Control Potentiometer
10k Ohm, linear.
RS-485 Serial I/O
38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port.
Maximum Devices per System
80 units per Site File.
Maximum Stored Presets
1000
Models
Prism 4x4 Dante
Audio Performance
CMRR
> 79 dB @ 1 kHz, unity gain.
