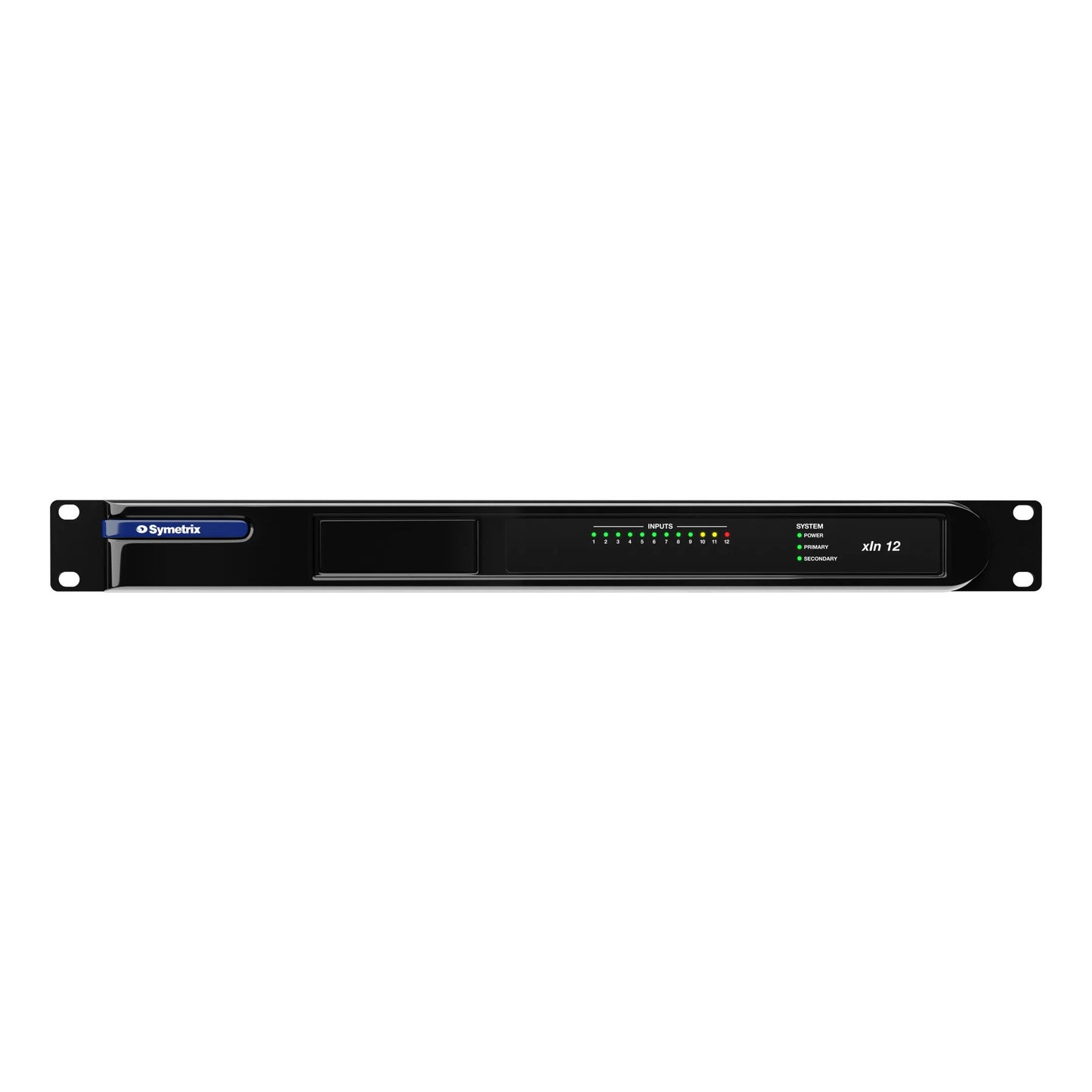

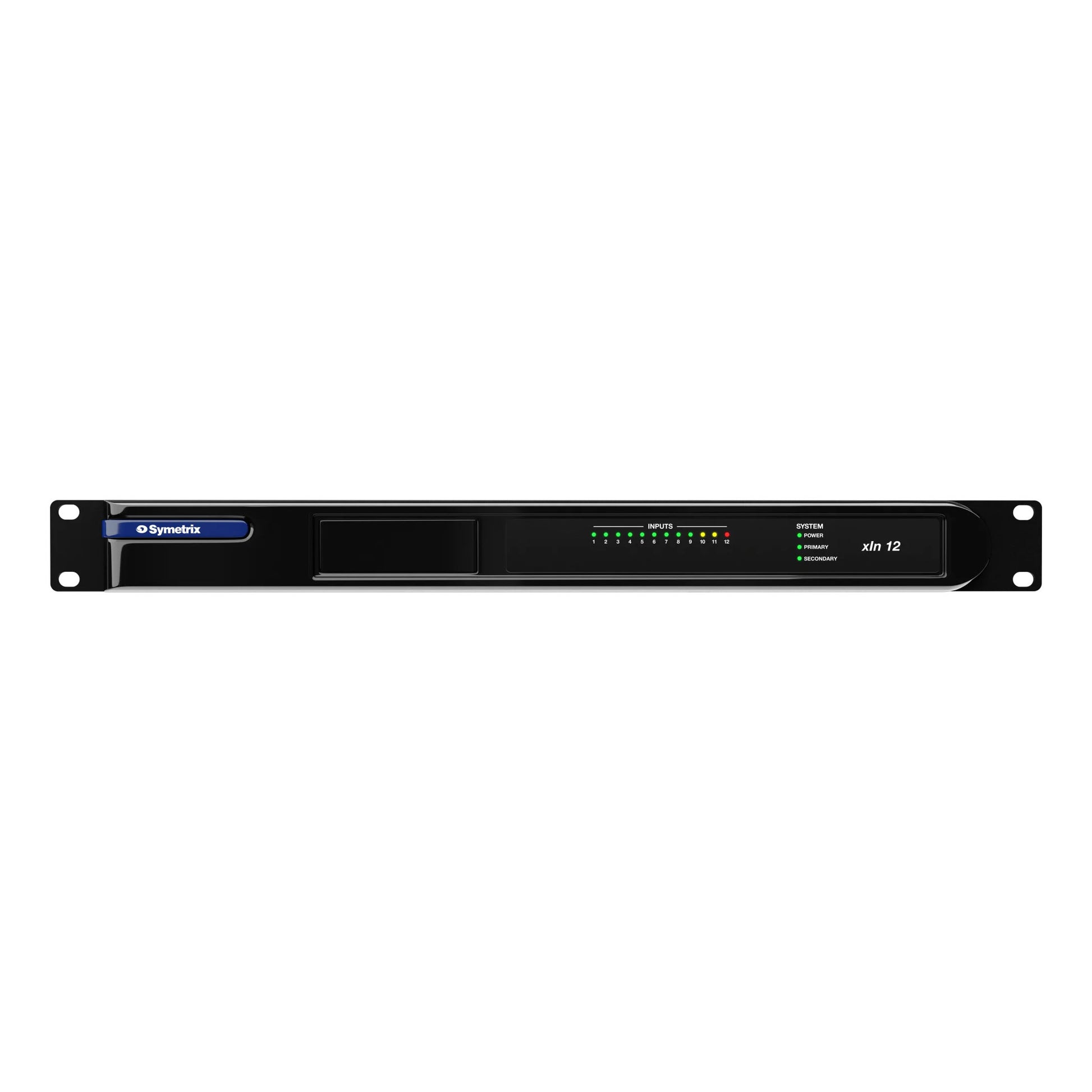

Symetrix xIn 12 Dante I/O Audio Input Expander
Symetrix xIn 12 Dante I/O Audio Input Expander
SoundPro Item: 38324 | Part Number: XIN 12
Usually ships in 5-7 business days
- Built-in network switches. Direct connections to Radius, Prism and Edge DSP’s
- Internal power supplies
- xIn 12 x 12 analog mic/line inputs
- xOut 12 x 12 analog mic/line outputs
The Symetrix xIn 12 Dante I/O Audio Input Expander increases a system’s analog input channel capacity resulting in a reduction in overall price per channel.
The cost effective xIn 12 increases a system’s analog input channel capacity resulting in a reduction in overall price per channel. Designed exclusively for use with Edge and Radius DSP units, each of the twelve analog inputs’ parameters (5 gain levels, trim, mute, phantom power), along with bus assignments, are configured using SymNet Composer open architecture software. xIn 12 set up is logical and fast with no requirement to use third party software; there are no mechanical switches or circuit board jumpers to set.
- Sampling rate48 kHz, ± 100 ppm
- Frequency response (A/D) 20 Hz – 20 kHz, ± 0.5 dB
- Channel separation (A/D) > 111 dB @ 1 kHz, +24 dBu
- Dante cable Standard CAT6, maximum device to device length = 100 meters
- Connectors 3.81 mm terminal blocks
- Number of inputs Twelve (12) switchable balanced mic or line level
- Nominal input level +4 dBu with 20 dB of headroom
- Maximum input level +23 dBu
- Mic pre-amp gain 0, 11.8, 24, 44 or 54 dB switchable
- Mic pre-amp EIN < -127 dB with 150 Ohm source impedance
- CMRR > 76 dB @ 1 kHz, unity gain
- Input impedance 8k Ohms balanced, 4k Ohms unbalanced
- Phantom power (per input) +48 VDC @ 10 mA maximum
- Dynamic range > 116 dB, A-weighted
- THD + Noise < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain
- Latency 0.28 mS
