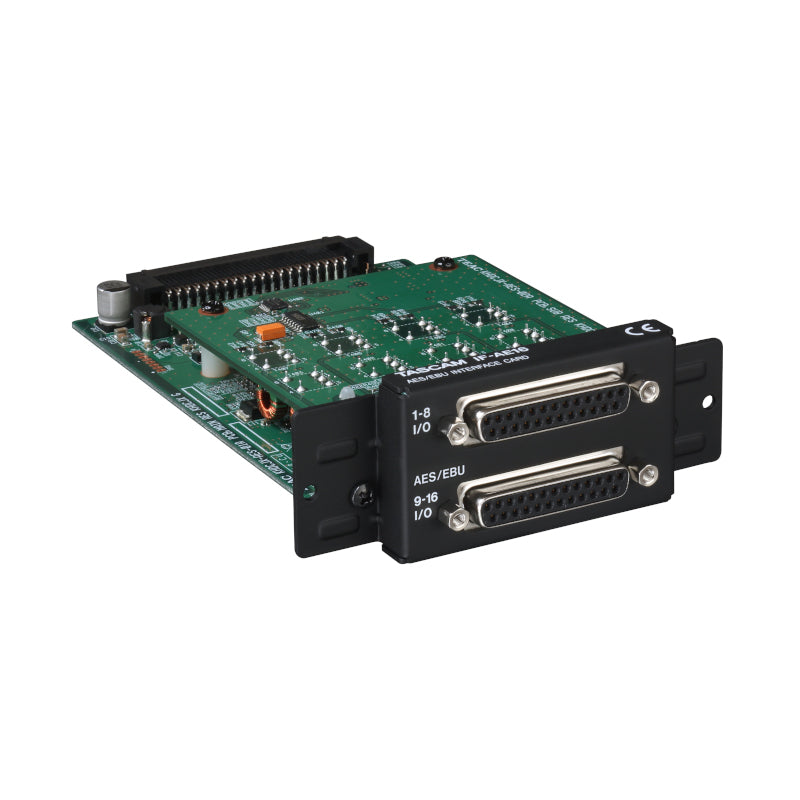

• Tascam IF-AE16 AES/EDU Digital Interface Card for DA-6400 / DA-6400dp

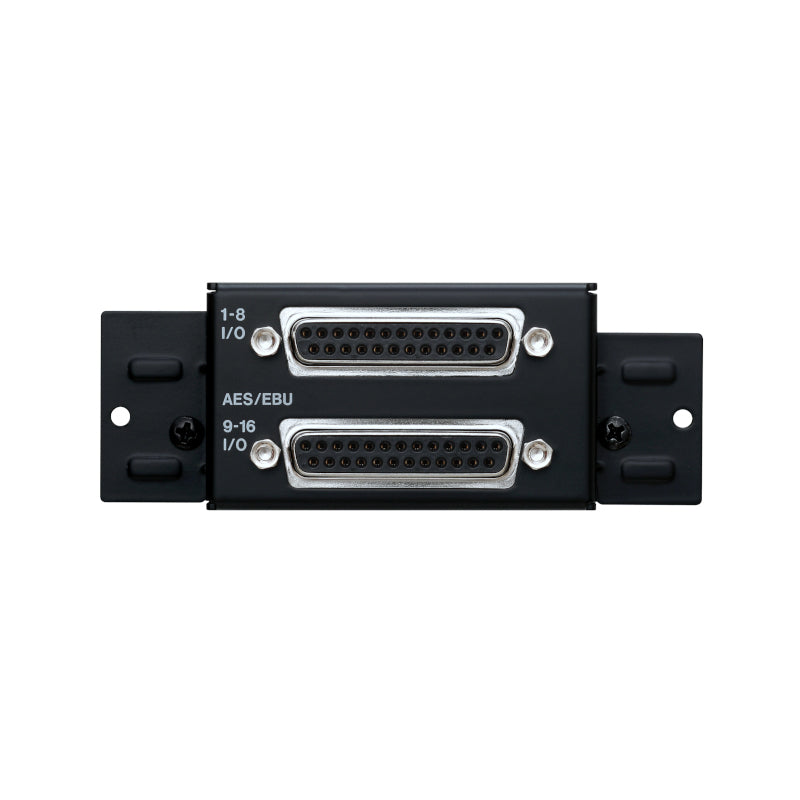

  • Tascam IF-AE16 AES/EDU Digital Interface Card for DA-6400 / DA-6400dp front
1 2

TASCAM IF-AE16 AES/EDU Digital Interface Card

TASCAM IF-AE16 AES/EDU Digital Interface Card

SoundPro Item: 91126 | Part Number: IF-AE16

$1,029.00
$1,299.00 $1,029.00
Your Price Sold out
MSRP: $1,299.00 | MAP: $1,029.00

Usually ships in 5-7 business days

  • AES/EBU input/output audio interface card for DA-6400/DA-6400dp digital multitrack recorders
  • 16 channels of input and output at 44.1/48/88.2/96kHz at either 16-bit or 24-bit
  • Up to 32 channels of AES inputs and outputs using two IF-AE16 cards
  • Built-in sampling rate converter for inputs with support for input frequencies of 32-192 kHz*
  • Settings can be made for each pair of channels
  • Two D-sub 25-pin connectors for channels 1-8 and 9-16
  • S/PDIF also supported as an input data format
  • Input/output connector pin assignments* conform to AES59-2012 * AES59-2012, used by many pro audio devices, utilizes the "TASCAM standard" pinout.
Log in or register for YOUR best price

The TASCAM IF-AE16 is an AES/EBU input/output interface card for the DA-6400 and DA-6400dp digital multitrack recorders. With 16 inputs and 16 outputs, two IF-AE16 cards can be used to enable 32 channels of input and output. The inputs have a built-in sampling rate converter that supports a wide range of formats.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
107×40×161.5mm
Audio
Digital Audio input/output
AES/EBU 1-8 I/O, AES/EBU 9-16 I/O, Input frequencies 44.1k/48k/88.2k/96k Hz (when sampling rate converter OFF)32k to 192k Hz (when sampling rate converter ON), Input format AES3-2003/IEC60958-4 (AES/EBU)IEC60958-3 (S/PDIF)* Data format only. Physical formats comply with AES3-2003/IEC60958-4 (AES/EBU).
Connectivity
Connectors
2×8-channel 25-pin D-sub (female)
Output Format
AES3-2003/IEC60958-4 (AES/EBU)
Shipping
Weight
222g
General
Format
44.1k/48k/88.2k/96k Hz, 24-bit
Locking Screws
No.4-40 UNC (inch type)
Pin Assignments
TASCAM Pin assignments
RF
Number of Channels
16 (Transmission is at double-speed when 88.2 or 96 kHz is selected)
