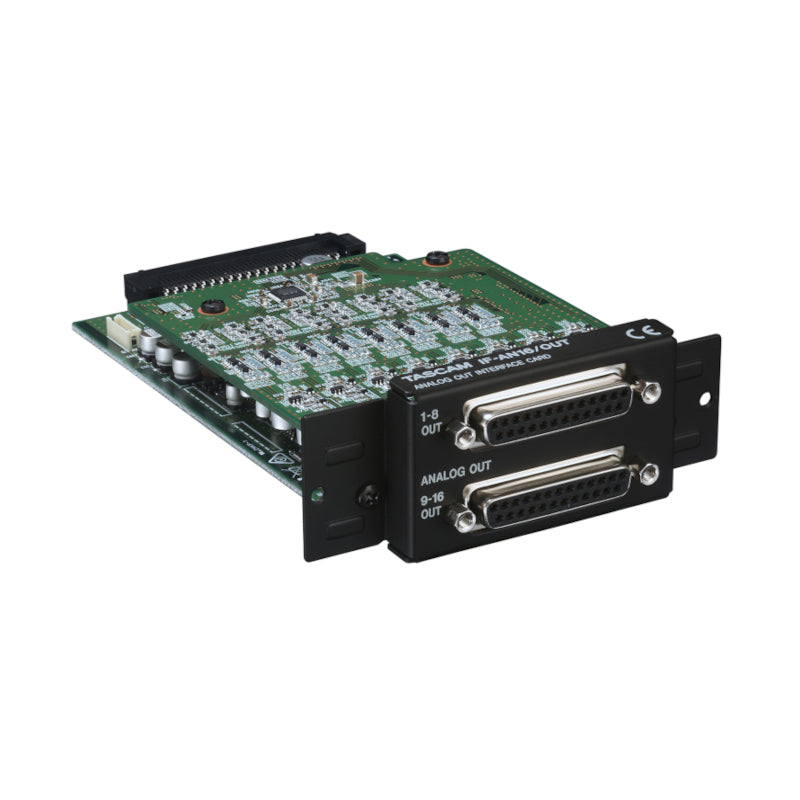

• Tascam IF-AN16/OUT Analog Output Interface Card for DA-6400 / DP-6400dp

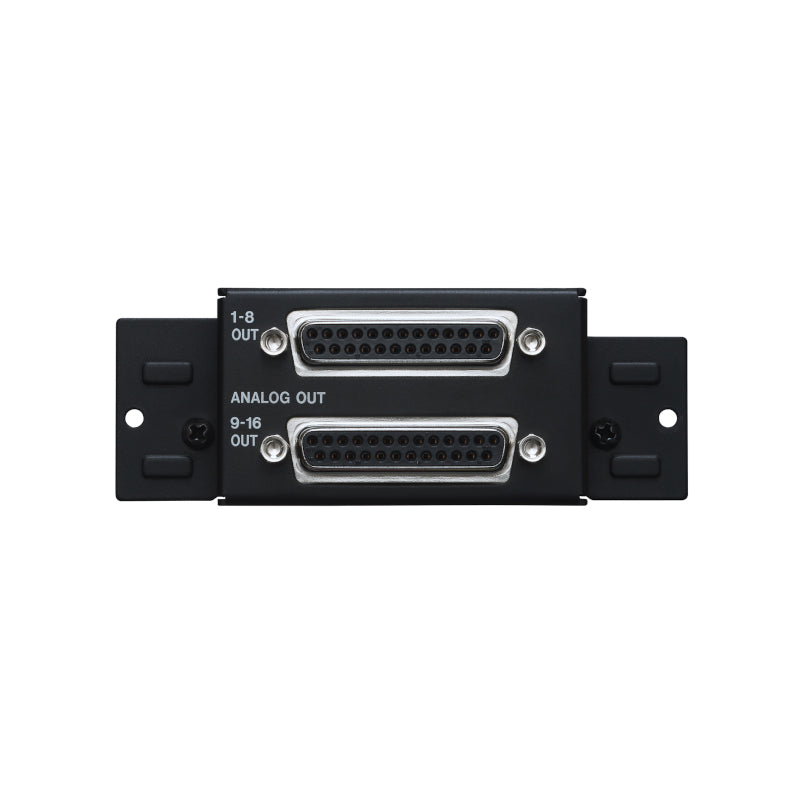

  • Tascam IF-AN16/OUT Analog Output Interface Card for DA-6400 / DP-6400dp front
1 2

TASCAM IF-AN16/OUT Analog Output Interface Card

TASCAM IF-AN16/OUT Analog Output Interface Card

SoundPro Item: 91127 | Part Number: IF-AN16/OUT

$1,099.00
$1,299.00 $1,099.00
Your Price Sold out
MSRP: $1,299.00 | MAP: $1,099.00

Usually ships in 5-7 business days

  • Use as a multi-channel output source for playback in theaters
  • For multi-channel playback in amusement parks
Log in or register for YOUR best price

The TASCAM IF-AN16 / OUT is an analog output interface card for the DA-6400 / DA-6400dp digital multi-track recorders. Equipped with 16 analog output channels and 32-channel recording is available by using two IF-AN16 / OUT cards.

View full details

Specifications

Dimensions
Bit Length
16-bit/24-bit
Dimensions (WxHxD)
107×40×161.5mm
Electrical
Applicable Load Impedance
2kΩ or more
Audio
Output Impedance
200Ω
Frequency Response +0.1dB/-0.5dB
20Hz/20kHz(−16dBFS input, Fs=44.1k/48kHz, JEITA)+0.1dB/-1.0dB:20Hz/40kHz(−16dBFS input, Fs=88.2k/96kHz, JEITA
THD
0.001% or less (0dBFS input, 1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA)
Crosstalk
110dB or more (1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA)
Connectivity
Connector
D-Sub 25-pin
No. of Output Channels
16
Analog Output 1-8/9-16
Nominal output level / maximum output level +4dBu/+24dBu+4dBu/+22dBu+4dBu/+20dBu+4dBu/+18dBu+6dBu/+15dBuM
Output Attenuation
0 <> -14dB (0.5dB steps)
Shipping
Weight
240g
General
Sampling Frequency
44.1k/48k/88.2k/96k Hz
Locking Screws
No.4-40 UNC (inch type)
S/N Ratio
110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA)
Dynamic Range
110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA)
