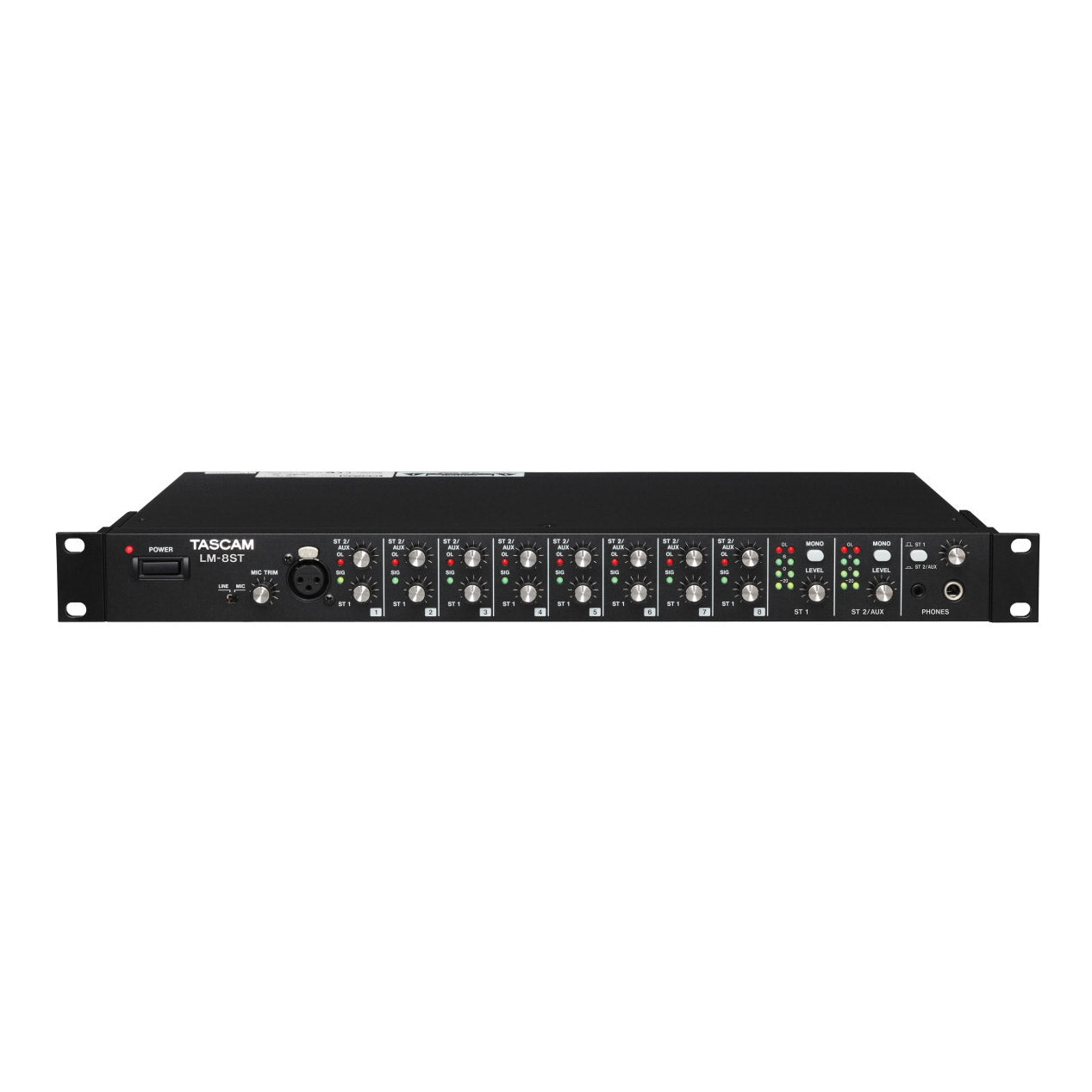

TASCAM LM-8ST Stereo 8-Channel Line Mixer

TASCAM LM-8ST Stereo 8-Channel Line Mixer

Soundpro Item: 45959 | Part Number: LM-8ST

$799.00
$999.00 $799.00
Your Price Sold out
MSRP: $999.00 | MAP: $799.00
  • 8 stereo channel / 4-buss line mixer
  • (8) stereo 1/4" TRS balanced inputs with -10/+4dB switch
  • 1U rack mountable
  • Mic input with trim control on front panel
  • 2-segment LED meter per channel
  • ST1 and ST2/AUX level control per channel
  • ST1 and ST2/AUX master level controls
  • Each channel switchable to ST2 (pre fader) or AUX (post) output
  • 1/4" and 1/8" stereo headphone outputs
  • XLR balanced ouptuts for ST1 and ST2/AUX
  • Stereo balanced buss output/input for cascade
  • Ground lift switch and terminal
Log in or register for YOUR best price

The TASCAM LM-8ST is a 1-space rackmountable line mixer for installation, studio submixing, keyboardists or anyone looking for a great-sounding mix. Eight pairs of balanced 1/4" TRS inputs - switchable from +4 or -10dB - can be bussed to a pair of XLR balanced outputs, labeled ST1 and ST2/AUX. Pre or post-fader bussing is available for the alternate buss, and master output level controls and metering keep signals under control. A microphone input is also provided for announcements or performance.

Packed with high-quality audio components, the TASCAM LM-8ST is perfect for any live performance or installation.

View full details

Specifications

  • Audio Inputs/Outputs
    • MIC IN
      • Connector: XLR-3-31 (1: GND, 2: HOT: 3: COLD) × 1
      • Input impedance: 2.4kΩ
      • Nominal input level: –58dBu (1mV) to –12dBu (195mV)
      • Maximum input level: +10dBu (2.45V)
    • STEREO IN
      • Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 8 pairs
      • Input impedance: 16kΩ
      • Nominal input level: +4dBu (1.23V)
      • Maximum input level: +24dBu (12.3V)
    • MASTER BUSS IN
      • Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pair
      • Input impedance: 16kΩ
      • Nominal input level: +4dBu (1.23V)
      • Maximum input level: +24dBu (12.3V)
    • ST1, ST2/AUX OUT
      • Connector: XLR-3-32 Phone jack (1: GND, 2: HOT, 3: COLD) × 2 pairs
      • Input impedance: 94Ω
      • Nominal input level: +4dBu (1.23V)
      • Maximum input level: +24dBu (12.3V)
    • ST1, ST2/AUX OUT
      • Connector: RCA Pin jack × 2 pairs
      • Input impedance: 200Ω
      • Nominal input level: –10dBu (0.3V)
      • Maximum input level: +10dBu (3.16V)
    • BUSS OUT
      • Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pair
      • Input impedance: 94Ω
      • Nominal input level: +4dBu (1.23V)
      • Maximum input level: +24dBu (12.3V)
    • PHONES OUT
      • Connector: 1/4" (6.3mm) Stereo Phone jack × 1
      • Maximum output level: 250mW + 250mW (32Ω)
  • PowerAC 100 - 240V, 50/60Hz
  • Power Consumption15W
  • Dimensions (WxHxD)19×1.73×11" (482×44×280 mm)
  • Weight8.4 lbs (3.8 kg)
