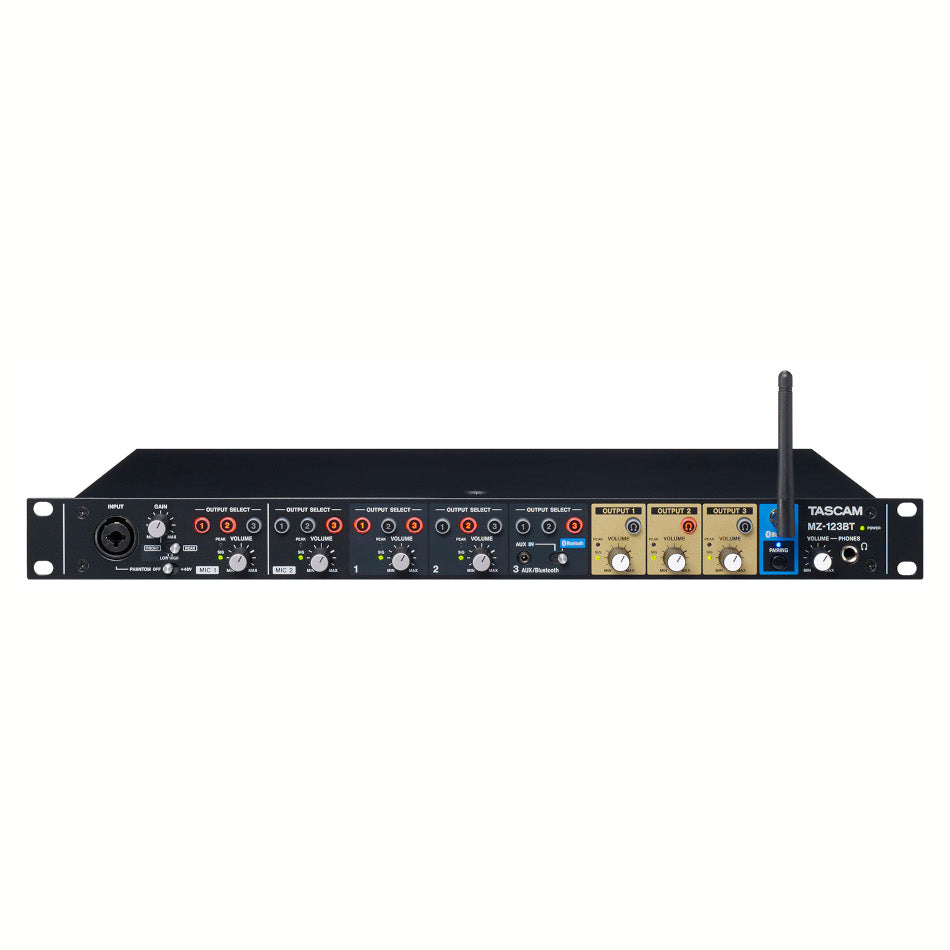

• Tascam MZ-123BT Commercial-grade Multi-Zone Audio Mixer front
1 1

TASCAM MZ-123BT Commercial-grade Multi-Zone Audio Mixer

TASCAM MZ-123BT Commercial-grade Multi-Zone Audio Mixer

SoundPro Item: 45703 | Part Number: MZ-123BT

$629.00
$849.00 $629.00
Your Price Sold out
MSRP: $849.00 | MAP: $629.00

Usually ships in 5-7 business days

  • Input Channel sources can be easily assigned to each of the individual 3 Zone Outputs
  • 3 Input Channels
  • 2 MIC inputs for announcements or Talk Over
  • Talk Over feature enables automatic background music volume attenuation in desired Zone when mic audio is detected
  • Headphone jack enables monitoring of each output channel
  • Compact 1U rack-mount size
Log in or register for YOUR best price

The TASCAM MZ-123BT is a compact 1U multi-channel, multi-zone professional installation mixer that provides versatile routing, mixing and distribution of up to three channels of music and announcements for a wide range of commercial applications, including retail, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities. Featuring a simple, intuitive layout for ease of operation, the Bluetooth®-enabled MZ-123BT comes equipped with 2 versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging.

Three discrete Zone Outputs with Volume control allow routing of background music to desired areas or rooms in a restaurant, hotel, retail store or other commercial environment.

Three pair of stereo outputs featuring Euroblock connectors for fixed installations are accessible from the back panel. A MONO/STEREO switch is provided for each output.

Stereo LINE Inputs 1 and 2 (RCA, Unbalanced) allow connection of AV equipment such as TASCAM CD/Solid State Players or similar playback devices. The Channel 3 AUX/Bluetooth® Input allows an additional audio source to be connected via Bluetooth® or 3.5mm mini plug. Each input features a Volume Control knob as well as a Zone Routing button (1, 2 or 3) for audio distribution to desired areas

A dedicated front-panel Bluetooth® antenna helps ensure consistent wireless signal stability and reliability when streaming source material from a Bluetooth® enabled device — even in the most signal-challenged environments.

Two Mic Inputs, each with +48V phantom power switches, enable discrete Zone talkover or announcer functionality via push-button front panel Zone Output switches. Two rear panel Euroblock connectors are provided for Mic 1 and 2 connection, with XLR/TRS connectivity for Mic 1 easily accessible from the front panel and selectable via a front panel switch.

On the back panel, separate 3 band EQ (Low, Mid, High) and Gain control knobs, along with a High Pass Filter switch are provided for setting optimal room level, tonal quality and voicing character for each mic channel.

The Talkover function automatically detects mic signal input during audio playback and attenuates background music levels in the desired Zone for optimal intelligibility during announcements. Back panel adjustment of Mic Threshold Level and Timing (release time) allows smooth restoration of background music to pre-set levels.

Intuitive front-panel control of Volume, Output, Zone Select and Bluetooth® pairing makes basic operation simple for non-technical staff and workers. More advanced system configuration and operational settings for EQ, Gain and Threshold can be dialed in and set via dedicated back panel knobs.

View full details

Specifications

Dimensions
Dimensions (WxHxD, Including Protrusions, Excluding Bluetooth antenna)
483×46.5×274.8mm
Electrical
Vrms)Input Impedance
10kΩ or higher
Vrms)Output Impedance
200Ω
Power Consumption
25 W
Audio
Audio Inputs
MIC INPUT (BALANCED) jack (front) Connector XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)6.3m (1/4") standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)Rated input level: -26dBu (0.039 Vrms, when FRONT HIGH), -2dBu (0.616 Vrms, when FRONT LOW)Maximum input level: -10dBu (0.245 Vrms, when FRONT HIGH), +14dBu (3.884 Vrms, when FRONT LOW)Minimum input level: -65dBu (0.0004 Vrms, when FRONT HIGH), -41dBu (0.007 Vrms, when FRONT LOW)Gain adjustment range: 39dBInput impedance: 2.4kΩ
ON)Gain Adjustment Range
39dBInput impedance: 2.4kΩ
Vrms)Gain Adjustment Range
-16dB to +16dBInput impedance: 10kΩ or higher
Audio Performance
Frequency response MIC INPUT → LINE OUTPUT 20Hz - 20kHz: +0.5 dB/-1.0 dB*LINE INPUT → LINE OUTPUT 20Hz - 20kHz: ±0.5 dB*, Distortion MIC INPUT (front) → LINE OUTPUT 0.02% or less*MIC INPUT (rear) → LINE OUTPUT 0.01% or less*LINE INPUT → LINE OUTPUT 0.01% or less*, S/N ratio MIC INPUT → LINE OUTPUT 90dB or higher*LINE INPUT → LINE OUTPUT 90dB or higher*, Crosstalk MIC INPUT → LINE OUTPUT 80dB or higher*LINE INPUT → LINE OUTPUT 80dB or higher*, Mic amp EIN (equivalent input noise) MIC INPUT → LINE OUTPUT -125dBu or less (150Ω, 20kHz LPF, A-weight)
Connectivity
Connectors
Euroblock (balanced) 3.81mm pitchRated input level: -26dBu (0.039 Vrms, when PAD switch OFF), -2dBu (0.616 Vrms, when PAD switch
ON)Maximum Input Level
-10dBu (0.245 Vrms, when PAD switch OFF), +14dBu (3.884 Vrms, when PAD switch
ON)Minimum Input Level
-65dBu (0.0004 Vrms, when PAD switch OFF), -41dBu (0.007 Vrms, when PAD switch
Vrms)Maximum Input Level
+6dBV (2.0
Connector
3.5mm (1/8") stereo mini jackNominal input level: -20dBV (0.1
OUTPUTS (BALANCED) Connectors Connectors
Euroblock (balanced) 3.81mm pitchRated output level: +4dBu (1.228 Vrms, when VOLUME knob at 0 dB)Maximum output level: +24dBu (12.282
PHONES Jack Connectors
6.3mm (1/4") standard stereo jackMaximum output: 80mW + 80mW or higher (THD+N 0.1% or less, into 32Ω load)
Bluetooth Version
4.2
Output Class
2 (about 10m unobstructed transmission distance)
Bluetooth
The transmission distance is only an estimate and might vary depending on the surrounding environment and radio wave conditions.
Environmental
Operating Temperature Range
0 - 40°C (32 - 104°F)
Shipping
Weight
3.0 kg
General
Supported Profile
A2DP
Supported A2DP Codecs
SBC, AAC, Qualcomm® aptX™ audio
Supported A2DP Content Protection
SCMS-T
NOTE
* when GAIN knob at minimum, VOLUME knob at 0 dB, JEITA
JEITA
indicates compliance with JEITA CP-1301A
Power
Power
AC 100V - 240V,50/60Hz
