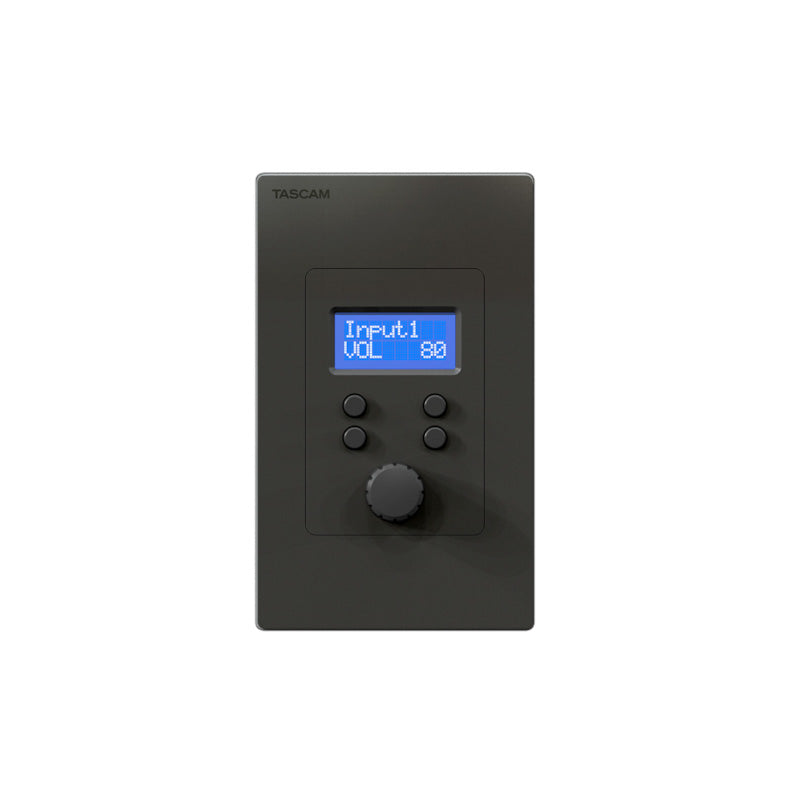

TASCAM RC-W100-R120 Wall-Mounted Programmable Controller
TASCAM RC-W100-R120 Wall-Mounted Programmable Controller
SoundPro Item: 48852 | Part Number: RC-W100-R120
In stock and ready to ship
- Wall-mounted programmable controller for MX-8A
- Equipped with 1 encoder (with push switch) and 4 switches
- Enables switching sources and adjusting volume (including muting)
- Functions can be assigned to the encoder and the switches using TASCAM MX CONNECT
- Prevents end-users from making mistakes by assigning only necessary functions to the controller
- Two source switching modes available
- Easy-to-read display
- Name of the selected source and current volume can be checked
- Automatic backlight off function
- Daisy chaining of up to 8 units is possible using cables rated category 5e or higher (maximum length 200 m)
- Power supply can be provided to the unit via MX-8A (RS-485)
- Reduces power construction and installation costs
The RC-W100-R120 Wall Mount Controller for the MX-8A 8 Input /8 Output Matrix Mixer with DSP. Designed for quick and easy operation in meeting rooms, lecture halls, stores, restaurants, and multipurpose spaces, the RC-W100-R120 Wall Mount Controller incorporate an easy-to-read LCD display, one rotary encoder with a push switch, and four push button switches.
The RC-W100 is a wall-mountable programmable remote control for the Tascam MX-8A Matrix Mixer or other compatible products. Four switch buttons and one encoder with push-button function allow users to select between four or eight audio sources, adjust volume levels and mute sound in a permanently installed audio system. The easy-to-read, illuminated display provides information about the selected audio source and the current volume setting.
Up to eight controllers can be used with one mixer by daisy-chaining the units via an RS-485 connection with a cable length of up to 200 meters. End-users can be prevented from making mistakes by assigning only necessary functions to the encoder and switches using Tascam MX Connect.
The RC-W100 extends the comfort of any sound reinforcement system where the MX-8A matrix mixer is at the center.
* RC-W100-R120 designed for the U.S. and Japan.
- Input/output ratings
- RS-485 connector
- Connector: RJ-45 x2
- Cables: category 5e or faster STP cables
- Power consumption0.24 W
- Dimensions (WxHxD, including protrusions)70x114x54mm
- Weight140g
- Operating temperature range32-104°F (0-40°C)
