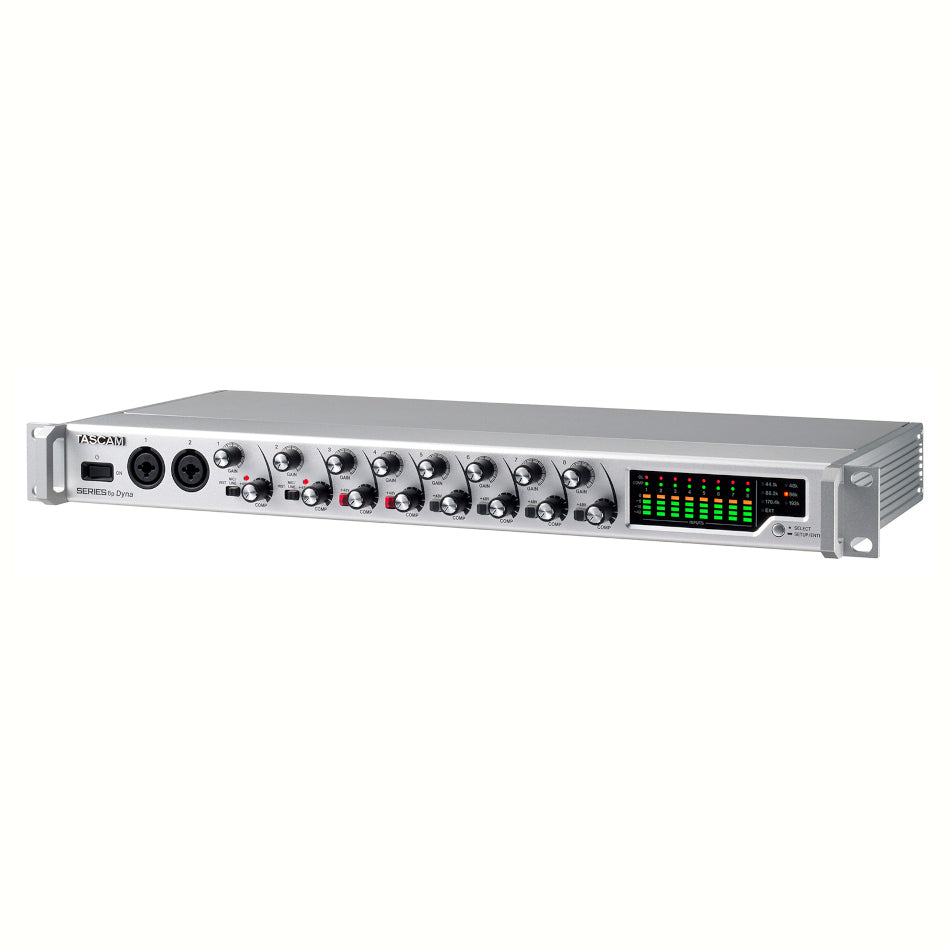

• Tascam SERIES 8p Dyna 8-Channel Mic Preamp with Analog Compressor

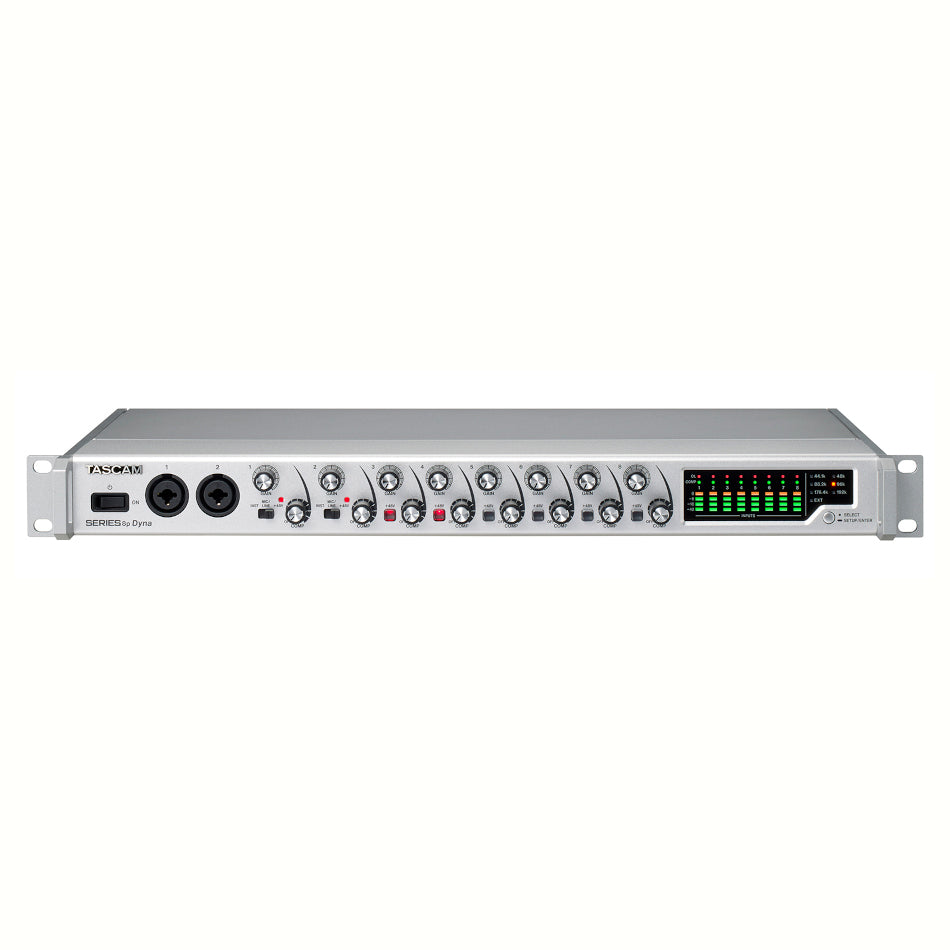

  • Tascam SERIES 8p Dyna 8-Channel Mic Preamp with Analog Compressor front

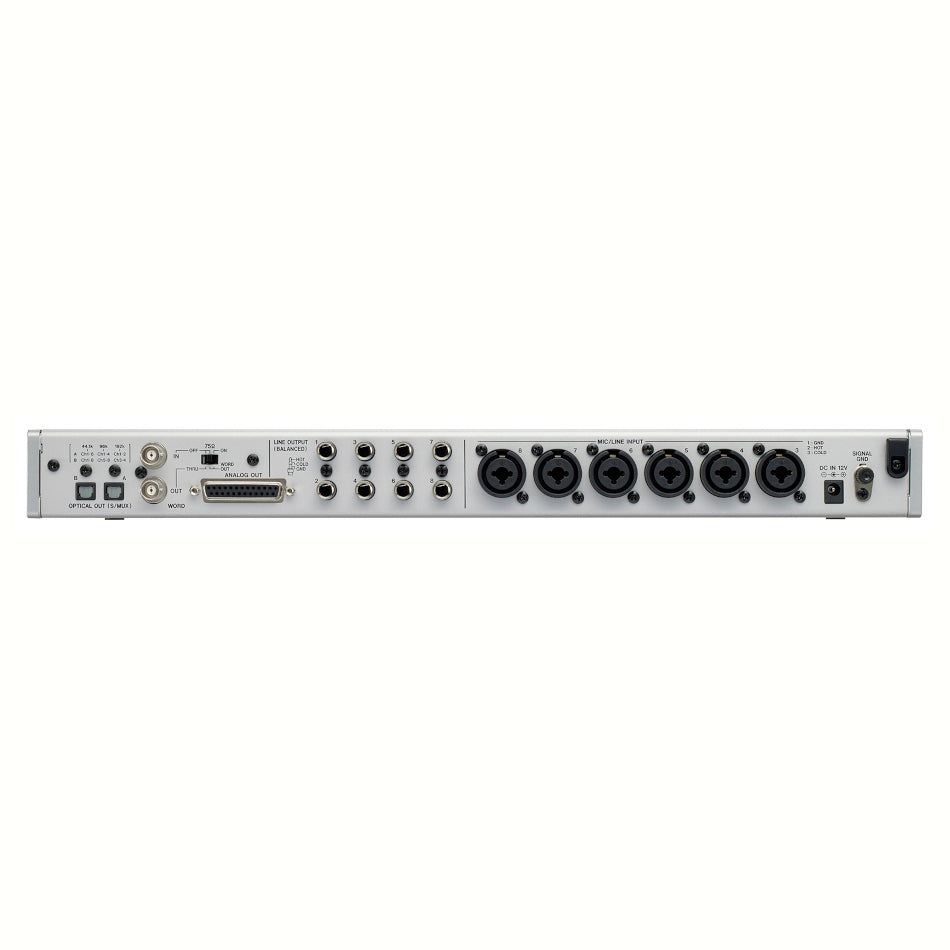

  • Tascam SERIES 8p Dyna 8-Channel Mic Preamp with Analog Compressor back
1 3

TASCAM SERIES 8p Dyna Mic Preamp with Analog Compressor

TASCAM SERIES 8p Dyna Mic Preamp with Analog Compressor

SoundPro Item: 91133 | Part Number: SERIES 8P DYNA

$699.00
$899.00 $699.00
Your Price Sold out
MSRP: $899.00 | MAP: $699.00

Usually ships in 5-7 business days

  • Ideal for studio and stage
  • Rugged 1U rack-mount casing
  • Dual S/MUX optical ports
  • Perfect expansion unit for Tascam SERIES 102i, 208i or other S/MUX-equipped audio interfaces including ADAT
  • Individually switched +48V phantom power for use with condenser mics
  • Easy-to-use, single-control analog compressor with true bypass
Log in or register for YOUR best price

With superb audio specifications and connectivity and featuring an outstanding microphone preamp, the TASCAM SERIES 8p Dyna is a great choice for both studio and stage. Housed in a rugged 1U rack-mount casing, its dual S/MUX optical ports make it a perfect expansion unit for a TASCAM SERIES 102i or SERIES 208i or other S/MUX-equipped audio interfaces including ADAT, or use it as a stand-alone front end.

Each SERIES 8p Dyna channel also features individually switched +48V phantom power for use with condenser mics, and an easy-to-use, single-control analog compressor with true bypass.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
18.98" x 1.76" x 9"
Electrical
Load Impedance
2kΩ or more
Power Consumption
16W
Audio
Input Impedance
2.3kΩ
Output Impedance
200Ω or less
Output Voltage
2.0Vpp (into 75Ω)
Frequency Response (JEITA)
Mic/Line to Line Out, Mic/Line (analog to Digital Output (S/MUX)
S/N Ratio (GAIN Knob at Minimum, JEITA)
MIC/LINE/INST (analog) to Digital Output (S/MUX)
Connectivity
Mic in (Balanced) 1-2 (when the Input Switch Is Set to MIC/LINE), 3 Thru 8
1-2 (when the input switch is set to MIC/LINE), 3 thru 8, Rated Input Level
Connector
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Max. Input Level
+10dBu (2.45Vrms)
Instrument in (unbalanced) 1-2 (when the Input Switch Is Set to INST)
Rated Input Level
Line in (balanced) 1-2 (when the Input Switch Set to MIC/LINE), 3 Thru 8
Rated Input Level
Nominal Output Level
+4dBu (1.228Vrms)
Max. Output Level
+20dBu (7.75Vrms)
MIC/LINE/INST to Digital Output (S/MUX)
0.001%
MIC to Digital Output (S/MUX)
114dB
Shipping
Weight
5.7 pounds
General
Sampling Frequency
44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
Quantization Bit Rate
24-bit
Signal Format
multi-channel optical format (supports
S/MUX2
88.2k/96k Hz
S/MUX4
176.4k/192k Hz)
Frequency Deviation
+/-100ppm
Mic Amp EIN
-127dBu or lower
MIC/LINE/INST to Line Out
116dB
MIC / LINE to LINE OUT
0.0007%
INST to LINE OUT
0.0009%
MIC to LINE OUT
119dB
DSP Engine
Gain Range
52dB
Power
Input Voltage
2.0Vpp to 5.0Vpp
Power
DC 12V (dedicated AC adapter PS-P1230)
