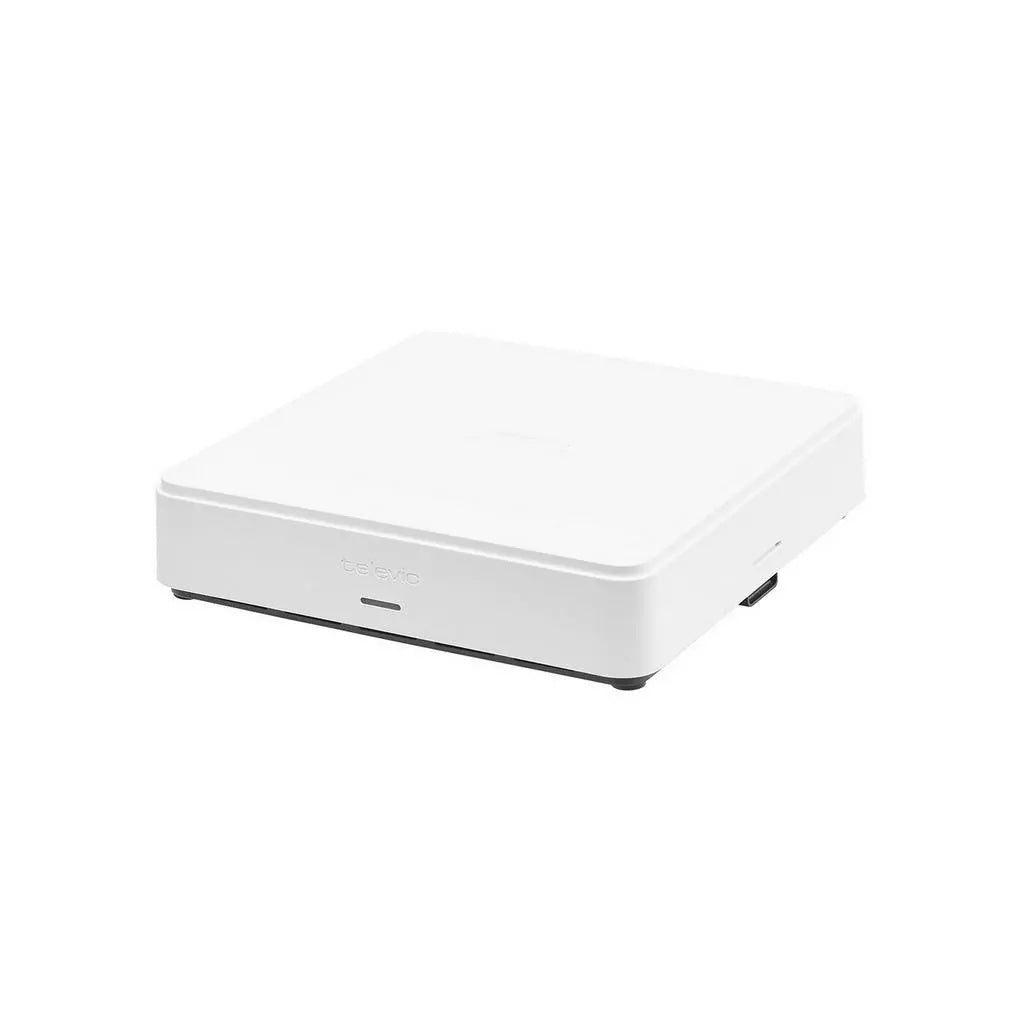

• Confidea WAP G4 angled front view of white square housing with front LED indicator and logo, Televic
1 1

Televic 71.98.0035 Confidea WAP G4 Wireless Conference Access Point

Televic 71.98.0035 Confidea WAP G4 Wireless Conference Access Point

SoundPro Item: 212630 | Part Number: 71.98.0035

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Self Healing Channel Switching Moves To A Clean Channel When Interference Or Radar Appears
  • Spatial Diversity MIMO Antenna Design Optimizes Signal Reception Across The Room
  • WPA2 Enterprise Security With Unique Per Device Key Exchange Protects Meeting Audio
  • Wizard Based Web Setup Speeds Commissioning And Channel Monitoring
  • Easy Click Mounting Plate Simplifies Installation And Removal Of The Access Point
  • Mix-Minus Mode And Analog Routing Support External Processing And Remote Participants
  • Camera Protocols Enable Integration With Third Party Camera Control Systems
Log in or register for YOUR best price

Built for integrators and AV teams deploying wireless conferencing in boardrooms, council chambers, training rooms, and multipurpose event spaces. This access point is the hub of the conference unit network, handling RF management, unit security, and audio routing from a compact housing that stays out of sight in the room.

Commissioning is straightforward. Browser-based Confero software walks installers through setup, and adding a license unlocks moderation, voting, participant identification, and reporting for meetings that need structure. Audio can be handed to presentation systems, room audio, or hybrid platforms such as Zoom and Teams through the analog interface, and meetings can be captured to internal or external storage without extra recorders.

Compared with generic WiFi gear repurposed for conferencing, a purpose-built access point gives technicians visibility into channel quality and control over the operating channel, which matters in venues where the 5 GHz band is shared. Power it from a standard PoE+ switch or injector, and expand later with Confero 360 as meeting requirements grow.

Downloads

View full details

Specifications

Dimensions
Dimensions (W x H x D)
191 x 45 x 191 mm / 7.52 x 1.77 x 7.52 in
Packed Dimensions (W x H x D)
233 x 46 x 233 mm / 9.17 x 1.81 x 9.17 in
Weight
Weight
680 g / 1.50 lb
Packed Weight
825 g / 1.82 lb
Electrical
Power Supply
PoE+, 802.3at, Type 2 PD
Typical Power Consumption
15 W
Max Power Consumption
24 W
Plixus Power
48 VDC
Plixus Continuous Output Current
2 A
Audio
Audio
48 kHz / 24-bit
Frequency Response
20 Hz - 20 kHz
THD (22 - 22,000 Hz)
< 0.02%
Dynamic Range
> 90 dB
Signal-to-Noise Ratio
> 95 dBA
Latency (Mic to WAP to Loudspeaker)
16 ms
Analog Input Nominal Level
0 dBV
Analog Input Max Level
+10 dBV
Analog Input Frequency Response
20 Hz - 20 kHz
Analog Input THD @ Nominal Level
< 0.02%
Analog Input Dynamic Range
> 90 dB
Analog Input SNR
> 95 dBA
Analog Input Impedance
> 10 kΩ
Analog Output Nominal Level
0 dBV
Analog Output Max Level
+10 dBV
Analog Output Frequency Response
20 Hz - 20 kHz
Analog Output THD @ Nominal Level
< 0.02%
Analog Output Dynamic Range
> 90 dB
Analog Output Load Impedance
> 600 Ω
Performance
WiFi Standard
WiFi 5, IEEE 802.11ac
RF Frequency Bands
2.4 GHz / 5 GHz
EIRP
< 24 dBm
Range
40 m (omnidirectional)
Number of Antennas
5
Encryption
WPA2 Enterprise
Max Number of Units
128
Max Open Microphones
8
Recording Format
MP3
Recording Quality
64, 128, 196, 256 kbps
Max Recording Size
500 GB
Internal Storage
4 GB
Connectivity
LAN Interface
Ethernet, RJ45
LAN Link Speed
100 Mbps
LAN Network Addressing
DHCP, NTP, or Manual
LAN Cable Type
Cat5e or higher (shielded)
LAN Max Cable Length
100 m
LAN Connector LEDs
Green: Link / Orange: Link activity
LAN Authentication
802.1X (MD5, TLS, PEAP-MSCHAPv2), LAN port only
Plixus Ports
2
Plixus Interface
Ethernet, RJ45
Plixus Link Speed
100 Mbps
Plixus Cable Type
Cat5e or higher (shielded)
Plixus Max Cable Length
80 m
Plixus Connector LEDs
Green: Status / Orange: Link speed
USB Interface
USB 2.0 Type-A
USB Format
NTFS
USB Max Size
500 GB
Analog Input Connector
3-pin Phoenix mini Combicon, balanced
Analog Output Connector
3-pin Phoenix mini Combicon, balanced
Construction
Material
ABS
Color
White
Mounting Type
Wall, ceiling, electrical box, microphone stand
Environmental
Operating Temperature
0 - 45°C / 32 - 113°F
Storage Temperature
-20 - 60°C / -4 - 140°F
Humidity
5% - 95%
Included Items
Included Software
Confero (web-based)
