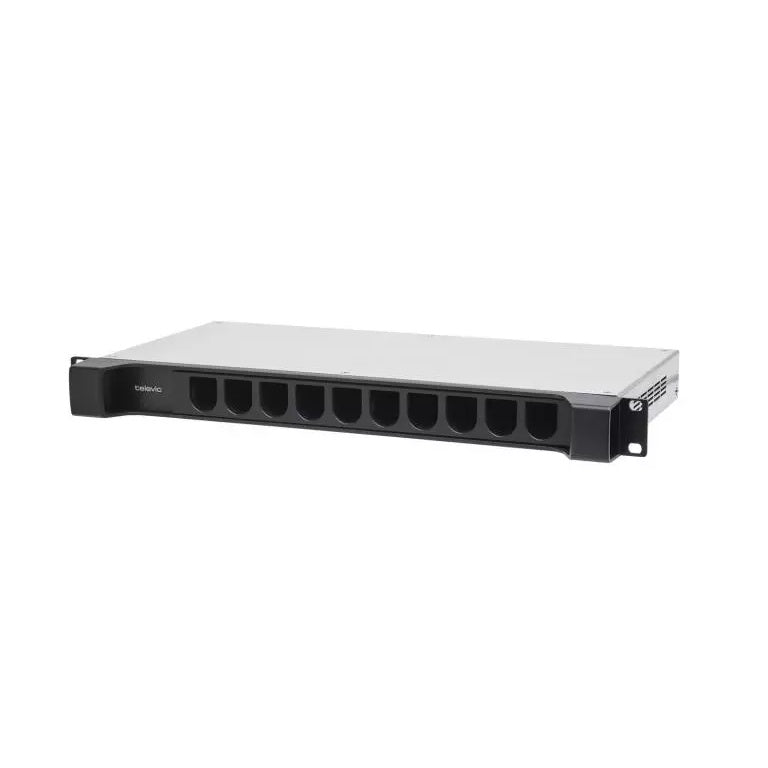

• Confidea G4 angled front view showing ten open battery slots and rack ears on a low-profile steel chassis, Televic
1 1

Televic 71.98.0046 Confidea G4 10-Slot Battery Charging Tray

Televic 71.98.0046 Confidea G4 10-Slot Battery Charging Tray

SoundPro Item: 212634 | Part Number: 71.98.0046

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Rack Mountable Chassis Saves Space In Equipment Racks And Cabinet Installs
  • Individual Slot LEDs Give Quick Charging Status Checks During Turnarounds
  • Smart Battery Monitoring Allows Batteries To Stay Docked Between Events
  • Quick Charge Capability Supports Alternating Schemes With Dual Battery Units
  • Auto-Ranging Power Supply Simplifies Deployment On Different Mains Voltages
  • Built-In Web Interface Provides Battery Monitoring And Upgrade Access Over LAN
Log in or register for YOUR best price

Built for integrators and AV managers who run Confidea G4 conference units in boardrooms, council chambers, and conference centers. A dedicated charging station keeps spare Confidea BP G4 batteries ready, so delegate units can be swapped between sessions instead of being tied to a wall outlet.

A full charge takes two hours, and a 45 minute top-up delivers roughly six meeting hours in a FLEX G4 unit running on one battery. That turnaround suits back to back events where a crew has limited time between sessions. Batteries can sit in the tray after charging, so staff do not need to pull packs on a timer.

The steel chassis mounts in a standard equipment rack or inside cabinetry, which suits technical rooms and fixed AV closets where floor space is tight. The LAN connection lets technicians monitor battery status and ready the tray for upgrades from a browser, a practical benefit on managed networks. Unlike a generic charger, it is specified for the Confidea BP G4 battery, so there is no guesswork about compatibility. For rental houses and installed systems alike, one tray gives a repeatable charging routine.

Downloads

View full details

Specifications

Dimensions
Dimensions (W x H x D)
482.6 x 43.6 x 236.5 mm / 19.00" x 1.72" x 9.31"
Packed Dimensions (W x H x D)
565 x 60 x 305 mm / 22.2" x 2.4" x 12"
Rack Size
19" rack mountable, 1U
Weight
Weight
3520 g / 7.76 lbs
Packed Weight
4340 g / 9.57 lbs
Electrical
Power Supply
Auto-ranging
Supply Voltage
100-240 VAC ±10%, 50-60 Hz
Nominal Power
180 W
Maximum Power
200 W
Performance
Battery Slots
10, each with a charging status LED
Compatible Battery
Confidea BP G4 (71.98.0045)
Charging Time (Empty to 100%)
2 hours
Quick Charge to 50%
45 minutes (about 6 meeting hours in a FLEX G4 on one battery)
Battery Monitoring
Smart monitoring, so batteries can stay in the tray without affecting battery life
Network
LAN connection for the built-in web page (battery monitoring and firmware upgrades)
Construction
Material
Steel
Color
Black (RAL 9011)
Environmental
Operating Temperature
0-45°C / 32-113°F
Storage Temperature
-20-60°C / -4-140°F
Humidity
5%-95%
Certification
CE (Europe)
