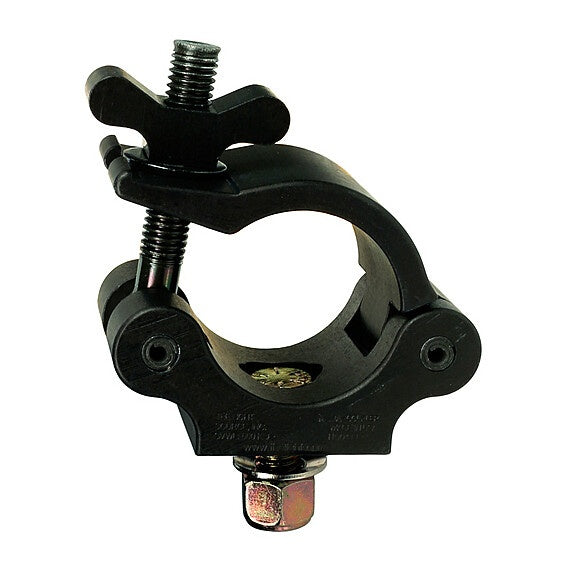

The Light Source Mega-Coupler Flat Head Truss Clamp | M10 Metric | Black
The Light Source Mega-Coupler Flat Head Truss Clamp | M10 Metric | Black
SoundPro Item: 201564 | Part Number: LIGMLBM10CS
Usually ships in 5-7 business days
- Flat Head Countersunk Bolt Keeps Hardware Flush And Reduces Snagging On Truss
- Solid Wing Nut Tabs Engineered Stronger Than Standard Steel Wing Nuts
- Hex-Milled Pocket Locks Grade 8 Bolt So Nylock Nut Tightens With Clamp Installed
- Belleville Washer Maintains Clamping Tension Under Live Production Vibration
- Industry-Compatible Base Ensures Broad Truss System Compatibility
The Light Source Mega-Coupler is built for riggers, lighting technicians, and production crews who need a dependable truss clamp that performs under repeated load cycles in touring and installed staging environments. The industry-standard 14 mm thick base ensures compatibility across common truss systems, and the solid wing nut tab construction eliminates the failure point found in conventional steel wing nuts.
The flat head countersunk bolt variant keeps hardware flush and reduces snagging hazards in dense truss configurations where clearance is critical. A grade 8 hex head cap screw locks into a hex-milled pocket so the Nylock Nut can be torqued down while the clamp is already positioned on the tube — a practical advantage when working at height or in tight truss junctions. The included Belleville washer maintains clamping tension under vibration common in live production.
Covering truss tube diameters from 1.66 in OD up to 2 in OD, the Mega-Coupler addresses the range found across aluminum box truss, spigot truss, and pipe-and-base systems. Available in multiple hardware sizes and materials, this M10 metric black configuration suits touring productions and permanent installs where metric fastener standards are required.
Downloads
Downloads
Specifications
