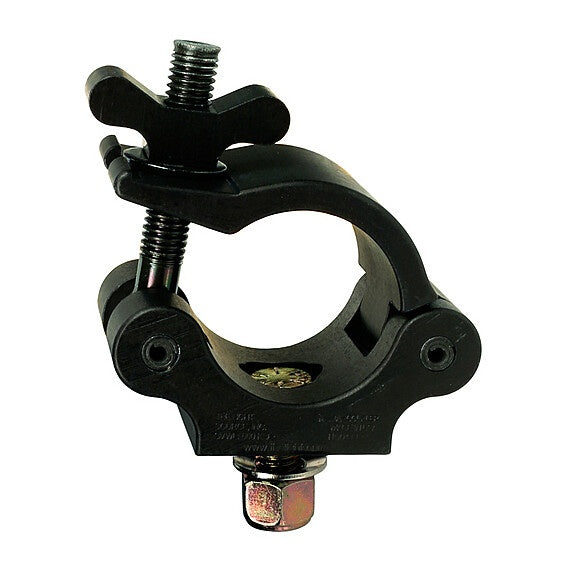

The Light Source LIGMLBNN Mega-Coupler Truss Clamp With Nylock Nut

The Light Source LIGMLBNN Mega-Coupler Truss Clamp With Nylock Nut

SoundPro Item: 201565 | Part Number: LIGMLBNN

$42.90
$42.90 $42.90
Your Price Sold out
MSRP: $42.90 | MAP: $42.90

Usually ships in 5-7 business days

  • Nylock Nut Replaces Wing Nut For Vibration-Resistant, Tamper-Resistant Bolt Assembly
  • Hex-Milled Pocket Locks Bolt Head So Nut Can Be Tightened With The Clamp Installed
  • Grade 8 Hex Head Cap Screw Provides Superior Clamping Strength Over Standard Steel Wing Nuts
  • Industry-Compatible Base Ensures Broad Truss System Compatibility
  • Belleville Washer Included For Consistent Clamping Load And Fastener Retention
Log in or register for YOUR best price

The Light Source Inc. Mega-Coupler with Nylock Nut is engineered for riggers and lighting integrators who need a reliable bolt-style clamp for truss and pipe applications where wing nuts are not preferred. The Nylock nut replaces the aluminum wing nut in the bolt assembly, providing a tamper-resistant, vibration-resistant connection suited for touring rigs, installed theatrical systems, and permanent or semi-permanent truss structures where clamp hardware integrity is critical.

The grade 8 hex head cap screw seats into a hex-milled pocket in the clamp body, preventing rotation during tightening so the Nylock nut can be driven without a secondary wrench holding the bolt. This design is particularly practical when the clamp is already mounted on a truss tube, a common scenario in fast-paced load-in environments. The 14 mm thick base meets the industry-standard specification required for compatibility across major truss systems.

Clamp capacity spans from 1-1/4 inch pipe at 1.66 inch OD up to 2 inch OD truss tube, covering the range most commonly encountered in stage and event production. Each unit ships with a grade 8 zinc-plated hex head bolt, a Belleville washer, and the Nylock nut. For countersunk mounting applications or replacement hardware, The Light Source Inc. offers dedicated flat-head and spare parts variants within the Mega-Coupler family.

Downloads

View full details

Specifications

Capacity
Minimum Pipe Size
1.25" pipe, 1.66" OD
Maximum Pipe Size
1.5" pipe, 1.90" OD, 2" OD truss tube
Working Load Limit
1,100 lb (500 kg) for 1/2" and 3/8" hardware; 450 lb for 1/4" hardware
Construction
Base Thickness
14 mm
Hardware
Bolt
1/2-13 x 1-1/4" Hex Head Grade 8 Zinc-Plated Steel
Nut
Nylock Nut
Washer
1" Belleville Washer
Weight
Product Weight
1.11 lbs
Shipping
Case Quantity
24
