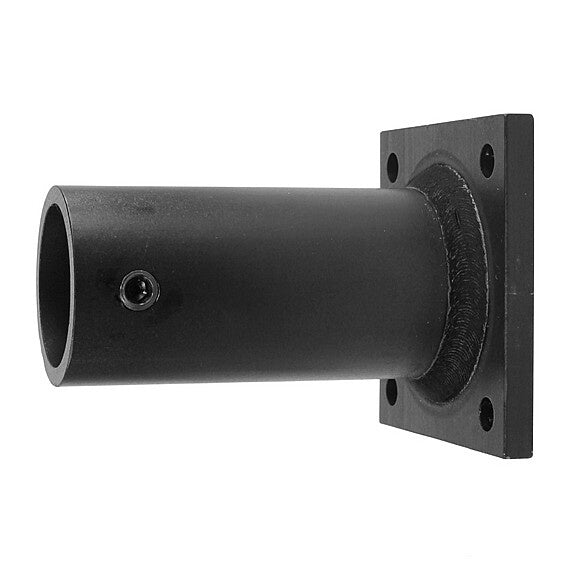

The Light Source WM1.5PB Wall Mount for 1.5" Pipe | Black Anodized
The Light Source WM1.5PB Wall Mount for 1.5" Pipe | Black Anodized
SoundPro Item: 144172 | Part Number: WM1.5PB
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- Cup Point Set Screw Bites Into Pipe To Prevent Rotation And Axial Movement
- Dual-Purpose Design Works As Either A Wall Mount Or A Floor Mount
- Pre-Drilled Flange Accepts Standard 5/16" Or 3/8" Fasteners For Fast Installation
- Black Anodized Finish Suits Installed And Theatrical Environments
- Four Mounting Holes On 3" Centers Align With Common Structural Blocking Layouts
The WM1.5PB is designed for lighting integrators and production riggers who need a reliable, low-profile solution for mounting 1.5" nominal (1.9" O.D.) pipe to walls or solid floor surfaces. Whether the application is a permanent installed venue, a touring stage set, or a temporary event structure, this black anodized flange delivers a clean and secure attachment point without requiring specialty hardware beyond a standard 1/4" hex key.
The flange plate ships ready to bolt directly to any structural surface using common 5/16" or 3/8" fasteners through four pre-drilled 13/32" holes spaced on 3" centers — a layout that aligns with standard stud spacing and blocking patterns found in typical install environments. The 1/2"-13 TPI cup point socket set screw bites into the pipe wall to prevent rotation or axial movement once tightened, making it appropriate for fixed truss legs, wall-hung batten pipes, or column-mounted lighting positions. Its dual-use capability as either a wall mount or floor mount adds flexibility for productions that need to adapt pipe positions across different venue configurations.
