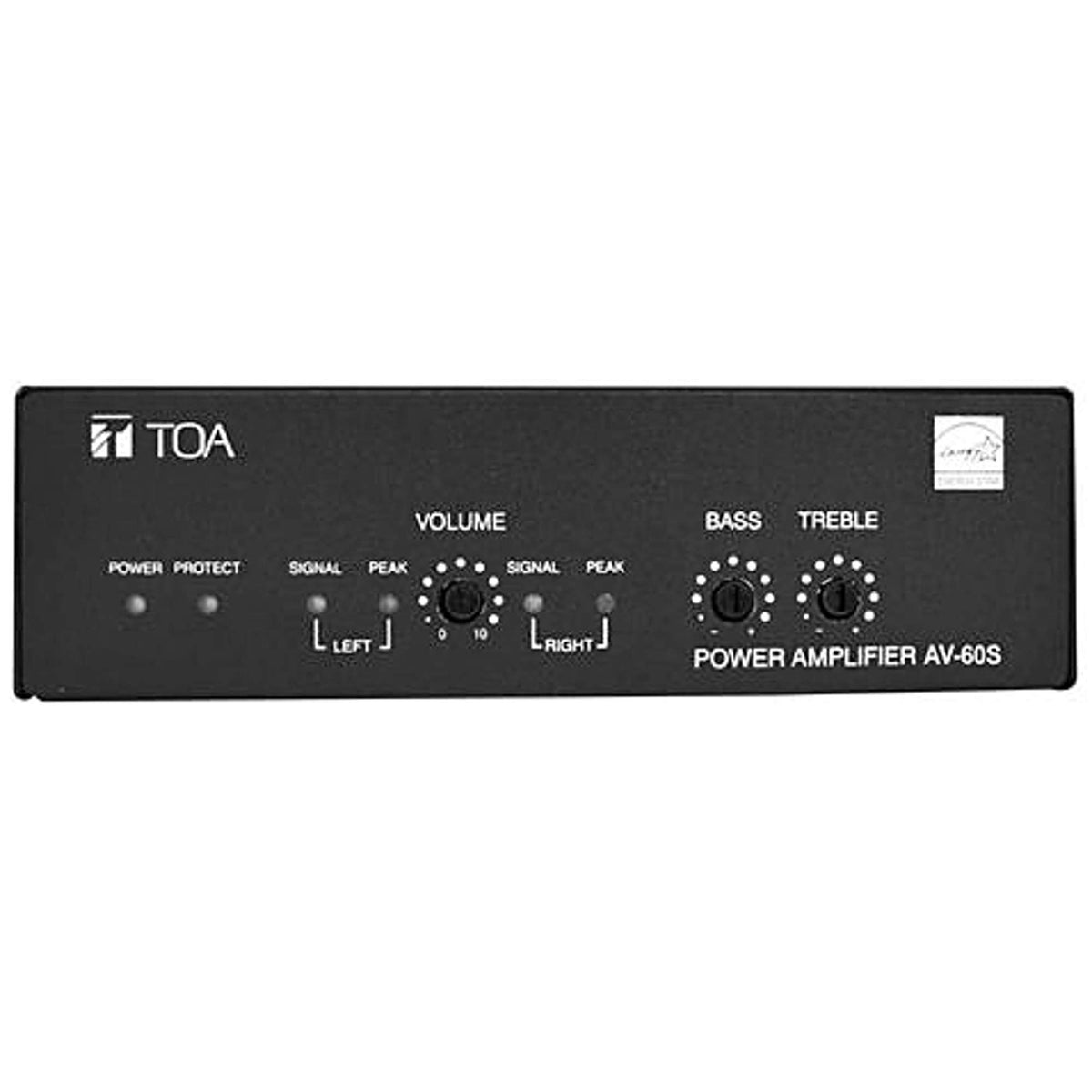

TOA AV-60S-AM Class D Micro Plenum-Rated Power Amplifier

TOA AV-60S-AM Class D Micro Plenum-Rated Power Amplifier

SoundPro Item: 107649 | Part Number: AV-60S-AM

$560.00
$694.00 $560.00
Your Price Sold out
MSRP: $694.00 | MAP: $560.00

Usually ships in 5-7 business days

  • UL 2043 Plenum Rating Allows Direct Installation In Air-Handling Spaces
  • Energy Star 3.0 Certified With Configurable Auto Power Down For Energy Savings
  • Standby Mode Automatically Sleeps And Wakes Based On Audio Signal Presence
  • Switching Power Supply Accepts 100V-240V AC For Multi-Region Compatibility
  • Three Independent Line Inputs With Per-Input Sensitivity Selection
  • Onboard Bass And Treble Tone Controls For In-Field System Tuning
  • Remote Volume Control Port Supports 10k Ohm Control Without Panel Access
Log in or register for YOUR best price

The TOA AV-60S-AM is engineered for integrators installing audio in boardrooms, conference rooms, and AV presentation spaces where ceiling plenum access is required. Its UL 2043 plenum rating allows direct installation into air-handling spaces without conduit or external enclosures, eliminating the added labor and material cost that non-rated amplifiers require in these environments. At 60 watts into either 4 ohms or 70V, it covers both distributed and direct-drive loudspeaker topologies in a single compact chassis.

The switching power supply accepts 100V to 240V AC without adjustment, making the AV-60S-AM a practical choice for installations that span multiple facilities or international deployments. Energy Star 3.0 certification is supported by a configurable Auto Power Down function: in Standby mode the amplifier sleeps after approximately 20 minutes without signal and wakes automatically when audio returns, while Non-Standby mode keeps the unit active continuously. Both modes are set via tact-switch on the Remote Volume Control port, so end-user configuration requires no access to the back panel.

Three discrete line inputs accommodate transformer-balanced terminal block, 3.5mm stereo jack, and RCA connections simultaneously, with selectable sensitivity on each input. Onboard bass and treble tone controls and a remote volume control port with 10k-ohm compatibility give installers precise system tuning without additional outboard equipment. The all-metal black chassis is compact enough for rack shelves, furniture mounting, or custom millwork, and optional accessories including the WPB-20, MB-AV20RM, and MT-S0301 extend mounting flexibility further.

Downloads

View full details

Specifications

General
Certification
UL 2043 (Plenum Rated), Energy Star 3.0
Electrical
Power Source
100V-240V AC, 50Hz/60Hz
Rated Output
60W @ 4 Ohms, 60W @ 70V, single output
Power Consumption
Less than 85W @ 70V; Less than 110W @ 4 Ohms; Idle less than 10W @ 70V; less than 7W @ 4 Ohms
Audio
Frequency Response
4 Ohms mode: 20Hz to 20KHz +/-3dB; 70V mode: 60Hz to 20KHz +/-3dB (Line1 input with transformer: 100Hz to 20KHz)
Total Harmonic Distortion
Less than 0.15%
Tone Control
Bass: +/-10 dB at 100 Hz; Treble: +/-10 dB at 10 kHz
Connectivity
Input Line 1
10K ohms, transformer-balanced, removable terminal block, sensitivity selectable -10/-20dB
Input Line 2
10K ohms, unbalanced, 3.5mm stereo jack, sensitivity selectable -10/-20dB
Input Line 3
10K ohms, unbalanced, RCA jacks, sensitivity selectable -10/-20dB
Output
Speaker output, removable terminal block (2P)
Controls
Control
Master volume, remote volume, bass tone, treble tone, 70V/4 Ohm switch, input sensitivity switches (Line 1, Line 2, Line 3)
Indicators
Power LED, Protection LED, Signal LED, Peak LED
Environmental
Operating Temperature
-10 to +40 degrees C
Construction
Finish
Black metal case
Dimensions
Dimensions
150 (W) x 44 (H) x 156 (D) mm (5.9" x 1.73" x 6.14")
Weight
Weight
1.12 kg (2.5 lbs)
Identifiers
Optional Accessories
WPB-20, MB-AV20RM, MT-S0301
