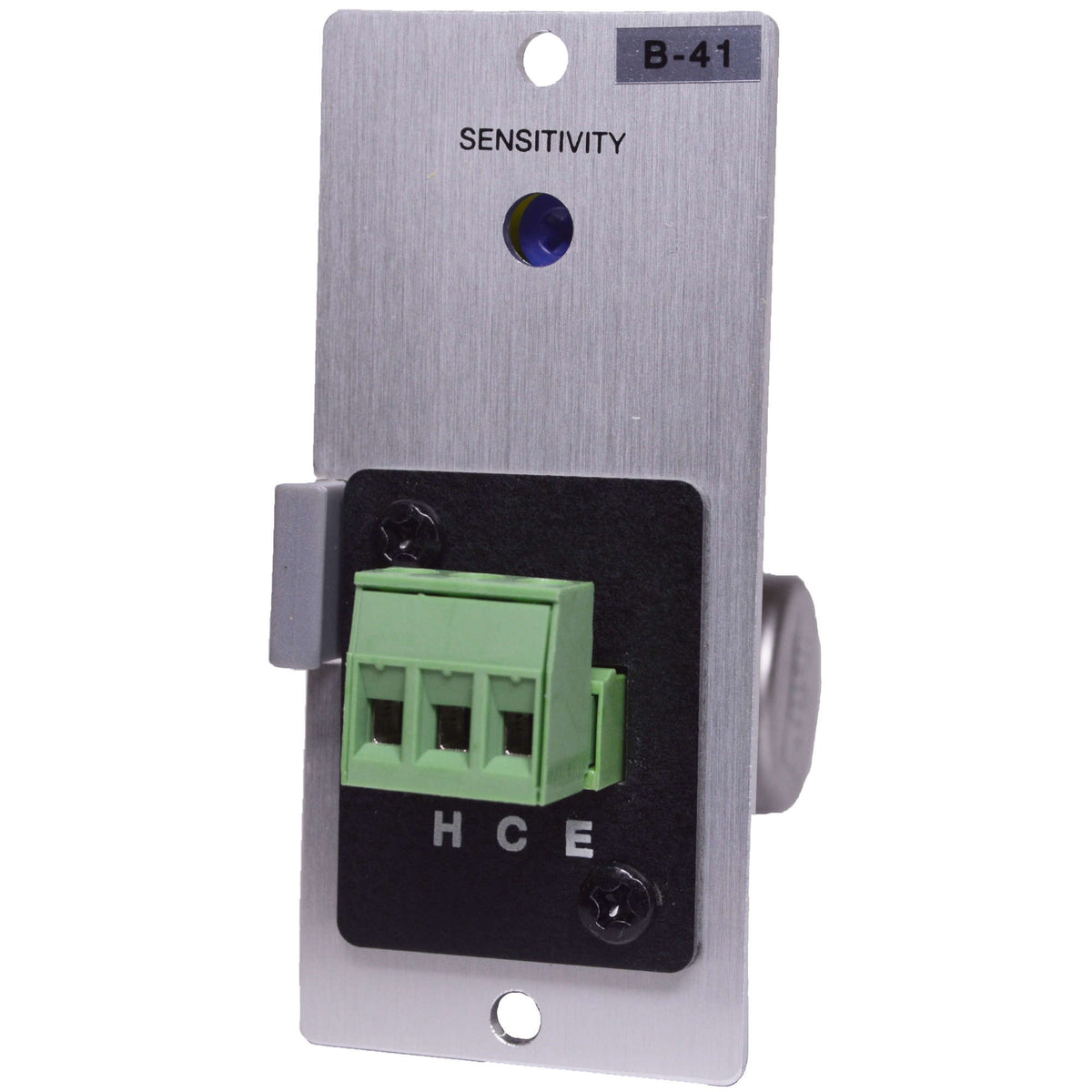

TOA 900 Series Balanced Line Input Module Systems | 10kΩ | Mute-Send | Removable Terminal Block

TOA 900 Series Balanced Line Input Module Systems | 10kΩ | Mute-Send | Removable Terminal Block

SoundPro Item: 50730 | Part Number: B-41S

$110.00
$136.00 $110.00
Your Price Sold out
MSRP: $136.00 | MAP: $110.00

Usually ships in 5-7 business days

  • Transformer Isolation Protects Signal Integrity In Multi-Zone Installed Audio Systems
  • Accepts Balanced Or Unbalanced Line-Level Sources Including Mixers And Signal Processors
  • Available In 10kΩ And 600Ω Input Impedance Versions To Match Source Requirements
  • Mute Control Options Include Mute-Receive, Mute-Send, And Remote Volume Control
  • Connector Options Cover Removable Terminal Block And Screw Terminal Configurations
  • Designed For Direct Integration With TOA 900 Series Mainframes And Compatible Equipment
Log in or register for YOUR best price

The TOA 900 Series Balanced Line Input Modules are expansion cards designed for integration into TOA 900 Series mainframes and compatible TOA equipment in installed sound environments. These modules accept balanced or unbalanced line-level signals from sources such as mixer outputs, signal processors, wireless receiver outputs, tuners, CD players, and tape decks, making them a core building block for paging, background music, and distributed audio systems in commercial, institutional, and hospitality installations.

Across the family, transformer isolation provides electrical separation between source and system, protecting signal integrity and reducing noise in complex multi-zone installs. Variants are offered with input impedances of 10kΩ or 600Ω to match specific source requirements, and with mute-receive, mute-send, or remote volume control functionality to suit different system control architectures. Connector options span removable terminal block and screw terminal configurations to accommodate field wiring preferences.

For integrators building or expanding TOA 900 Series systems, these modules offer a direct, manufacturer-matched solution with consistent physical dimensions across the family. The flat frequency response and transformer isolation make them a more reliable choice than passive alternatives or third-party adapters in environments where system coherence and long-term serviceability matter.

Downloads

View full details

Specifications

Electrical
Power Supply
24 VDC
Current Consumption
Less than 9 mA
Input Sensitivity (Rated Output 1V)
0.7 - 1.4 V
Signal-Activated Muting
8 - 15 mV
Audio
Frequency Response
20 Hz - 20 kHz
Input Impedance
10kΩ
Mute Function
Mute-Send
Connectivity
Input Connector
3P terminal block
Connector Type
Removable Terminal Block
Output Connector
6P card edge-connector
Dimensions
Width
35 mm
Height
78 mm
Depth
88 mm
Weight
Product Weight
80 g
