• TOA BG-2035 35-Watt 5 Input Mixer Amplifier
1 2

TOA BG-2035 CU 5-Input Mixer Amplifier For Background Audio | 35W

TOA BG-2035 CU 5-Input Mixer Amplifier For Background Audio | 35W

SoundPro Item: 50784 | Part Number: BG-2035 CU

$516.00
$640.00 $516.00
Your Price Sold out
MSRP: $640.00 | MAP: $516.00

Usually ships in 5-7 business days

  • Five Independently Assignable Inputs Support Flexible Source Routing
  • MOH Output Enables Two-Channel Broadcast With Optional Booster Amplifier
  • Rear DIP Switches Allow Precise Per-Input Configuration Without Extra Tools
  • Removable Terminal Blocks Simplify Field Wiring And Ongoing Maintenance
  • Recessed Front Knobs And Included Covers Prevent Accidental Setting Changes
  • Automatic And Manual Mute Functions Support Paging And Telephony Integration
  • One 900 Series Module Slot Adds Expandability For Custom Input Requirements
Log in or register for YOUR best price

The TOA BG-2035 CU is a 35-watt commercial mixer amplifier built for installed audio applications in bars, retail environments, banquet rooms, and similar single-zone venues. With five assignable inputs including a balanced mic input with phantom power, a Line 1/TEL selectable input, two unbalanced line inputs with RCA jacks, and a 900 Series module slot, the unit gives system integrators the flexibility to match varied source configurations without added outboard gear. Speaker output supports 4 ohm direct loads as well as 25V and 70V distributed audio topologies, making it equally at home in small direct-wired installations or larger constant-voltage systems.

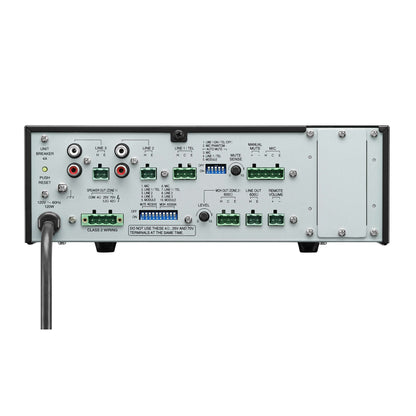

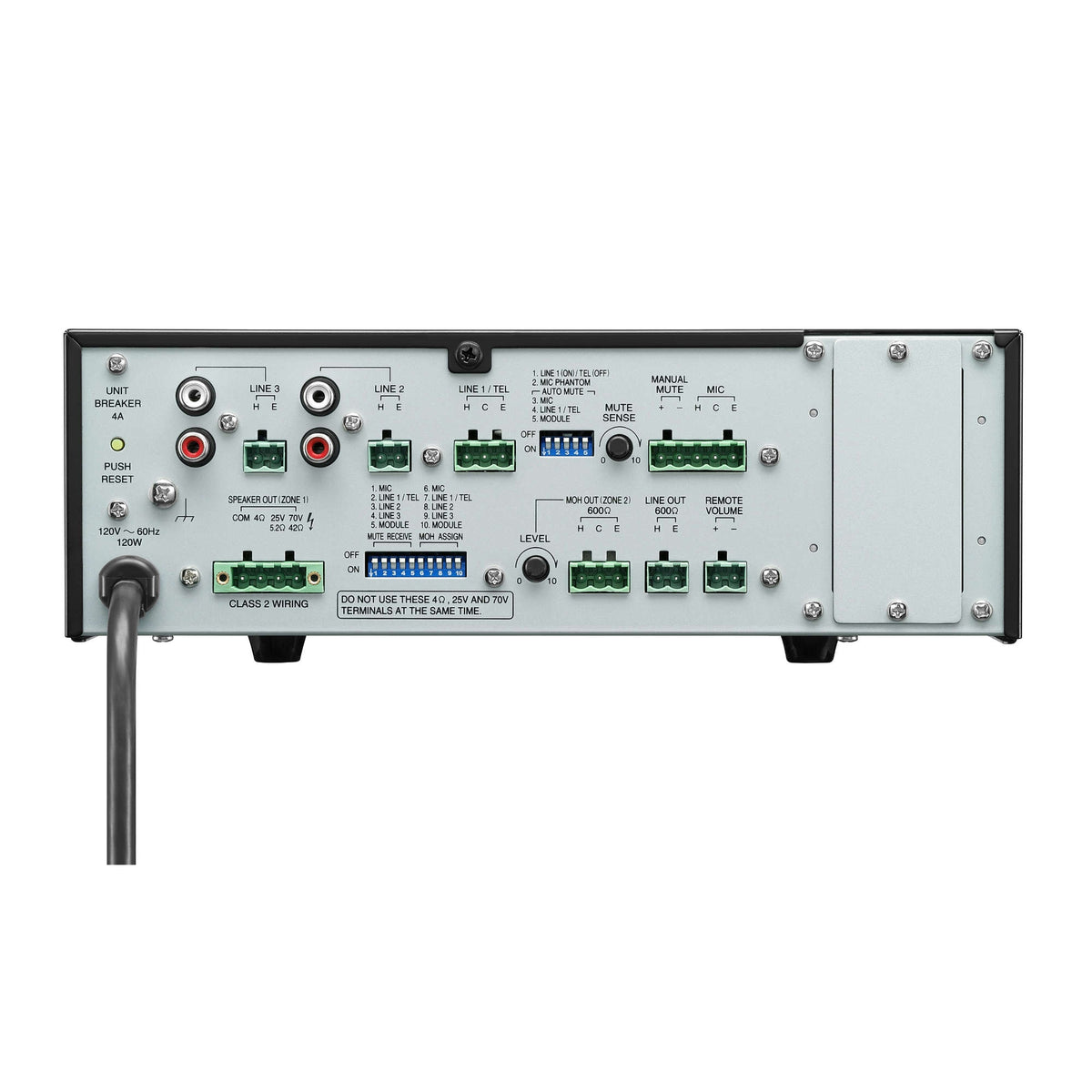

For installers working in environments where telephony or paging integration is required, the MOH output enables two-channel broadcast when paired with an optional BA-235 or BA-260 booster amplifier. Automatic and manual mute functions, per-input MOH assignment, and DIP-switch configuration on the rear panel allow precise system customization without specialized tools. Rear-panel removable terminal blocks simplify field wiring and ongoing maintenance, a meaningful advantage in commercial installs where service access may be limited. Front-panel bass and treble controls with recessed knobs and supplied volume control covers reduce the risk of accidental setting changes in customer-accessible locations.

Compared to general-purpose rack amplifiers, the BG-2035 CU addresses the specific demands of commercial BGM and paging: compact 2U rack footprint, clean 50 Hz to 20 kHz frequency response, low distortion at rated output, and modular expandability through the 900 Series slot. For integrators specifying a cost-effective, maintainable single-zone amp with distributed audio support, this unit covers the core requirements without unnecessary complexity.

View full details

Specifications

Audio
Rated Output
35 W
Frequency Response
50 Hz - 20 kHz
Total Harmonic Distortion
0.5% or less, at 1 kHz, rated output
Output Regulation
2 dB or less, no load to full load (1 kHz)
Signal to Noise Ratio - Mic
60 dB or more
Signal to Noise Ratio - Line/Module
75 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Tone Control - Bass
+/-10 dB at 100 Hz
Tone Control - Treble
+/-10 dB at 10 kHz
Phantom Power
+24 V DC, switchable On/Off
Muting
Manual and Automatic
Connectivity
Mic Input
−60 dB, 600 Ohm, electronically balanced, removable terminal block
Line 1 / TEL Input
−10 dB / −20 dB selectable, 10 kOhm, electronically balanced, removable terminal block
Line 2 and 3 Input
−10 dB, 10 kOhm, unbalanced, removable terminal block and RCA jacks
Module Input
Any 900 Series Input Module
Speaker Output
4 Ohm, 25 V (18 Ohm), 70 V (140 Ohm), balanced, removable terminal block
MOH Output
0 dB, 600 Ohm, balanced, removable terminal block
Line Output
0 dB, 600 Ohm, unbalanced, removable terminal block
Electrical
Power Source
120 V AC, 60 Hz
Power Consumption
94 W (rated output); 50 W (per cULus standards)
Dimensions
Dimensions (W x H x D)
10.39
