TOA BG-2060 CU 5-Input Mixer Amplifier For Background Audio | 60W

TOA BG-2060 CU 5-Input Mixer Amplifier For Background Audio | 60W

SoundPro Item: 50785 | Part Number: BG-2060 CU

$710.00
$878.00 $710.00
Your Price Sold out
MSRP: $878.00 | MAP: $710.00

Usually ships in 5-7 business days

  • Five Assignable Inputs With Per-Input MOH Routing For Flexible Zone Coverage
  • One 900 Series Module Slot Expands Input Options To Match Install Requirements
  • Automatic And Manual Mute Modes Support Paging And Intercom Integration

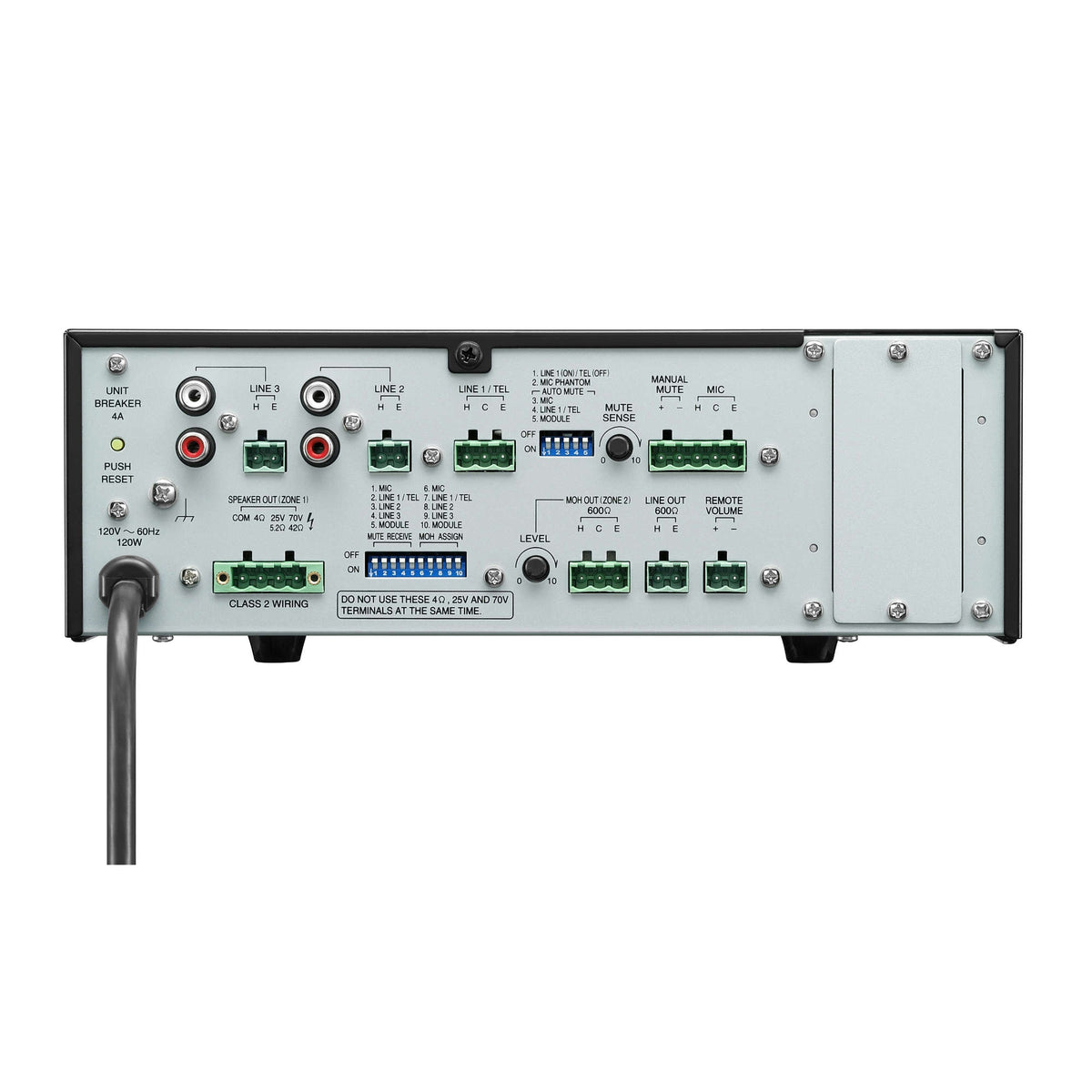

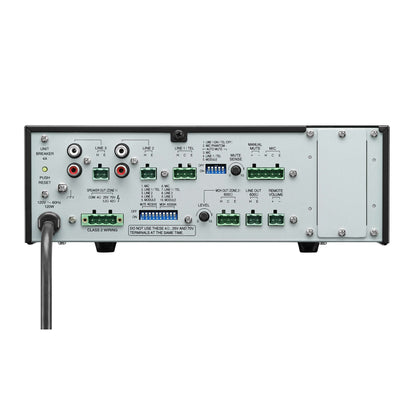

  • Rear DIP Switches Configure Routing And Mute Without Opening The Rack
  • Removable Terminal Blocks On All Inputs And Outputs Simplify Installation And Service
  • External Remote Volume Control Allows Level Adjustment Without Rack Access
  • Recessed Front-Panel Knobs And Volume Control Covers Prevent Accidental Changes
Log in or register for YOUR best price

The TOA BG-2060 CU is a 60W, 2U rack-mount mixer amplifier designed for installed commercial audio applications where consistent background music and general announcement coverage are required. It suits single-zone deployments in retail stores, bars, banquet rooms, and similar hospitality or light commercial environments where a clean, manageable signal chain is needed without the complexity of a full live-sound console.

With five assignable inputs, a dedicated MOH output, and compatibility with any optional 900 Series input module, the BG-2060 CU gives integrators meaningful flexibility at the rack. The MOH output enables two-channel broadcast when paired with an optional BA-series booster amplifier, extending system reach without additional mixing infrastructure. Rear-mounted DIP switches handle input-to-MOH assignment, mute configuration, LINE 1/TEL level selection, and phantom power, keeping the front panel clean and reducing the risk of accidental changes during daily operation. Removable terminal blocks on both inputs and outputs simplify initial installation and future maintenance.

Compared to entry-level commercial mixer amplifiers that offer fixed input routing and no expansion path, the BG-2060 CU provides per-input MOH assignment, automatic or manual mute, external remote volume control, and front-panel bass and treble tone controls with recessed knobs. These details matter to integrators who need to hand off a finished system to non-technical end users without compromising control over daily operation. The 25V and 70V distributed output options make it compatible with a wide range of commercially installed speaker systems.

View full details

Specifications

Audio
Rated Output
60 W
Frequency Response
50 Hz - 20 kHz
Total Harmonic Distortion
0.5% or less, at 1 kHz, rated output
Output Regulation
2 dB or less, no load to full load (1 kHz)
Tone Control
Bass: +/-10 dB at 100 Hz, Treble: +/-10 dB at 10 kHz
Signal to Noise Ratio
Mic: 60 dB or more; Line 1/TEL, Line 2, 3, Module: 75 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Phantom Power
+24 V DC, switchable On/Off
Connectivity
Mic Input
−60 dBV, 600 ohm, electronically balanced, removable terminal block
Line 1 / TEL Input
−10 dBV / −20 dBV selectable, 10 kohm, electronically balanced, removable terminal block
Line 2 and 3 Inputs
−10 dBV, 10 kohm, unbalanced, removable terminal block and RCA jacks
Module Input
Any 900 Series Input Module
Speaker Output
4 ohm, 25 V (10 ohm), 70 V (83 ohm), balanced, removable terminal block
MOH Output
0 dBV, 600 ohm, balanced, removable terminal block
Line Output
0 dBV, 600 ohm, unbalanced, removable terminal block
Electrical
Power Source
120 V AC, 60 Hz
Power Consumption
163 W (rated output); 80 W (per cULus standards)
Dimensions
Dimensions
264 x 94.3 x 267.3 mm (10.39 x 3.71" x 10.52")
Weight
Weight
5.3 kg (11.68 lbs)
Construction
Finish Panel
ABS resin, black
Finish Case
Steel plate, black, paint
Environmental
Operating Temperature
0 C to +40 C (32 F to 104 F)
Operating Humidity
35% to 80% RH (no condensation)
Controls
Front Panel Controls
Mic gain, Line 1/TEL gain, Line 2 gain, Line 3 gain, Module gain, Bass tone, Treble tone, MOH out gain, Manual mute, Remote volume, Mute sense, Line 1/TEL selector, Phantom power switch, Auto mute switch, Mute receive switch, MOH assign switch, Power On/Off
Indicators
Power LED, Signal level LED, Peak LED
Muting
Manual mute / Automatic mute
Included Items
Included Accessories
Volume control cover YA-920 x5, Removable terminal plug 2-pin x4, 3-pin x2, 4-pin x1, 5-pin x1
Identifiers
Optional Accessories
Rack mounting bracket MB-1000
