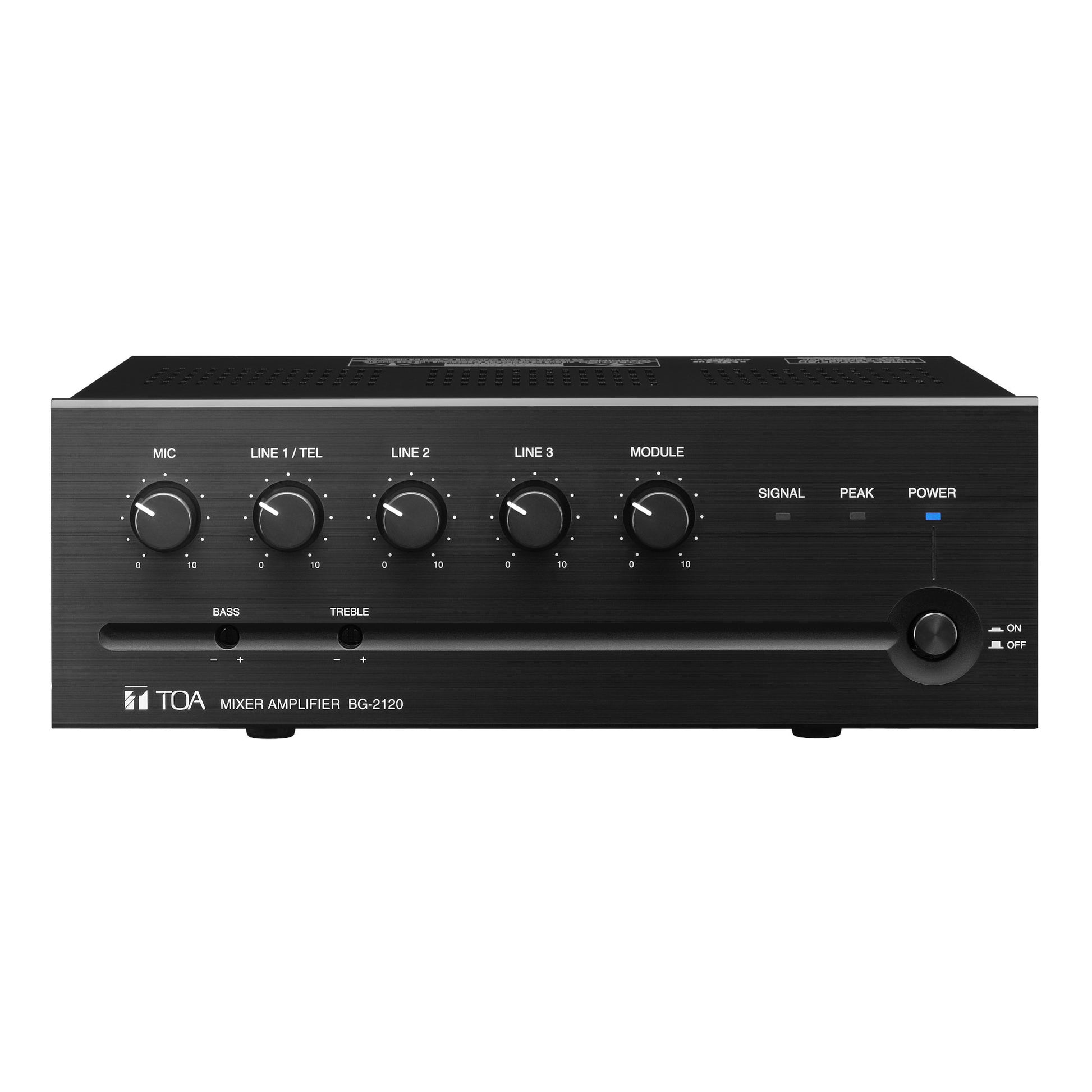

• TOA BG-2120 120-Watt 5-Input Mixer Amplifier
1 1

TOA BG-2120 120W 5-Input Mixer Amplifier

TOA BG-2120 120W 5-Input Mixer Amplifier

SoundPro Item: 50786 | Part Number: BG-2120 CU

$789.00
$976.00 $789.00
Your Price Sold out
MSRP: $976.00 | MAP: $789.00

Usually ships in 5-7 business days

  • Redesign of the BG-1000 series
  • Newly-engineered chassis
  • Easy wiring
  • Assignalbe MOH/Second Zone source assignment
  • Access to mute priority and other settings via rear panel DIP switches
Log in or register for YOUR best price

The BG-2120 from TOA is 120W Mixer/Amplifier. It is a total redesign of the highly successful BG-1000 Series and not just for design's sake. TOA spoke with customers, who told them exactly what they wanted in a commercial background music & paging amplifier. They responded with a newly-engineered chassis, designed to not only look better, but perform better and most of all-install easier. Starting with removable euro-block connectors to make wiring a snap, they added assignable MOH/Second Zone source assignment and provided access to mute priority and other settings via rear panel DIP switches - no more "popping the top" Lastly, TOA upped the power to 35W on the lower end model. Of course, they kept all the good stuff-solid, reliable performance for which TOA has been renowned.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
10.39" x 3.71" x 10.52"
Electrical
Power Source
120 V AC, 60 Hz
Power Consumption
265 W (rated output), 120 W (based on cULus standards)
Audio
Frequency Response
50Hz - 20kHz
THD
0.5 % or less, at 1 kHz, rated output
Phantom Power
On/Off switch for Mic, +24 V DC
Connectivity
Rated Output
120 W
Input
Line 1/TEL selectable, 10 kΩ, electronically balanced, removable terminal block
Output Regulation
2 dB or less, no load to full load (1 kHz)
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Operating Humidity
35% to 80% RH (no condensation)
Shipping
Weight
13.23 pounds
General
Mic
-60 dB*, 600 Ω, electronically balanced, removable terminal block
Line 1
-10 dB*/ TEL: -20 dB*
Line 2, 3
-10 dB*, 10 kΩ, unbalanced, removable terminal block and RCA jacks Module
Speaker
4 Ω, 25 V (5.2 Ω), 70 V (42 Ω), balanced, removable terminal block
MOH
0 dB*, 600 Ω, balanced, removable terminal block
Line
0 dB*, 600 Ω, unbalanced, removable terminal block
Module
75 dB or more
Pass
20 Hz - 20 kHz
Tone Controls
Centered)
Muting
Manual mute/Automatic mute
Tone Control
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Control
Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control, Module gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Remote volume control, Mute sense control, Line 1/TEL selector switch, Phantom power switch (Mic), Auto mute switch (Mic, Line 1/TEL, Module), Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module), MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch
Indicator
Power LED, Signal level LED, Peak LED
