• TOA BG-2120 120-Watt 5-Input Mixer Amplifier
1 2

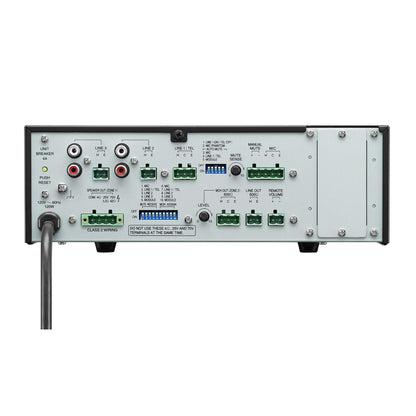

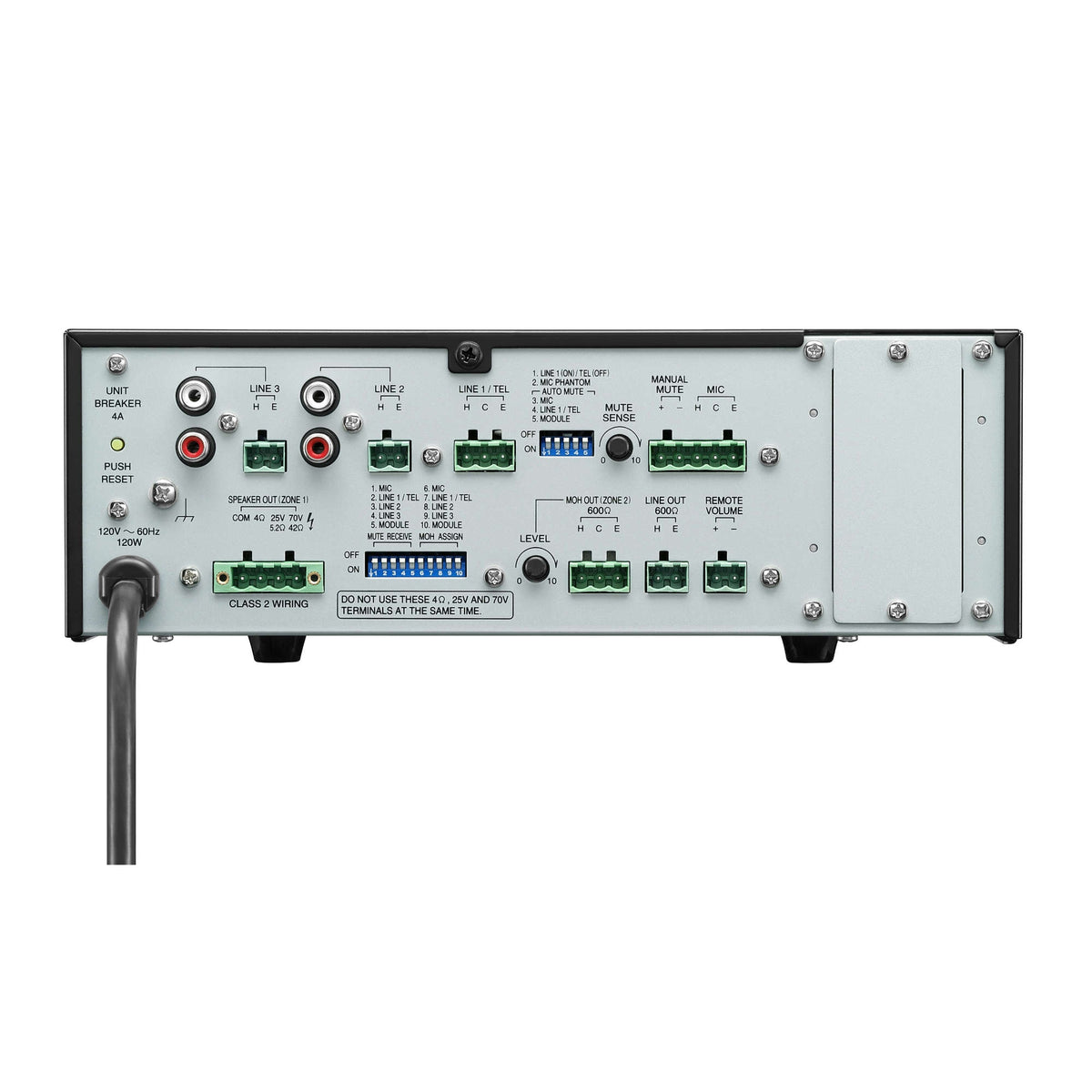

TOA BG-2120 CU 5-Input Mixer Amplifier For Background Audio | 120W

TOA BG-2120 CU 5-Input Mixer Amplifier For Background Audio | 120W

SoundPro Item: 50786 | Part Number: BG-2120 CU

$789.00
$976.00 $789.00
Your Price Sold out
MSRP: $976.00 | MAP: $789.00

Usually ships in 5-7 business days

  • Per-Input MOH Assignability Supports Flexible Two-Channel Broadcast Configurations
  • Rear DIP Switch Configuration Keeps Front Panel Secure Against Accidental Changes
  • Removable Terminal Blocks Simplify Initial Installation And Future Field Servicing
  • One 900 Series Module Slot Enables Input Expansion As System Requirements Grow
  • External Remote Volume Control Allows Speaker Level Adjustment Without Rack Access
  • Recessed Front Knobs And Volume Control Covers Prevent Unintended Operation
  • Automatic And Manual Mute Functions With Per-Input Mute Receive Selection
Log in or register for YOUR best price

The TOA BG/BA Series mixer amplifiers are designed for commercial audio integrators who need reliable, multi-input background music and announcement systems in a compact 2U rack footprint. Targeting installations in retail stores, bars, banquet rooms, and similar venues, the BG-2035, BG-2060, and BG-2120 deliver 35W, 60W, and 120W respectively, giving integrators the right power tier for the room without overspecifying. Each unit handles five inputs, supports distributed speaker systems through selectable 4 ohm, 25V, and 70V output modes, and includes a Music-on-Hold output that enables two-channel broadcast when paired with a compatible TOA booster amplifier.

Unlike consumer-grade or live-sound mixers repurposed for install work, these units are purpose-built for commercial environments. Rear-mounted DIP switches handle input-to-MOH assignment, mute configuration, LINE 1/TEL level selection, and phantom power toggling, keeping the front panel uncluttered and reducing the risk of tampering during daily operation. Removable terminal blocks on both inputs and outputs simplify initial installation and future servicing. A dedicated 900 Series module slot extends functionality with compatible input modules, making the platform adaptable as system requirements evolve. Per-input gain controls, front-accessible bass and treble adjustment, and external remote volume control for speaker output level give the installing technician granular control at commissioning without requiring rack access after handoff.

Downloads

View full details

Specifications

Audio
Rated Output
120 W
Frequency Response
50 Hz - 20 kHz
Total Harmonic Distortion
0.5% or less, at 1 kHz, rated output
Signal To Noise Ratio
Mic: 60 dB or more; Line 1/TEL, Line 2, 3, Module: 75 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Output Regulation
2 dB or less, no load to full load (1 kHz)
Tone Control
Bass: +/-10 dB at 100 Hz; Treble: +/-10 dB at 10 kHz
Connectivity
Input - Mic
−60 dB, 600 Ohm, electronically balanced, removable terminal block
Input - Line 1/TEL
Line 1: −10 dB / TEL: −20 dB, selectable, 10 kOhm, electronically balanced, removable terminal block
Input - Line 2 And 3
−10 dB, 10 kOhm, unbalanced, removable terminal block and RCA jacks
Input - Module
Any 900 Series Input Module
Output - Speaker
4 Ohm, 25 V (5.2 Ohm), 70 V (42 Ohm), balanced, removable terminal block
Output - MOH
0 dB, 600 Ohm, balanced, removable terminal block
Output - Line
0 dB, 600 Ohm, unbalanced, removable terminal block
Phantom Power
+24 V DC, On/Off switch for Mic
Muting
Manual mute / Automatic mute
Electrical
Power Source
120 V AC, 60 Hz
Power Consumption
265 W (rated output); 120 W (based on cULus standards)
Construction
Panel Finish
ABS resin, black
Case Finish
Steel plate, black, paint
Dimensions
Width
10.39"
Height
3.71"
Depth
10.52"
Weight
Product Weight
6 kg (13.23 lbs)
Environmental
Operating Temperature
0 degrees C to +40 degrees C (32 degrees F to 104 degrees F)
Operating Humidity
35% to 80% RH (no condensation)
Controls
Control Functions
Mic gain, Line 1/TEL gain, Line 2 gain, Line 3 gain, Module gain, Bass tone, Treble tone, MOH out gain, Manual mute, Remote volume, Mute sense, Line 1/TEL selector, Phantom power switch, Auto mute switch, Mute receive switch, MOH assign switch, Power ON/OFF
Indicators
Power LED, Signal Level LED, Peak LED
Included Items
Volume Control Covers
YA-920 x5
Removable Terminal Plug (2-Pin)
4
Removable Terminal Plug (3-Pin)
2
Removable Terminal Plug (4-Pin)
1
Removable Terminal Plug (5-Pin)
1
Identifiers
Optional Accessories
Rack Mounting Bracket: MB-1000
