TOA BG-220 Mixer Amplifier

TOA BG-220 Mixer Amplifier

SoundPro Item: 50787 | Part Number: BG-220 CU

$296.00
$366.00 $296.00
Your Price Sold out
MSRP: $366.00 | MAP: $296.00

In stock and ready to ship

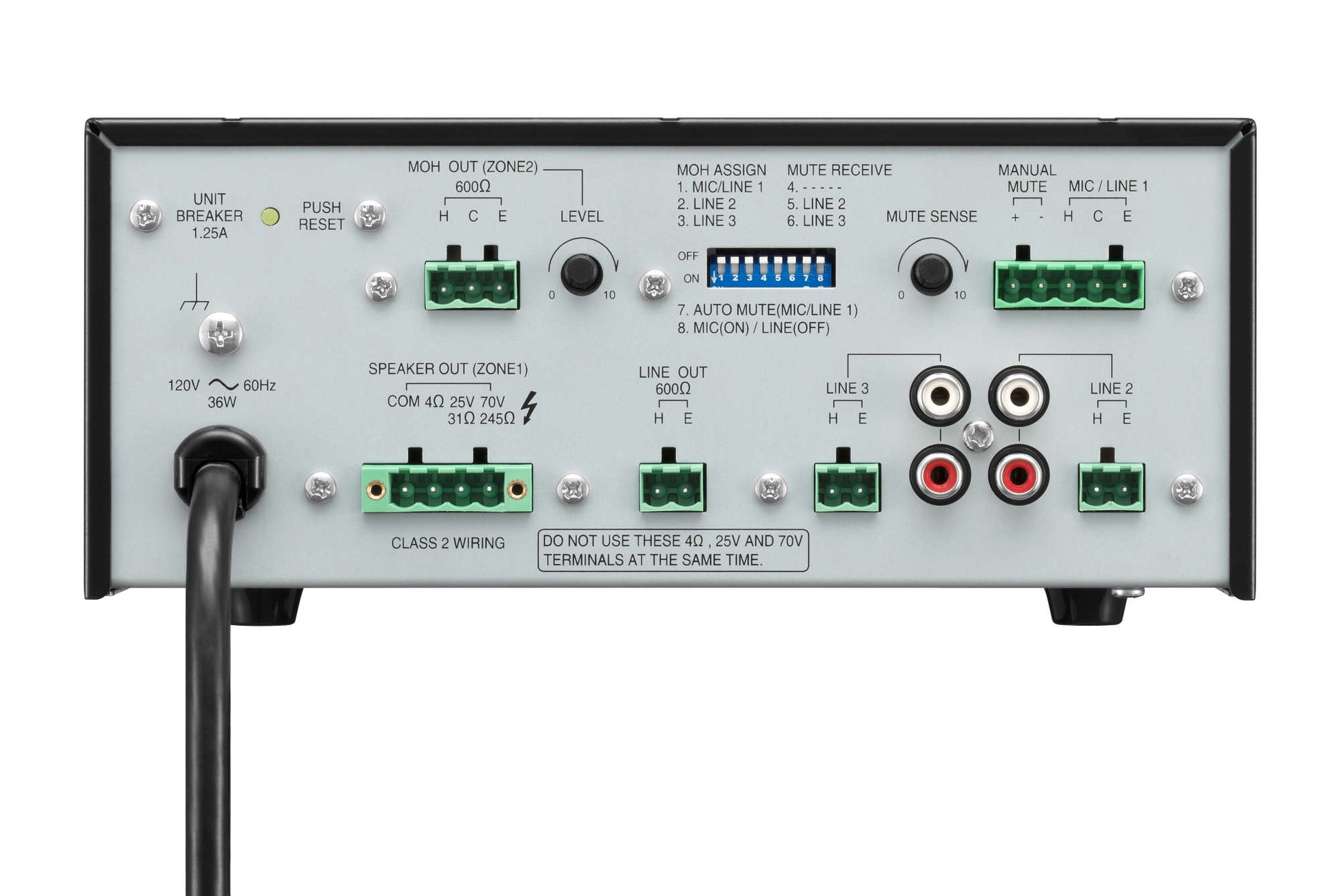

  • All inputs/ outputs have removable terminal blocks for quick and easy installation.
  • Rear panel-mounted DIP switches allow easy settings.
  • 3 line inputs, 1 is mic/line switchable, while 2 and 3 are equipped with RCA pin jacks.
  • Recessed tamper-proof bass and treble controls preserve system settings.
  • Provides auto/manual mute function with adjustable muting sensitivity.
  • 2-channel broadcast system capability together with zone 2 expansion capability in conjunction with BA-200 Series.
  • Any of the 3 inputs assignable to MOH/ZONE 2 out
Log in or register for YOUR best price

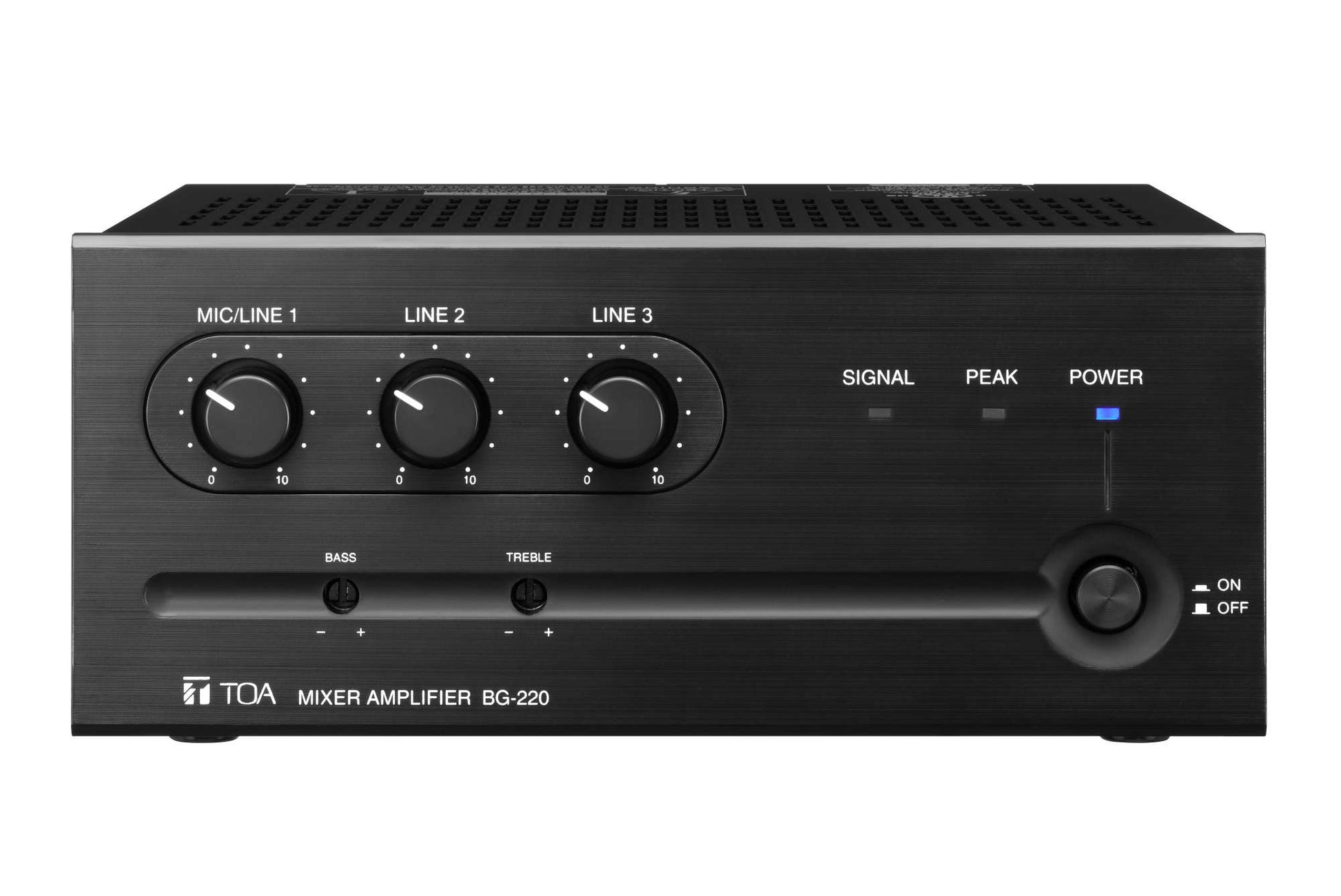

The BG-220 is a 20 W three-input mixer amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms, and is equipped with the MOH OUT that permits 2-channel broadcast when used in conjunction with the optional booster amplifier BA-235 (35 W) or BA-260 (60 W).

View full details

Specifications

Power Source
120 V AC, 60 Hz
Rated Output
20 W
Power Consumption
60 W (rated output), 36 W (based on cULus standards)
Frequency Response
50 Hz - 20 kHz
Total Harmonic Distortion
0.5 % or less, at 1 kHz, rated output
Input
Mic: -60 dB*/ Line 1: -10 dB*
Mic/Line 1 selectable, 600 Ω, electronically balanced, removable terminal block
Line 2, 3: -10 dB*, 10 kΩ, unbalanced, removable terminal block or RCA jack
Output
Speaker: 4 Ω, 25 V (31 Ω) and 70 V (245 Ω)
balanced, removable terminal block
MOH: 0 dB*, 600 Ω, balanced, removable terminal block
Line: 0 dB*, 600 Ω, unbalanced, removable terminal block
Output Regulation
2 dB or less, no load to full load (1 kHz)
Tone Control
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Signal to Noise Ratio
Mic/Line 1: 60 dB or more, Line 2, 3: 80 dB or more
(Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Muting
Manual mute/Automatic mute
Control
Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control
Bass tone control, Treble tone control, MOH out gain control
Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1)
Mic/Line 1 selector switch, Mute receive switch (Line 2, 3)
MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch
Indicator
Power LED, Signal LED, Peak LED
Operating Temperature
0 ℃ to +35 ℃ (32 ℉ to 95 ℉)
Operating Humidity
35 % to 80 %RH (no condensation)
Finish
Panel: ABS resin, black
Case: Steel plate, black, paint
Dimensions
210 (W) x 94.3 (H) x 265 (D) mm (8.27 x 3.71" x 10.43")
Weight
3.5 kg (7.72 lb)
Included Accessories
Volume control cover: YA-920…3
Removable terminal plug (2 pins)...3, Removable terminal plug (3 pins)…1
Removable terminal plug (4 pins)…1, Removable terminal plug (5 pins)…1
Optional Accessories
Rack mounting bracket: MB-25B-BK, MB-25B-J
