TOA BG-2240D-AM BG Series 5-Input Mixer-Amp 240W 70V Class D

TOA BG-2240D-AM BG Series 5-Input Mixer-Amp 240W 70V Class D

SoundPro Item: 55464 | Part Number: BG-2240D-AM

$1,055.00
$1,306.00 $1,055.00
Your Price Sold out
MSRP: $1,306.00 | MAP: $1,055.00

Usually ships in 5-7 business days

  • Class D Amplifier Design Runs Cooler And More Efficiently Than Linear Amplifiers
  • Assignable MOH Output Supports A Second Zone With An External Power Amplifier
  • Dual Balanced Priority Mic Inputs With Phantom Power For Condenser Microphones
  • Per-Channel Auto-Mute And Manual Mute For Flexible Priority Paging Control
  • 900 Series Input Module Slot Expands Source Connectivity For Installed Systems

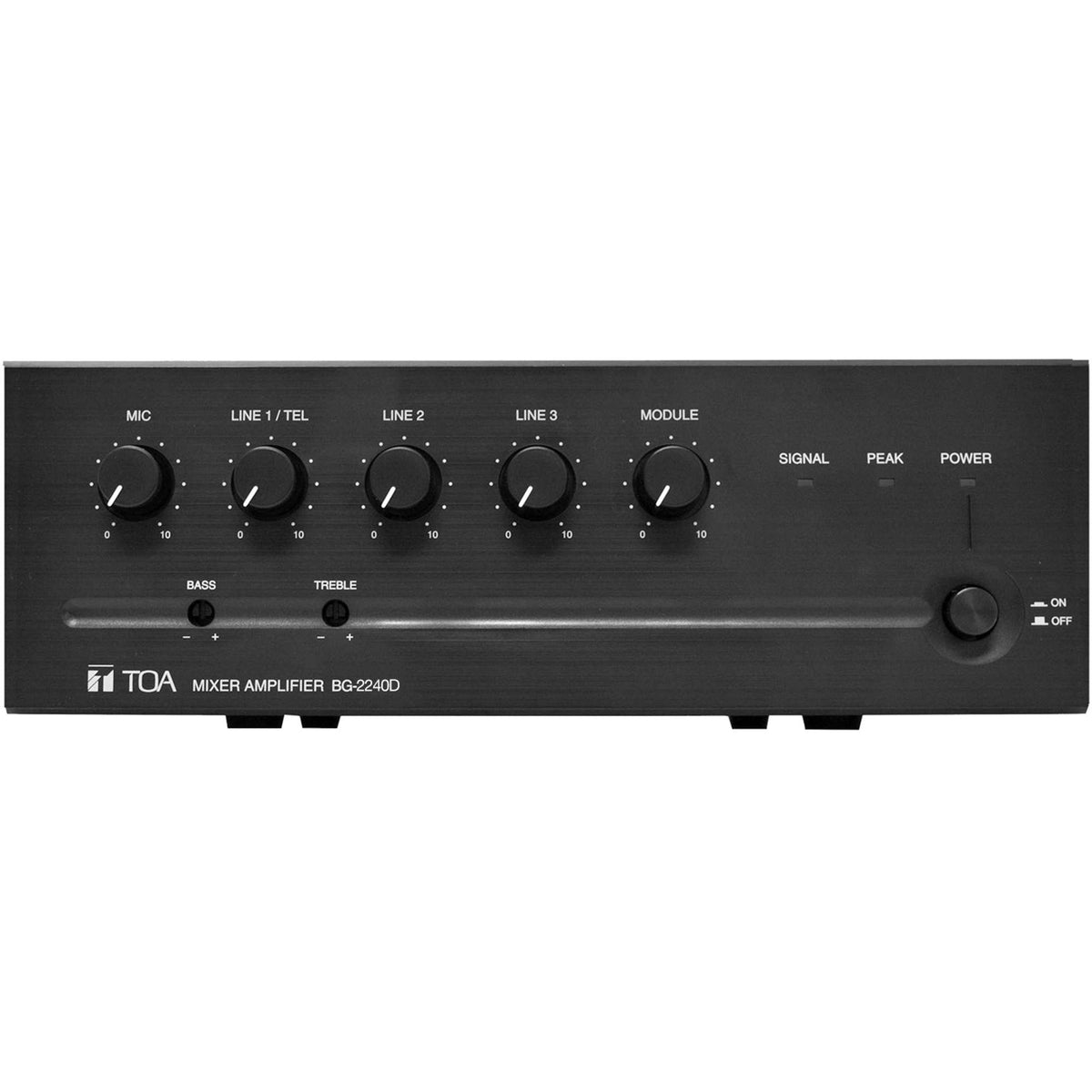

  • Front Panel Bass And Treble Controls Allow On-Site EQ Without External Processors
  • Remote Volume Control Port Enables Wall-Plate Level Adjustment In Each Zone
Log in or register for YOUR best price

The TOA BG-2240D-AM is a rack-mount 5-input mixer amplifier engineered for permanent installed audio in commercial environments such as restaurants, retail stores, and hospitality facilities. Delivering 240 watts into a 70V distributed speaker system, it handles both background music playback and general paging from a single 2U chassis, reducing equipment count and simplifying wiring in fixed installations.

Integrators benefit from a flexible input stage that includes dual balanced priority mic/line inputs, a TEL input with selectable sensitivity, and two unbalanced line inputs, all with per-channel gain controls accessible from the front panel. A single 900 series input module slot expands connectivity for paging stations or other optional sources. The assignable MOH output enables a secondary zone when paired with an external power amplifier, giving system designers a practical two-zone solution without adding a separate matrix processor.

The Class D amplifier topology runs cooler and draws less idle power than equivalent linear designs, an advantage in low-ventilation above-ceiling or equipment-closet installations where thermal headroom is limited. Front panel bass and treble controls, a remote volume control port, configurable auto-mute, and phantom power for condenser microphones round out a feature set that matches the needs of commercial audio contractors looking for a reliable, full-featured single-zone BGM and paging amplifier.

Downloads

View full details

Specifications

Audio
Rated Output
240 W
Frequency Response
50 Hz - 20k Hz
Total Harmonic Distortion
0.8% or less, at 1 kHz, 1/3 rated output, LPF 20 kHz
Signal To Noise Ratio - Mic
60 dB or more
Signal To Noise Ratio - Line/Module
73 dB or more (A-weighted, Tone Controls: Centered)
Tone Control - Bass
+/-10 dB at 100 Hz
Tone Control - Treble
+/-10 dB at 10k Hz
Phantom Power
+24V DC, switchable On/Off

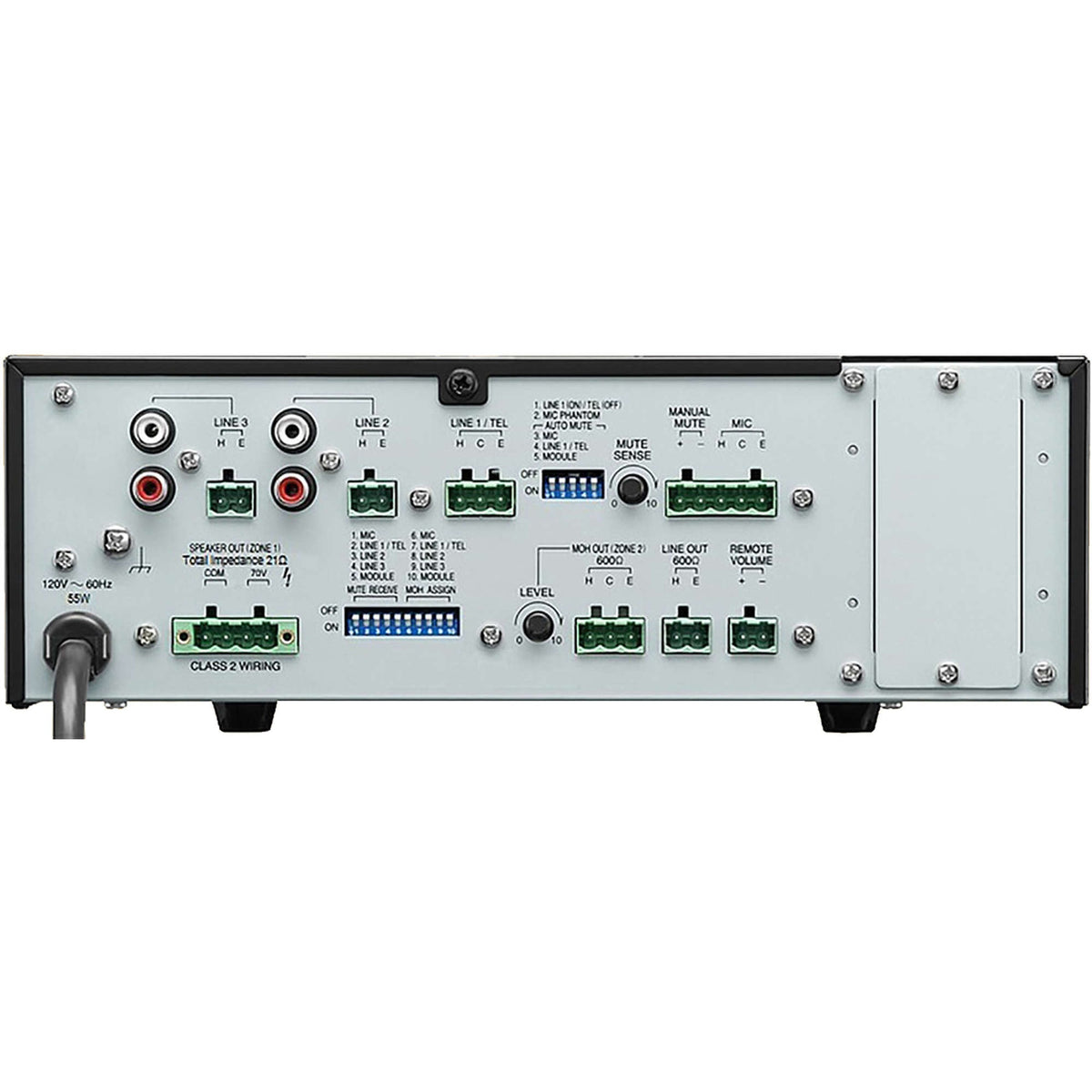

Connectivity
Mic Input
–60 dB, 600 Ohm, electronically balanced, removable terminal block
Line 1/TEL Input
–10 dB/–20 dB selectable, 10 kOhm, electronically balanced, removable terminal block
Line 2/3 Inputs
–10 dB, 10 kOhm, unbalanced, removable terminal block or RCA jack
Speaker Output
70 V (21 Ohm), balanced, removable terminal block
MOH Output
0 dB, 600 Ohm, balanced, removable terminal block
Line Output
0 dB, 600 Ohm, unbalanced, removable terminal block
Module Slot
1x 900 Series input module slot (output modules not compatible)
Electrical
Power Source
120 V AC, 60 Hz
Power Consumption
300 W (rated output); 55 W (per cULus standards)
Environmental
Operating Temperature
0 degrees C to 40 degrees C (32 degrees F to 104 degrees F)
Operating Humidity
35% to 80% RH, no condensation
Construction
Panel Finish
ABS resin, black
Case Finish
Steel plate, black, painted
Dimensions
Dimensions (W x H x D)
10.39" x 3.71" x 10.52" (264 x 94.3 x 267.3 mm)
Rack Space
2U
Weight
Weight
7.72 lbs (3.5 kg)
Included Items
Volume Control Covers
YA-920 x 5
Removable Terminal Plug 2-Pin
x 4
Removable Terminal Plug 3-Pin
x 2
Removable Terminal Plug 4-Pin
x 1
Removable Terminal Plug 5-Pin
x 1
Identifiers
Optional Rack Mounting Brackets
MB-1000
