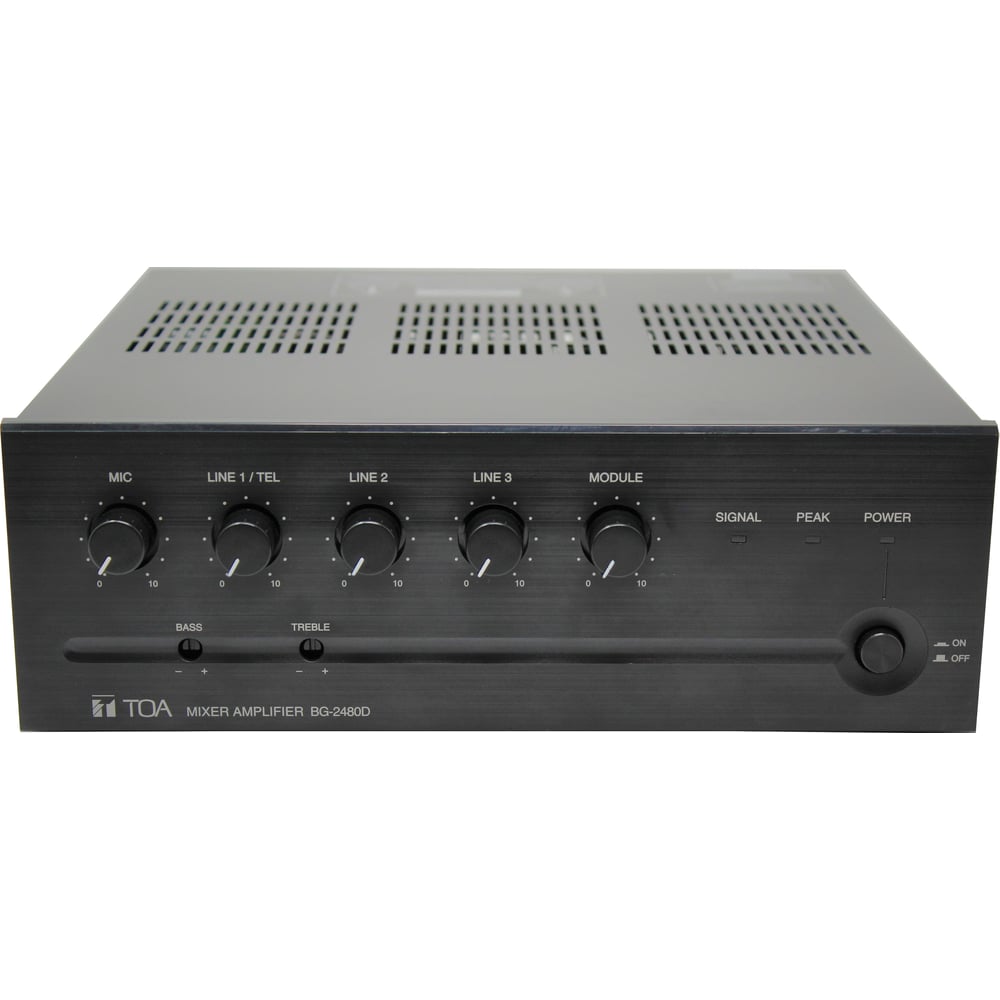

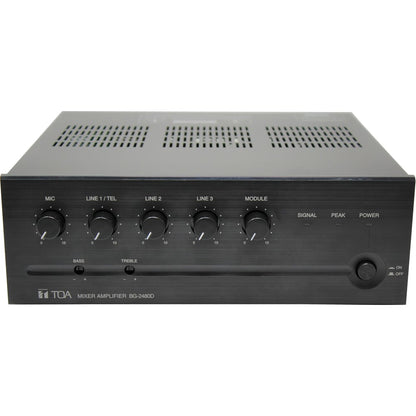

TOA BG-2480D-AM 480W 5-Input Class D Mixer Amplifier 2U

TOA BG-2480D-AM 480W 5-Input Class D Mixer Amplifier 2U

SoundPro Item: 107651 | Part Number: BG-2480D-AM

$1,389.00
$1,719.00 $1,389.00
Your Price Sold out
MSRP: $1,719.00 | MAP: $1,389.00

Usually ships in 5-7 business days

  • Class D Output Delivers High Efficiency In Rack-Mounted Commercial Installations
  • Lo-Z, 70V, And 100V Outputs Cover Diverse Distributed Speaker Configurations
  • One 900 Series Module Slot Expands Input Options Without External Gear
  • DIP Switch Routing Configures MOH Assignment And Mute Behavior Per Input

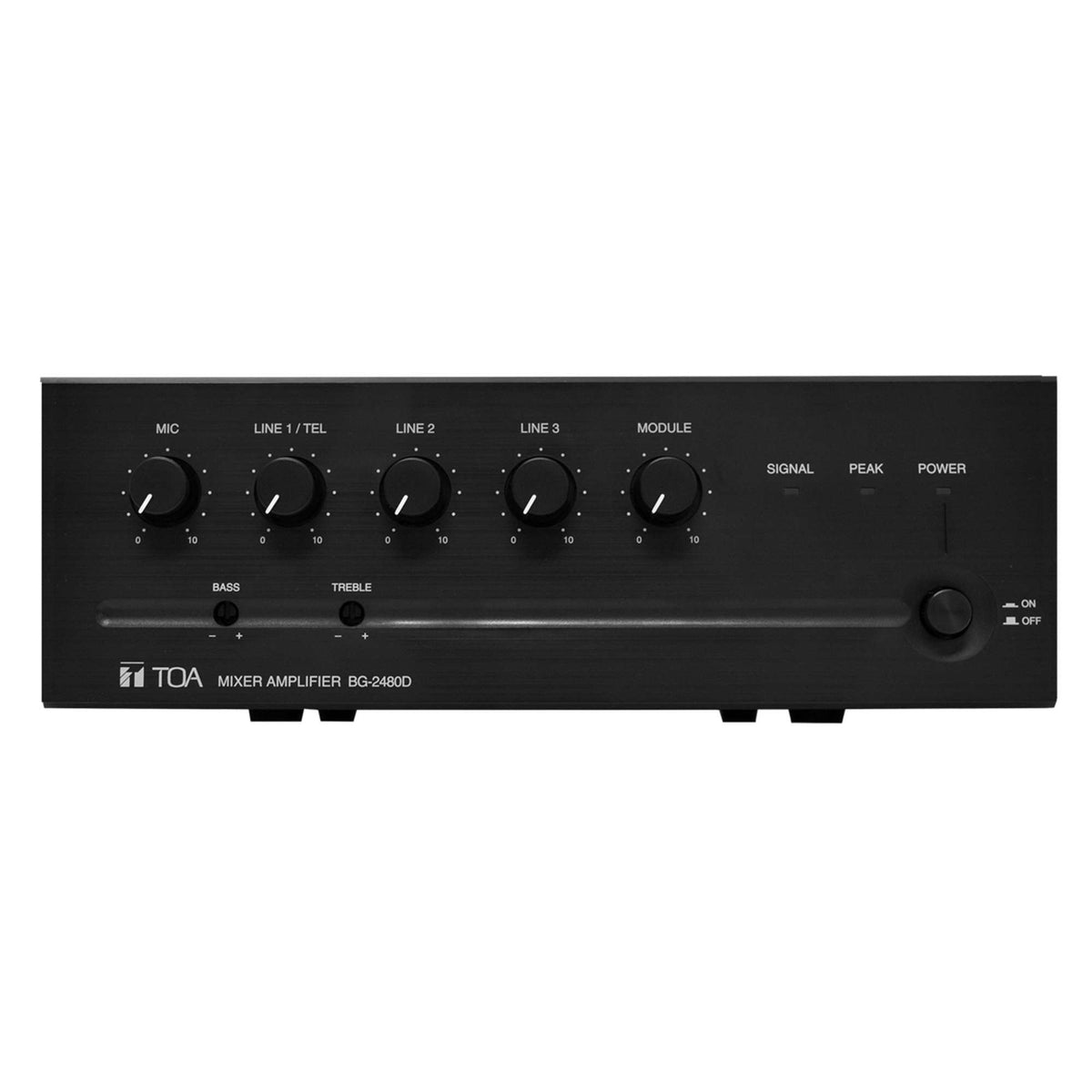

  • Front-Panel Bass And Treble EQ With Optional Locking Security Covers

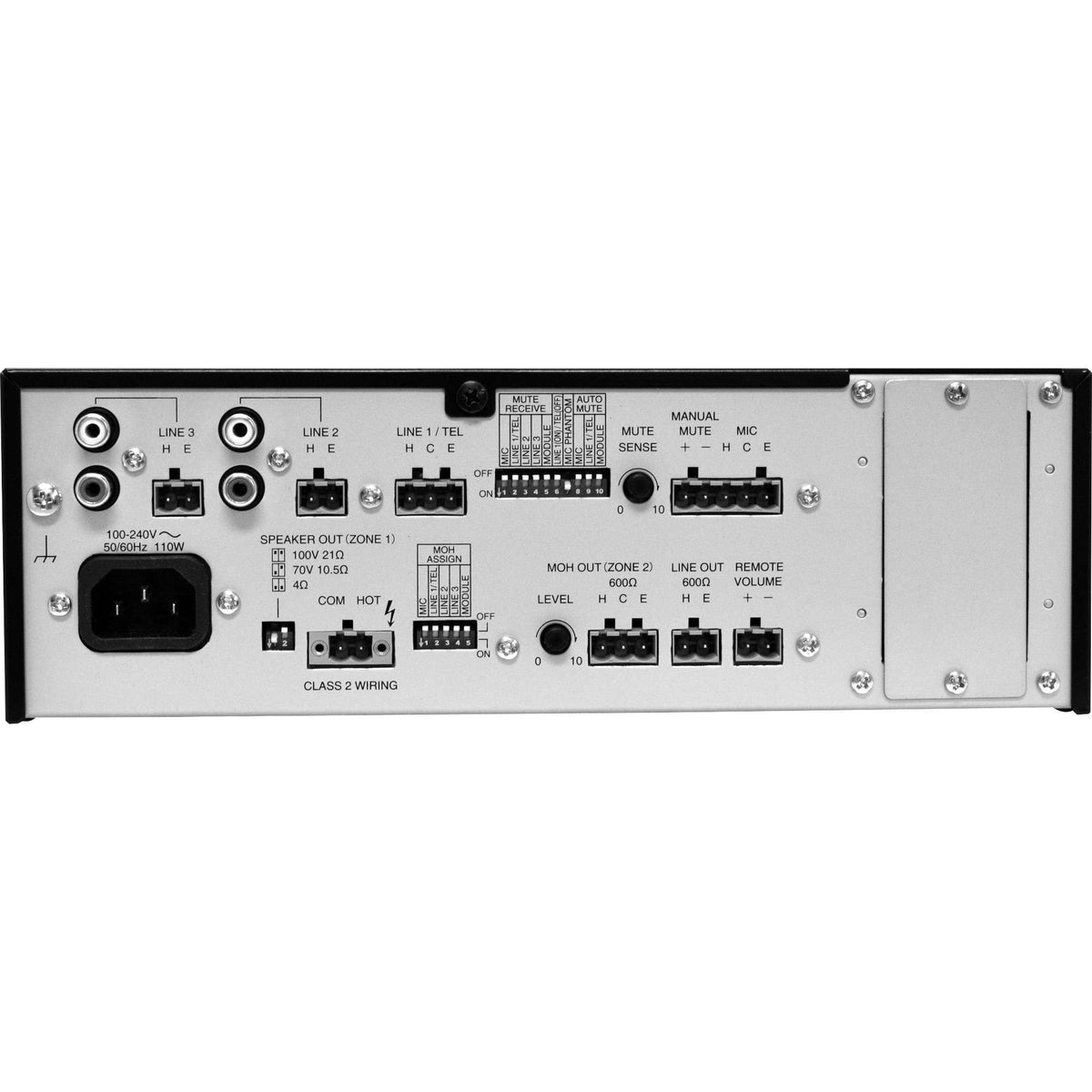

  • Removable Terminal Blocks Simplify Initial Install And Future Service
  • Automatic Electronic Drive Limiter Protects Connected Speaker Systems
Log in or register for YOUR best price

The TOA BG-2480D-AM is engineered for commercial audio integrators who need a reliable, multi-output mixer amplifier in a compact footprint. Rated at 480W and capable of driving 4-ohm Lo-Z, 70V, and 100V speaker lines simultaneously, it handles the full range of distributed audio requirements found in retail, hospitality, house of worship, and corporate environments without requiring an external step-up transformer.

Five inputs, including a balanced mic channel with phantom power, a TEL input for paging integration, Line 2 and 3 via RCA for quick source connection, and a dedicated 900 Series module slot, give integrators the flexibility to address complex signal routing without adding outboard gear. Automatic and manual mute, DIP-switch-configurable MOH output assignment, and a remote volume control input allow localized zone adjustments that suit multi-room commercial installations where end-user access must be managed carefully.

The fan-cooled Class D output stage keeps the unit lightweight and thermally efficient in rack environments where heat management is a real concern. An automatic electronic drive limiter protects connected speaker systems from overload, and front-panel bass and treble controls with optional security covers give system operators precise EQ without risking accidental tampering. Removable terminal blocks throughout simplify initial wiring and future service calls in installed environments.

Downloads

View full details

Specifications

Audio
Rated Output
480W
Output Impedances
Lo-Z (4 ohm), 70V (10.5 ohm), 100V (21 ohm)
Frequency Response
50Hz-20kHz (LINE)
Total Harmonic Distortion
0.8% or less at 1kHz, 1/3 rated output
Signal To Noise Ratio
Mic: Over 60dB; Line 1/TEL, Line 2, 3, Module: Over 80dB (A-Weighted, Tone Controls Centered)
Output Regulation
2dB or less, no load to full load (1kHz)
Tone Control
Bass: +/-10dB at 100Hz; Treble: +/-10dB at 10kHz
Phantom Power
+24V DC, On/Off switchable
Muting
Manual mute / Automatic mute
Connectivity
Mic Input
-60dB*, 600 ohm, electronically balanced, removable terminal block
Speaker Output
Lo-Z (4 ohm), 70V (10.5 ohm), 100V (21 ohm), balanced, removable terminal block
MOH Output
0dB*, 600 ohm, balanced, removable terminal block
Line 2 And 3 Inputs
RCA jacks
Module Slot
One 900 Series module slot
Controls And Indicators
Controls
Mic gain, Line 1/TEL gain, Line 2 gain, Line 3 gain, Module gain, Bass tone, Treble tone, MOH out gain, Manual mute, Remote volume, Mute sensitivity, Line 1/TEL selector, Phantom power switch
Indicators
Power LED, Signal level LED, Peak LED
Electrical
Power Source
100-240V AC, 50/60Hz
Power Consumption
600W (rated output); 110W (per UL 60065 standards)
Cooling
Fan cooled
Dimensions
Dimensions
264(W) x 94.3(H) x 267.3(D) mm (10.39" x 3.71" x 10.52")
Rack Size
2U
Weight
Weight
3.5 kg (7.7 lbs)
Construction
Panel Finish
ABS resin, black
Case Finish
Steel plate, black, painted
Environmental
Operating Temperature
0 degrees C to 40 degrees C (32 degrees F to 104 degrees F)
Operating Humidity
35% to 80% RH (no condensation)
Included Items
Volume Control Cover
YA-920 x5
Removable Terminal Plug (2-pin)
x4
Removable Terminal Plug (3-pin)
x2
Removable Terminal Plug (screw 2-pin)
x1
Removable Terminal Plug (5-pin)
x1
Certifications
Optional Rack Bracket
MB-1000
